Name: Bipolar NEMA23 1A Stepper Motor 4 Wire Stepper Motor
Brand: China
SKU: B732,krt170
Price: 1210.0 PKR
Availability: InStock

Home Stepper Motors

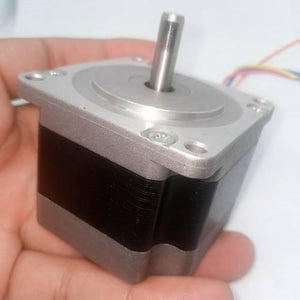

Bipolar NEMA23 1A Stepper Motor 4 Wire Stepper Motor - a silver and black square-bodied motor with a central metal shaft and multi-colored wires held in a hand.

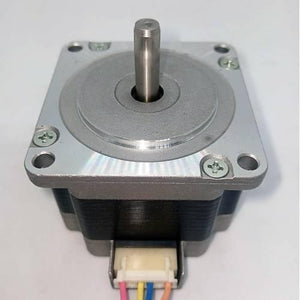

Bipolar NEMA23 1A Stepper Motor 4 Wire Stepper Motor - a silver-toned square motor with a central metal shaft and a four-wire connector at the base.

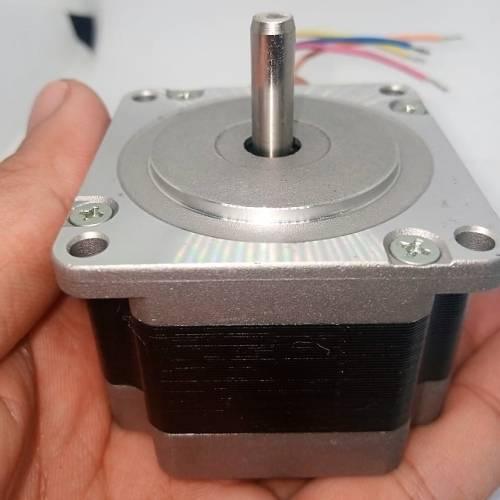

Bipolar NEMA23 1A Stepper Motor 4 Wire Stepper Motor - the silver square metal frame, central rotating shaft, and four colored wires.

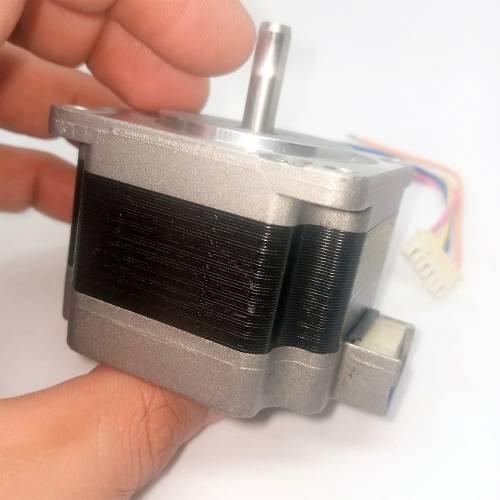

Bipolar NEMA23 1A Stepper Motor 4 Wire Stepper Motor - shown held in a hand, featuring a silver metal body, a protruding drive shaft, and a white four-pin connector cable.

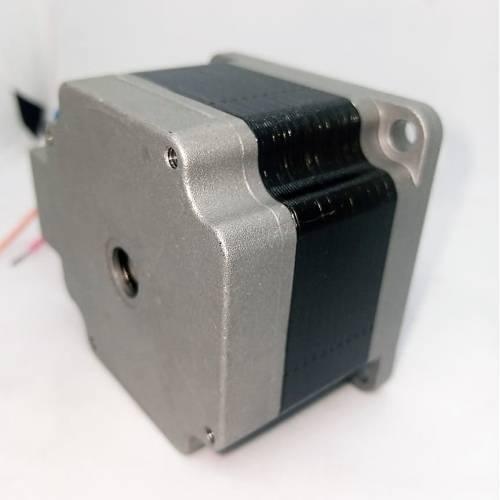

Bipolar NEMA23 1A Stepper Motor 4 Wire Stepper Motor - a grey metal stepper motor with a black laminated body and four wires extending from the rear.

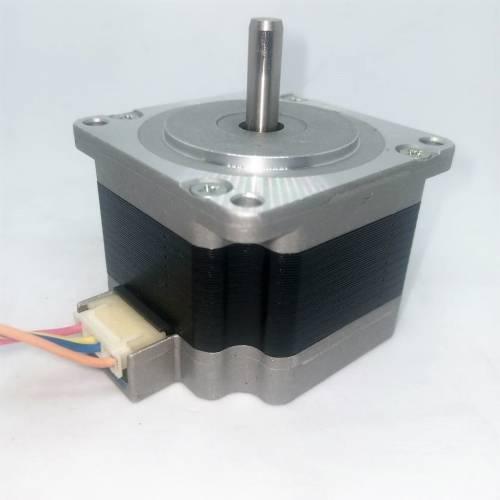

Bipolar NEMA23 1A Stepper Motor 4 Wire Stepper Motor - a silver and black square-bodied motor with a vertical metal shaft and a white four-pin connector with colored wires.

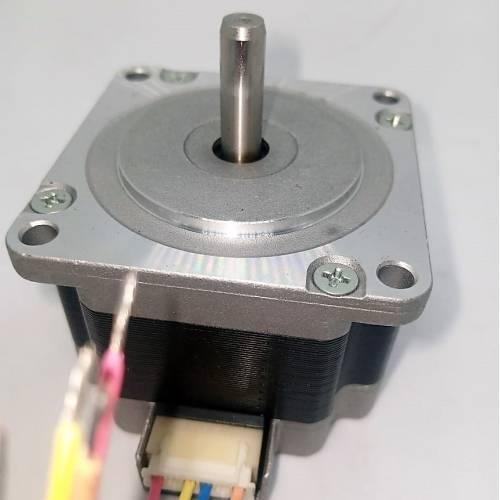

Bipolar NEMA23 1A Stepper Motor 4 Wire Stepper Motor - a silver square-flanged motor with a central shaft and a white four-pin connector with loose coloured wires.

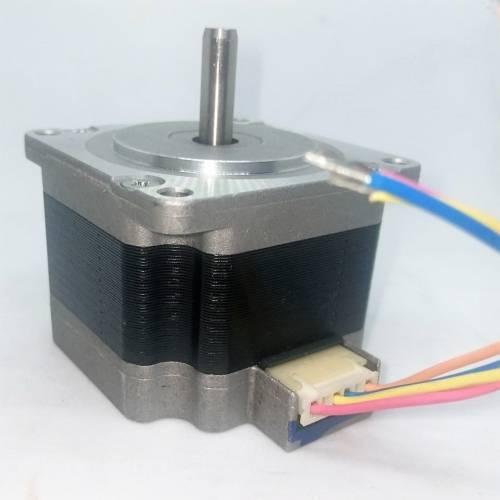

Bipolar NEMA23 1A Stepper Motor 4 Wire Stepper Motor - a silver and black square motor with a central metal shaft and a white plastic connector with four colored wires.

Bipolar NEMA23 1A Stepper Motor 4 Wire Stepper Motor

Rs 1,210

SKU: B732,krt170

Pickup available at Digilog Electronics

Usually ready in 2 hours

Bipolar NEMA23 1A Stepper Motor 4 Wire Stepper Motor

Rs 1,210

This Bipolar NEMA 23 stepper motor is compatible with TB6560 and DRV8825 stepper motor drivers and this high torque NEMA 23 is also very useful in many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters, etc. It has a quite stable performance during work and will not lose a step. This NEMA 23 1.8 degrees stepper motor is very useful in the various application, especially which demands low speed with high precision. Nema23 4 wire Bipolar Stepper Motor is High precision 4–wire bipolar stepper motor, size in Nema 23, 1.8 deg. step angle (200 … It is one of most parameters for the stepper motor).

Bipolar Nema23 1a Stepper Motor 4 Wire

Features Of 4 Wire Bipolar Nema 23 Stepper Motor:

It converts a train of input pulses into a precisely defined increment in the shaft position.
This is a high-quality motor that can be used for a long time without stuck.
It has a quite stable performance during work and will not lose a step.
Low noise and big torque,
This is a great choice if you need a stepper motor.
Stepper motor can be widely used for a 3D printer, CNC engraving machine, etc.

Specifications of CNC Router Bipolar Nema 23 Stepper Motor :

Step Angle: 1.8°
Phase Current: 1A
Phase Resistance: 1.5Ohm
Phase Inductance: 2.8mH
Holding Torque: 40N.cm
Rotor Inertia: 54g.cm⊃2;
Wire: 4(Blue, green, Black, red)
Max. Temperature Rise: 80℃ (rated current, 2 phase on)
Operating Temperature: -20℃~+70℃
Insulation Resistance: 100 MΩ Min. , 500VDC
Electric Strength: 500VAC for 1minute
Radial Clearance: 0.02Max. (450g-Load)
Axial Clearance: 0.08Max. (450g-Load)
Max. Axial Pressure: 15N

Package Includes:

1x 4 wire 2 A bipolar Nema 23.
