Type: Hybrid Stepper Motor

This type of stepper motor combines the features of both permanent magnet and variable reluctance stepper motors, offering better torque and accuracy.

NEMA 17 Frame Size:

• The motor has a frame size that adheres to the NEMA 17 standard, which means its mounting face is approximately 1.7 inches (42mm) square, a common size in 3D printers, CNC machines, and other automation systems.

Step Angle:

• 1.8° per step, meaning the motor rotates 200 steps per full revolution. This is typical for standard stepper motors and provides a balance of torque and precision.

Bipolar Stepper Motor:

• The 4-wire bipolar configuration means it requires a bipolar stepper motor driver for operation. Bipolar motors generally provide better torque compared to unipolar motors, as they utilize the windings more efficiently.

Holding Torque:

• The motor provides a high holding torque, which is crucial for maintaining a fixed position without movement when the motor is powered but not stepping.

Rated Voltage:

• This motor typically operates at a low voltage, around 3-5V, but is driven by current rather than voltage. The exact voltage depends on the driver and the desired current output.

Current per Phase:

• The current rating for each phase can vary, but it's typically in the range of 1.2-2.0 A per phase. This ensures strong torque performance under different load conditions.

Connector:

• The motor is equipped with a 6-wire harness, offering flexible wiring options for driving configurations.

Applications:

• 3D Printers
• CNC Machines
• Robotic Arms
• Industrial Automation
• Precise Positioning Systems

Shaft:

• The motor typically has a single shaft that can be coupled to gears, pulleys, or other mechanical systems for transferring rotational motion.

Key Features:

• High Precision: The motor provides accurate and repeatable positioning, making it suitable for applications requiring precise movement.
• Smooth Operation: With fine control of the stepper motor's position, it ensures smooth and controlled motion.
• Durable Construction: Minebea motors are known for their high build quality and durability, ensuring reliable performance in industrial environments.

The 17PM-K142-P6WS stepper motor from Minebea offers reliable performance, high torque, and precise control, making it a popular choice for a variety of mechanical and automation applications

Package Included:

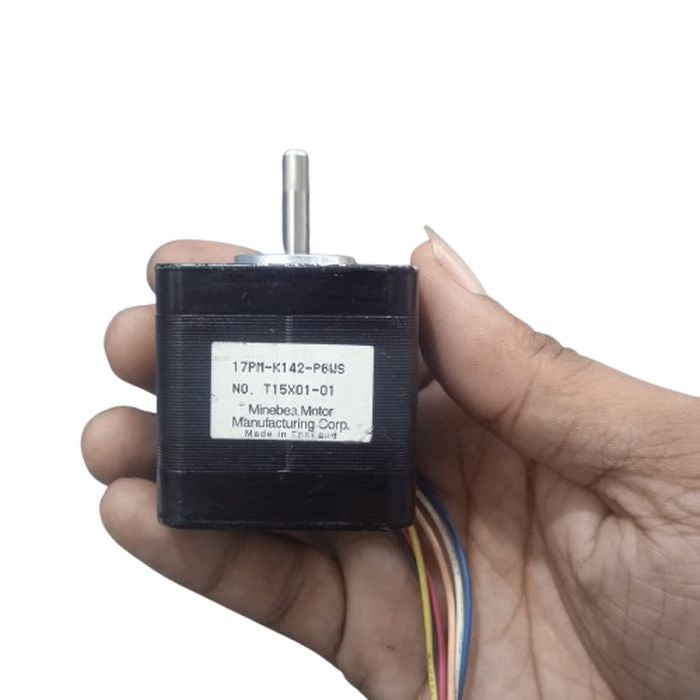

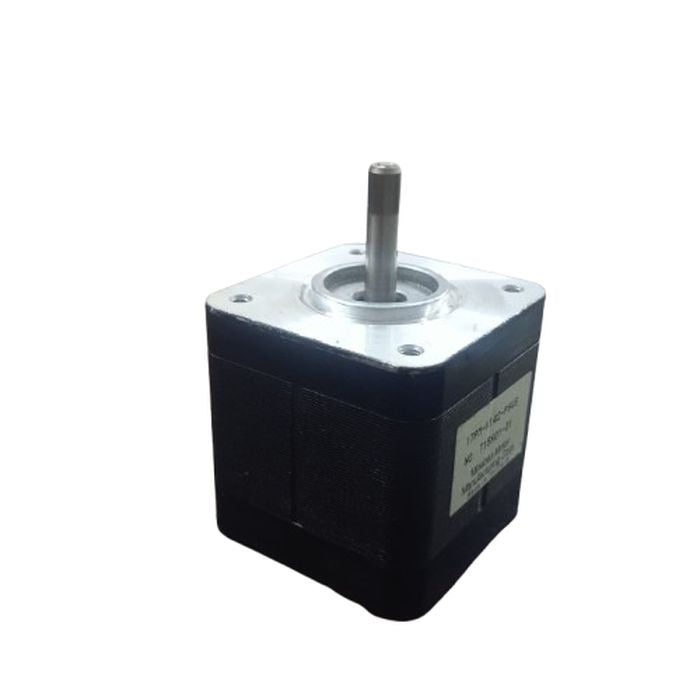

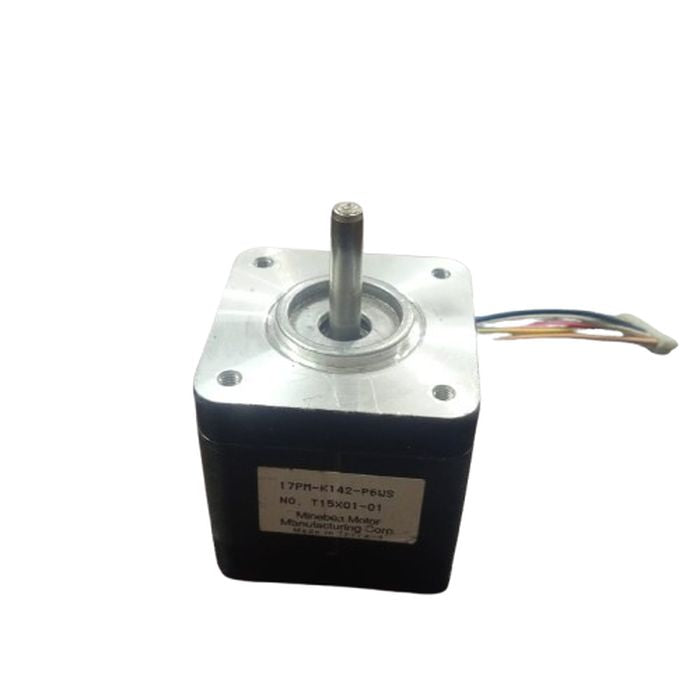

1x Minebea stepper Motor 17PM-K142-P6WS
