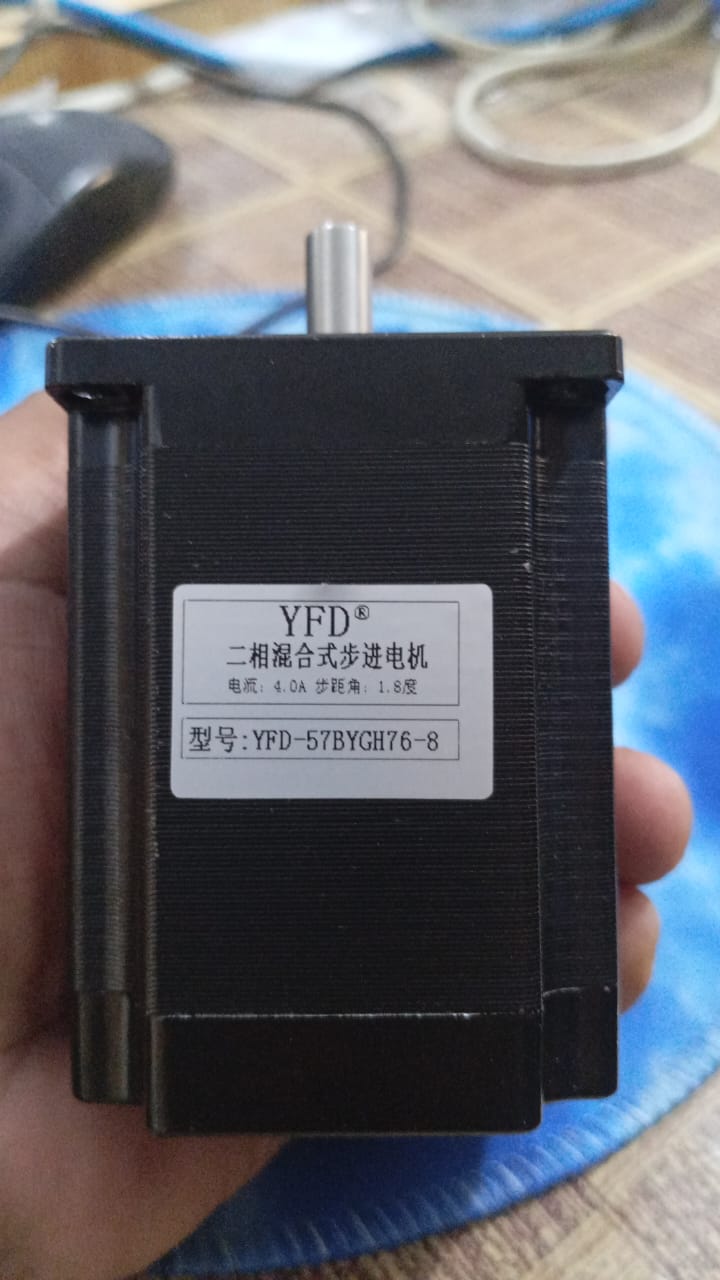

Brand New High Quality 57BYGH76 NEMA 23 Bipolar Stepper Motor 76mm 4.0A 1.8nm - a black square-bodied motor with a metal shaft and a white label showing specifications in Chinese and English.

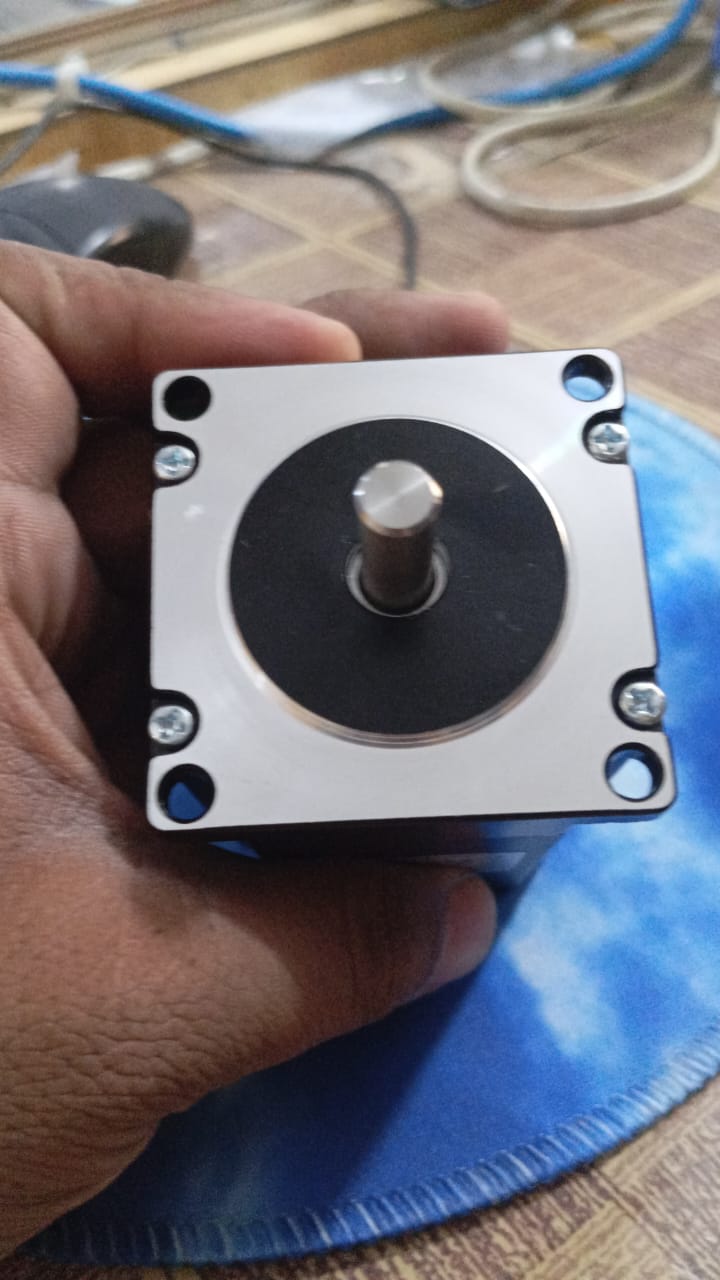

Brand New High Quality 57BYGH76 NEMA 23 Bipolar Stepper Motor 76mm 4.0A 1.8nm - a close-up of the square silver front face, the central rotating shaft, and four mounting holes.

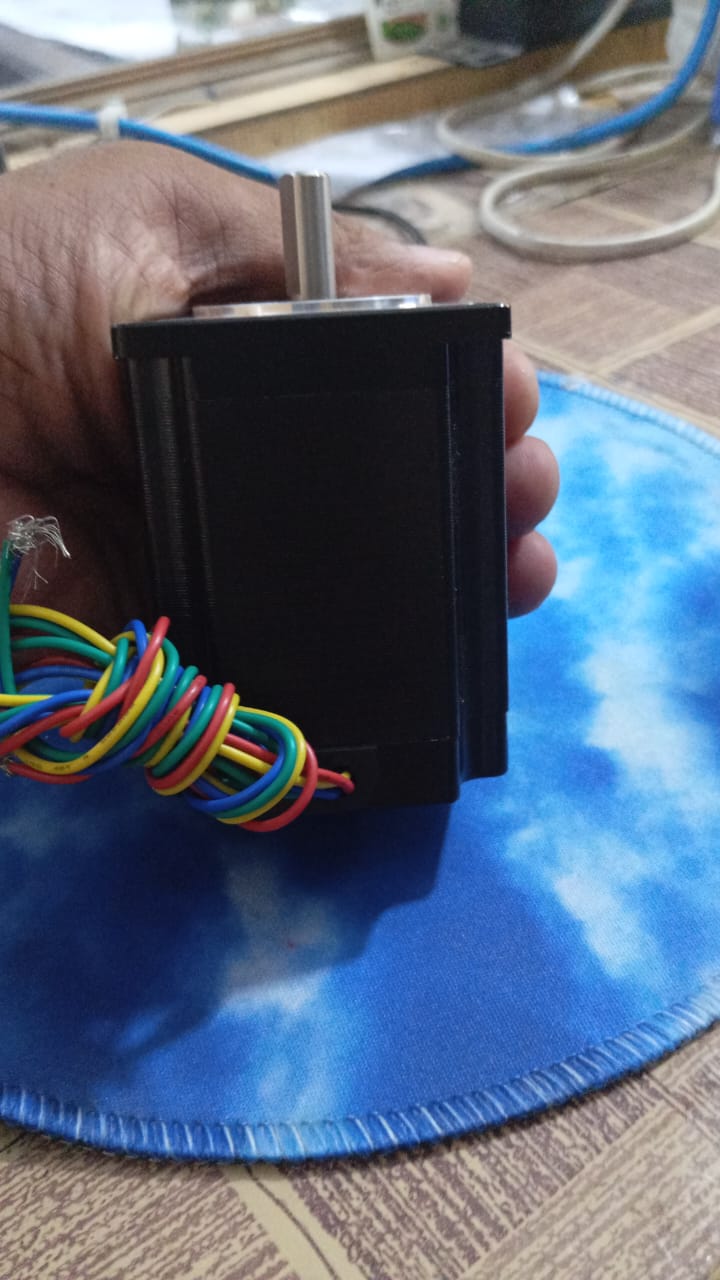

Brand New High Quality 57BYGH76 NEMA 23 Bipolar Stepper Motor 76mm 4.0A 1.8nm - the black cylindrical body, metal shaft, and a bundle of multi-colored wires.
Brand New High Quality 57BYGH76 NEMA 23 Bipolar Stepper Motor 76mm 4.0A 1.8nm - a black square-bodied motor with a metal shaft and a white label showing specifications in Chinese and English.
Brand New High Quality 57BYGH76 NEMA 23 Bipolar Stepper Motor 76mm 4.0A 1.8nm - a close-up of the square silver front face, the central rotating shaft, and four mounting holes.
Brand New High Quality 57BYGH76 NEMA 23 Bipolar Stepper Motor 76mm 4.0A 1.8nm - the black cylindrical body, metal shaft, and a bundle of multi-colored wires.

Brand New High Quality 57BYGH76 NEMA 23 Bipolar Stepper Motor 76mm 4.0A 1.8nm

Sale price Rs 9,580
SKU: b624
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

Brand New High Quality 57BYGH76 NEMA 23 Bipolar Stepper Motor 76mm 4.0A 1.8nm - a black square-bodied motor with a metal shaft and a white label showing specifications in Chinese and English.

Brand New High Quality 57BYGH76 NEMA 23 Bipolar Stepper Motor 76mm 4.0A 1.8nm

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
Brand New High Quality 57BYGH76 NEMA 23 Bipolar Stepper Motor 76mm 4.0A 1.8nm - a black square-bodied motor with a metal shaft and a white label showing specifications in Chinese and English.
Brand New High Quality 57BYGH76 NEMA 23 Bipolar Stepper Motor 76mm 4.0A 1.8nm
Sale priceRs 9,580

57BYGH76 NEMA 23 Bipolar Stepper Motor 76mm 4.0A 1.8Nm

DESCRIPTION
No. of Phase: 2 Phase 4-wires.

Rated Phase Current: 2.8A.
Phase Resistance: 1.0?.
Phase Inductance: 5.0mH.
Step Angle: 1.80.
Shaft Diameter: ?8.00mm D-Shape.
Rated Voltage: 12V – 24V DC.
Holding Torque: 176Ncm.
Connector: XH 4-pins 2.54mm pitch.
Wire length: 100cm.
Frame size: 56mm x 56mm.
Motor Body Length LMAX: 76mm.
