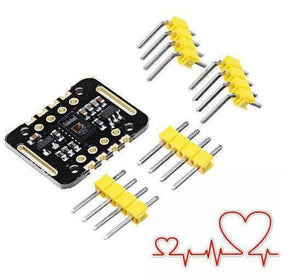

SPO2 MAX30102 Blood Oxygen Concentration Sensor PPG Sensor - the black rectangular sensor module and four yellow four-pin headers on a white background.

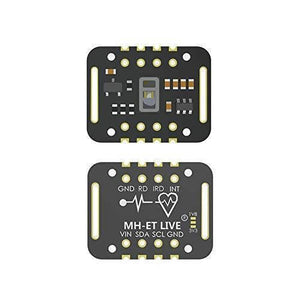

SPO2 MAX30102 Blood Oxygen Concentration Sensor PPG Sensor - a top view of the sensor component and a bottom view with labeled pinouts for VIN, SDA, SCL, GND, RD, and IRD.

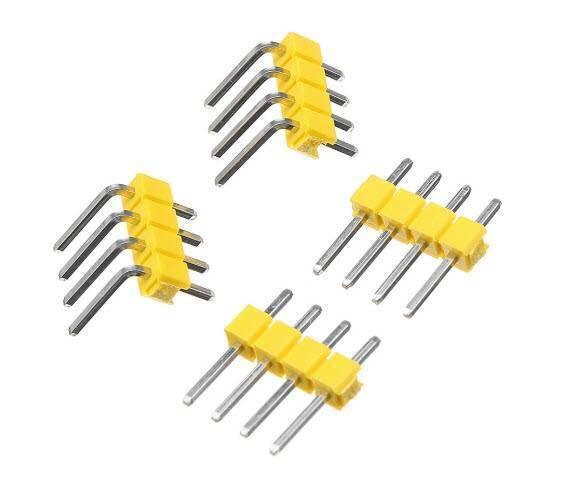

SPO2 MAX30102 Blood Oxygen Concentration Sensor PPG Sensor - four yellow, right-angled four-pin male header connectors.

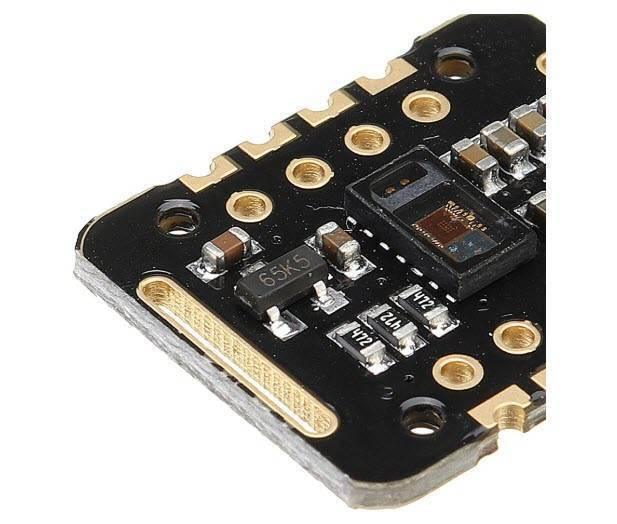

SPO2 MAX30102 Blood Oxygen Concentration Sensor PPG Sensor - a close-up view of the black rectangular circuit board featuring a central sensor and mounted components.

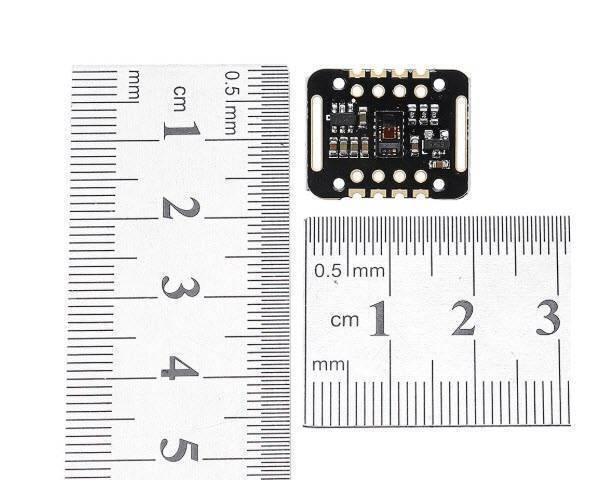

SPO2 MAX30102 Blood Oxygen Concentration Sensor PPG Sensor - shown next to two metal rulers to demonstrate its small physical dimensions.

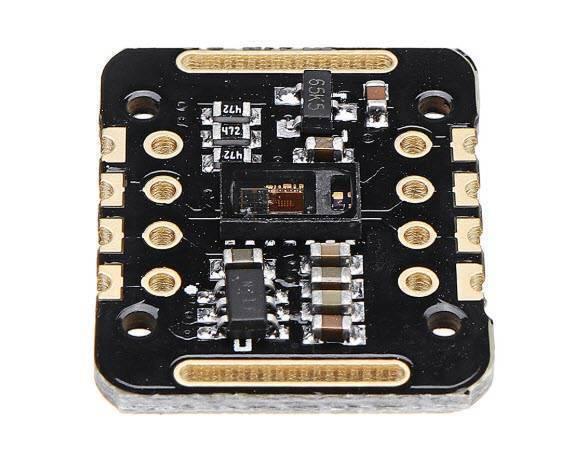

SPO2 MAX30102 Blood Oxygen Concentration Sensor PPG Sensor - a black square circuit board with a central sensor component, gold-plated edge connectors, and pins.
SPO2 MAX30102 Blood Oxygen Concentration Sensor PPG Sensor - the black rectangular sensor module and four yellow four-pin headers on a white background.
SPO2 MAX30102 Blood Oxygen Concentration Sensor PPG Sensor - a top view of the sensor component and a bottom view with labeled pinouts for VIN, SDA, SCL, GND, RD, and IRD.
SPO2 MAX30102 Blood Oxygen Concentration Sensor PPG Sensor - four yellow, right-angled four-pin male header connectors.
SPO2 MAX30102 Blood Oxygen Concentration Sensor PPG Sensor - a close-up view of the black rectangular circuit board featuring a central sensor and mounted components.
SPO2 MAX30102 Blood Oxygen Concentration Sensor PPG Sensor - shown next to two metal rulers to demonstrate its small physical dimensions.
SPO2 MAX30102 Blood Oxygen Concentration Sensor PPG Sensor - a black square circuit board with a central sensor component, gold-plated edge connectors, and pins.

SPO2 MAX30102 Blood Oxygen Concentration Sensor PPG Sensor

Sale price Rs 460
SKU: B119,KRT10,IMP100,Th50,A
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

SPO2 MAX30102 Blood Oxygen Concentration Sensor PPG Sensor - the black rectangular sensor module and four yellow four-pin headers on a white background.

SPO2 MAX30102 Blood Oxygen Concentration Sensor PPG Sensor

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map

The MAX30102 Blood Oxygen Sensor Module is a high-performance device for measuring heart rate and blood oxygen saturation. With its integrated red and infrared LEDs, photodetector, and advanced algorithms, the MAX30102 provides accurate and reliable readings.

Key Features:

  • Accurate Heart Rate and Blood Oxygen Measurement: Monitor vital health metrics with precision.
  • Low Power Consumption: Suitable for battery-powered devices.
  • I2C Interface: Easily integrate with microcontrollers for data collection and analysis.
  • Ambient Light Suppression: Ensures accurate readings even in challenging lighting conditions.
  • Durable Construction: Built to last for long-term use.

Upgrade your health monitoring projects with the MAX30102 Blood Oxygen Sensor Module and gain valuable insights into your health.




Code:

#include <Wire.h>
#include "MAX30105.h"

MAX30105 particleSensor; // initialize MAX30102 with I2C

void setup()
{
  Serial.begin(115200);
  while(!Serial); //We must wait for Teensy to come online
  delay(100);
  Serial.println("");
  Serial.println("MAX30102");
  Serial.println("");
  delay(100);
  // Initialize sensor
  if (particleSensor.begin(Wire, I2C_SPEED_FAST) == false) //Use default I2C port, 400kHz speed
  {
    Serial.println("MAX30105 was not found. Please check wiring/power. ");
    while (1);
  }

  byte ledBrightness = 70; //Options: 0=Off to 255=50mA
  byte sampleAverage = 1; //Options: 1, 2, 4, 8, 16, 32
  byte ledMode = 2; //Options: 1 = Red only, 2 = Red + IR, 3 = Red + IR + Green
  int sampleRate = 400; //Options: 50, 100, 200, 400, 800, 1000, 1600, 3200
  int pulseWidth = 69; //Options: 69, 118, 215, 411
  int adcRange = 16384; //Options: 2048, 4096, 8192, 16384

  particleSensor.setup(ledBrightness, sampleAverage, ledMode, sampleRate, pulseWidth, adcRange); //Configure sensor with these settings
}

void loop() {
  particleSensor.check(); //Check the sensor
  while (particleSensor.available()) {
      // read stored IR
      Serial.print(particleSensor.getFIFOIR());
      Serial.print(",");
      // read stored red
      Serial.println(particleSensor.getFIFORed());
      // read next set of samples
      particleSensor.nextSample();
  }
}

Second code:


/*
  Optical Heart Rate Detection (PBA Algorithm) using the MAX30105 Breakout
  By: Nathan Seidle @ SparkFun Electronics
  Date: October 2nd, 2016
  https://github.com/sparkfun/MAX30105_Breakout

  This is a demo to show the reading of heart rate or beats per minute (BPM) using
  a Penpheral Beat Amplitude (PBA) algorithm.

  It is best to attach the sensor to your finger using a rubber band or other tightening
  device. Humans are generally bad at applying constant pressure to a thing. When you
  press your finger against the sensor it varies enough to cause the blood in your
  finger to flow differently which causes the sensor readings to go wonky.

  Hardware Connections (Breakoutboard to Arduino):
  -5V = 5V (3.3V is allowed)
  -GND = GND
  -SDA = A4 (or SDA)
  -SCL = A5 (or SCL)
  -INT = Not connected

  The MAX30105 Breakout can handle 5V or 3.3V I2C logic. We recommend powering the board with 5V
  but it will also run at 3.3V.
*/

#include <Wire.h>
#include "MAX30105.h"

#include "heartRate.h"

MAX30105 particleSensor;

const byte RATE_SIZE = 4; //Increase this for more averaging. 4 is good.
byte rates[RATE_SIZE]; //Array of heart rates
byte rateSpot = 0;
long lastBeat = 0; //Time at which the last beat occurred

float beatsPerMinute;
int beatAvg;

void setup()
{
  Serial.begin(115200);
  Serial.println("Initializing...");

  // Initialize sensor
  if (!particleSensor.begin(Wire, I2C_SPEED_FAST)) //Use default I2C port, 400kHz speed
  {
    Serial.println("MAX30105 was not found. Please check wiring/power. ");
    while (1);
  }
  Serial.println("Place your index finger on the sensor with steady pressure.");

  particleSensor.setup(); //Configure sensor with default settings
  particleSensor.setPulseAmplitudeRed(0x0A); //Turn Red LED to low to indicate sensor is running
  particleSensor.setPulseAmplitudeGreen(0); //Turn off Green LED
}

void loop()
{
  long irValue = particleSensor.getIR();

  if (checkForBeat(irValue) == true)
  {
    //We sensed a beat!
    long delta = millis() - lastBeat;
    lastBeat = millis();

    beatsPerMinute = 60 / (delta / 1000.0);

    if (beatsPerMinute < 255 && beatsPerMinute > 20)
    {
      rates[rateSpot++] = (byte)beatsPerMinute; //Store this reading in the array
      rateSpot %= RATE_SIZE; //Wrap variable

      //Take average of readings
      beatAvg = 0;
      for (byte x = 0 ; x < RATE_SIZE ; x++)
        beatAvg += rates[x];
      beatAvg /= RATE_SIZE;
    }
  }

  Serial.print("IR=");
  Serial.print(irValue);
  Serial.print(", BPM=");
  Serial.print(beatsPerMinute);
  Serial.print(", Avg BPM=");
  Serial.print(beatAvg);

  if (irValue < 50000)
    Serial.print(" No finger?");

  Serial.println();
}



Frequently Bought Together

SPO2 Pulse Oximeter Heart Rate Sensor Module MAX30100 Ppg Sensor - shown as a green circuit board with a sensor and a separate seven-pin male header connector. SPO2 Pulse Oximeter Heart Rate Sensor Module MAX30100 Ppg Sensor - a green circuit board with a six-pin header and an inset showing the sensor from another angle.
Log in to use Wishlist
Add to Compare

SPO2 Pulse Oximeter Heart Rate Sensor Module MAX30100 Ppg Sensor

Sale priceRs 410
Heart Beat Detector Module Ky 039 Heart Rate Sensor - a black circuit board with a clear LED, a small square sensor, and a three-pin connector. Heart Beat Detector Module Ky 039 Heart Rate Sensor - a small black circuit board featuring a clear LED, a light sensor, and a three-pin connector.
Log in to use Wishlist
Add to Compare

Heart Beat Detector Module Ky 039 Heart Rate Sensor

Sale priceRs 100
AD8232 Keyes Single Lead Heart Rate Monitor - with a red circuit board, a 3.5mm jack cable with three coloured clips, and several ECG electrode pads. AD8232 Keyes Single Lead Heart Rate Monitor - with a red circuit board, a 3.5mm jack cable with three coloured electrode snaps, and three pads.
Log in to use Wishlist
Add to Compare

AD8232 Keyes Single Lead Heart Rate Monitor

Sale priceRs 1,750
Pulse Sensor Pulse Heart Rate Sensor Arduino Heartbeat Sensor - a close-up of the circular heart-shaped black and white PCB held by fingers with three attached red, black, and purple wires. Pulse Sensor Pulse Heart Rate Sensor Arduino Heartbeat Sensor - connected to an Arduino Uno board with a finger on the sensor and a pulse graph displayed on a computer screen.
Log in to use Wishlist
Add to Compare

Pulse Sensor Pulse Heart Rate Sensor Arduino Heartbeat Sensor

Sale priceRs 410

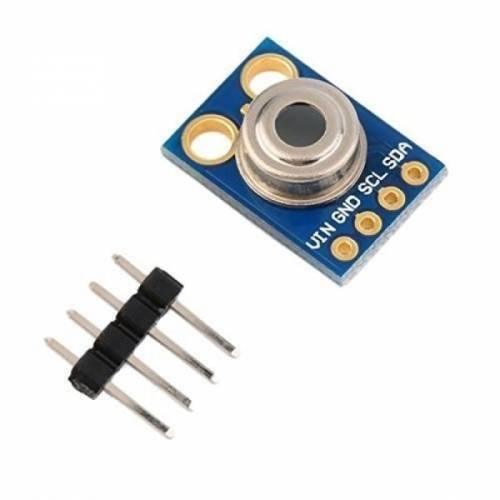

Digital Infrared Temperature Sensor Module MLX90614 - shown as a blue circuit board with a circular sensor and a separate four-pin header connector. Digital Infrared Temperature Sensor Module MLX90614 - the blue circuit board with a metal sensor and a separate four-pin header connector.
Log in to use Wishlist
Add to Compare

Digital Infrared Temperature Sensor Module MLX90614

Sale priceRs 1,670

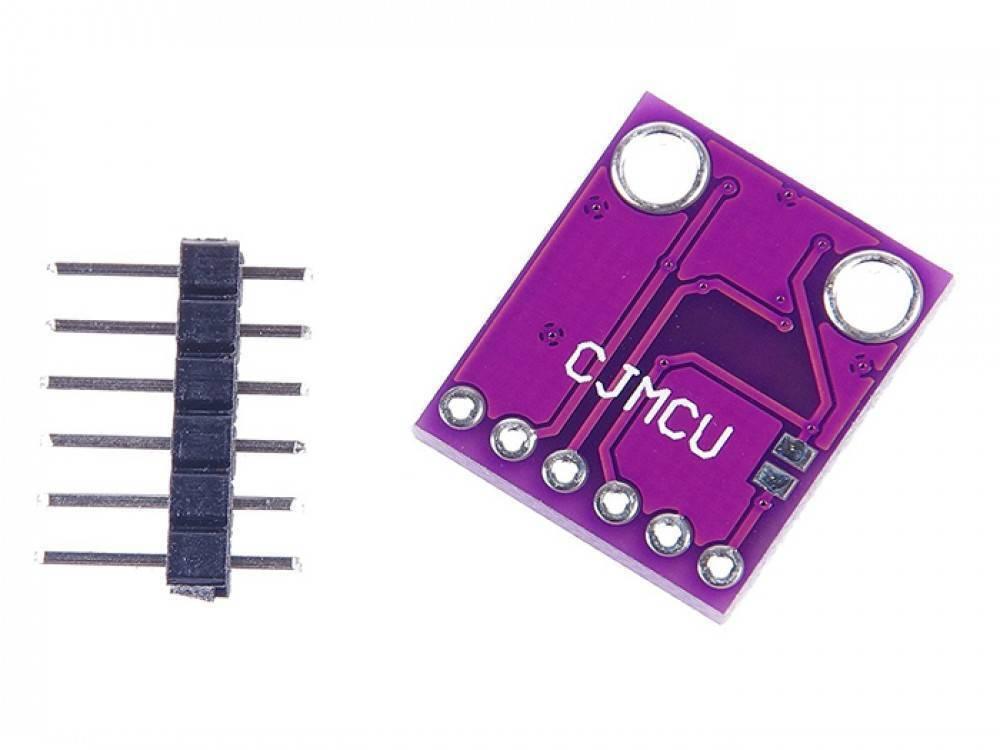

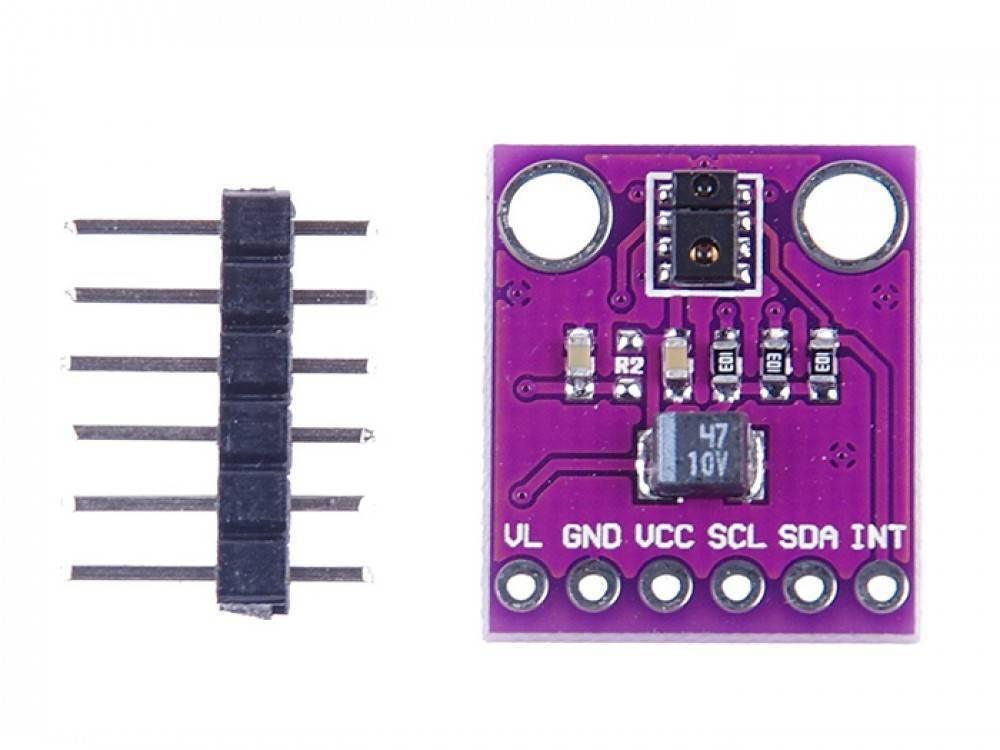

Apds-9930 RGB Infrared Gesture Sensor - a purple circuit board with six pin labels and a separate six-pin header strip. Apds-9930 RGB Infrared Gesture Sensor - a purple circuit board with a six-pin header connector next to it.
