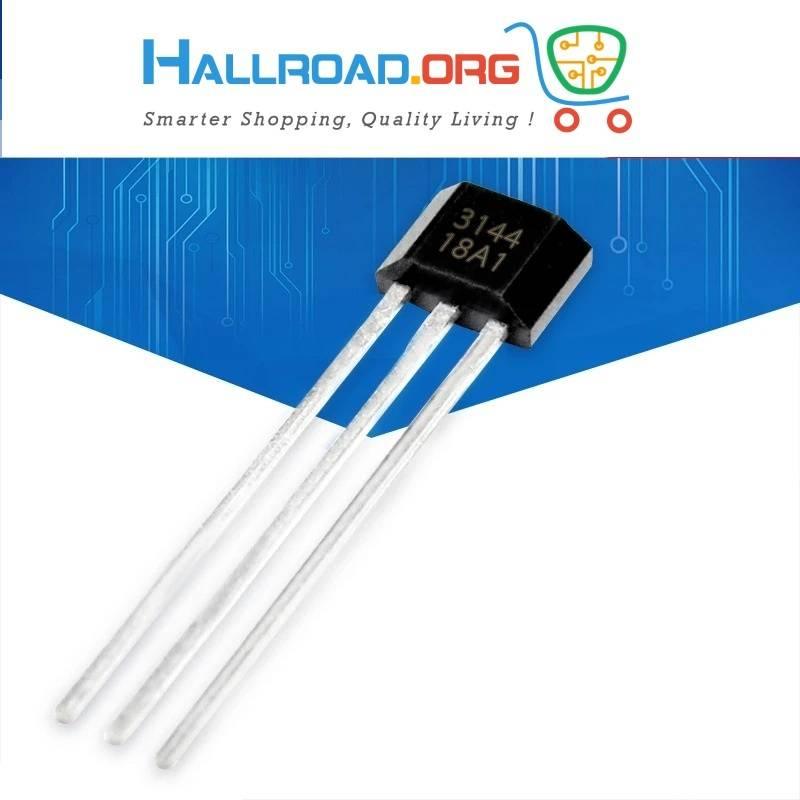

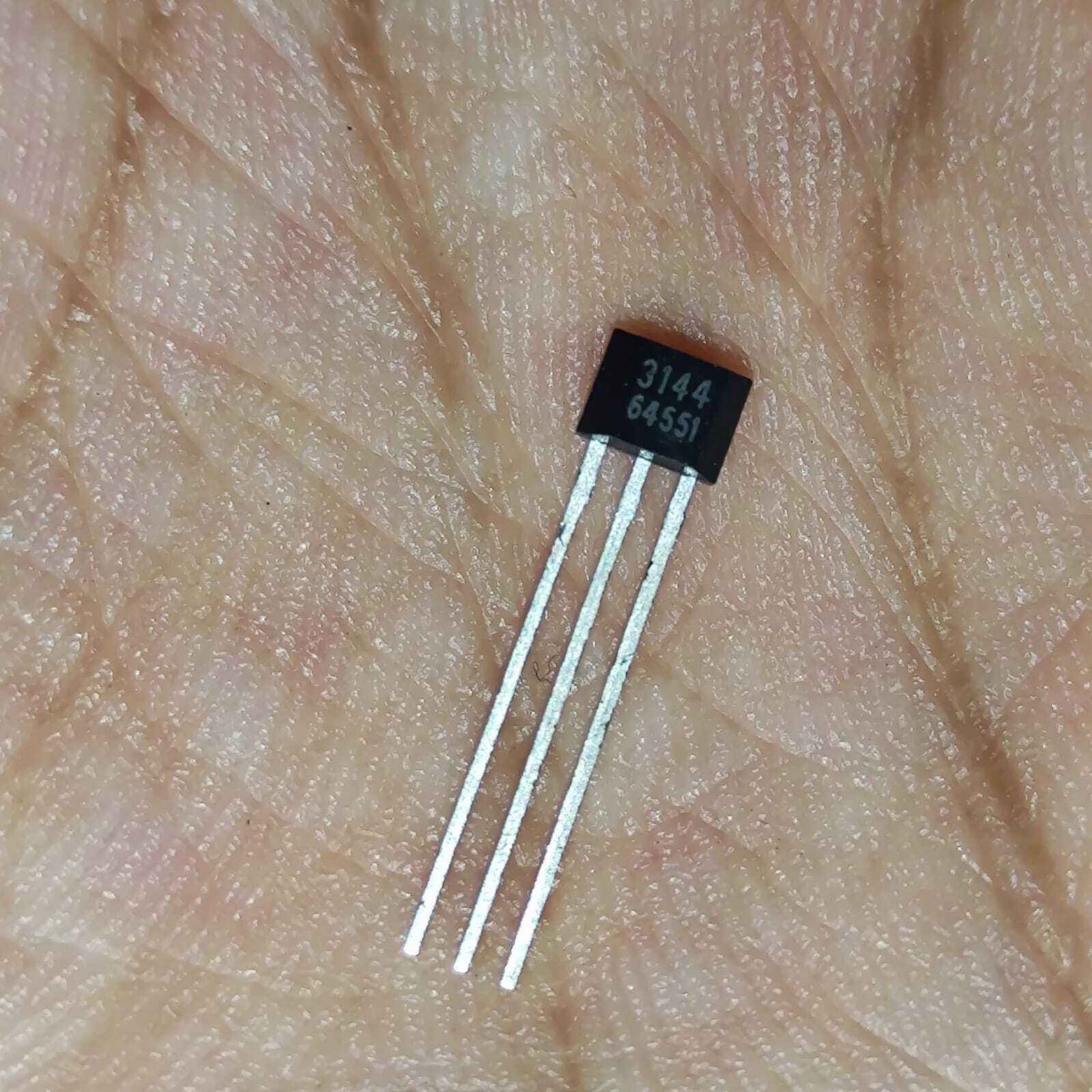

A3144E Hall Effect Sensor 44E
The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifies the Hall voltage, and a Schmitt trigger to provide switching hysteresis for noise rejection, and open-collector output. An internal bandgap regulator is used to provide temperature compensated supply voltage for internal circuits and allows a wide operating supply range.
If a magnetic flux density larger than threshold Bop, DO is turned on (low). The output state is held until a magnetic flux density reversal falls below Brp causing DO to be turned off (high).
Features A3144E Hall Effect Sensor 44E In Pakistan:
- 3.5V to 24V DC operation voltage
- Low current consumption
- Temperature compensation
- Wide operating voltage range
- Open-Collector pre-driver
- 50mA maximum sinking output current
- Reverse polarity protection
Frequently Bought Together
41F Hall Bipolar Element Electric Car Motor Sensor Hall Sensor buy

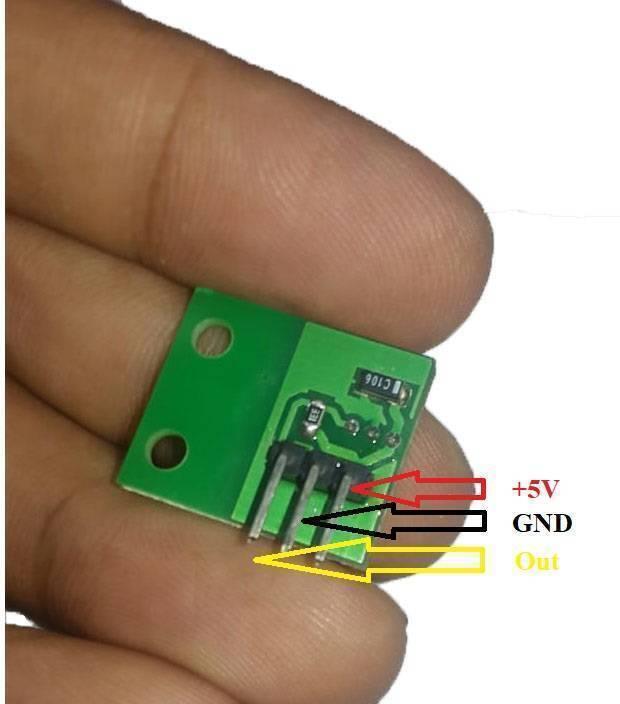

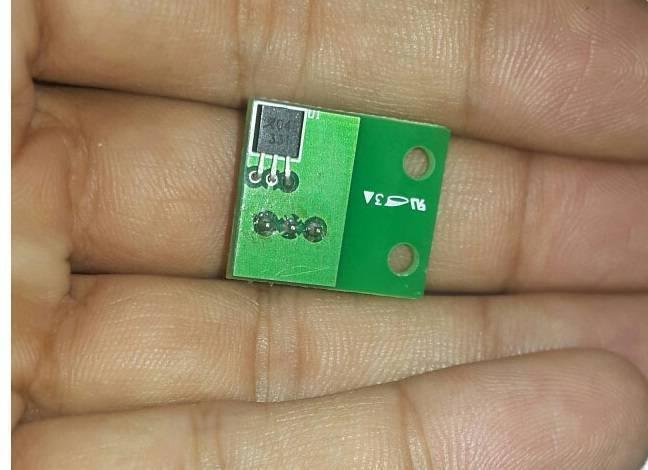

A1104E A04E New Original Hall Monopole Switch Small Volume TO-92uA

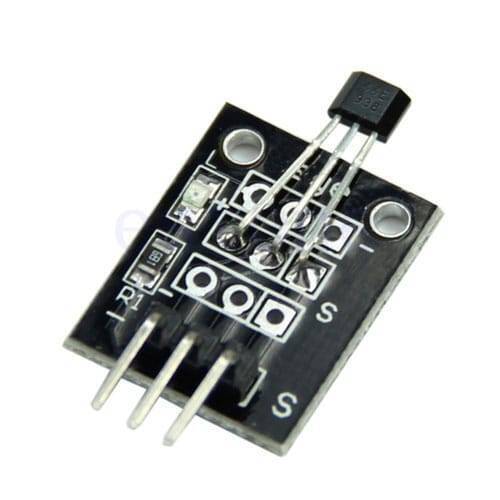

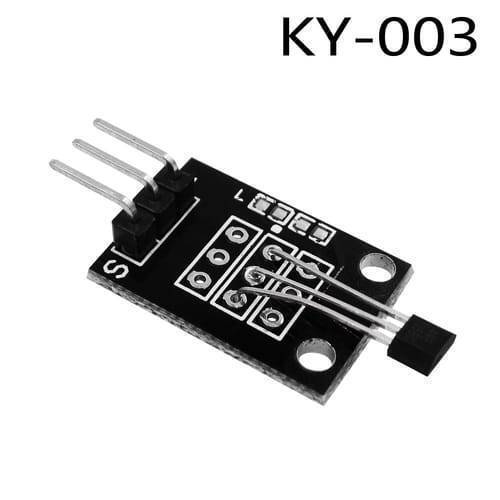

Ky 003 Hall Magnetic Force Sensor Module For Arduino Hall Effect
