Name: 150W DC To DC Boost Converter 10 32V To 12 35V 6A Step Up Power Supply Module
Brand: Digilog Electronics
SKU: B77,KRT174,krt176,IMP200,Th100,S
Price: 560.0 PKR
Availability: InStock

Home Power Supplies & Adapters

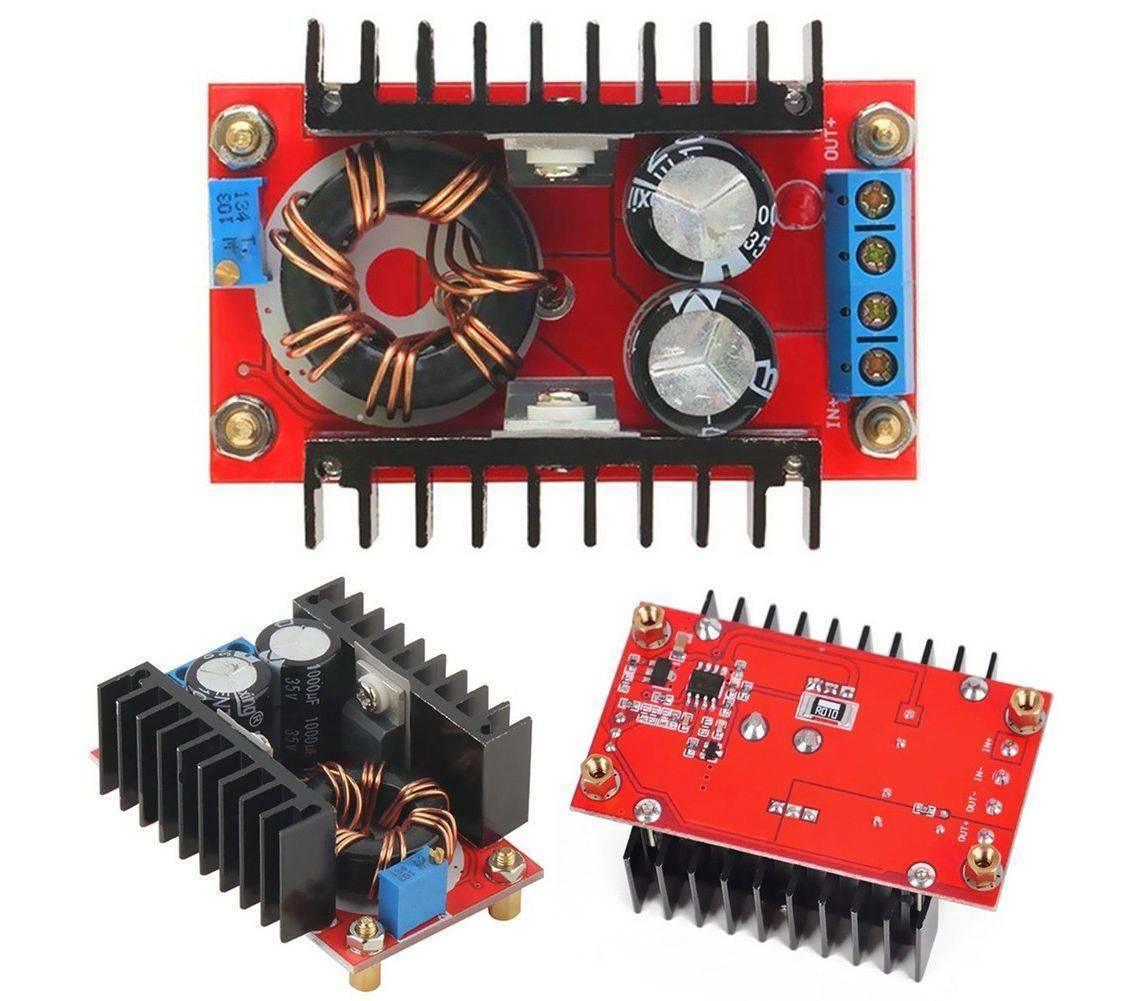

150W DC To DC Boost Converter 10 32V To 12 35V 6A Step Up Power Supply Module - three views of a red circuit board with heat sinks, a toroidal inductor, two capacitors, and screw terminal ports.

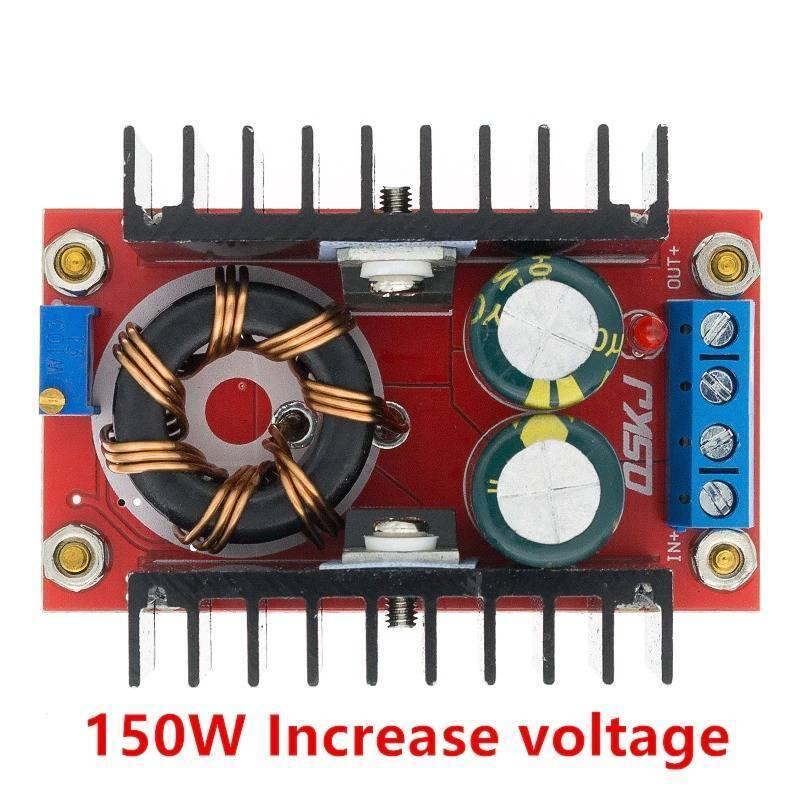

150W DC To DC Boost Converter 10 32V To 12 35V 6A Step Up Power Supply Module - a red circuit board with a large copper inductor, two capacitors, heatsinks, screw terminals, and a blue potentiometer.

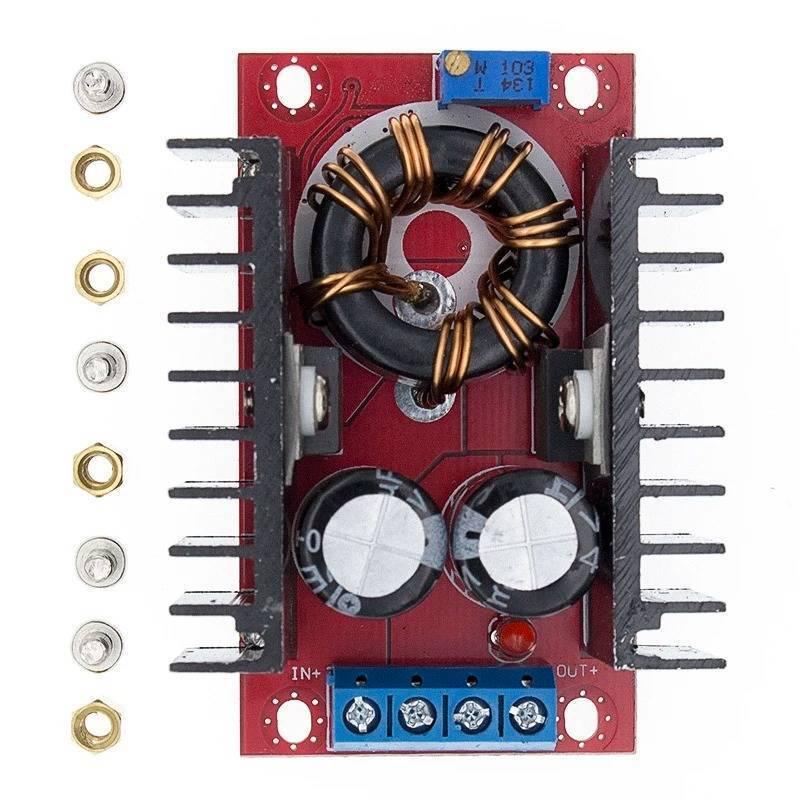

150W DC To DC Boost Converter 10 32V To 12 35V 6A Step Up Power Supply Module - a red circuit board with a toroidal inductor, two heat sinks, a blue screw terminal, a potentiometer, and hardware.

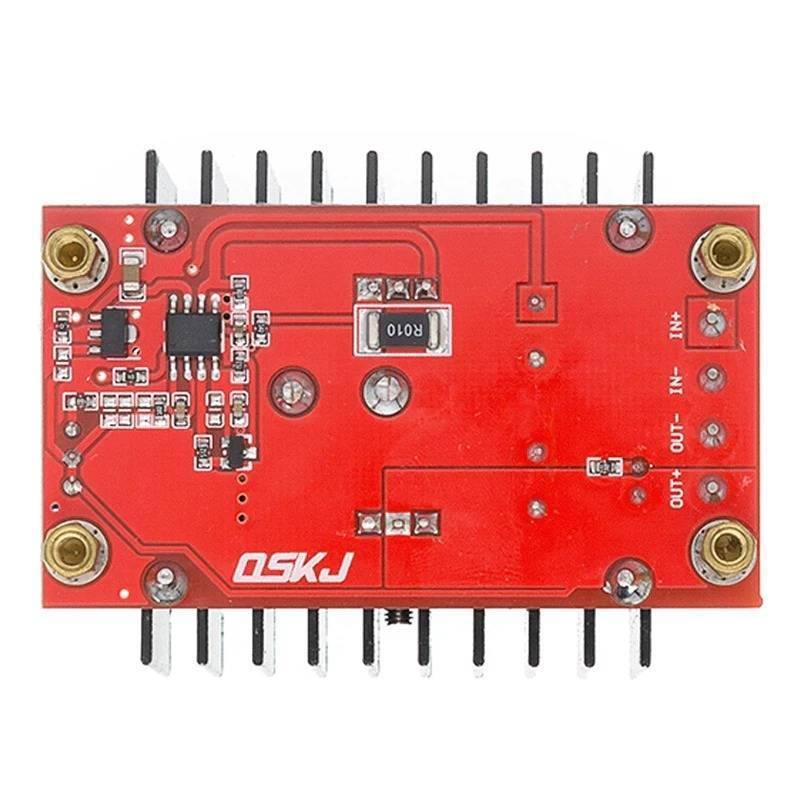

150W DC To DC Boost Converter 10 32V To 12 35V 6A Step Up Power Supply Module - a red rectangular circuit board with a heatsink, an R010 resistor, and labeled IN+, IN-, OUT-, and OUT+ terminals.

150W DC To DC Boost Converter 10 32V To 12 35V 6A Step Up Power Supply Module

Rs 560

SKU: B77,KRT174,krt176,IMP200,Th100,S

Pickup available at Digilog Electronics

Usually ready in 2 hours

150W DC To DC Boost Converter 10 32V To 12 35V 6A Step Up Power Supply Module

Rs 560

This 150W DC-DC Boost Converter 10-32V to 12-35V module allows you to step up an input voltage as low as 10V and set the output to 12V-35V. The output voltage will be higher than the input voltage. In addition the boost converter design is based on popular Texas Instrument’s UC3844 current mode PWM controller chip.

New 150W DC-DC Boost Converter 10-32V to 12-35V 6A Step Up Power Supply Module Power Regulators & Converters Electrical Equipment & Supplies Electronic Components & Semiconductors

Applications of 150W DC-DC Boost Converter :

Run Laptop on DC12V Car battery. (Laptops usually require 17V – 18V DC.)
Run Communication equipment on a single 12V lead-acid battery that is rated for operation at 24V to 35V
Run Higher voltage (24V – 35V) DC motors also used in Robots using single 12V batteries

Technical Specifications:

Input Voltage: 10v – 32v DC
Output Voltage: 12v – 35v DC
Output Current: 6A MAX
Input Current: 10A (MAX)
Output Ripple: 2% MAX
Working Temperature: Industrial – 40C to +85C (Environmental temperature, more than 40C, reduce load wattage or enhance cooling)
Full-Load temperature: 45 degrees.
No-load current: 25mA typical.
Voltage regulation: ± 0.5%.
Load regulation: ± 0.5%.
Dynamic response speed: 200uS 5%.
Short circuit protection: None (Please Install fuses and protection circuits at the Input port.)
Input Reverse Polarity Protection: None (Please Series diode at the input port.)
Size: 2.60 in (L), 1.85 in (W) , 1.1 in (H)
Weight: 2.30 oz (66 g)

[!] Warnings

Do NOT limit current, also do not overload!
Although The maximum rated values should NEVER be continuous from the load or else the module will be damaged.
Be sure to install correct circuit protection, such as fuses, to the input of the module to avoid overloading and the potential for fire.
Please enhance heat dissipation above 50W
Hence Failure to take these precautions and incorrect use of this module may result in damage, fire, and/or personal injury.
