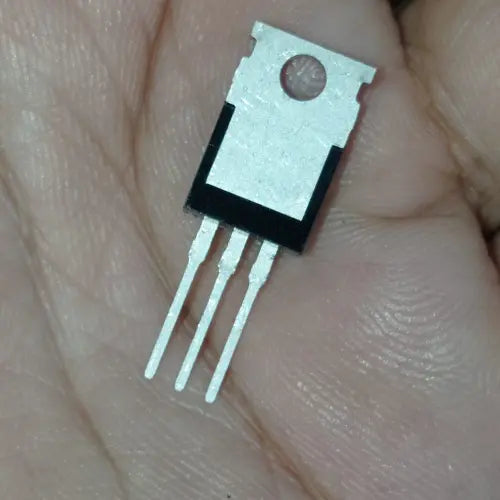

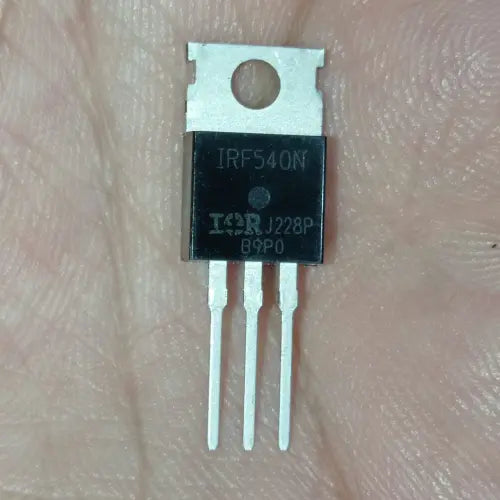

This is IRF540N MOSFET N Channel Transistor Hexfet Power Mosfet type. This is a general purpose and widely used product among hobbyist and professionals.
The IRF540N is an N-Channel Power MOSFET transistor that can handle high currents and voltages. It is a popular choice for use in a variety of applications, including motor drivers, LED drivers, inverters, and converters.
The IRF540N has a maximum voltage rating of 100V. It also has a low threshold voltage of 4V, which means it can be easily driven by low voltages like 5V. This makes it a popular choice for use with Arduino and other microcontrollers for logic switching.
Specifications:
- Drain-Source Volt (Vds): 100V
- Drain-Gate Volt (Vdg): 100V
- Gate-Source Volt (Vgs): 20V
- Drain Current (Id): 30A
- Power Dissipation (Ptot): 150W
- Type: N-Channel
Applications
- High Current, High Speed Switching
- Solenoid and Relay Drivers
- DC-DC & DC-AC Converter
- Automotive Environment (Injection, ABS, AIR-BAG, Lamp Drivers etc.)
- Switching high power devices
- Controlling the speed of motors
- Dimming or flashing LEDs
- High speed switching applications
- Converters or inverter circuits
Package Includes:
1 x IRF540N - IRF540 N-Channel MOSFET Transistor TO220 package
