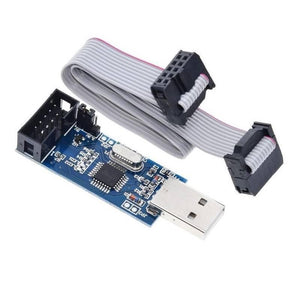

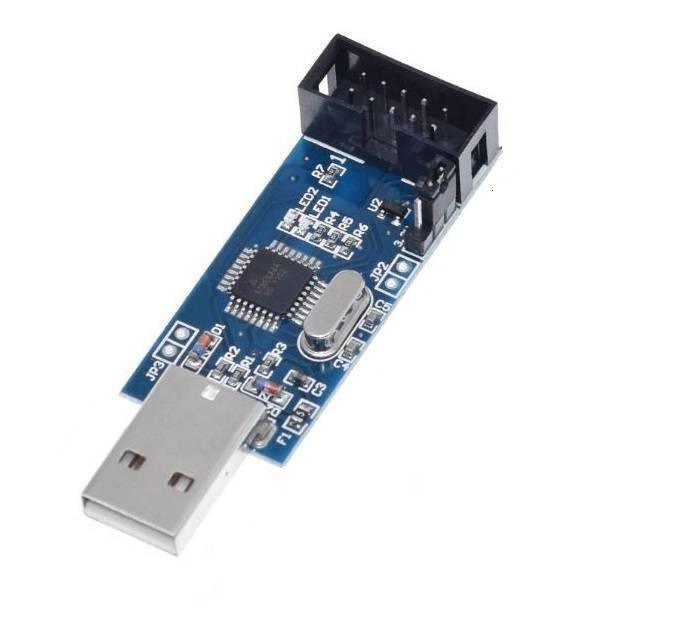

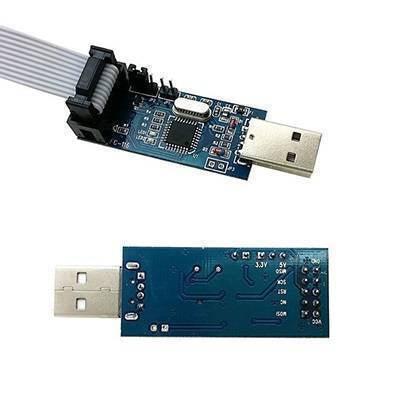

The USB ASP AVR Programming Device for ATMEL processors is a USB in-circuit programmer for Atmel AVR controllers. Device for ATMEL Processors simply consists of an ATMega88 or an ATMega8 and a couple of passive components. The programmer uses a firmware-only USB driver; no special USB controller is needed.

Specifications and Features :

1. Model No.: USB ASP AVR Programming Device for ATMEL Processors
2. Compatible Chips:
   1. ATMega Series
   2. Tiny Series
   3. Classic Series
   4. CAN Series
   5. PWM Series

Features of USBASP Programmer

1. Support for AVRDude Allows you to read or write the microcontroller EEPROM,firmware, fuse bits and lock bits Support for Linux, Mac OS X and Windows XP,7,8 5 KB/sec maximum write speed Software controlled SCK option to support targets with low clock speed (< 1.5MHz) 10 pin ISP interface Supported microcontrollers include:

• Mega Series : ATmega8, ATmega48, ATmega88, ATmega168, ATmega328, ATmega103, ATmega128, ATmega1280, ATmega1281, ATmega16, ATmega161, ATmega162, ATmega163, ATmega164, ATmega169, ATmega2560, ATmega2561, ATmega32, ATmega324, ATmega329, ATmega3290, ATmega64, ATmega640, ATmega644, ATmega649, ATmega6490, ATmega8515, ATmega8535.
• Tiny Series : ATtiny12, ATtiny13, ATtiny15, ATtiny25, ATtiny26, ATtiny45, ATtiny85, ATtiny2313.
• Classic Series : AT90S1200, AT90S2313, AT90S2333, AT90S2343, AT90S4414, AT90S4433, AT90S4434, AT90S8515, AT90S8535.
• CAN Series :  AT90CAN128
• PWM Series :  AT90PWM2, AT90PWM3.

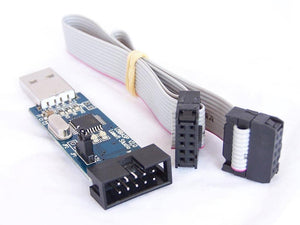

Package Includes :

1 x USB ASP AVR Programming Device.

1 x FRC cable.
