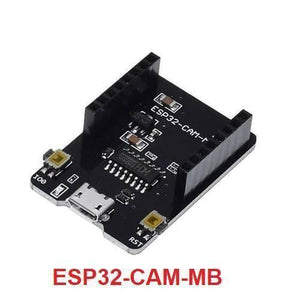

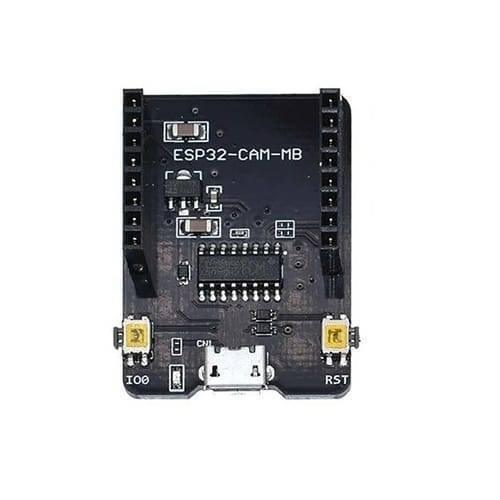

ESP32 Cam Mb Micro USB Programmer CH340G USB To Serial Port Board
Frequently Bought Together
Customers building this project usually buy these together.
Pickup available at Digilog Electronics
Usually ready in 2 hours
The ESP32-CAM-MB module can operate independently as the smallest system. A new WiFi + Bluetooth dual-mode development board based on ESP32 design, using built-in PCB antenna, with 2 high-performance 32-bit LX6CPUs, using 7-level pipeline architecture, main frequency adjustment range from 80MHz to 240Mhz. Ultra-low power consumption, deep sleep current is as low as 6mA. It is an ultra-small Wi-Fi + BT / BLE SoC module. ESP32-CAM-MB adopts a Micro USB interface, a convenient and reliable convenient connection method to be applied to various terminal IoT hardware.

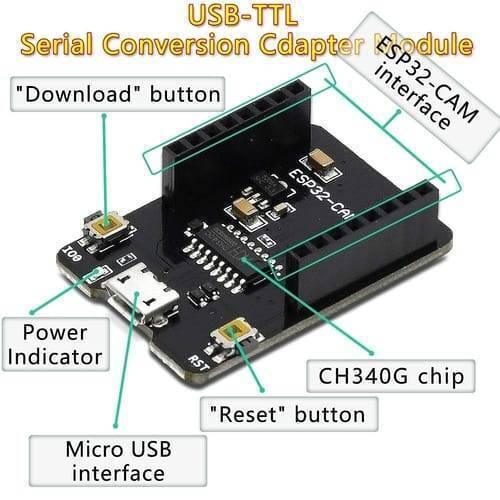

Features And Specifications Of ESP32-CAM-MB + Micro USB Programmer – CH340G Serial Chip:
- Operating voltage 4.75-5.25V
- SPIFlash default 32mbit
- internal RAM 520 kb + external 8 mb PSRAM
- Wi-Fi / e / I
- Bluetooth 4.2BR / EDR and BLE standard
- Interface support (2 Mbit / S) UART, SPI, I2C, PWM
- Support TF card, maximum support 4G
- Spectrum range 2400 ~ 2483.5MHz
- Antenna shape Built-in PCB antenna, gain 2dBi
- Image output format: JPEG ( only supported OV2640), BMP, grayscale
- Packing method DIP-16
- Transmit power 802.11b: 17 ± 2dBm (@ 11Mbps)
- 802.11g: 14 ± 2dBm (@ 54Mbps)
- 802.11n: 13 ± 2dBm (@ MCS7)
- Receiving sensitivity CCK, 1Mbps: -90dBm
- CCK, 11Mbps: -85dBm
Applications:
- Home Automation
- Wireless monitoring
- Wireless QR recognition
- Wireless positioning system signal
Package Includes:
- 1 x ESP32 CAM MB Micro USB Programmer
