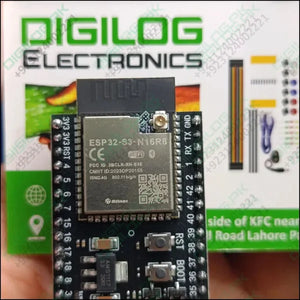

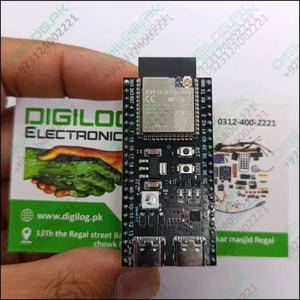

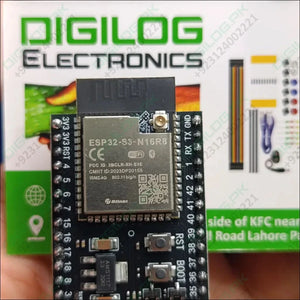

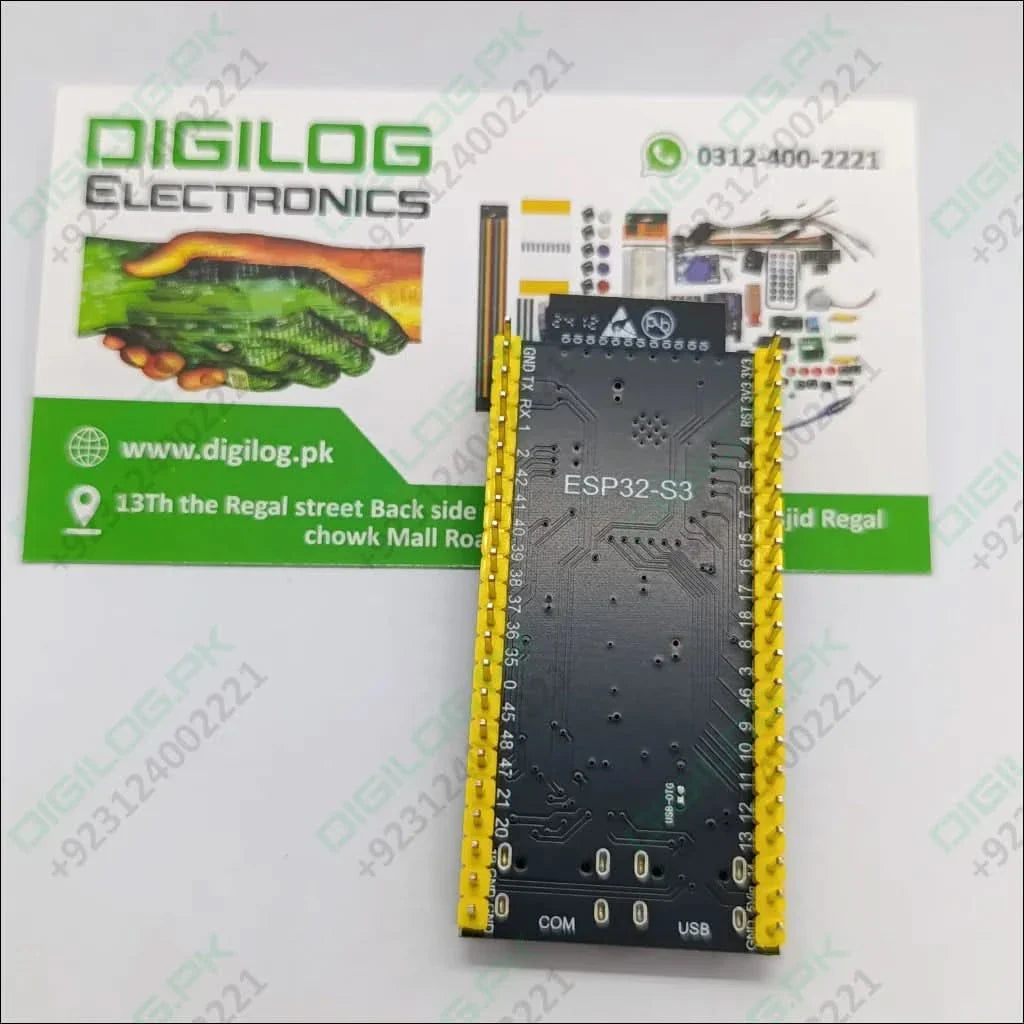

ESP32-S3 DevKitC-1 N16R8 Development Board – 16MB Flash, 8MB PSRAM, Wi-Fi & Bluetooth 5.0 LE

This ESP32-S3 DevKitC-1 N16R8 is a powerful and versatile development board designed to accelerate your IoT and embedded applications with a latest dev board designed by Espressif.ESP32-S3 is Equipped with the ESP32-S3-WROOM-1 module with 16mb flash and 8mb PSRAM which makes it python friendly dev board and everyone's Love. This board offers robust wireless connectivity and ample memory resources to meet the demands of modern development projects.

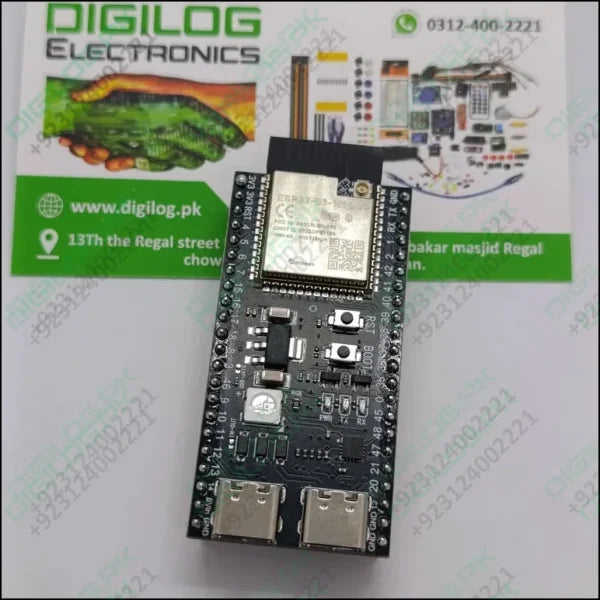

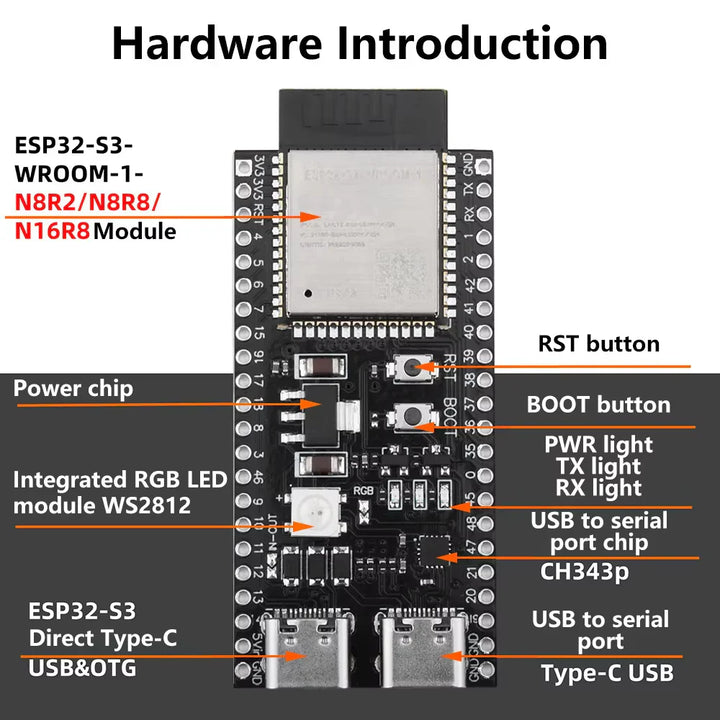

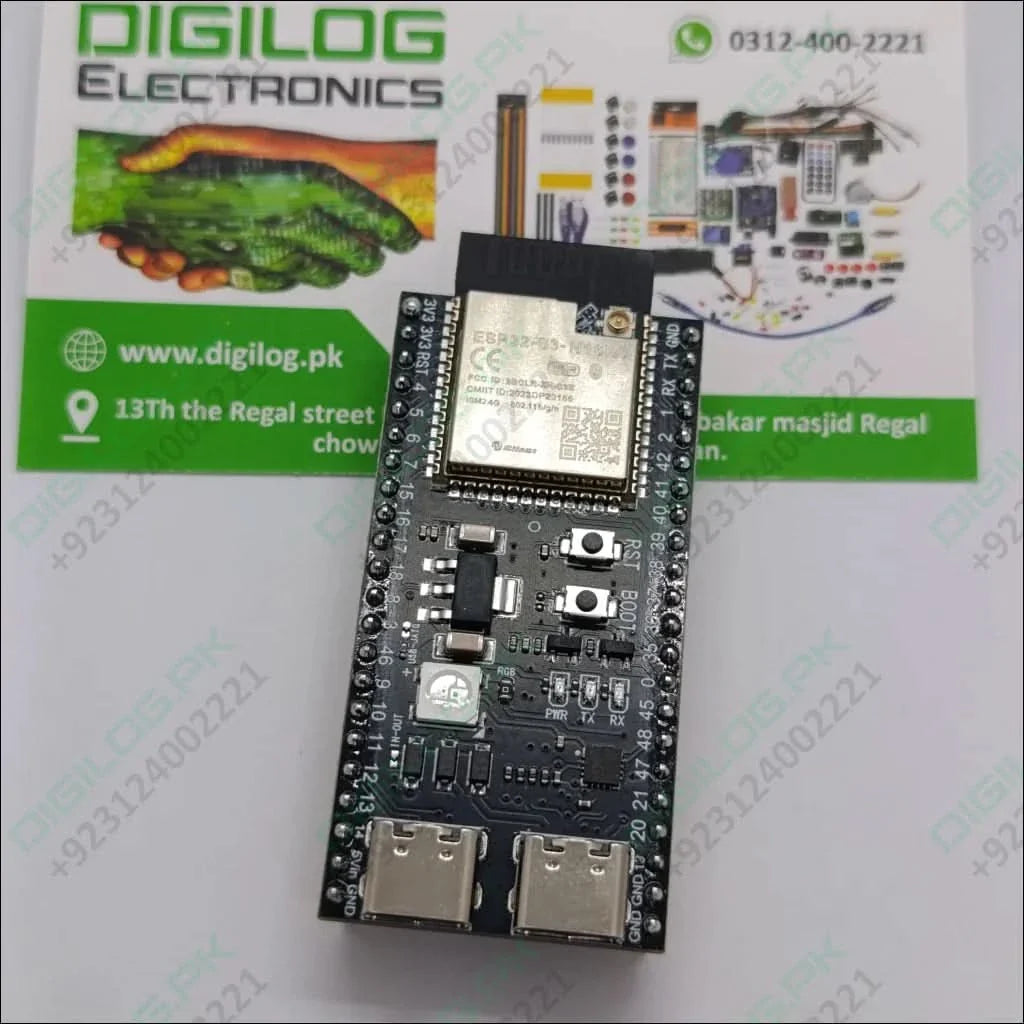

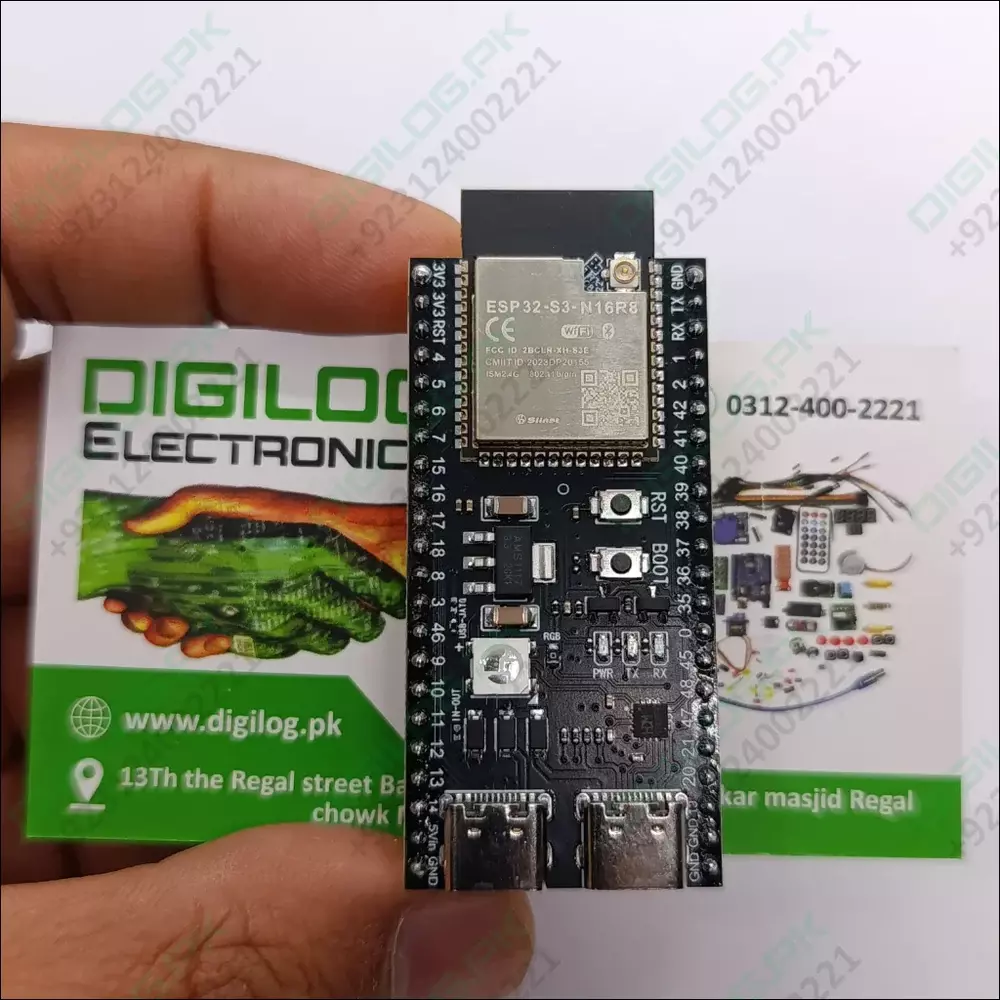

ESP32-S3-DevKitC-1 in the N16R8 version with expanded FLASH memory up to 16MB and PSRAM up to 8MB. This efficient microcontroller is based on a 32-bit Xtensa LX7 processor with two cores and a frequency of 240 MHz. We have 2 USB-C ports at our disposal - one for connection via UART, the other for communication and powering the module. On the board we will find an RGB LED WS2812B enabling basic communication with the user, two buttons: BOOT and RESET and status LEDs: power and UART transmission.

The ESP32-S3 supports WiFi and Bluetooth 5.0 LE wireless connections, making it perfect for IoT projects, smart home wireless systems, automation or more advanced home hobby projects.

Thanks to the integrated USB-UART converter on the CH343P chip, you don't need a programmer - just connect the USB cable and you can upload a sketch written in ArduinoIDE or MicroPython.

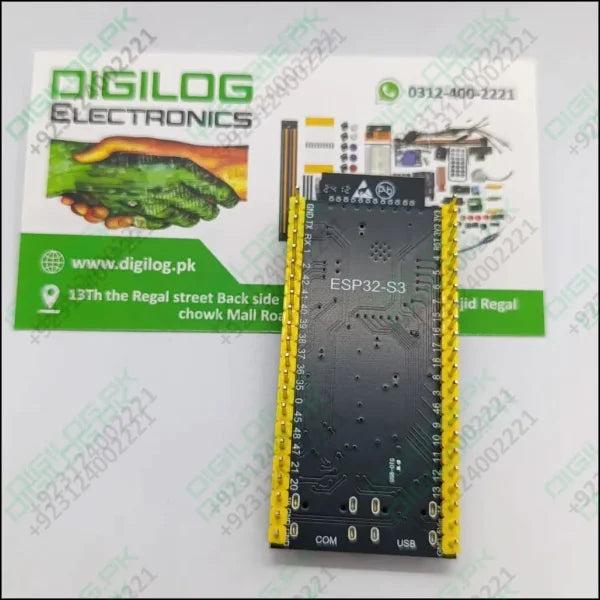

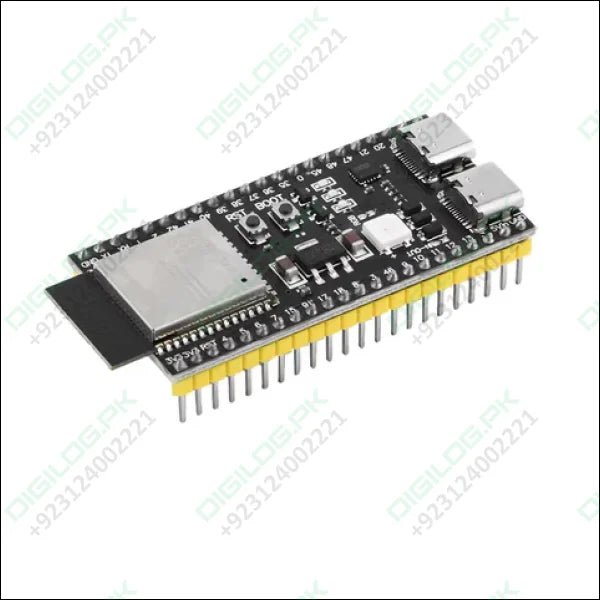

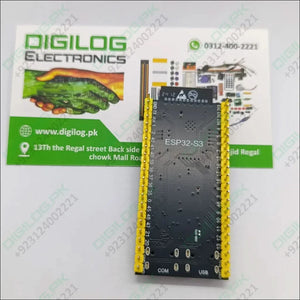

The version sold has soldered goldpins, so it is ready to be connected right out of the box.

Entering the board into "bootloader" mode:

• Hold  RES
• Hold  BOOT
• Release  RES  while still holding  BOOT
• Release  BOOT

Specification:

• Microcontroller: ESP32-S3-WROOM-1-N16R8
• Processor: Xtensa LX7 240MHz Dual Core
• Operating voltage:  3V - 3.6V
• Flash Memory:  16MB
• SRAM memory: 8MB
• ROM: 384KB
• Number of pins: 44
• Wireless connectivity : Bluetooth 5.0, WiFi  802.11 b/g/n 2.4GHz in AP, STA and AP+STA mode
• Buttons: RESET, BOOT
• RGB LED: WS2812B
• Interfaces UART / SPI / SDIO / I2C / PWM / ADC / DAC / PWM / Motor PWM / I2S / IR / GPIO / TWAI (CAN 2.0 compatible)
• USB-UART Converter: CH343P
• Dimensions :  57mm x 28mm x 5mm

Key Features:

• High-Performance Processor: Powered by the ESP32-S3-WROOM-1 module, featuring a dual-core Xtensa® 32-bit LX7 microprocessor operating at up to 240 MHz, ensuring efficient processing for complex tasks.
• Espressif Systems
• Ample Memory: Comes with 16 MB of Quad SPI flash memory and 8 MB of Octal SPI PSRAM, providing substantial storage and memory capacity for your applications.
• Espressif Systems
• Wireless Connectivity: Integrated 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) capabilities enable seamless wireless communication, making it ideal for IoT projects.
• Espressif Systems
• User-Friendly Design: The compact form factor and compatibility with popular development tools make it suitable for both beginners and experienced developers.
• Espressif Docs
• Versatile I/O: Most of the I/O pins are broken out to the pin headers on both sides of the board, allowing easy interfacing with other components and peripherals.
• Espressif Docs

Applications:

• IoT devices
• Smart home systems
• Wearable electronics
• Industrial automation
• Consumer electronics

Elevate your development experience with the ESP32-S3 DevKitC-1 N16R8, offering a blend of performance, connectivity, and flexibility to bring your innovative projects to life.
