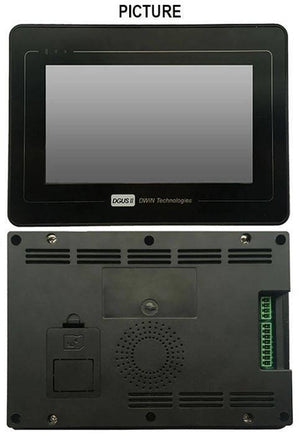

Dwin 7 Inch Industrial HMI LCD Touch Screen 800x480 Display Module DMG80480T070 A5 Wtr
Dwin 7 Inch Industrial HMI LCD Touch Screen 800X480 Display Module Uart RS232 RS485 Smart Panel Arduino Dmg80480t070 A5wtr In Pakistan
Features:
● Self-designed T5L ASIC, 16.7M Color, 24bit, 800*480 Pixel;
● All in one resistive touch screen,built-in speaker, photosensitive resistance;
● RS232/RS485 Interface,8Pin_3.81mm Socket ;
● Download via SD card or on-line serial port,USB and Wifi optinal ;
● DWIN DGUS V7.624 GUIs Development tool ;
● Two Development Modes: DGUS II/ TA(Commend);
● TN View Angle:70/70/50/70 (L/R/U/B);
● Support connect with PLC,Modbus protocal is supported.

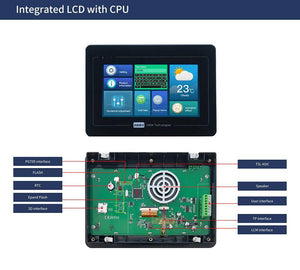

ASIC Information
| T5L1 ASIC | Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times |
Display
| Color | 16.7M（16777216） colors |
| LCD Type | TN, TFT LCD |
| Viewing Angle | Normal viewing angle, 70°/70°/50°/70° (L/R/U/D) |

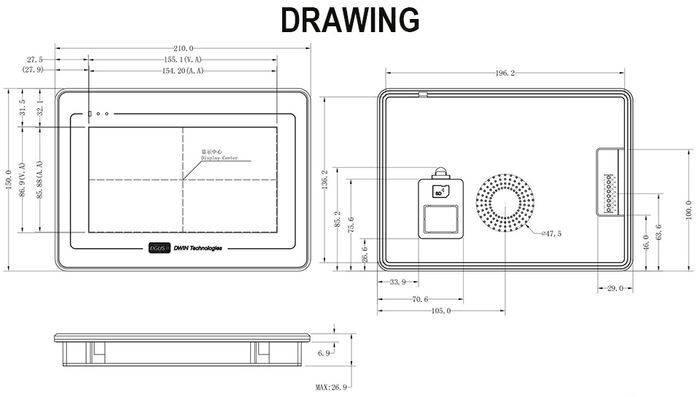

| Display Area（A.A） | 154.20mm (W) ×85.88mm (H) |
| Resolution | 800x480 |
| Backlight | LED |
| Brightness | 260nit |
Touch parameters
| Type | Five-wire RTP (Resistive touch panel) |
| Structure | ITO film + ITO glass |
| Touch Mode | Support point touch and drag |
| Surface Hardness | 3H |
| Light Transmittance | Over 80% |
| Life | Over 1,000,000 times touch |
Voltage & Current
| Power Voltage | 7~36V |
| Operation Current | VCC = +12V, Backlight on,230mA |
| VCC = +12V, Backlight off,80mA |
Reliability Test
| Working Temperature | -20~70℃ |
| Storage Temperature | -30~85℃ |
| Working Humidity | 10%~90%RH |
| Conformal coating | Yes |
| Protective Level | IP65 (Front) |
Interface
| LCM interface | FCC50_0.5mm, RGB interface |
| RTP interface | FCC5Pin_1.0mm interface |
| Baudrate | 3150~3225600bps |
| Output Voltage | Output 1,lout=1mA;2.5V~5V |
| Output 0, Iout =-1mA;-5~-2.5 V | |
| Input Voltage （RXD） |
Input 1, Iin = 1mA；0~2.5V |
| Input 0,Iin = -1mA；-2.5~-0.2V | |
| Interface | UART2:N81,RS232 UART4:N81,RS232 UART5:RS485 |
| User Interface | 8Pin_3.81mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s |
| Flash | 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times Expandable to 64Mbytes NOR Flash |
| Speaker | Onboard speaker. Power: 2W |
| SD interface | FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s |
| PGT05 interface | When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal |
Peripheral
| DMG80480T070_A5WTR | 5-wire resistance touch screen, Built-in Speaker（4Ω2W）, Built-in RTC（using farad capacitor as RTC backup power supply）,Green LED(P2.7), Red LED(P2.6), Photosensitive sensor(AD7) |
Model No.:
DMG80480T070_15WTR / DMG80480T070_A5WTR / DMG10600T070_A5WTR
