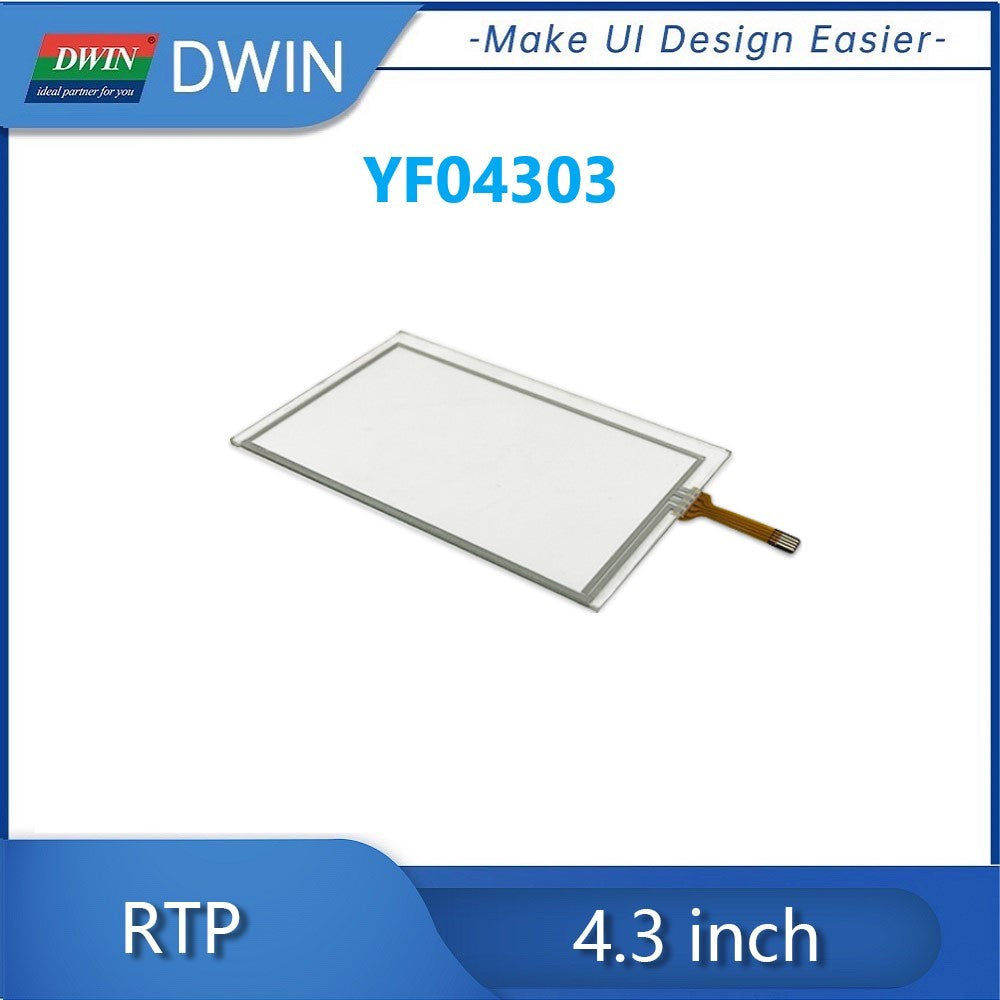

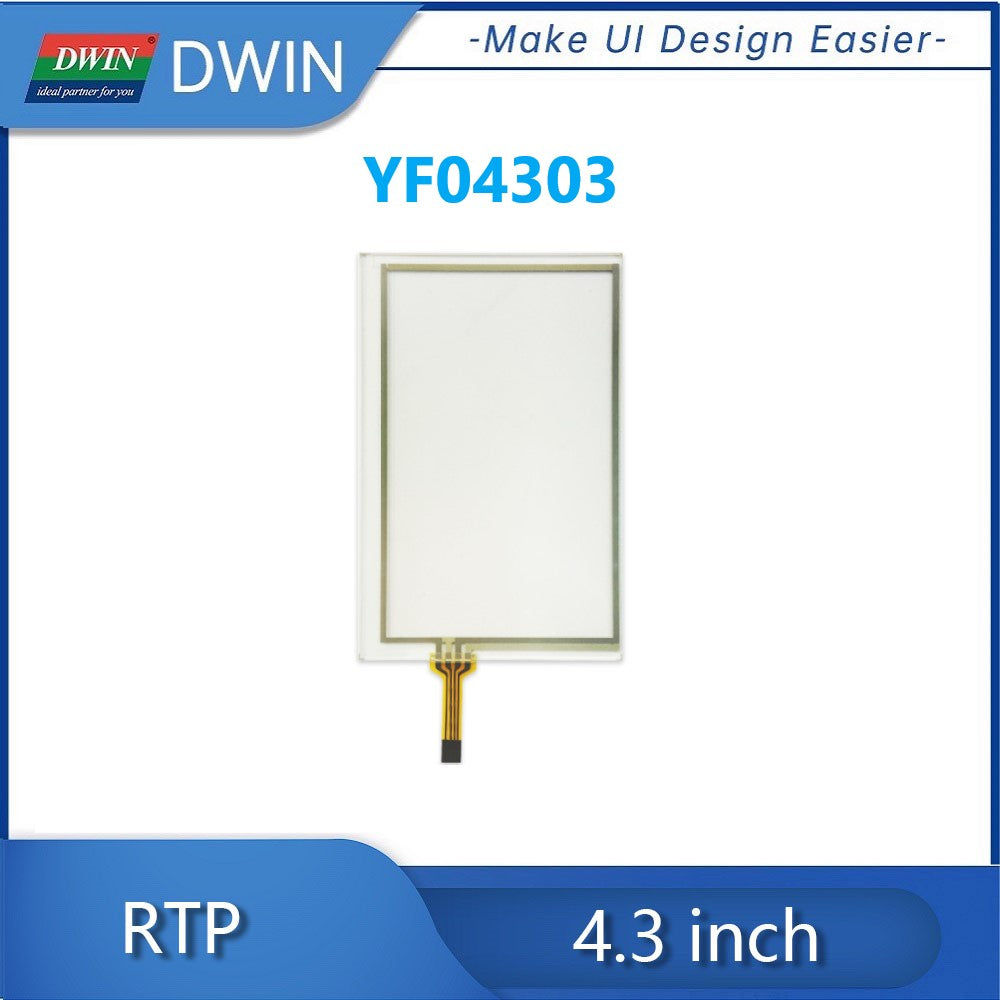

DWIN 4.3 Inch 4 Wire Resistive Touch Panel YF04303
Support customization for touch panel, such as high temperature, high humidity and anti-UV
|
Structure |
Materials |
Description |
|
Top Circuit |
ITO Film |
Thickness: 0.188mm ITO Film with Anti-glare hard |
|
Bottom Circuit |
ITO Glass |
Thickness: 1.1mm ITO Glass with Anti-reflection |
|

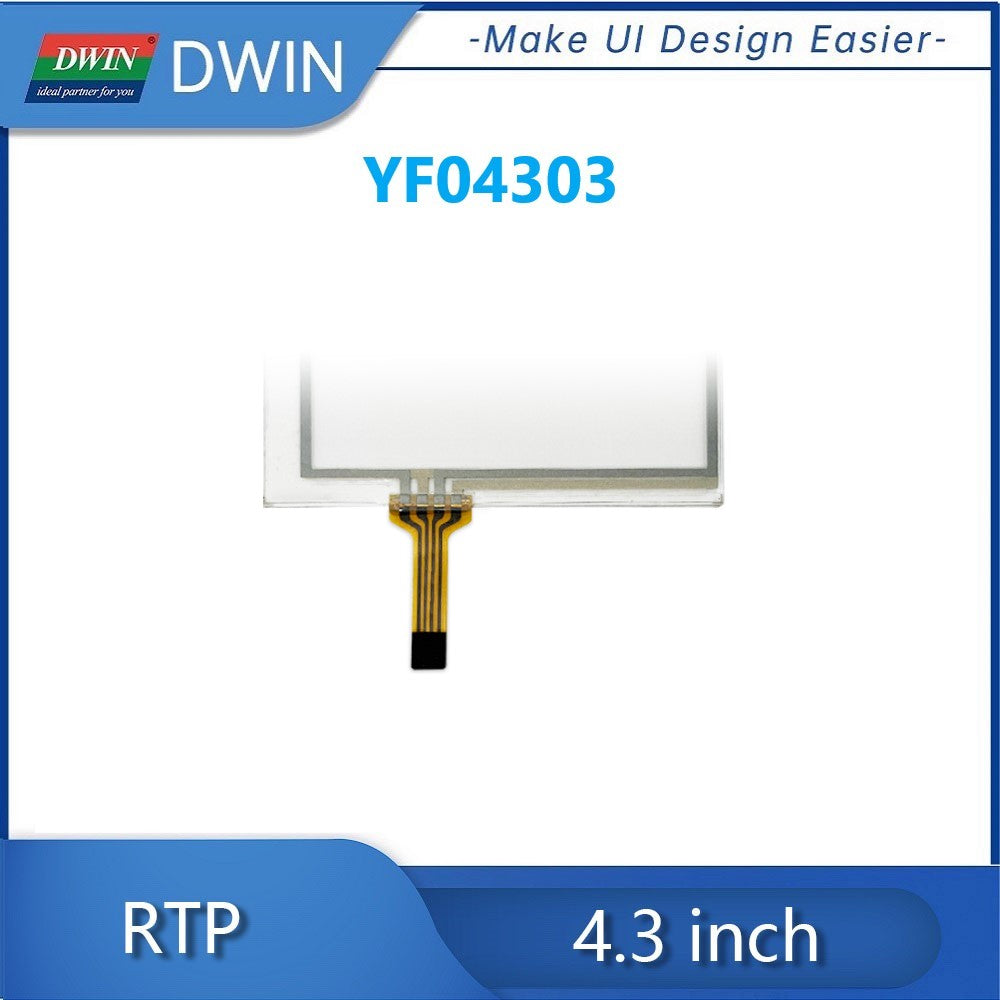

Tail Type |
FPC |
Thickness: 0.3mm |
|
Item |
Description |
Unit |
|
Type |
Four-Wire Resistive |
- |
|
Screen Size |
4.3 |
inch |
|

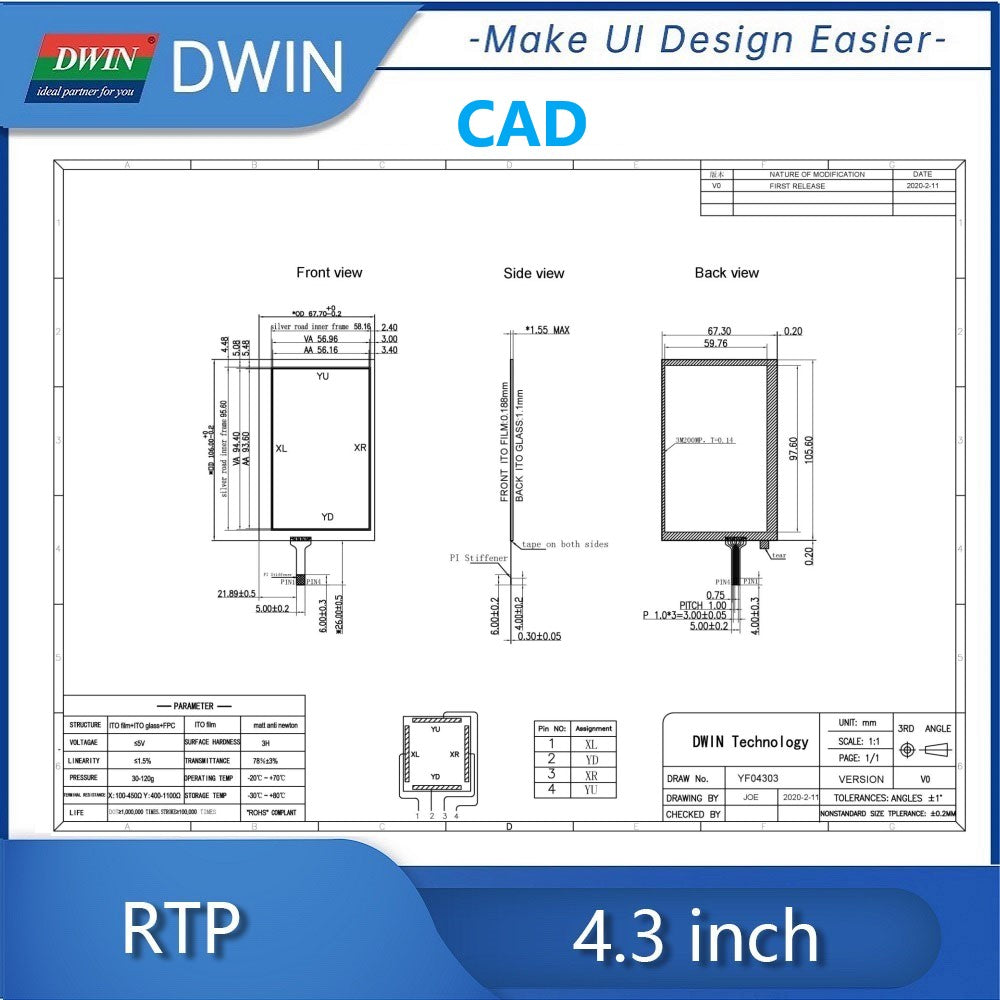

Physical Dimension |
67.7(W)*106.0(H)*1.55(D) |
mm |
|
View Area |
56.96(W)*94.40(H) |
mm |
|
Active Area |
56.16(W)*93.60(H) |
mm |
|
Tail Length |
26±0.5 |
mm |
|
Input Method |
Press |
- |
|
Touch Mode |
Support point touch and drag |
- |
|
Surface Hardness |
3H |
- |
|
Life |
Dot >1,000,000; Stroke >100,000 |
- |
|
Operating Temperature |
-20~70 |
℃ |
|
Storage Temperature |
-30~80 |
℃ |
|
PIN |
Signal |
Description |
|
1 |
XL |
X-(Left) |
|
2 |
YD |
Y-(Down) |
|
3 |
XR |
X-(Right) |
|
4 |
YU |
Y-(Up) |
|
Item |
Value |
Remark |
|
Light Transmittance |
78%±3% |
|
|
Item |
Value |
Remark |
|
Rated Voltage |
≤5V |
|
|
Current |
- |
|
|
Terminal Impedance |
X: 100-450Ω Y: 400-1100Ω |
|
|
Linearity |
X direction: within ±1.5℅ |
Testing method as Figure 1 |
|
Y direction: within ±1.5℅ |
||
|
Insulation Resistance |
DC 25V 20MΩ above |
Connect X+～X- and Y+～Y-, apply 25V DC Between X and Y for perform measurements |
Specifications
- is_customized
- Yes
- Model Number
- YF04303
- Type
- Standard
- Brand Name
- DWIN
- Origin
- Mainland China
- Size
- 4.3 inch
- Type
- Four-Wire Resistive
- View Area
- 56.96(W)*94.40(H)
- Physical Dimension
- 67.7(W)*106.0(H)*1.55(D)
- Surface Hardness
- 3H
- Operating Temperature
- -20~70℃
- Storage Temperature
- -30~80℃
