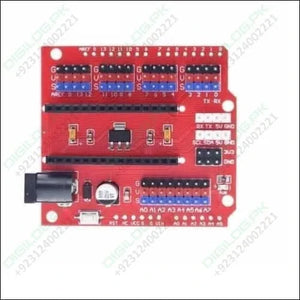

Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red circuit board featuring multiple pin headers, a power jack, and a reset button.
Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red circuit board with multiple pin headers, a power jack, and a capacitor.

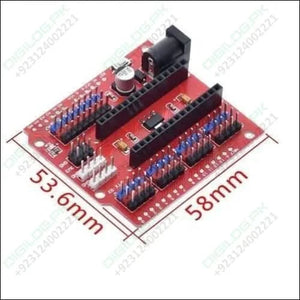

Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red circuit board with multiple pin headers, a power jack, and dimension labels 53.6mm by 58mm.

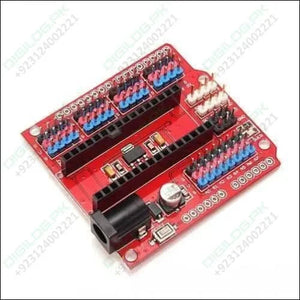

Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red rectangular circuit board featuring multiple pin headers, a power jack, and a reset button.

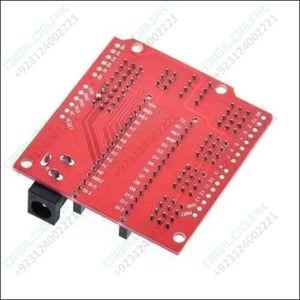

Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red rectangular circuit board with multiple pin headers and a black barrel power connector.
Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red PCB with a blue Arduino Nano mounted, featuring multiple pin headers and a power jack.
Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red circuit board featuring multiple pin headers, a power jack, and a reset button.
Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red circuit board with multiple pin headers, a power jack, and a capacitor.
Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red circuit board with multiple pin headers, a power jack, and dimension labels 53.6mm by 58mm.
Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red rectangular circuit board featuring multiple pin headers, a power jack, and a reset button.
Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red rectangular circuit board with multiple pin headers and a black barrel power connector.
Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red PCB with a blue Arduino Nano mounted, featuring multiple pin headers and a power jack.

Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield

Sale price Rs 400
SKU: B130,KRT16,IMP100,Th50
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red circuit board featuring multiple pin headers, a power jack, and a reset button.
+
Arduino Sensor Shield V5 Expansion Board For Arduino - a blue rectangular circuit board with numerous pin headers, a reset button, and a blue terminal block.
+
Arduino Nano CNC Shield V4 Expansion Board Stepper Motor Driver Board - a red circuit board featuring a power jack, reset button, pin headers, and three yellow motor driver slots.
+
Arduino Nano V3 With Cable ATMEGA328 - a blue development board with a Mini USB B port, a reset button, and a blue USB cable with a standard USB connector.
Arduino Nano V3 With Cable ATMEGA328 - a blue development board with a Mini USB B port, a reset button, and a blue USB cable with a standard USB connector.
This item: Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield -
Sale price Rs 400
Arduino Sensor Shield V5 Expansion Board For Arduino - a blue rectangular circuit board with numerous pin headers, a reset button, and a blue terminal block.
Arduino Sensor Shield V5 Expansion Board For Arduino -
Sale price Rs 360
Arduino Nano CNC Shield V4 Expansion Board Stepper Motor Driver Board - a red circuit board featuring a power jack, reset button, pin headers, and three yellow motor driver slots.
Arduino Nano CNC Shield V4 Expansion Board Stepper Motor Driver Board -
Sale price Rs 380
Arduino Nano V3 With Cable ATMEGA328 - a blue development board with a Mini USB B port, a reset button, and a blue USB cable with a standard USB connector.
Arduino Nano V3 With Cable ATMEGA328 -
Sale price Rs 910
Price for all:
Sale total price Rs 2,050

Pickup available at Digilog Electronics

Usually ready in 2 hours

Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red circuit board featuring multiple pin headers, a power jack, and a reset button.

Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red circuit board featuring multiple pin headers, a power jack, and a reset button.
Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield
Sale priceRs 400

This Nano Multi-Function expansion board is designed especially for Nano, solves the problem of wiring confusing when a variety of sensors connected. Nano Breakout Board Lead out all digital IO port and analog IO port, each one with standard positive and negative power interface. Arduino Nano Sheild Lead out the I2C interface of the mainboard for a convenient connection. Arduino Nano Prototype Board is Increasing the DC power supply interface. Nano USB interface supply current is actually only 50MA, to bring high-current devices, such as the steering, is obviously insufficient. So in the DC power connector provide external power supply to ensure the stability of equipment operation.

Features Of Prototype Shield I/O Expansion Module Extension Board For Arduino Nano V3.0:

  • Power Jack, Power LED
  • Reset Button
  • FTDI 4 pins jack
  • Standard Arduino pins
  • More GVS extended pins.
  • Increased DC Power supply Interface

Specifications Of Multi-Function Funduino Nano Shield Arduino Nano Sensor Expansion Board:

  1. 14 I/O Pin (servo type with GND, power, and signal)
  2. 8 analog Pin with power output and GND
  3. 6 PWM Pin
  4. 1 Servo power input
  5. I2C expansion Pin
  6. AREF output
  7. 3.3V output
  8. Size: 6×5.3×1.3cm(approx)

Package Include:

  • 1x Multifunction Expansion Board For Arduino Nano
