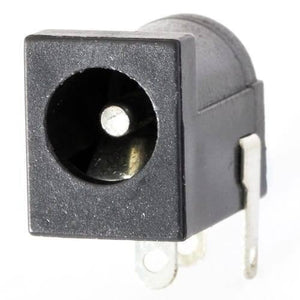

2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector - a black plastic DC power jack with a central metal pin and three silver-colored terminal pins.
2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector - a black plastic barrel-style power jack with two metal pins for PCB mounting.

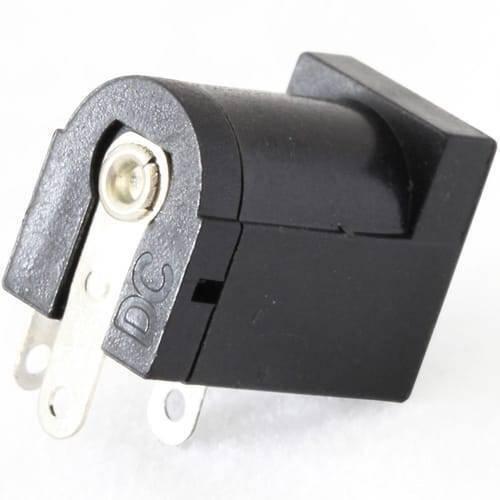

2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector - a black plastic DC power jack with three metal solder terminals visible from a side angle.
2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector - shown as a top-down close-up view with a black plastic housing and a metal pin terminal.

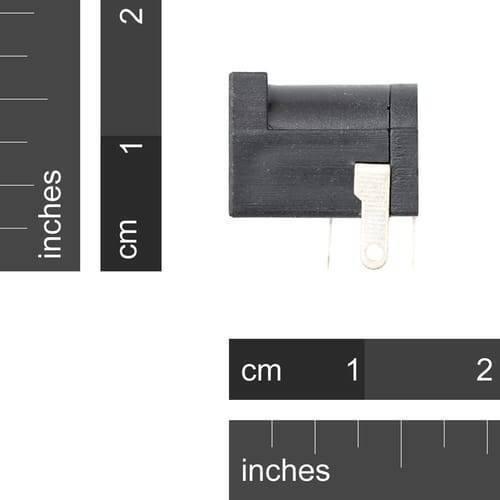

2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector - shown from a side profile against a white background with a measurement scale.
2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector - a black plastic DC power jack with a central metal pin and three silver-colored terminal pins.
2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector - a black plastic barrel-style power jack with two metal pins for PCB mounting.
2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector - a black plastic DC power jack with three metal solder terminals visible from a side angle.
2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector - shown as a top-down close-up view with a black plastic housing and a metal pin terminal.
2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector - shown from a side profile against a white background with a measurement scale.

2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector

Sale price Rs 20
SKU: B561,KRT177,LS100,Th20
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector - a black plastic DC power jack with a central metal pin and three silver-colored terminal pins.
+
Only PCB For DIY PIR Motion Sensor Switch - a green square printed circuit board with labeled component slots for a relay, transistor, and resistors.
+
DC Power Connector Male 5.5mm External X 2.1mm Internal Dia - shown as a black, cylindrical male DC barrel plug with a flexible strain relief tail.
+
Male 2.1mm x 5.5mm DC Power Plug Jack Adapter Wire Connector DC Jack - a black plastic DC barrel connector with a green two-terminal screw block.
Male 2.1mm x 5.5mm DC Power Plug Jack Adapter Wire Connector DC Jack - a black plastic DC barrel connector with a green two-terminal screw block.
This item: 2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector -
Sale price Rs 20
Only PCB For DIY PIR Motion Sensor Switch - a green square printed circuit board with labeled component slots for a relay, transistor, and resistors.
Only PCB For DIY PIR Motion Sensor Switch -
Sale price Rs 210
DC Power Connector Male 5.5mm External X 2.1mm Internal Dia - shown as a black, cylindrical male DC barrel plug with a flexible strain relief tail.
DC Power Connector Male 5.5mm External X 2.1mm Internal Dia -
Sale price Rs 30
Male 2.1mm x 5.5mm DC Power Plug Jack Adapter Wire Connector DC Jack - a black plastic DC barrel connector with a green two-terminal screw block.
Male 2.1mm x 5.5mm DC Power Plug Jack Adapter Wire Connector DC Jack -
Sale price Rs 40
Price for all:
Sale total price Rs 300

Pickup available at Digilog Electronics

Usually ready in 2 hours

2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector - a black plastic DC power jack with a central metal pin and three silver-colored terminal pins.

2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector - a black plastic DC power jack with a central metal pin and three silver-colored terminal pins.
2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector
Sale priceRs 20

2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector is typically found on low-cost consumer electronics. DC Jack PCB Mount Internal Barrel Connector can be plugged into wall power via bulky AC wall adaptors. Wall adaptors are widely available, in a variety of power ratings and voltages, making barrel connectors a common means for connecting power to small projects.

Features of 2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector:

  • This is a common barrel-type power jack for DC wall supplies.
  • Features PCB mounting, 2.1x5.5mm jack audio connector.
  • Barrel connectors are typically found on low-cost consumer electronics.
  • Barrel connectors a common means for connecting power to small projects.
  • Used widely in Media Player, MP3/MP4 player, Audio-Video Equipment, AV Equipment, Note Book, Mobile Phone, Smart Phone, Car Audio, etc.

Specifications of 2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector:

  1. Pin Hole Diameter: 5.5 mm
  2. Center Pin Diameter: 2.1 mm
  3. Operating Temperature Range: -40° C to +55° C
  4. Rated Load: 30 VDC, 0.5 A
  5. Contact Resistance: ≤0.03 Ω
  6. Insulation resistance:  ≥100MΩ, 250VDC
  7. Withstanding Voltage: 500 VAC (50Hz) / min
  8. Insertion Force: 3 N to 20 N
  9. Life: 5000 cycles

Female barrel connector

Related image

Package Includes:

1 x 2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector
