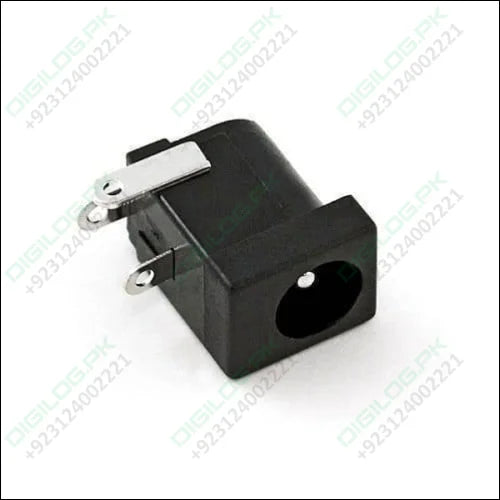

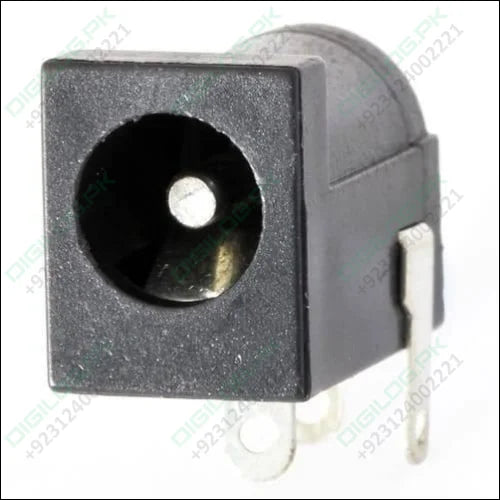

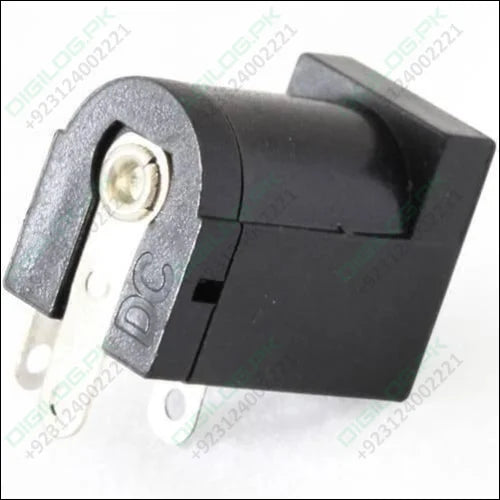

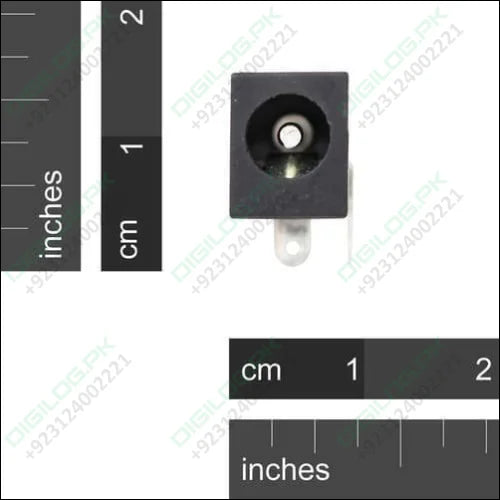

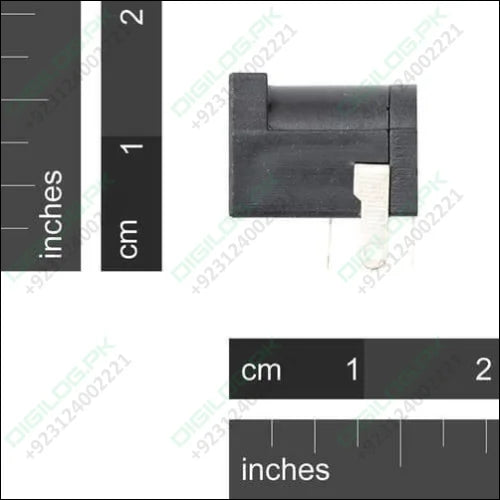

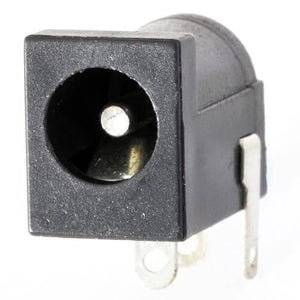

2.1x5.5mm Dc Jack Pcb Mount Internal Barrel Connector

2.1x5.5mm Dc Jack Pcb Mount Internal Barrel Connector

Regular price Rs 15
Regular price Sale price Rs 15
Sale Sold out
Shipping calculated at checkout.

SKU:B561,LS100,Th20,KRT177

NOTIFY ME WHEN IN STOCK

2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector is typically found on low-cost consumer electronics. DC Jack PCB Mount Internal Barrel Connector can be plugged into wall power via bulky AC wall adaptors. Wall adaptors are widely available, in a variety of power ratings and voltages, making barrel connectors a common means for connecting power to small projects.

Features of 2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector:

  • This is a common barrel-type power jack for DC wall supplies.
  • Features PCB mounting, 2.1x5.5mm jack audio connector.
  • Barrel connectors are typically found on low-cost consumer electronics.
  • Barrel connectors a common means for connecting power to small projects.
  • Used widely in Media Player, MP3/MP4 player, Audio-Video Equipment, AV Equipment, Note Book, Mobile Phone, Smart Phone, Car Audio, etc.

Specifications of 2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector:

  1. Pin Hole Diameter: 5.5 mm
  2. Center Pin Diameter: 2.1 mm
  3. Operating Temperature Range: -40° C to +55° C
  4. Rated Load: 30 VDC, 0.5 A
  5. Contact Resistance: ≤0.03 Ω
  6. Insulation resistance:  ≥100MΩ, 250VDC
  7. Withstanding Voltage: 500 VAC (50Hz) / min
  8. Insertion Force: 3 N to 20 N
  9. Life: 5000 cycles

Female barrel connector

Related image

Package Includes:

1 x 2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector

View full details

Description

2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector is typically found on low-cost consumer electronics. DC Jack PCB Mount Internal Barrel Connector can be plugged into wall power via bulky AC wall adaptors. Wall adaptors are widely available, in a variety of power ratings and voltages, making barrel connectors a common means for connecting power to small projects.

Features of 2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector:

  • This is a common barrel-type power jack for DC wall supplies.
  • Features PCB mounting, 2.1x5.5mm jack audio connector.
  • Barrel connectors are typically found on low-cost consumer electronics.
  • Barrel connectors a common means for connecting power to small projects.
  • Used widely in Media Player, MP3/MP4 player, Audio-Video Equipment, AV Equipment, Note Book, Mobile Phone, Smart Phone, Car Audio, etc.

Specifications of 2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector:

  1. Pin Hole Diameter: 5.5 mm
  2. Center Pin Diameter: 2.1 mm
  3. Operating Temperature Range: -40° C to +55° C
  4. Rated Load: 30 VDC, 0.5 A
  5. Contact Resistance: ≤0.03 Ω
  6. Insulation resistance:  ≥100MΩ, 250VDC
  7. Withstanding Voltage: 500 VAC (50Hz) / min
  8. Insertion Force: 3 N to 20 N
  9. Life: 5000 cycles

Female barrel connector

Related image

Package Includes:

1 x 2.1x5.5mm DC Jack PCB Mount Internal Barrel Connector
