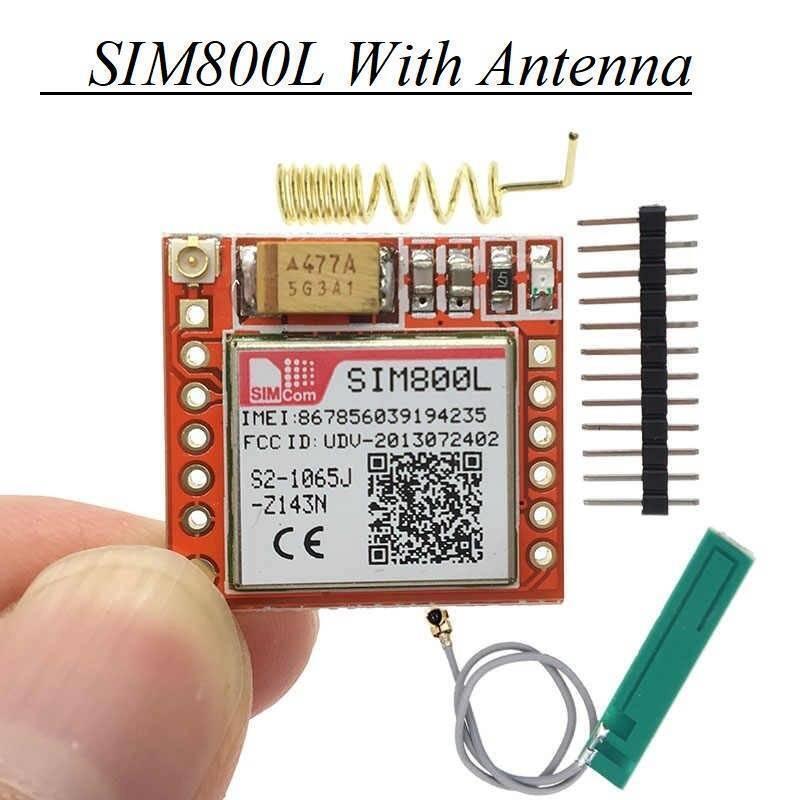

SIM800L GSM Module Micro SIM Card Board - a red PCB with a metal shield, a coiled wire antenna, a pin header strip, and a green PCB antenna.
SIM800L GSM Module Micro SIM Card Board - shown as a rectangular green PCB antenna with an attached black coaxial cable and a small gold connector.

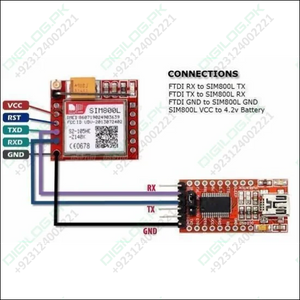

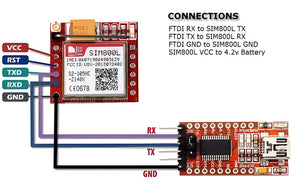

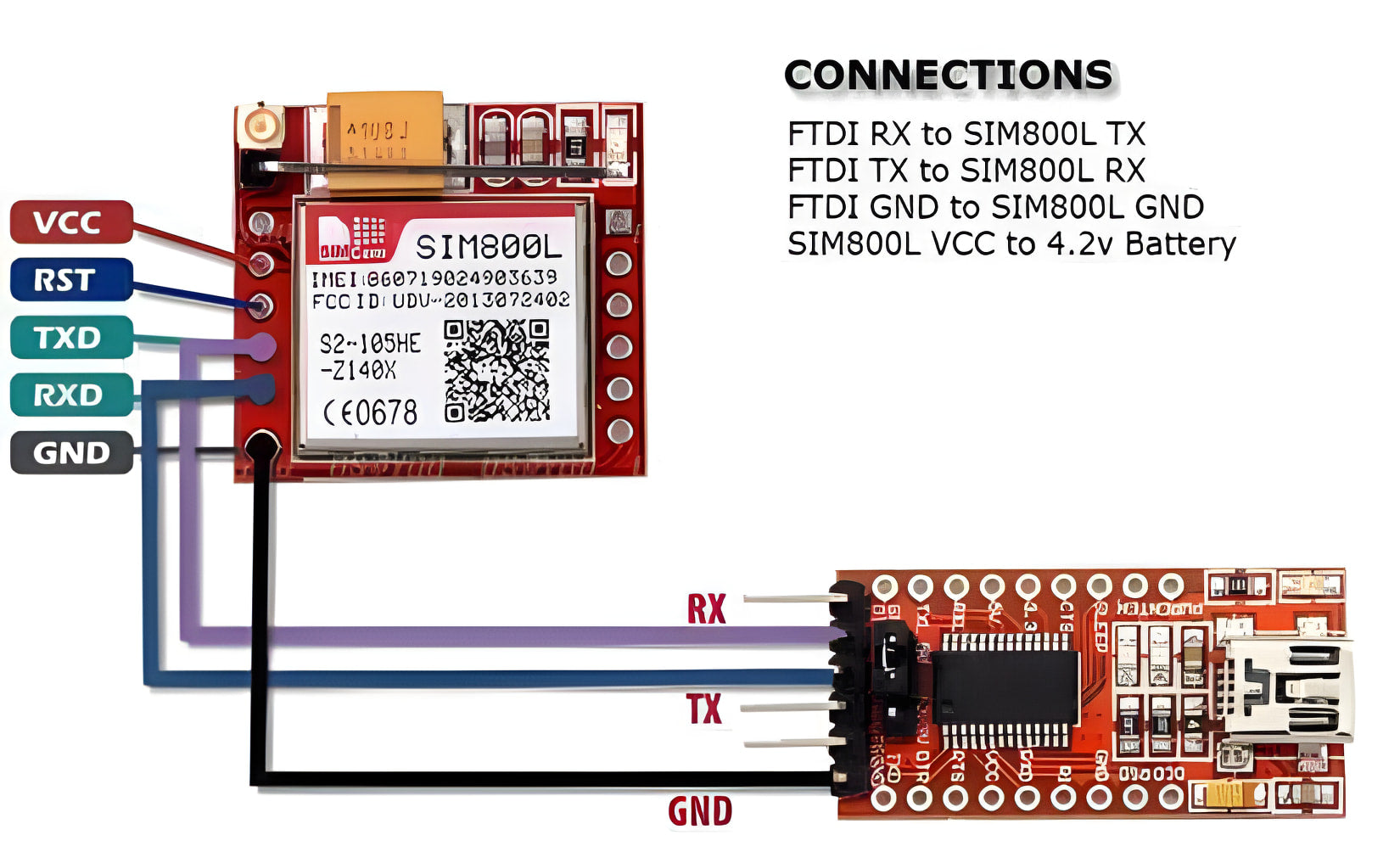

SIM800L GSM Module Micro SIM Card Board - connections between the red module and an FTDI adapter with labels for pins and power.
SIM800L GSM Module Micro SIM Card Board - a red PCB with a metal shield, a coiled wire antenna, a pin header strip, and a green PCB antenna.
SIM800L GSM Module Micro SIM Card Board - shown as a rectangular green PCB antenna with an attached black coaxial cable and a small gold connector.
SIM800L GSM Module Micro SIM Card Board - connections between the red module and an FTDI adapter with labels for pins and power.

SIM800L GSM Module Micro SIM Card Board

Sale price Rs 1,260
SKU: B628,KRT54,krt72,IMP20,Th10
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

SIM800L GSM Module Micro SIM Card Board - a red PCB with a metal shield, a coiled wire antenna, a pin header strip, and a green PCB antenna.

SIM800L GSM Module Micro SIM Card Board

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map

The SIM800L is available in Pakistan. Sim800L is a cheap and portable GSM module breakout board with all the capabilities of the larger SIM900 gsm module and shields.  Smallest SIM800L GPRS GSM Module has a microSIM card core board quad-band TTL serial port. This is a GPRS GSM module based on the SIMCom SIM800L, which is a GSM GRPS Quad-Band module. You can add voice, text, SMS, and data to your project with this module. Sim800L is an ideal solution for M2M applications, suitable for automotive, industrial and PDA, personal tracking, electricity environment detection, wireless POS, smart metering, and other M2M applications, to provide comprehensive GSM / GPRS text messaging, voice and data transmission services.

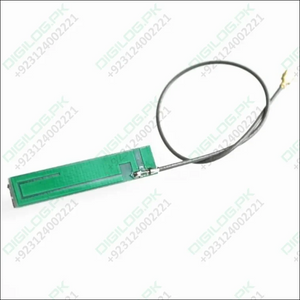

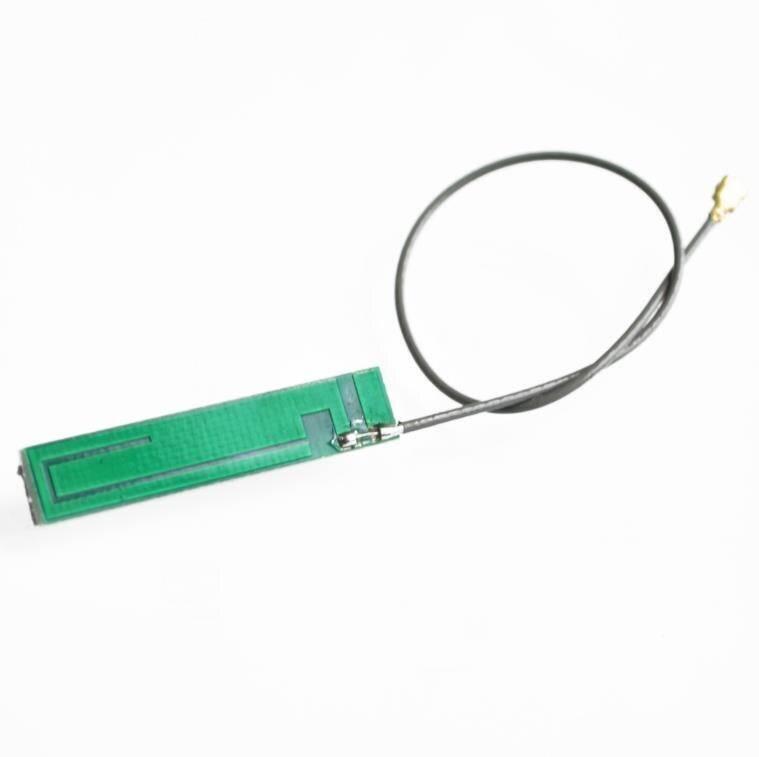

Here is an image of the product with external antenna.

Tutorial:



Registration By PTA:



SPECIFICATION Of SIM800L GSM Module.

  1. Quad-band 850/900/1800/1900MHz
  2. GPRS mobile station class B
  3. Supports Real-Time Clock
  4. Supply voltage range 3.4V ~ 4.4V
  5. Supports A-GPS
  6. Supports 3.0V to 5.0V logic level
  7. Micro SIM Card
  8. Compact size 23mm x 35mm x 5.6mm
  9. Low power consumption, 1mA in sleep mode
  10. GPRS multi-slot class12 connectivity: max. 85.6kbps (down-load/up-load)
  11. Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands).

DOCUMENTS

  1. Datasheet
  2. AT Command Manual
  3. TCP-IP Application Note
  4. IP Application Note
  5. SSL Application Note
  6. Email Application Note
  7. Software library

TUTORIALS

  1. http://www.ayomaonline.com/programming/quickstart-sim800-sim800l-with-arduino/
  2. http://www.seeedstudio.com/recipe/358-the-ultimate-child-tracker.html

Package Included:

  1. 1 x SIM800L Quad-band GPRS GSM Module

نیچے دی گئی  ہدایات  کو غور سے پڑھیں اور کم سے کم تین بار پڑھیں.

Note:

  1. Registration Tutorial By PTA is here (CLICK ME)
  2. This device is not registered with PTA so You need to register this device before using it.
  3. You should read the IMEI number using AT commands and use this IMEI number for GSM registration.
  4. Don't follow the printed number on GSM.
  5. Registration charges are not added to this product price.
  6. Don't buy this product if you can not follow the above instructions by yourself.

Here is the registration process of the GSM





SIM800L Pinout



Arduino SIM800L Connection

How to register:

Important Commands:

AT+CGSN By sending this command to gsm, it will return current IMEI no and return.

Frequently Bought Together

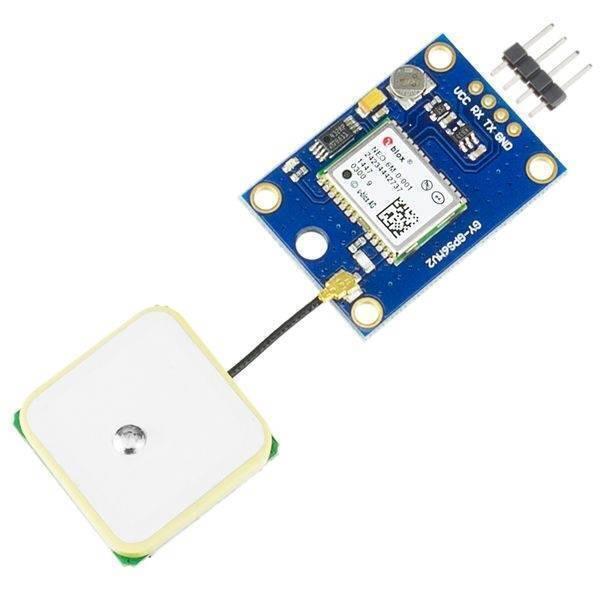

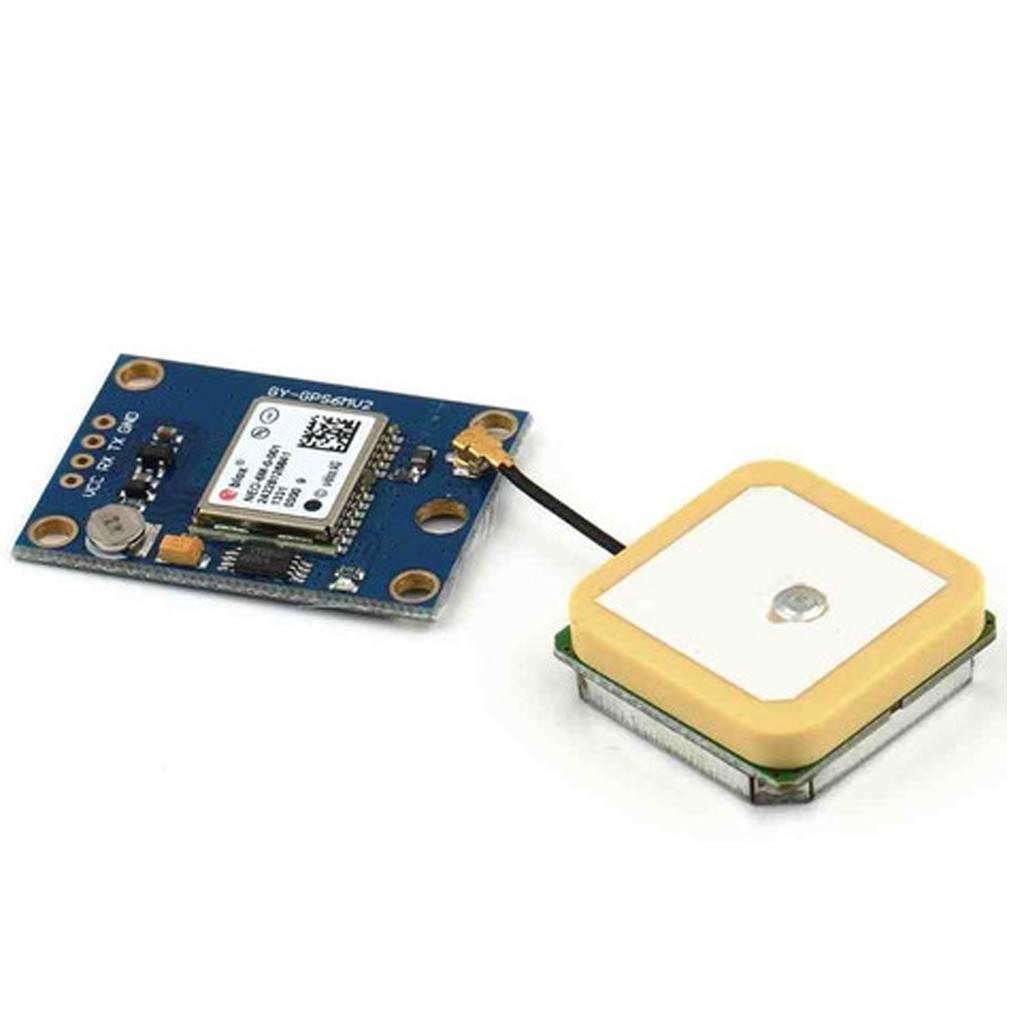

GPS Module Neo-6m V2 Ublox - a blue circuit board with four pins and an external square antenna connected by a short black cable. GPS Module Neo-6m V2 Ublox - a blue rectangular circuit board with a white ceramic antenna connected by a thin black wire and a four-pin header.
Log in to use Wishlist
Add to Compare

GPS Module Neo-6m V2 Ublox

Sale priceRs 1,010

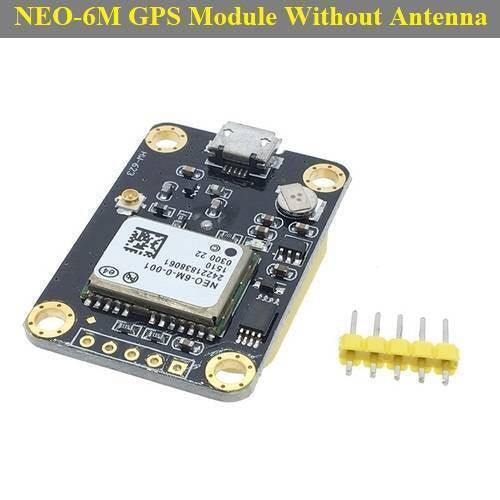

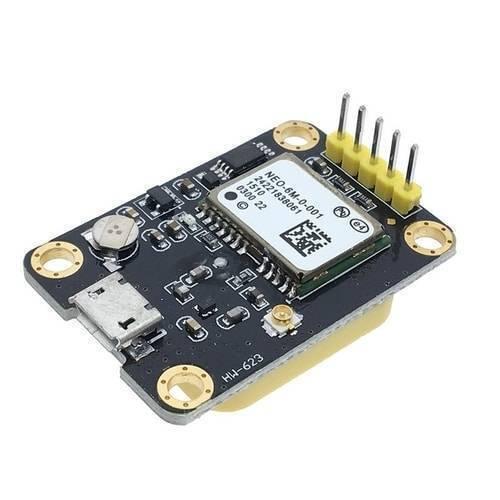

GY-GPS6MV2 Neo-6m GPS Module - a black circuit board with a micro-USB port, a silver GPS chip, and a separate five-pin yellow header connector. GY-GPS6MV2 Neo-6m GPS Module - a black circuit board, a silver metal GPS chip, a micro-USB port, and a five-pin header connector.
Log in to use Wishlist
Add to Compare

GY-GPS6MV2 Neo-6m GPS Module

Sale priceRs 1,520

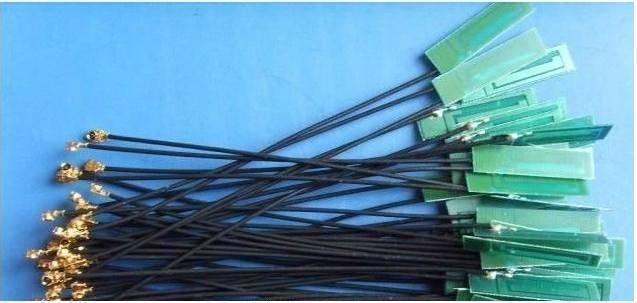

SIM800C SIM800L SIM900A SIM900 GSM 2g 3g Antenna PCB Indoor Antenna I-PEX Antenna - for SIM800/SIM900 modules, featuring a rectangular green PCB antenna connected by a black cable to a small I-PEX connector. SIM800C SIM800L SIM900A SIM900 GSM 2g 3g Antenna PCB Indoor Antenna I-PEX Antenna - bundle of green PCB antennas with black coaxial cables and gold I-PEX connectors on a blue background.
Log in to use Wishlist
Add to Compare

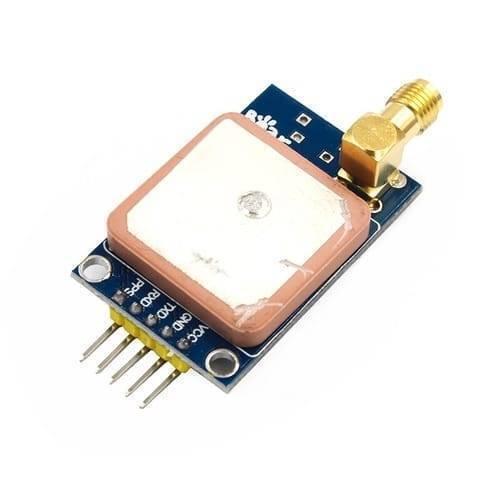

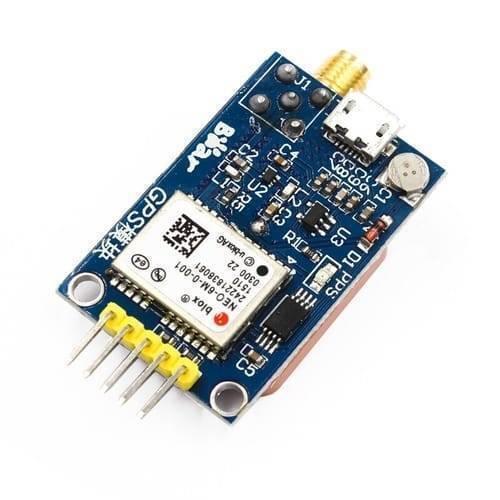

GPS Module Neo 6m Satellite Positioning Micro USB 51 MCU For STM32 Arduino - a blue rectangular circuit board featuring a silver GPS chip, a micro USB port, a gold antenna connector, and a five-pin header. GPS Module Neo 6m Satellite Positioning Micro USB 51 MCU For STM32 Arduino - a blue circuit board featuring a square ceramic antenna, a gold-coloured SMA connector, and a row of five metal header pins.
Log in to use Wishlist
Add to Compare

GPS Module Neo 6m Satellite Positioning Micro USB 51 MCU For STM32 Arduino

Sale priceRs 1,620

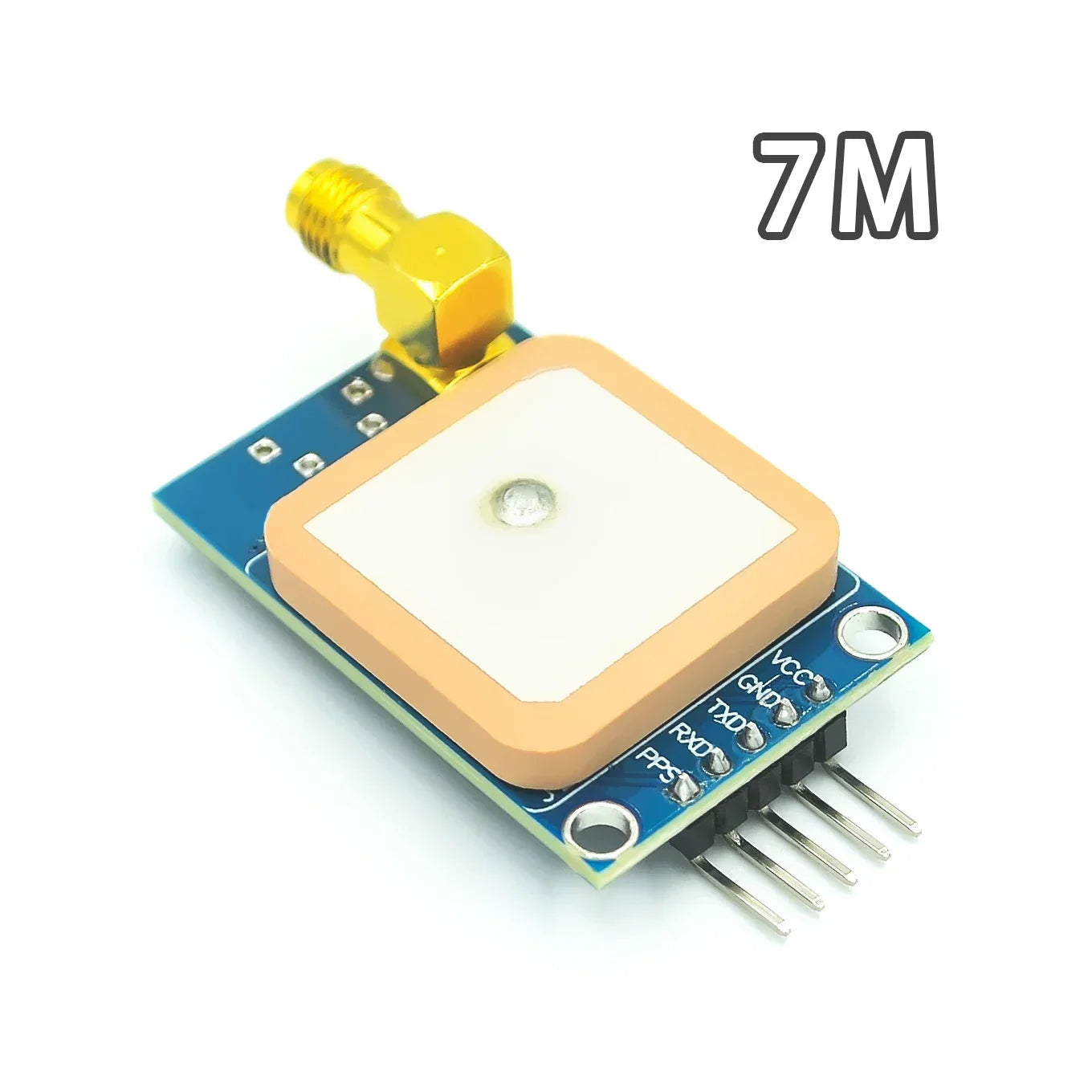

NEO 7M GPS Module Micro USB satellite Positioning Module - with a square ceramic antenna, a gold-coloured SMA connector, and a five-pin header labeled VCC, GND, TXD, RXD, and PPS. NEO 7M GPS Module Micro USB satellite Positioning Module - a blue circuit board with a square ceramic antenna, a gold-coloured antenna connector, and a five-pin header labeled VCC, GND, TXD, RXD, PPS.
