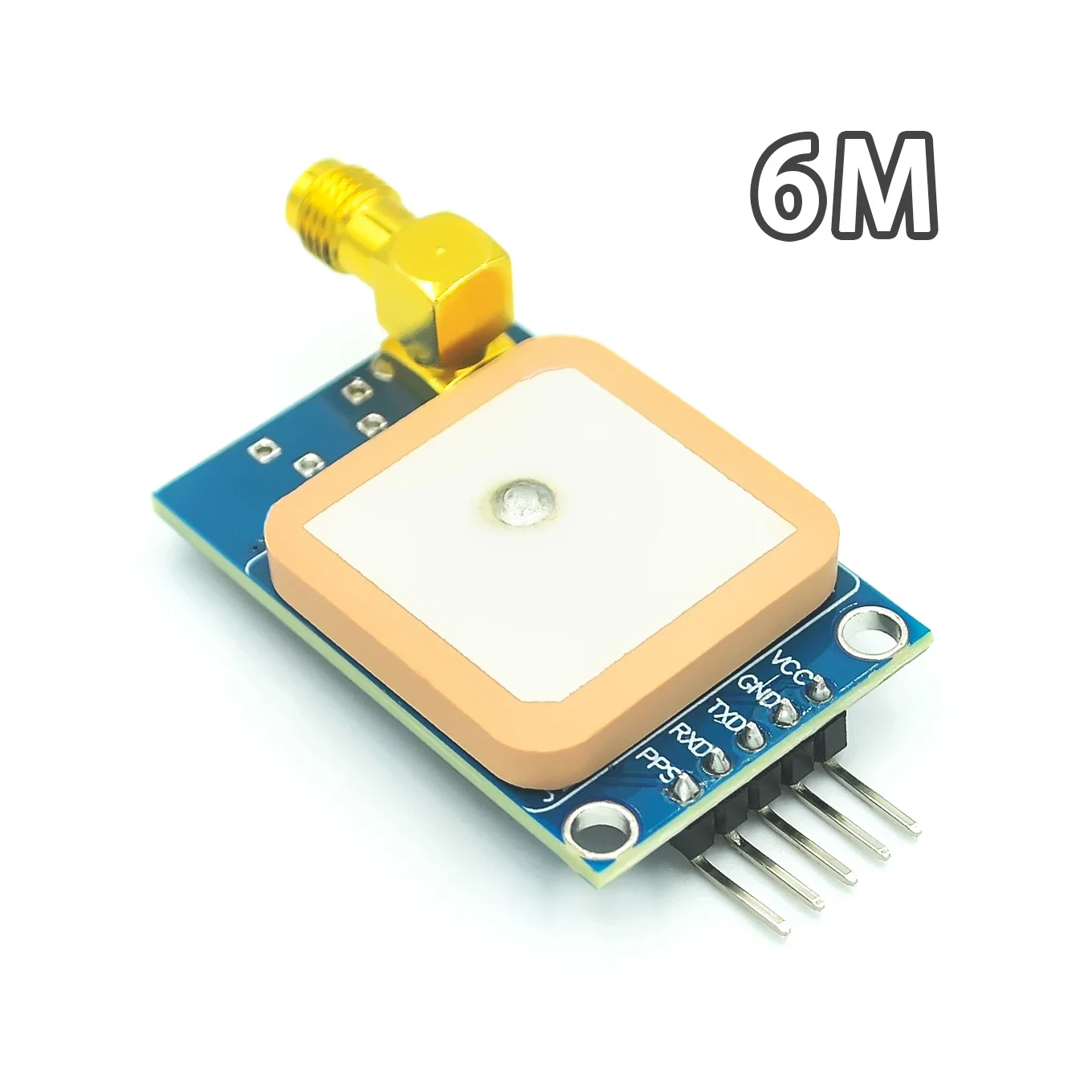

NEO 7M GPS Module Micro USB satellite Positioning Module - with a square ceramic antenna, a gold-coloured SMA connector, and a five-pin header labeled VCC, GND, TXD, RXD, and PPS.

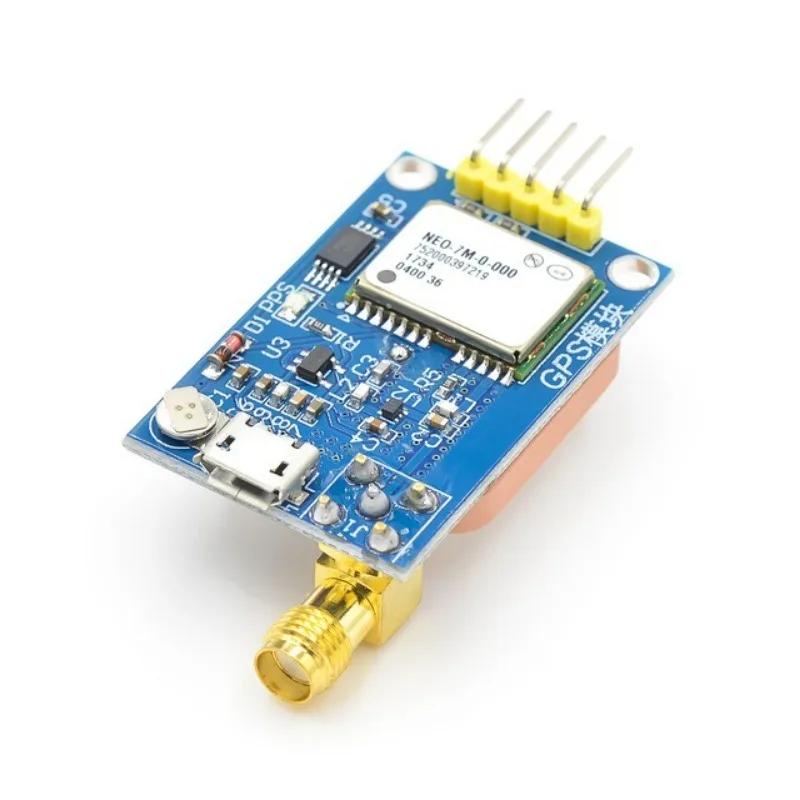

NEO 7M GPS Module Micro USB satellite Positioning Module - a blue circuit board with a square ceramic antenna, a gold-coloured antenna connector, and a five-pin header labeled VCC, GND, TXD, RXD, PPS.
-34%
NEO 7M GPS Module Micro USB satellite Positioning Module - with a square ceramic antenna, a gold-coloured SMA connector, and a five-pin header labeled VCC, GND, TXD, RXD, and PPS.
NEO 7M GPS Module Micro USB satellite Positioning Module - a blue circuit board with a square ceramic antenna, a gold-coloured antenna connector, and a five-pin header labeled VCC, GND, TXD, RXD, PPS.

NEO 7M GPS Module Micro USB satellite Positioning Module

Regular price Rs 2,160 Sale price Rs 1,420
SKU: b138,krt34
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

NEO 7M GPS Module Micro USB satellite Positioning Module - with a square ceramic antenna, a gold-coloured SMA connector, and a five-pin header labeled VCC, GND, TXD, RXD, and PPS.
+
GPS Antenna External Active Antenna For GPS – 3-5V 28DB - held in a hand, showing a black rectangular antenna with a white label and a gold-coloured SMA connector on a cable.
+
MPU6500 GY-6500 6DOF 6 Axis Accelerometer Gyro Sensor - shown as a blue rectangular circuit board with ten pin headers and a separate strip of ten pins.
+
ESP32-S3 Devkitc-1 N16R8 Development Board – 16MB Flash, 8MB Psram, Wi-Fi & Bluetooth 5.0 Le With External Antenna Connector - the ESP32-S3-N16R8 module, RST and BOOT buttons and its two USB-C ports.
ESP32-S3 Devkitc-1 N16R8 Development Board – 16MB Flash, 8MB Psram, Wi-Fi & Bluetooth 5.0 Le With External Antenna Connector - the ESP32-S3-N16R8 module, RST and BOOT buttons and its two USB-C ports.
This item: NEO 7M GPS Module Micro USB satellite Positioning Module -
Regular price Rs 2,160 Sale price Rs 1,420
GPS Antenna External Active Antenna For GPS – 3-5V 28DB - held in a hand, showing a black rectangular antenna with a white label and a gold-coloured SMA connector on a cable.
GPS Antenna External Active Antenna For GPS – 3-5V 28DB -
Sale price Rs 760
MPU6500 GY-6500 6DOF 6 Axis Accelerometer Gyro Sensor - shown as a blue rectangular circuit board with ten pin headers and a separate strip of ten pins.
MPU6500 GY-6500 6DOF 6 Axis Accelerometer Gyro Sensor -
Sale price Rs 1,370
ESP32-S3 Devkitc-1 N16R8 Development Board – 16MB Flash, 8MB Psram, Wi-Fi & Bluetooth 5.0 Le With External Antenna Connector - the ESP32-S3-N16R8 module, RST and BOOT buttons and its two USB-C ports.
ESP32-S3 Devkitc-1 N16R8 Development Board – 16MB Flash, 8MB Psram, Wi-Fi & Bluetooth 5.0 Le With External Antenna Connector -
Sale price Rs 1,800
Price for all:
Regular total price Rs 6,090 Sale total price Rs 5,350

Pickup available at Digilog Electronics

Usually ready in 2 hours

NEO 7M GPS Module Micro USB satellite Positioning Module - with a square ceramic antenna, a gold-coloured SMA connector, and a five-pin header labeled VCC, GND, TXD, RXD, and PPS.

NEO 7M GPS Module Micro USB satellite Positioning Module

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
NEO 7M GPS Module Micro USB satellite Positioning Module - with a square ceramic antenna, a gold-coloured SMA connector, and a five-pin header labeled VCC, GND, TXD, RXD, and PPS.
NEO 7M GPS Module Micro USB satellite Positioning Module
Regular price Rs 2,160 Sale priceRs 1,420

Product Overview

The NEO-7M GPS module provides reliable satellite positioning for your Arduino, Raspberry Pi, or microcontroller projects. Featuring a high-sensitivity receiver and micro USB interface, this module delivers accurate location data with minimal setup.

Key Features

  • NEO-7M chipset – Industry-standard GPS receiver with proven reliability
  • Micro USB interface – Simple plug-and-play connectivity for power and data
  • External antenna connector – Supports active or passive antennas for improved signal reception
  • UART serial output – Standard NMEA protocol for easy integration
  • Low power consumption – Suitable for battery-powered applications
  • Compact design – 18g lightweight module for portable projects

Technical Specifications

  • Chipset: u-blox NEO-7M
  • Frequency: L1 (1575.42 MHz)
  • Channels: 50
  • Position Accuracy: 2.5m CEP
  • Update Rate: Up to 10 Hz
  • Cold Start: ~27s (typical)
  • Hot Start: ~1s (typical)
  • Interface: UART (TTL level), Micro USB
  • Baud Rate: 9600 bps (default, configurable)
  • Operating Voltage: 3.3V – 5V DC
  • Operating Current: ~45mA
  • Operating Temperature: -40°C to +85°C
  • Antenna Connector: IPEX/U.FL
  • Weight: 18g

Applications

  • GPS tracking and navigation systems
  • Drone and UAV positioning
  • Vehicle tracking and fleet management
  • Robotics and autonomous vehicles
  • IoT location-based services
  • Data logging with geolocation

Package Contents

  • 1 × NEO-7M GPS Module with Micro USB
  • External antenna connector (antenna sold separately)

Note: External GPS antenna recommended for optimal performance, especially in indoor or obstructed environments.
