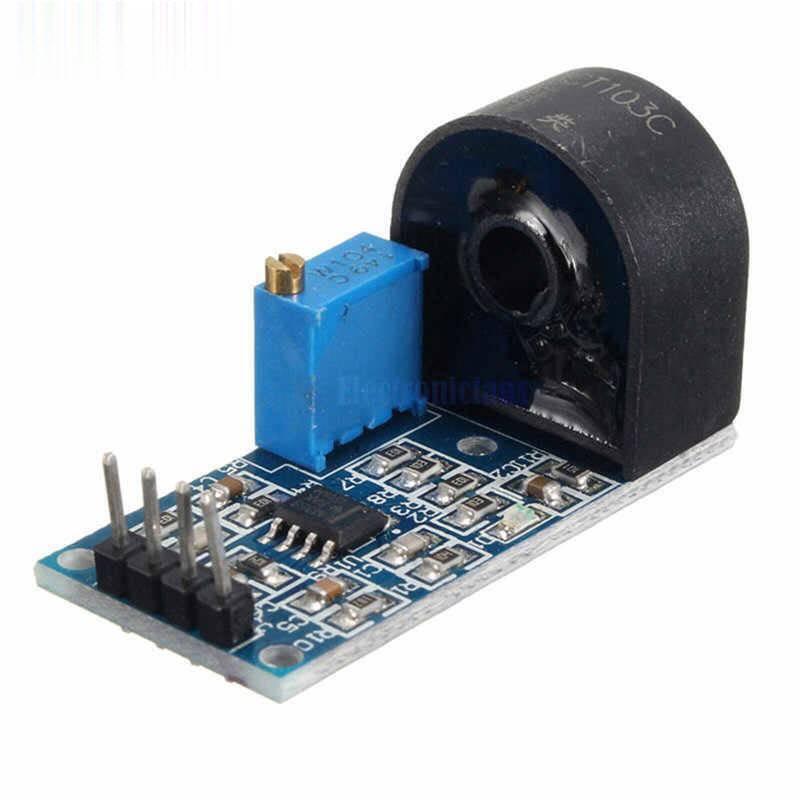

ZMCT103C 5A Range Single Phase AC Active Output Onboard Precision Micro Current Transformer Module Current Sensor For Arduino - a blue PCB, a black current transformer, a blue potentiometer, and a four-pin header connector.

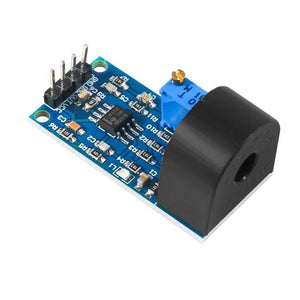

ZMCT103C 5A Range Single Phase AC Active Output Onboard Precision Micro Current Transformer Module Current Sensor For Arduino - a blue circuit board with a black transformer, a brass-topped potentiometer, and a four-pin connector on one end.

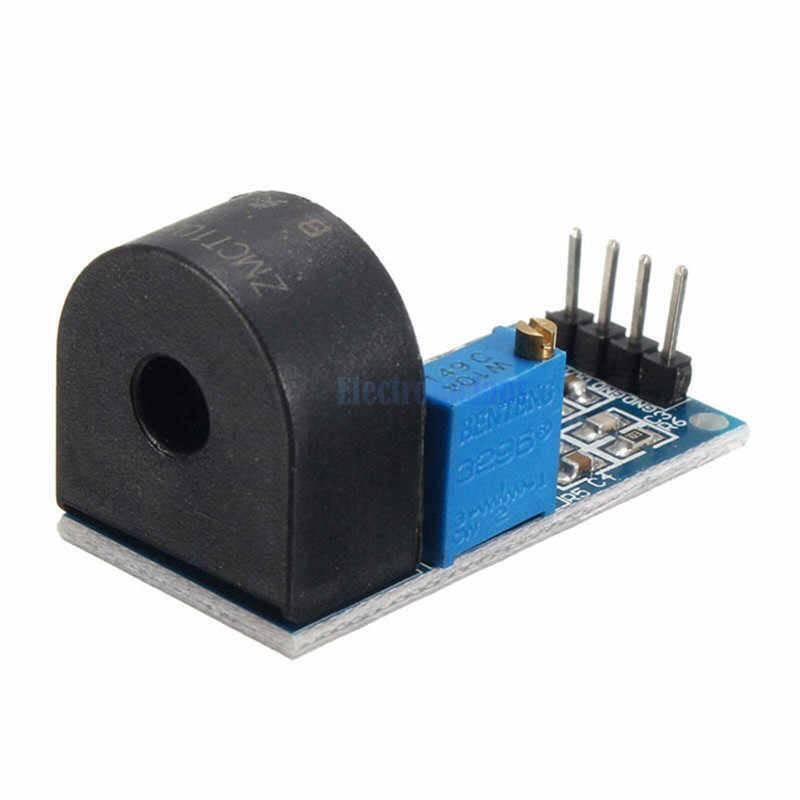

ZMCT103C 5A Range Single Phase AC Active Output Onboard Precision Micro Current Transformer Module Current Sensor For Arduino - a blue circuit board with a black current transformer, a blue potentiometer, and a four-pin header connector.

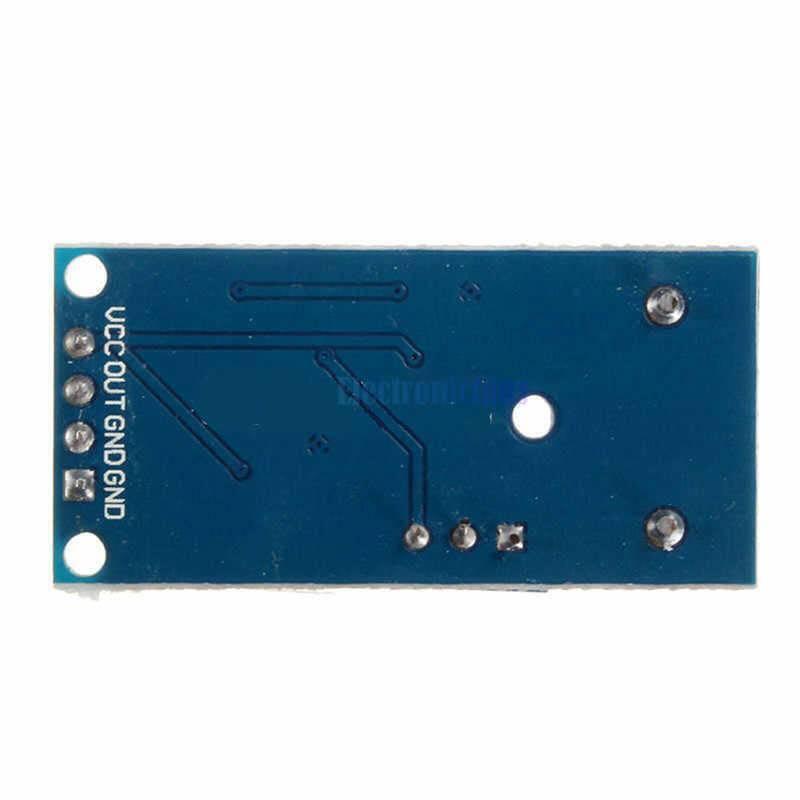

ZMCT103C 5A Range Single Phase AC Active Output Onboard Precision Micro Current Transformer Module Current Sensor For Arduino - the blue rectangular underside of the PCB with four labeled pin connectors: VCC, OUT, GND, and GND.

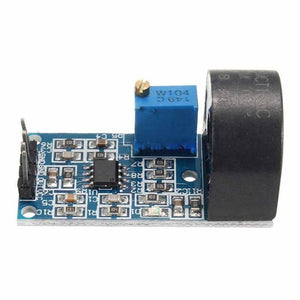

ZMCT103C 5A Range Single Phase AC Active Output Onboard Precision Micro Current Transformer Module Current Sensor For Arduino - a black circular transformer, a blue potentiometer, and a four-pin header on a blue circuit board.
ZMCT103C 5A Range Single Phase AC Active Output Onboard Precision Micro Current Transformer Module Current Sensor For Arduino - a blue PCB, a black current transformer, a blue potentiometer, and a four-pin header connector.
ZMCT103C 5A Range Single Phase AC Active Output Onboard Precision Micro Current Transformer Module Current Sensor For Arduino - a blue circuit board with a black transformer, a brass-topped potentiometer, and a four-pin connector on one end.
ZMCT103C 5A Range Single Phase AC Active Output Onboard Precision Micro Current Transformer Module Current Sensor For Arduino - a blue circuit board with a black current transformer, a blue potentiometer, and a four-pin header connector.
ZMCT103C 5A Range Single Phase AC Active Output Onboard Precision Micro Current Transformer Module Current Sensor For Arduino - the blue rectangular underside of the PCB with four labeled pin connectors: VCC, OUT, GND, and GND.
ZMCT103C 5A Range Single Phase AC Active Output Onboard Precision Micro Current Transformer Module Current Sensor For Arduino - a black circular transformer, a blue potentiometer, and a four-pin header on a blue circuit board.

ZMCT103C 5A Range Single Phase AC Active Output Onboard Precision Micro Current Transformer Module Current Sensor For Arduino

Sale price Rs 380
SKU: B836,KRT3,IMP30,Th15
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

ZMCT103C 5A Range Single Phase AC Active Output Onboard Precision Micro Current Transformer Module Current Sensor For Arduino - a blue PCB, a black current transformer, a blue potentiometer, and a four-pin header connector.

ZMCT103C 5A Range Single Phase AC Active Output Onboard Precision Micro Current Transformer Module Current Sensor For Arduino

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
ZMCT103C 5A Range Single Phase AC Active Output Onboard Precision Micro Current Transformer Module Current Sensor For Arduino - a blue PCB, a black current transformer, a blue potentiometer, and a four-pin header connector.
ZMCT103C 5A Range Single Phase AC Active Output Onboard Precision Micro Current Transformer Module Current Sensor For Arduino
Sale priceRs 380

The module is equipped with the ZMCT103C series of small high-precision current transformers and high-precision op amp circuits for accurate sampling and proper compensation of signals. It is convenient for signal acquisition of AC power within 5A. The corresponding output analog AC signal can be adjusted. The required output voltage can be adjusted according to the potentiometer (adjusting the amplification ratio, the amplification range is 0-100 times), but the maximum voltage at the output (OUT) will not exceed 1/2 VCC.

:Features

  • ZMCT103C parameters
  • Rated input current: 5A
  • Rated output current: 5mA
  • Change ratio: 1000:1
  • Phase difference: less than or equal to 20' (100Ω)
  • Linear range: 0-10A (100Ω)
  • Linearity: 0.2%
  • Precision level: 0.2
  • Isolation withstand voltage: 3000V
  • Working temperature: -40 ° C ~ 70 ° C
  • Sealing material: epoxy resin
  • Module supply voltage: 5-30V DC

Package Include:

  • 1 x ZMCT103C 5A Range Single Phase AC Active Output Current Transformer Module
