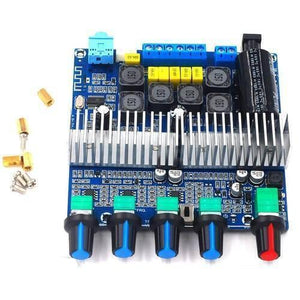

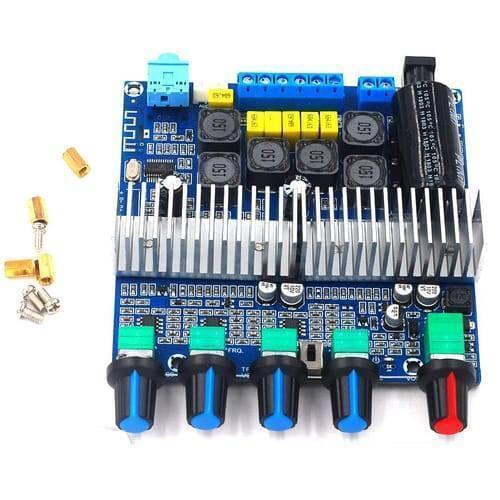

2.1 Channel Audio Stereo Equalizer Bluetooth Hifi Power Subwoofer Amplifier Board TPA3116D2 - circuit board with a heatsink, five knobs, and accessories.

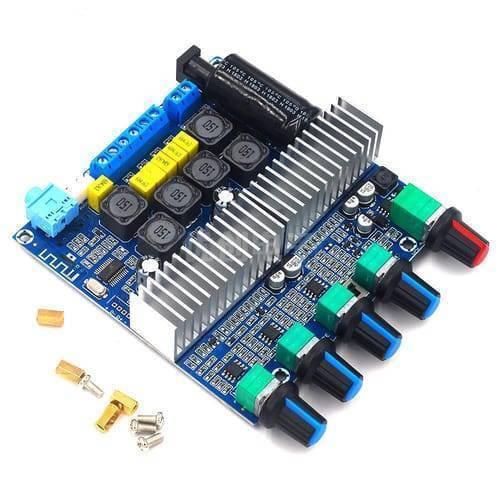

2.1 Channel Audio Stereo Equalizer Bluetooth Hifi Power Subwoofer Amplifier Board TPA3116D2 - circuit board with five knobs and accessories.

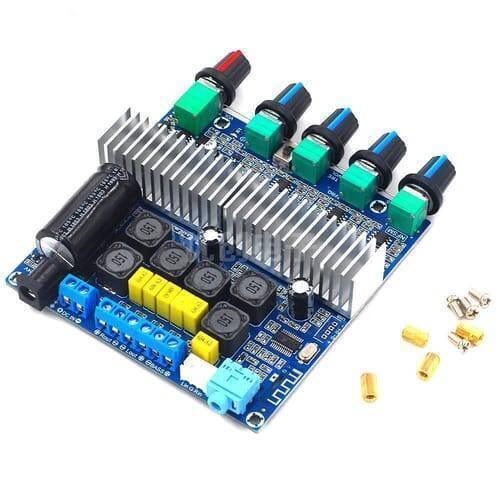

2.1 Channel Audio Stereo Equalizer Bluetooth Hifi Power Subwoofer Amplifier Board TPA3116D2 - circuit board with five knobs and metal spacers.

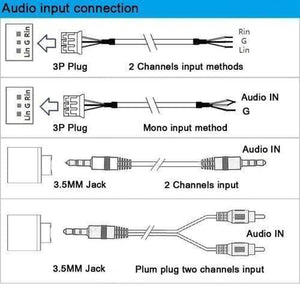

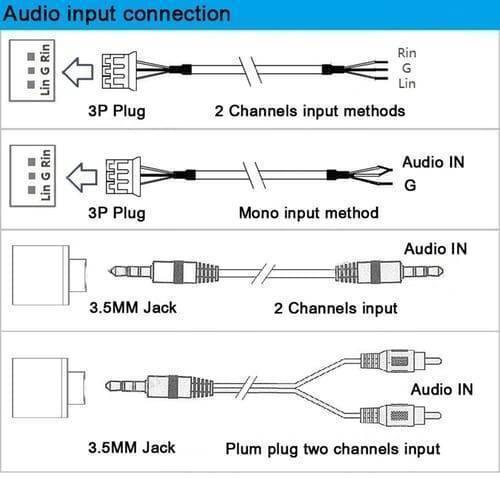

2.1 Channel Audio Stereo Equalizer Bluetooth Hifi Power Subwoofer Amplifier Board TPA3116D2 - wiring diagram showing 3P plug and 3.5mm jack connections.

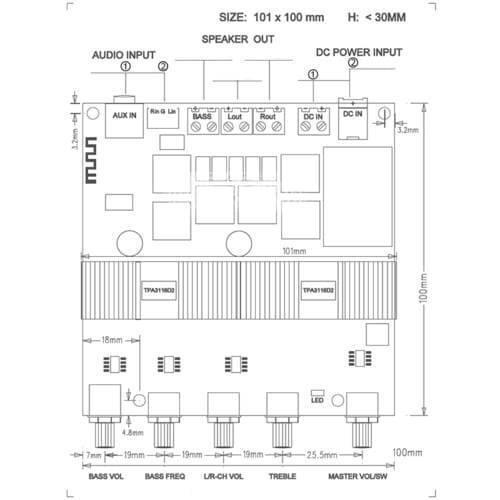

2.1 Channel Audio Stereo Equalizer Bluetooth Hifi Power Subwoofer Amplifier Board TPA3116D2 - dimension diagram showing board layout, ports, and knobs.
2.1 Channel Audio Stereo Equalizer Bluetooth Hifi Power Subwoofer Amplifier Board TPA3116D2 - circuit board with a heatsink, five knobs, and accessories.
2.1 Channel Audio Stereo Equalizer Bluetooth Hifi Power Subwoofer Amplifier Board TPA3116D2 - circuit board with five knobs and accessories.
2.1 Channel Audio Stereo Equalizer Bluetooth Hifi Power Subwoofer Amplifier Board TPA3116D2 - circuit board with five knobs and metal spacers.
2.1 Channel Audio Stereo Equalizer Bluetooth Hifi Power Subwoofer Amplifier Board TPA3116D2 - wiring diagram showing 3P plug and 3.5mm jack connections.
2.1 Channel Audio Stereo Equalizer Bluetooth Hifi Power Subwoofer Amplifier Board TPA3116D2 - dimension diagram showing board layout, ports, and knobs.

2.1 Channel Audio Stereo Equalizer Bluetooth Hifi Power Subwoofer Amplifier Board TPA3116D2

Sale price Rs 4,540
SKU: B749,krt119,L2,Th1
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

2.1 Channel Audio Stereo Equalizer Bluetooth Hifi Power Subwoofer Amplifier Board TPA3116D2 - circuit board with a heatsink, five knobs, and accessories.

2.1 Channel Audio Stereo Equalizer Bluetooth Hifi Power Subwoofer Amplifier Board TPA3116D2

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map

This device helps you listen to music with Bluetooth. It has controls for bass, treble, and volume. It can use different power sources like laptops or batteries.

Of HIFI Power 2.1 Channel Audio Stereo Equalizer Blue-tooth Subwoofer Amplifier Board Amp 2*50W+100W TPA3116:

  • Product Name: 2.1 Channel TPA3116D2  Digital Amplifier
  • AMP Chip: dual TPA3116D2
  • Max Output Power: 2*50W+100W
  • Power Supply: DC12~24V
  • Channels: 2.1
  • Efficiency: 90%
  • Output Impedance:  left/right 4-8 ohm, bass 2-8 ohm
  • Audio Input: Bluetooth / AUX / 3P
  • Bluetooth Version: 5.0
  • Working Type: Class D
  • Size: 100*101*25mm

 Function Instructions:

  • Default Bluetooth mode is Default.
  • When Bluetooth disconnected, long-press the Volume button to Switch to AUX.
  • The product size is subject to the picture or description provided, please select the appropriate size before you submit your order.
  • The accessories on the picture are for shooting only and are not included in the shipping list.

Package Includes:

  • 1 x 2.1 Channel Bluetooth HIFI Power Subwoofer Amplifier Board Set
