HLW8012 High-Precision Energy Metering Module Arduino Energy Monitoring:
Download Arduino Library
https://www.ioxhop.info/files/arduino-libraries/HL...
- Based on HLW8012, single-phase energy monitor IC. SOP8 package and simple peripheral circuits.
- Need to invasive to AC main power. VBA is very careful when using it because of the HIGH AC voltage.
- Output power, or current or voltage directly by frequency, which can be read by MCU like Arduino.
- Current sense by sample resistor
- voltage sense by resistors net.

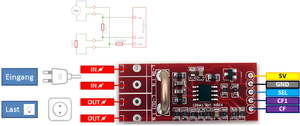

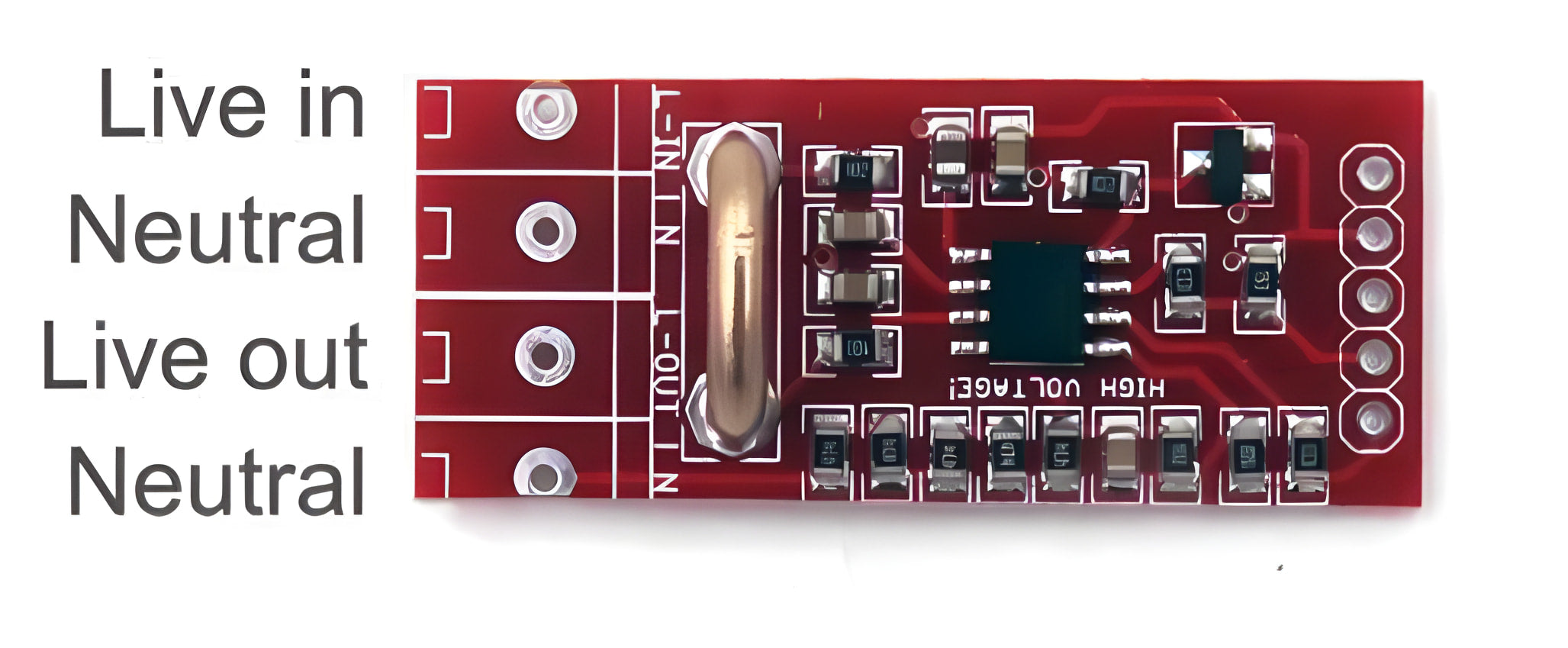

- The board dimension is 40 x 23 mm.
- Frequency read demo video please see here, and see demo code in the wiki page.
- Demo code (check in the wiki page) support ESP8266 remote debug via telnet, safe to read data when mains AC power connected.
- According to the application note, the power supply of hlw8012 must be not isolated, read more information on the wiki page.
- Most onboard information please read on this page.
