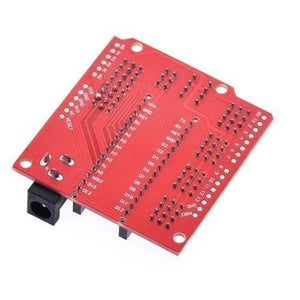

Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red rectangular circuit board with multiple pin headers and a black barrel power connector.

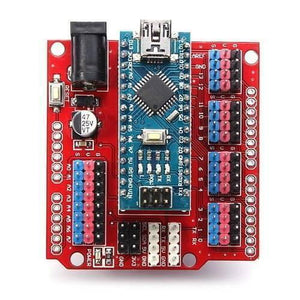

Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red PCB with a blue Arduino Nano mounted, featuring multiple pin headers and a power jack.
Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red circuit board featuring multiple pin headers, a power jack, and a reset button.
Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red circuit board with multiple pin headers, a power jack, and a capacitor.
Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red circuit board with multiple pin headers, a power jack, and dimension labels 53.6mm by 58mm.
Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red rectangular circuit board featuring multiple pin headers, a power jack, and a reset button.
Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red rectangular circuit board with multiple pin headers and a black barrel power connector.
Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red PCB with a blue Arduino Nano mounted, featuring multiple pin headers and a power jack.

Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield

Sale price Rs 360
SKU: B130,KRT16,IMP100,Th50
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red circuit board featuring multiple pin headers, a power jack, and a reset button.

Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield - a red circuit board featuring multiple pin headers, a power jack, and a reset button.
Arduino Nano Sensor Shield Nano I/o Expansion Board Prototype Shield
Sale priceRs 360

This Nano Multi-Function expansion board is designed especially for Nano, solves the problem of wiring confusing when a variety of sensors connected. Nano Breakout Board Lead out all digital IO port and analog IO port, each one with standard positive and negative power interface. Arduino Nano Sheild Lead out the I2C interface of the mainboard for a convenient connection. Arduino Nano Prototype Board is Increasing the DC power supply interface. Nano USB interface supply current is actually only 50MA, to bring high-current devices, such as the steering, is obviously insufficient. So in the DC power connector provide external power supply to ensure the stability of equipment operation.

Features Of Prototype Shield I/O Expansion Module Extension Board For Arduino Nano V3.0:

  • Power Jack, Power LED
  • Reset Button
  • FTDI 4 pins jack
  • Standard Arduino pins
  • More GVS extended pins.
  • Increased DC Power supply Interface

Specifications Of Multi-Function Funduino Nano Shield Arduino Nano Sensor Expansion Board:

  1. 14 I/O Pin (servo type with GND, power, and signal)
  2. 8 analog Pin with power output and GND
  3. 6 PWM Pin
  4. 1 Servo power input
  5. I2C expansion Pin
  6. AREF output
  7. 3.3V output
  8. Size: 6×5.3×1.3cm(approx)

Package Include:

  • 1x Multifunction Expansion Board For Arduino Nano

Best Online Shopping Website For Arduino Nano Sensor I/O Shield Nano Expansion Board Nano Breakout Board in a cheap price in Lahore Islamabad Karachi Faislabad Multan Sukkur Quetta Rawalpindi Peshawar Gujranwala Sialkot and all over Pakistan 8266_345325_265845_2317899_0
