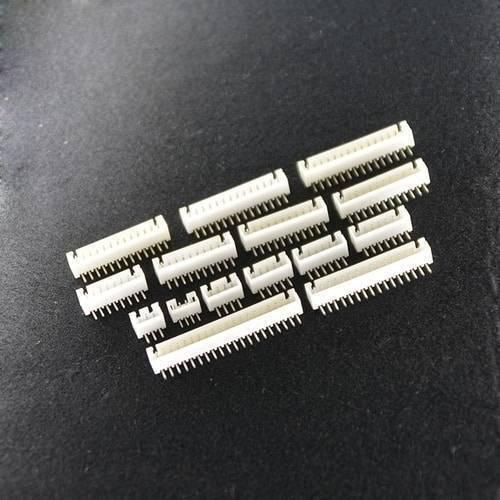

4 Pin 2.5mm JST Xh Style PCB Mount Male Connector
The 4 Pin 2.5mm JST XH Style PCB Mount Male Connector is a versatile and reliable component suitable for a wide range of electronic projects. This high-quality connector features a secure design and is compatible with various female connectors, making it a valuable addition to your toolkit.
Key Features:
- Reliable Connection: Ensures a secure and stable connection between devices.
- Versatile Compatibility: Works with both JST XH female connectors and other 0.1″-pitch female connectors.
- Durable Construction: Built to last with a rugged and reliable design.
- PCB Mountable: Designed for easy installation on printed circuit boards.
- Wide Operating Temperature Range: Functions reliably from -25°C to +85°C.
Specifications:
- Number of Pins: 4
- Pitch: 2.5mm
- Mounting Height: 9.8mm
- Current Rating: 3A AC, DC (AWG #22)
- Voltage Rating: 250V AC, DC
- Contact Resistance: Initial value/10mΩ max.
- Insulation Resistance: 1000 MΩ min
- Withstanding Voltage: 1000V AC/minute
- Applicable Wire: AWG #30 to #22
Order Now:
Upgrade your electronic projects with our 4 Pin 2.5mm JST XH Style PCB Mount Male Connector. Experience the reliability and versatility of this essential component.
