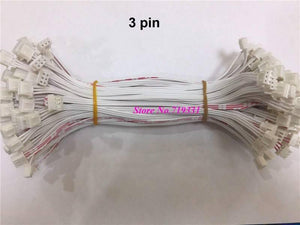

3 Wires 2.54mm Pitch Female To Female JST Xh Connector Cable Wire 6 Inch - shown as a large bundle of white cables with white 3-pin connectors at both ends.

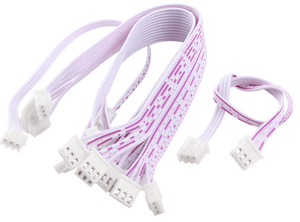

3 Wires 2.54mm Pitch Female To Female JST Xh Connector Cable Wire 6 Inch - a collection of white ribbon cables with 3-pin female connectors.

3 Wires 2.54mm Pitch Female To Female JST Xh Connector Cable Wire 6 Inch - shown as a large bundle of white cables with white 3-pin connectors at both ends.

3 Wires 2.54mm Pitch Female To Female JST Xh Connector Cable Wire 6 Inch - a collection of white ribbon cables with 3-pin female connectors.

3 Wires 2.54mm Pitch Female To Female JST Xh Connector Cable Wire 6 Inch

Rs 50

SKU: B602,krt140,L20,Th10

Pickup available at Digilog Electronics

Usually ready in 2 hours

3 Wires 2.54mm Pitch Female To Female JST Xh Connector Cable Wire 6 Inch - shown as a large bundle of white cables with white 3-pin connectors at both ends.

3 Wires 2.54mm Pitch Female To Female JST Xh Connector Cable Wire 6 Inch

Rs 50

3 wires 2.54mm Pitch Female to Female JST XH Connector Cable Wire 30cm available in hallroad.org
Ideal connection to simplify and make reliable the interconnections you need during your DIY realizations and assemblies.
Very commonly used for PCB (Printed Circuit Board), which are electronic printed circuits requiring connectors to transmit flows and information.

Specifications:

Pitch: approx. 2.54mm
Current rating: 1A AC, DC
Voltage rating: 125V AC, DC
Temperature range: -25 ℃ ~ +85 ℃
Insulation resistance: 100M Omega Min.
Withstanding voltage: 500V AC/minute
Wire range: AWG#24~#32
Insulation O.D. : 1.00mm (Max.)
Fine workmanship.
Easy to use.

Characteristics :

Straight Connectors: 3 PIN
Connector Height: 2.54 mm
Type of wiring: AWG 26 (0,129 mm²)
Length: 6 inch
2p,3p , 4p , 5p, 6p ,….. 10p available.
