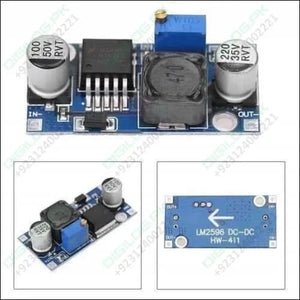

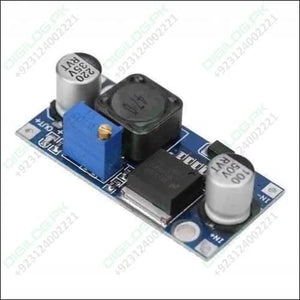

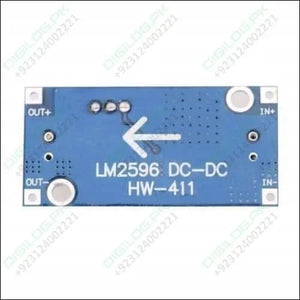

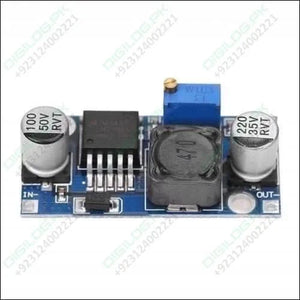

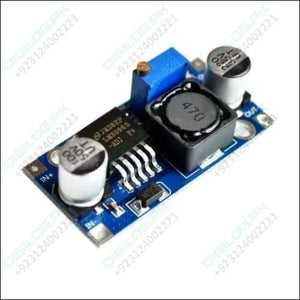

LM2596 DC-DC Buck Converter Step Down Module Power Supply is a step-down(buck) switching regulator. LM2596 Buck is capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version. The LM2596 Stepdown module is operating at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators
Features Of DC-DC LM2596 DC-DC Adjustable Buck Converter Step Down Module Power Supply:
- Non-isolated step-down (BUCK) switching regulator.
- Short circuit protection: Current limiting, self-recovery

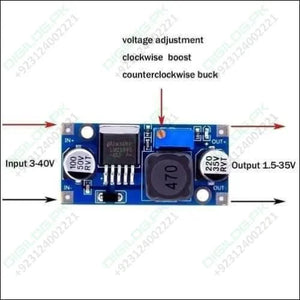

- Potentiometer adjustment direction
- Non-synchronous rectification
Specifications of LM2596 3A Adjustable Voltage Regulator Buck Module:
- Model name: DC-DC LM2596S buck module
- Input voltage:3.2V~46V (recommended for use in 40V)
- Output voltage:1.25V~35V
- Output current:3A (maximum)
- Conversion efficiency:92% (highest)
- Output ripple:<30mV
- Switching frequency:65KHz
- Working temperature:-45 ~ +85
- Dimension:21mm * 43mm * 14mm (length * width * height)
Package Include:
- 1x DC To Dc Buck Converter Step Down Module Power Supply LM2596
