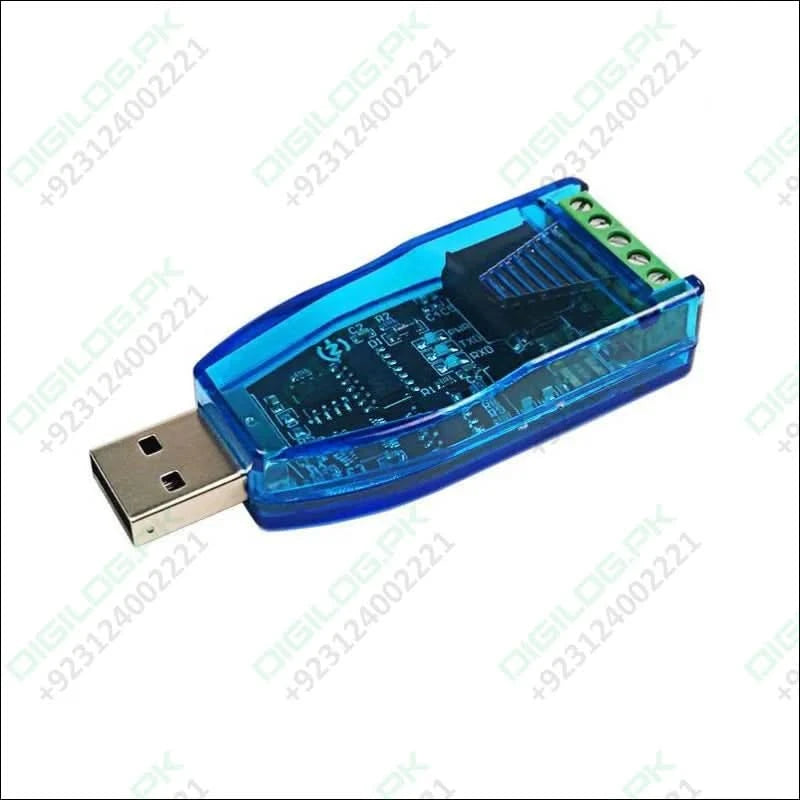

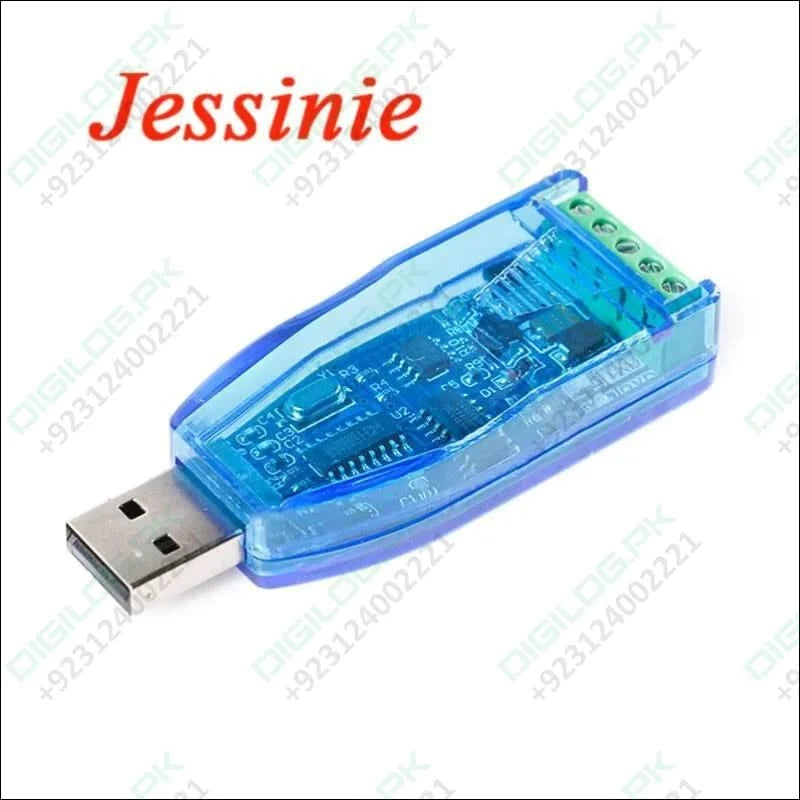

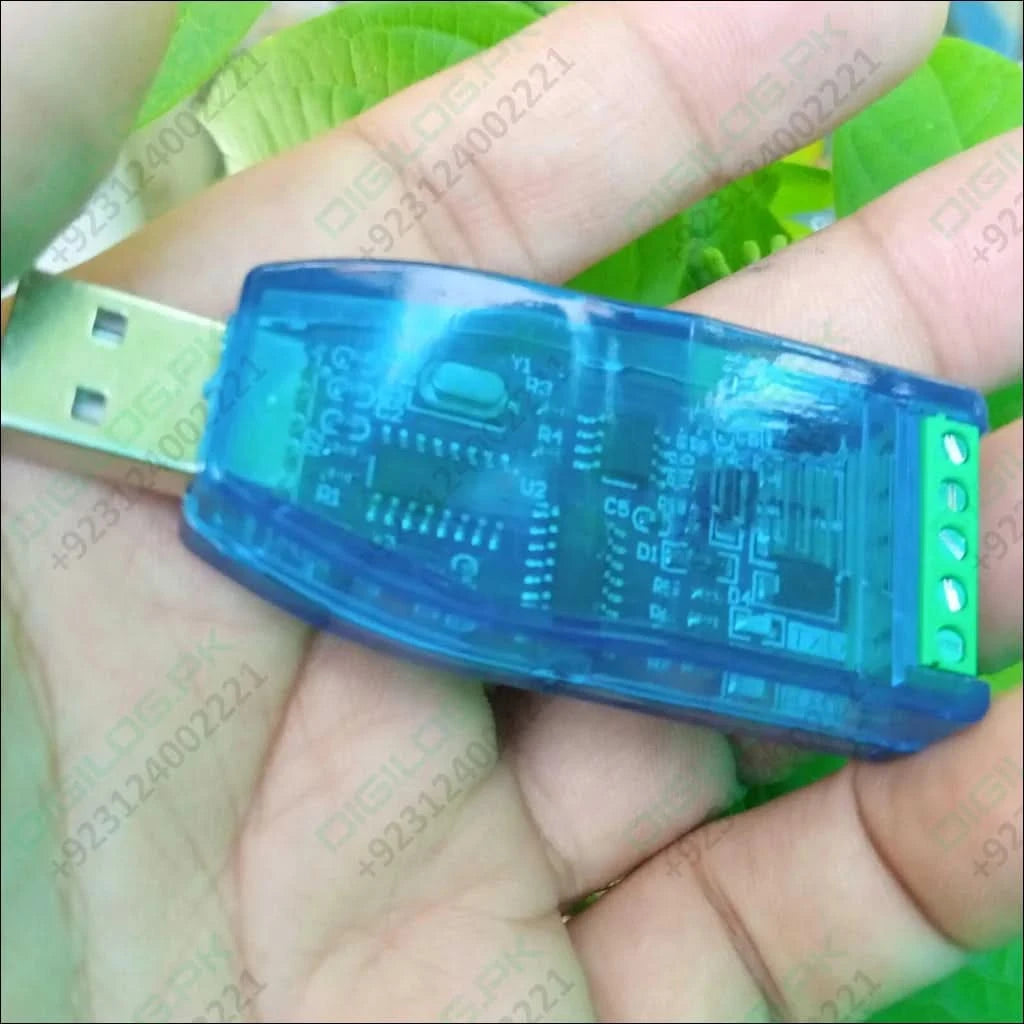

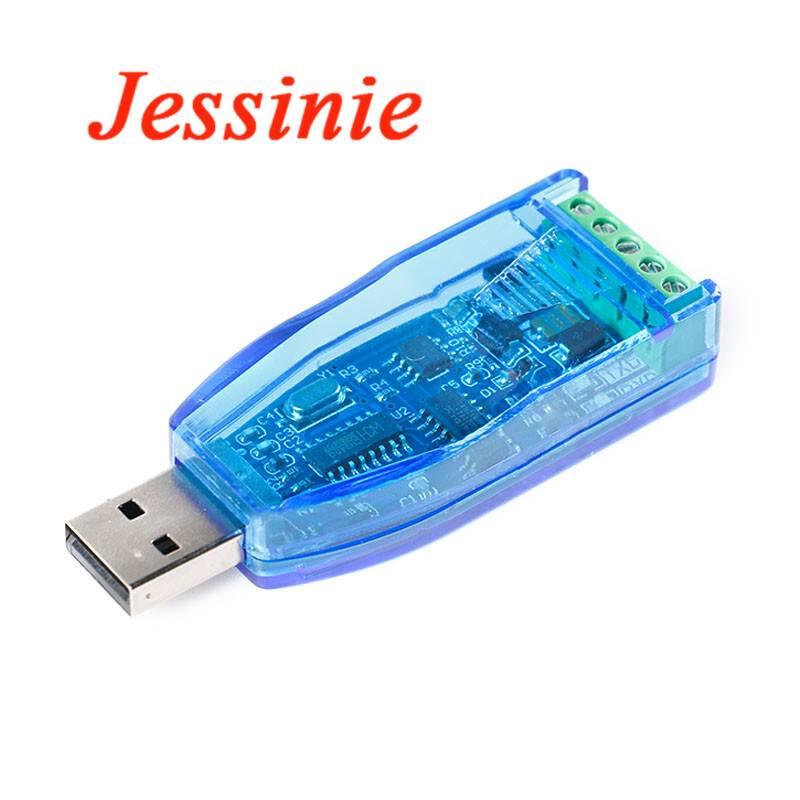

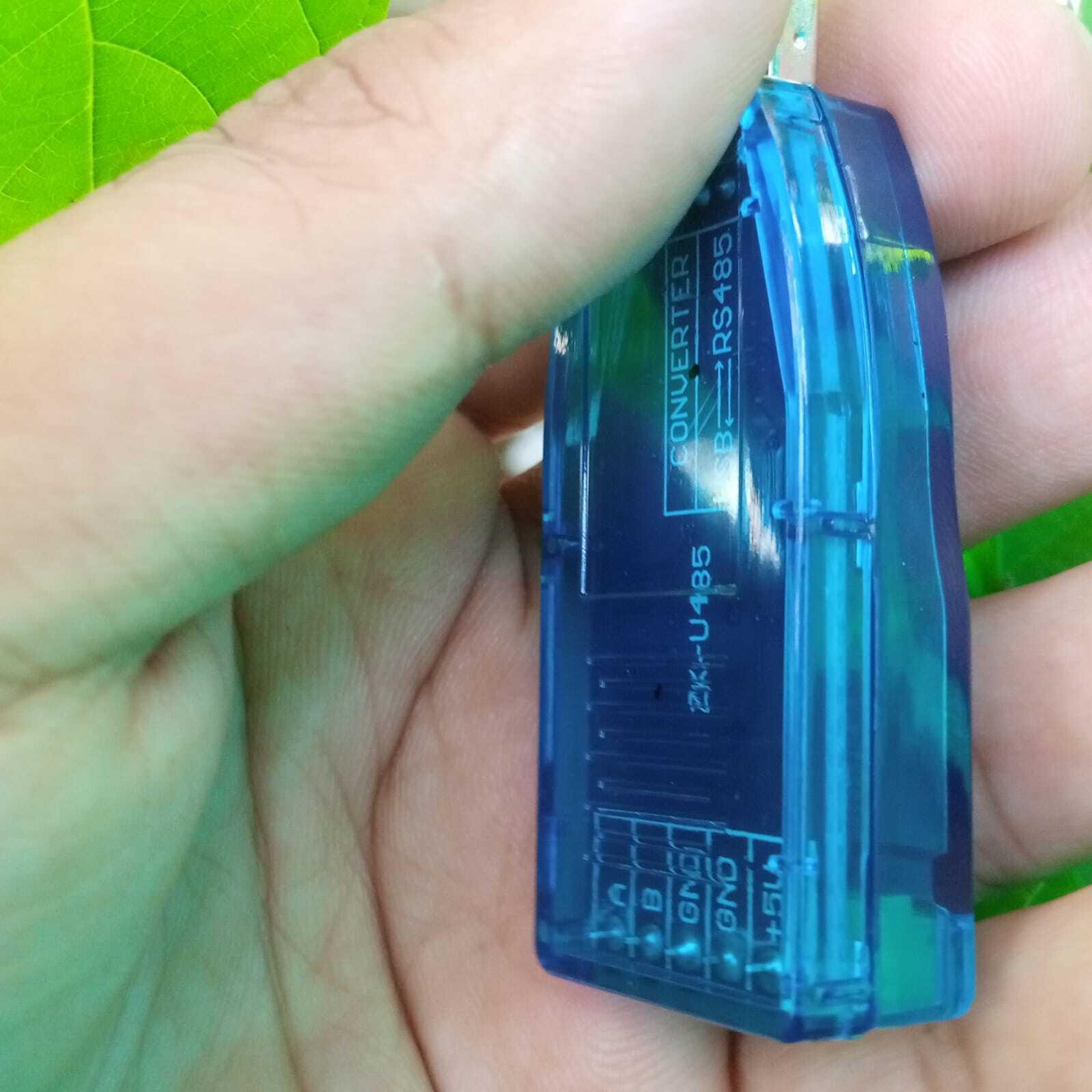

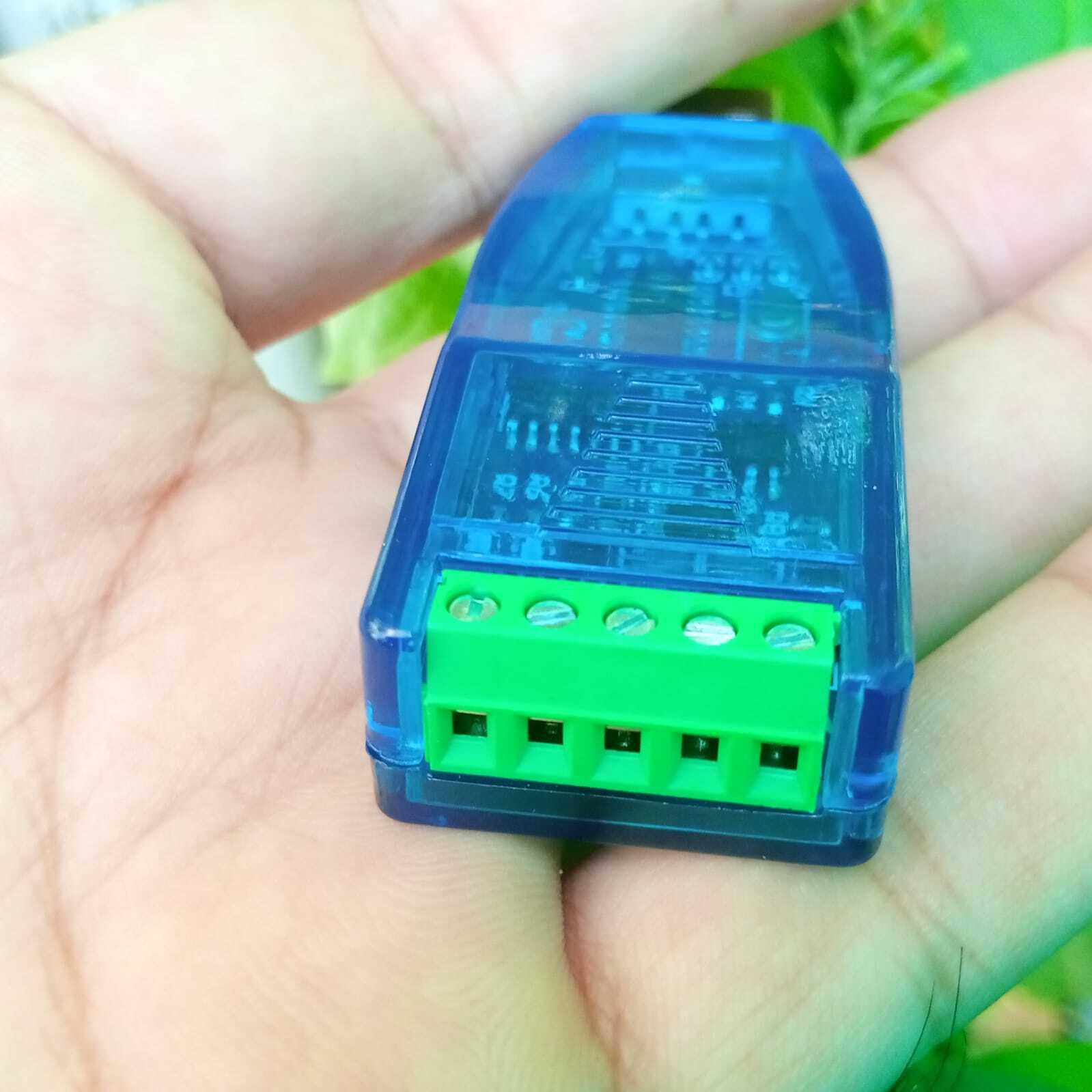

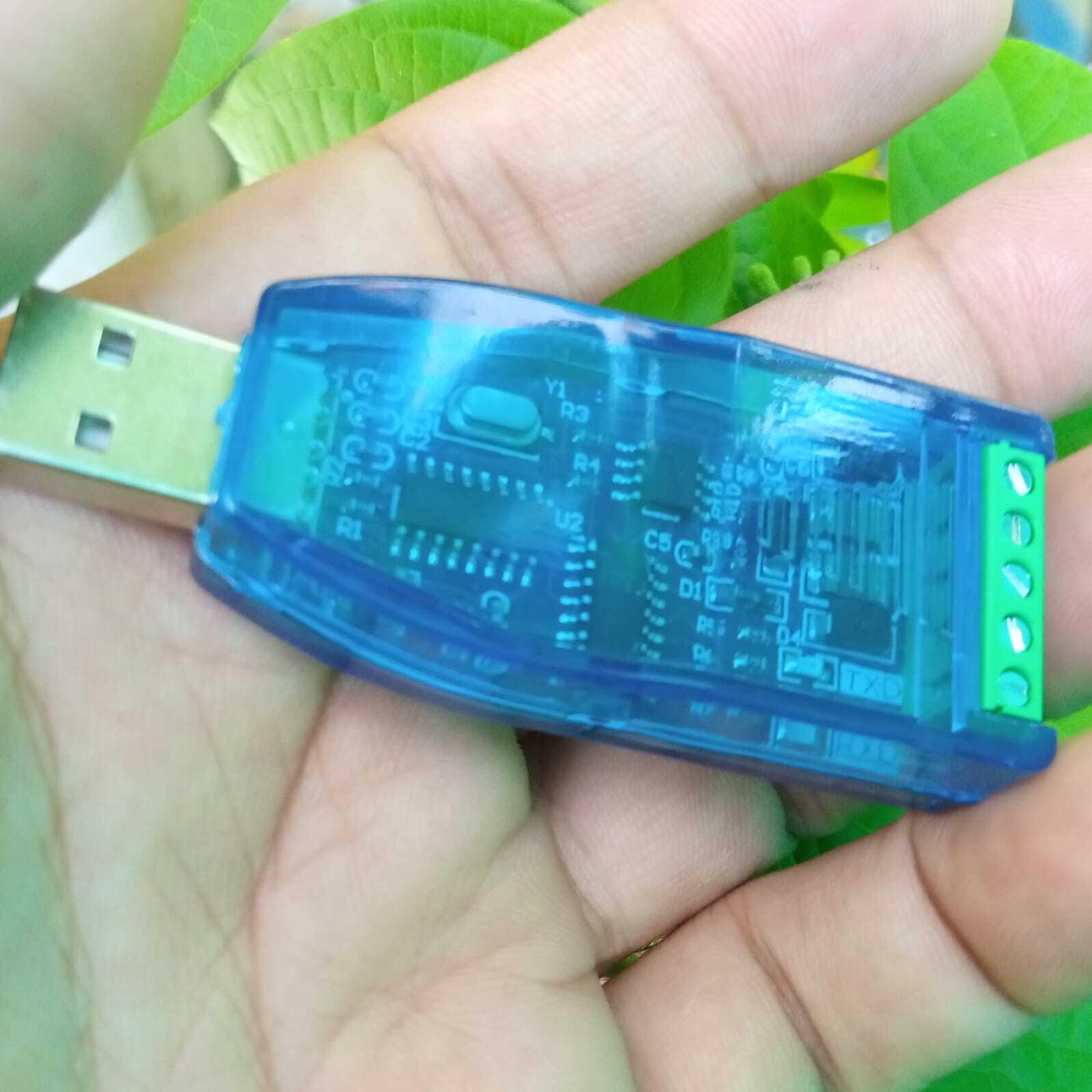

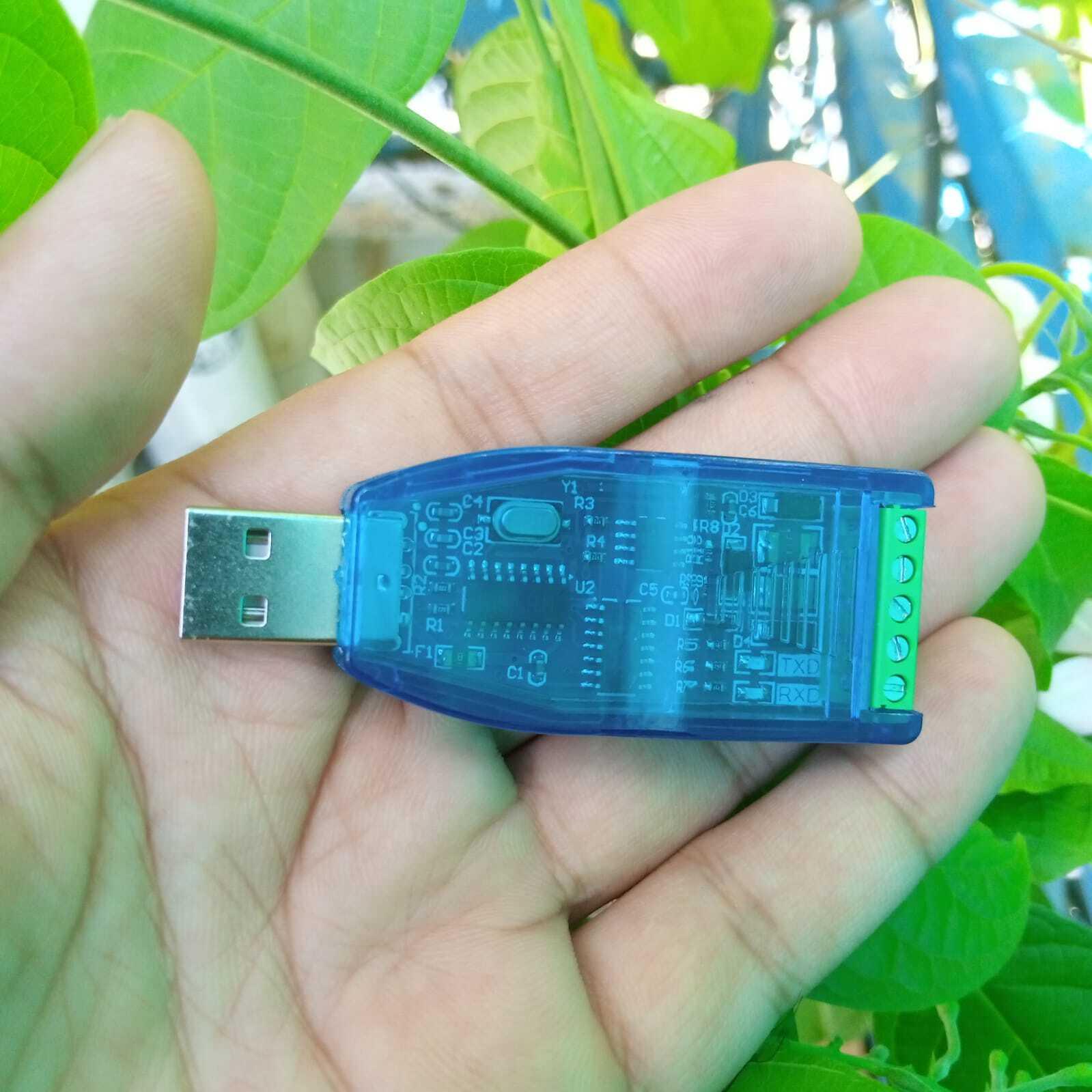

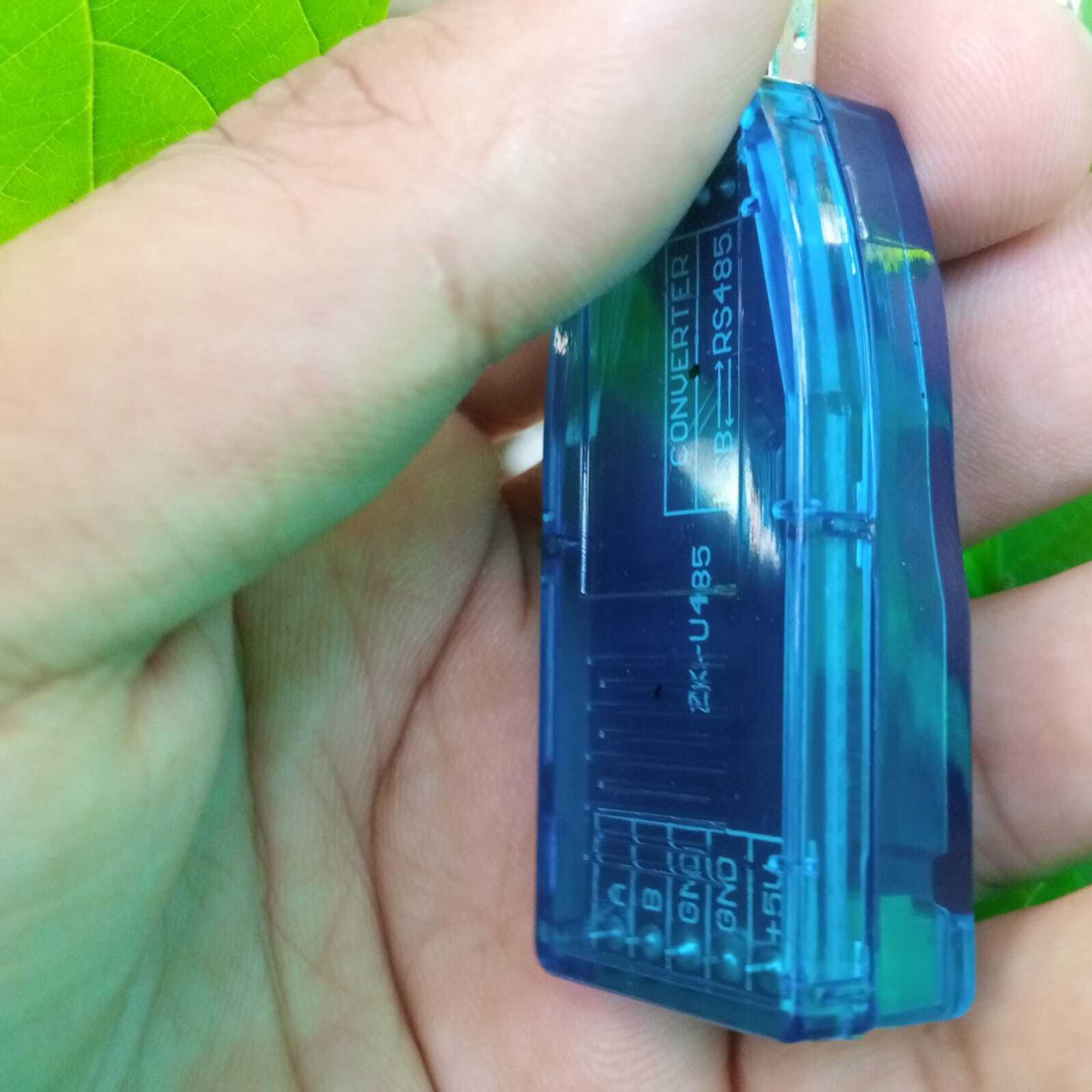

ZK-U485 Industrial Grade USB To RS485 Converter Module

ZK-U485 Industrial Grade USB To RS485 Converter Module

SKU:B156

Regular price Rs.1,200
Regular price Sale price Rs.1,200
Sale Sold out
Shipping calculated at checkout.
NOTIFY ME WHEN IN STOCK

ZK-U485 is a Industrial grade USB to RS485 communication module.Two-way communication half duplex serial port.

Features:

  •   Support TVS transient suppression protection
  •   Support electrostatic ESD protection
  •   Support surge protection
  •   Support short circuit protection
  •   Super long communication distance
  •   Support hot plug and unplug
  •   Automatically determine and control the data transmission direction
  •   Support XP/WIN7/WIN8/WIN10/VISTA/LINUX/MAC OS X operating system

Parameters:

  •   Product name:ZK-U485 CH340 USB to RS485 Converter
  •   Model:ZK-U485
  •   Work Voltage:DC 5V
  •    Communication distance:1200meter(Max at 9600bps)
  •    Baud rate:115200bps(Max)
  •    Work Temperature:-40℃~80℃
  •    Work Humidity:0%~95%RH

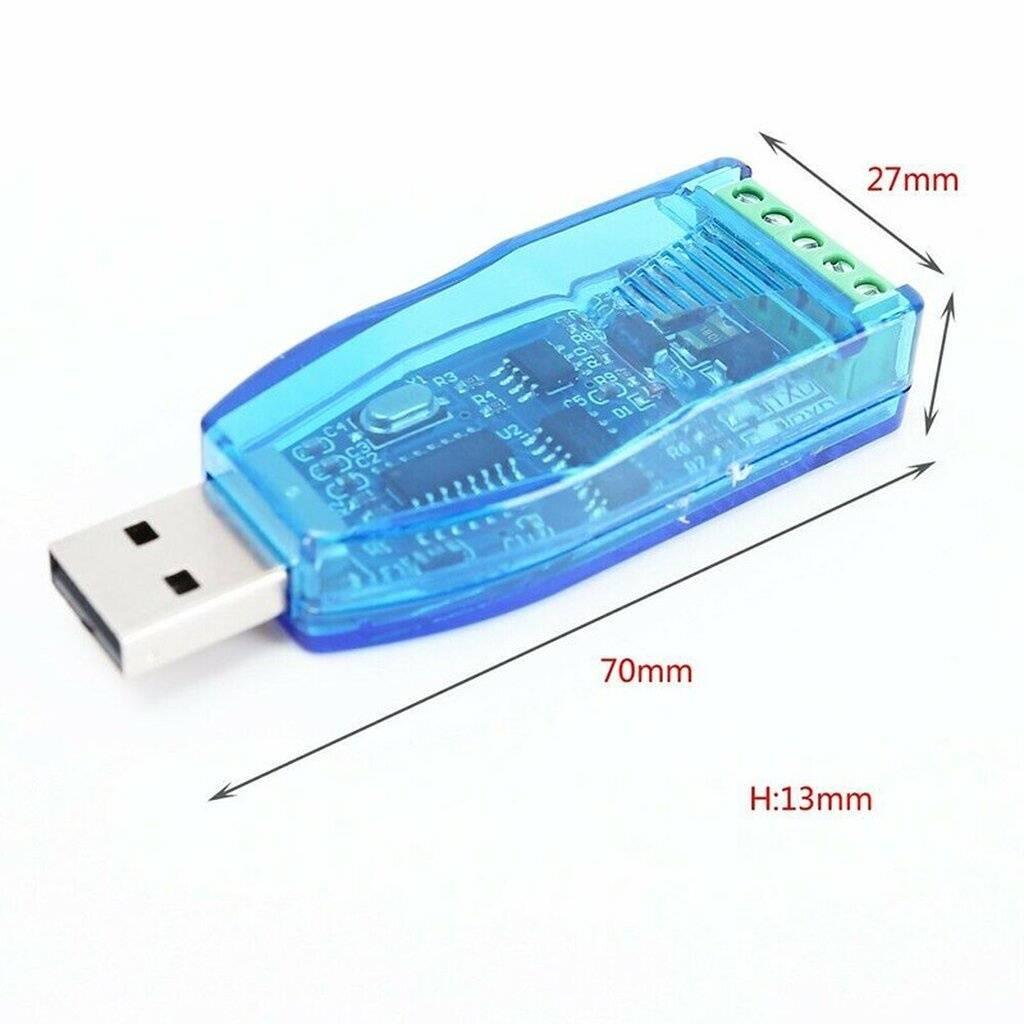

  •    Module Size:70*27*13mm



Use steps:

  •     Download CH340 Driver software and Serial communication software.
  •     Install CH340 Driver.
  •     Connect module to PC and check PC’s ‘Device manager’.It will display CH340.If the computer does not recognize module, user need to uninstall the driver software, then re-install or replace the computer or change USB port.
  •     Open Serial communication software to use send data.
  •

Application:

  •     Data collection
  •     Signal conversion
  •     Equipment Repair
  •     Product development



Package:

1pcs ZK-U485 CH340 USB to RS485 Converter
