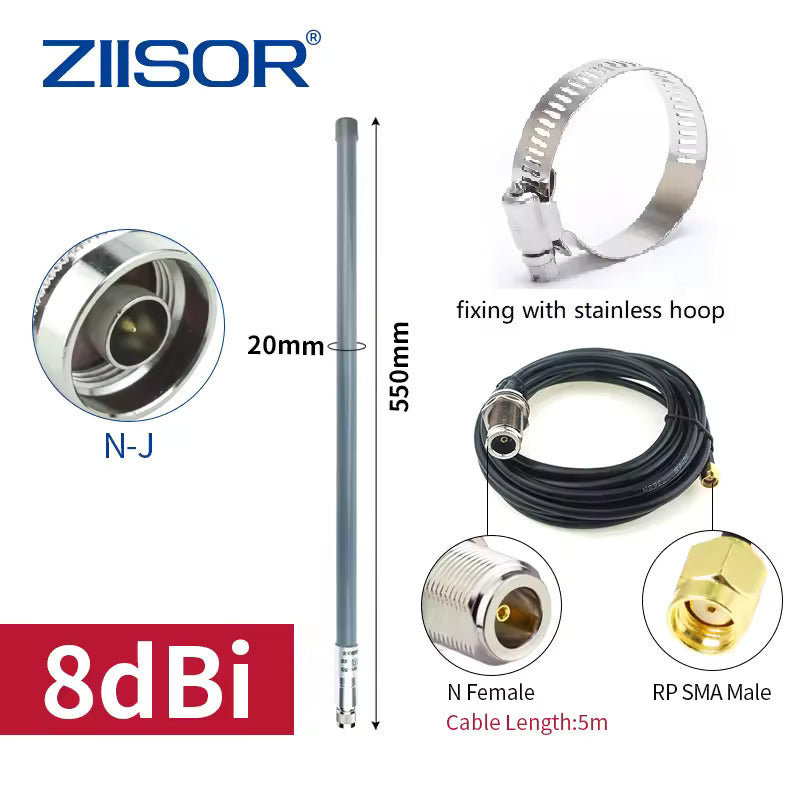

The ZIISOR TX900-BLG-55 is a professional 915MHz/923MHz LoRa antenna with 8dBi gain, designed for Meshtastic devices, Helium Hotspot miners, and LoRaWAN gateways in Pakistan. Featuring durable fiberglass housing with copper radiator and nickel-plated N-Male connector, this 55cm omnidirectional antenna delivers exceptional performance across 860-940MHz frequency range. VSWR-tested and Smith chart verified for optimal signal transmission in long-range IoT and wireless communication applications.
Key Features
- 915MHz/923MHz optimized for LoRa, Meshtastic, Helium Hotspot, and LoRaWAN applications
- 8dBi high-gain omnidirectional radiation provides extended coverage and signal strength
- Fiberglass housing construction ensures durability, waterproof, windproof, and UV-resistant performance
- Copper oscillator radiator with nickel-plated N-Male connector for superior signal transmission
- Wide frequency range 860-940MHz covers multiple LoRa bands in Pakistan and globally
- Low VSWR ≤1.5 and 50 Ohm impedance for optimal antenna matching and efficiency
- 55cm height x 2cm diameter grey antenna with vertical polarization for maximum range
- VSWR and Smith chart tested for verified performance and quality assurance
Applications & Use Cases
- Meshtastic long-range mesh network nodes and communication devices in Pakistan
- Helium Hotspot miners and HNT mining antenna upgrades for better coverage
- LoRaWAN gateways and network infrastructure for IoT deployments
- 915MHz/923MHz LoRa modules and development boards antenna connections
- Smart agriculture, environmental monitoring, and asset tracking systems
- Industrial IoT and M2M communication networks across Pakistan
- Long-range wireless sensor networks and telemetry applications
Technical Specifications
- Brand: ZIISOR
- Model: TX900-BLG-55
- Frequency Range: 860-940MHz (optimized for 915MHz/923MHz)
- Gain: 8dBi (high-gain)
- Radiation Type: Omnidirectional (360° horizontal)
- Polarization: Vertical
- Impedance: 50 Ohm nominal
- VSWR: ≤1.5 (excellent matching)
- Max Input Power: 50W
- Connector: N-Male (nickel-plated copper)
- Material: Fiberglass housing with copper radiator
- Color: Grey
- Antenna Height: 55cm (550mm)
- Antenna Diameter: 2cm (20mm)
- Weight: Approx. 200g
- Certification: VSWR and Smith chart tested
Why Buy from Digilog.pk?
We provide authentic ZIISOR 915MHz LoRa antennas and wireless IoT components in Pakistan at competitive prices. Fast delivery to Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, Multan, and across Pakistan with technical support for your Meshtastic, Helium, and LoRaWAN projects.
