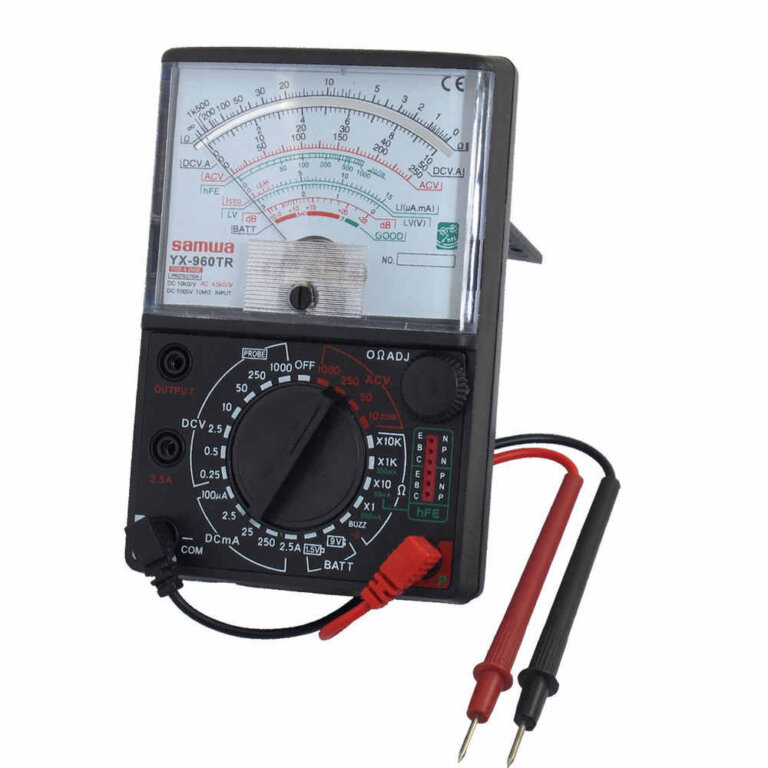

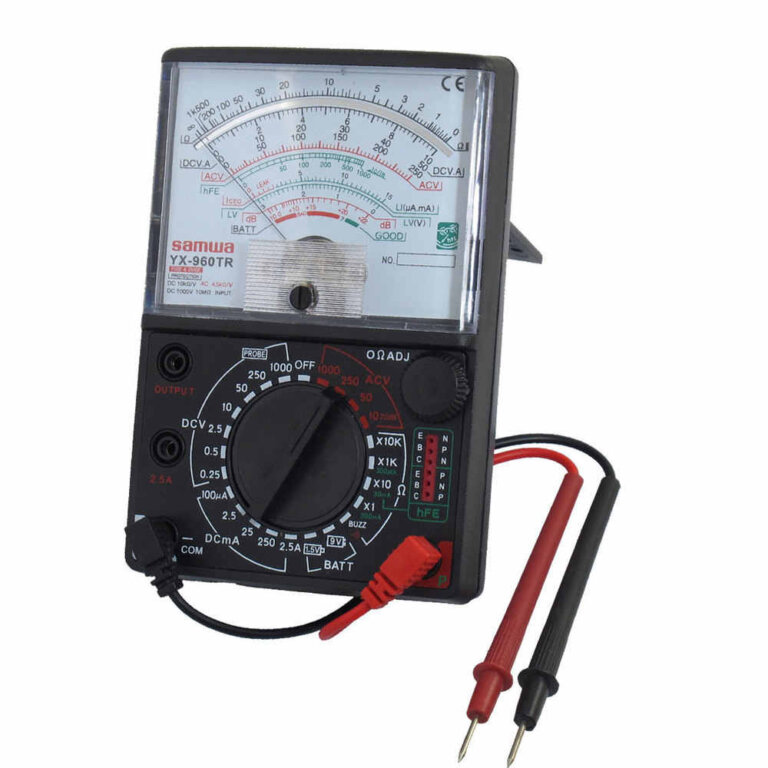

Features Of YX-960 TR Handheld Analog Multimeter:

• Excellent DC resolution factor of 2mV.
• Expanded resistance measurement from 020 to 200M.
• Series capacitor DC to enable measurement of only AC components.
• A large and bright meteor with a scale length of 80mm.
• The sensitivity of 44pA at full scale.
• Fuse and diode protection.
• Measures hFE of transistor directly.

Specifications Of YX-960TR Electrical Meter Voltmeter Analog Multimeter:

1. DC voltage: 0 ~ 0.1 ~ 0.5 ~ 2.5 ~ 10 ~ 50 ~ 250 ~ 1KV 20Kω / V 3.0
2. AC voltage: 0 ~ 10 ~ 50 ~ 250 ~ 1KV 9Kω / V 4.0
3. DC current: 0 ~ 50μA ~ 2.5 ~ 25 ~ 250mA ~ 2.5A 3.0
4. Resistance: × 1 ~ × 10 ~ × 100 ~ × 1K ~ × 10Kω 3.0
5. Arc diode (LI): 0 ~ 150μA ~ 1.5 ~ 15 ~ 150mA
6. Transistor (HFE): 0 ~ 1000
7. Weight: 220g
8. The audio level: -10 ~ +22 dB
9. Protection: 0.5 A
10. Fuse diode: Yes
11. Battery detection: 1.5V, 9V
12. Environment: 0 ~ 40 ℃, 25% ~ 80% RH
13. Dimensions: 150 × 100 × 40mm
