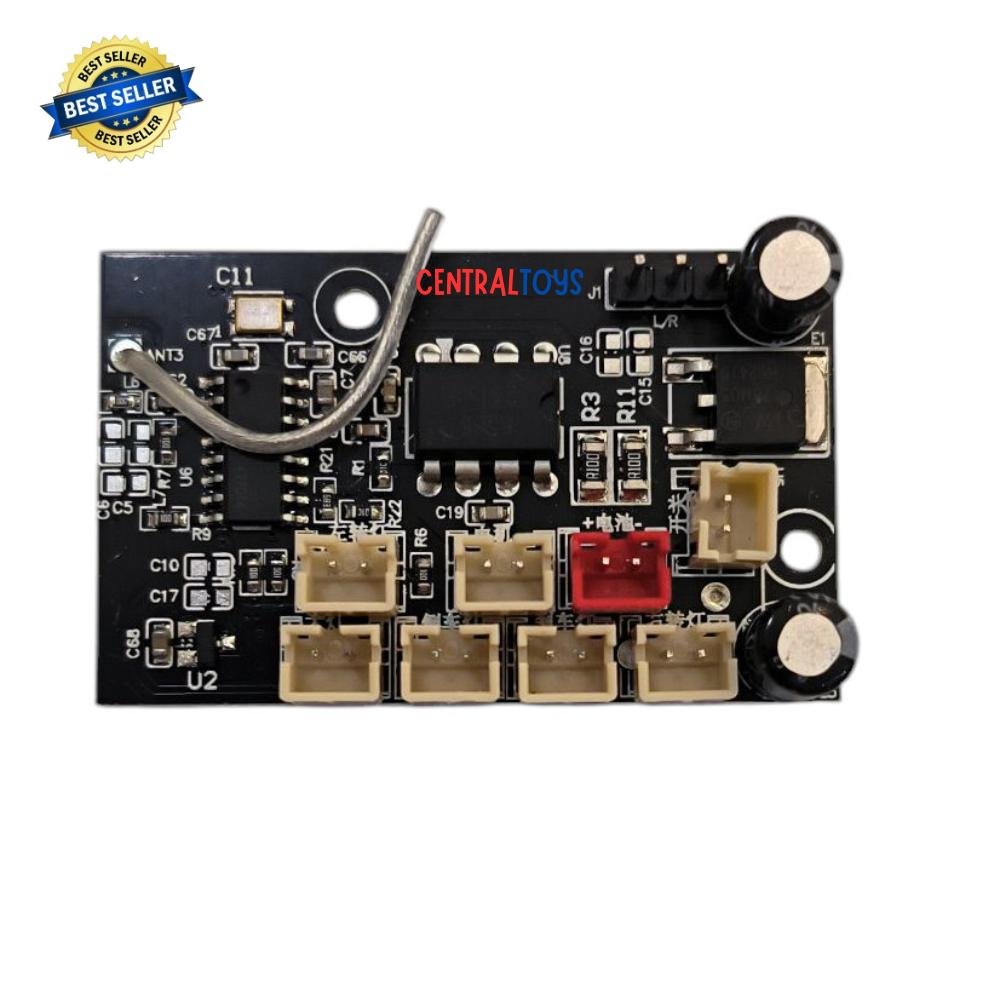

Upgrade or repair your RC rock crawler with the WPL BC V1 Main Board. Engineered specifically for the popular WPL (B-Series, C-Series) and MN Model series, this circuit board acts as the brain of your vehicle. It integrates multiple control systems into a single, compact black PCB, ensuring efficient power distribution and precise signal processing.

Whether you are fixing a water-damaged board or building a kit version from scratch, this module offers plug-and-play compatibility with standard WPL connectors. It features dedicated ports for steering servos, brushed motors, battery input, and a full LED lighting system (headlights, turn signals, and brake lights).

Key Features:

• All-in-One Integration: Combines a 2.4GHz Radio Receiver and Brushed ESC in one unit to save space.

• Intelligent Light Control: Features dedicated outputs for LED linkage, allowing for realistic turn signals and brake lights when driving.

• Stable Connection: Equipped with a shielded antenna wire for interference-free 2.4GHz signal reception.

• OEM Quality: The original spec board found in RTR (Ready-to-Run) versions of WPL trucks, ensuring 100% fitment and compatibility.

• Easy Installation: Standard JST and XH connectors allow for easy swapping without the need for complex soldering.

Board Pinout / Interfaces:

• Power Input (Red Socket): For 7.4V (2S) Li-ion/LiPo Battery.

• Motor Output: 2-Pin connector for Brushed 130/180/260/370 motors.

• Servo Output: 3-Pin standard connector for Steering Servo.

• LED Outputs: Multiple small white sockets for Headlights and Taillights.

Specifications

• Model: WPL BC V1 (Main Board)

• Input Voltage: 6V – 7.4V (Recommended for 2S Li-ion/LiPo)

• Frequency: 2.4GHz

• Board Color: Black

• Supported Motor Type: Brushed DC

• Compatibility:

  • WPL Series: B1, B14, B16, B24, C14, C24, C34, C44

  • MN Series: D90, D91, D96, D99, MN90, MN99S

  • JJRC: Q60, Q61

• Material: Composite PCB with Electronic Components

Package Includes:

• 1x WPL BC V1 Receiver Circuit Board
