WinAPEX ET8900 Non-Contact Voltage Tester Pen – 12-1000V AC, Live and Neutral Indication

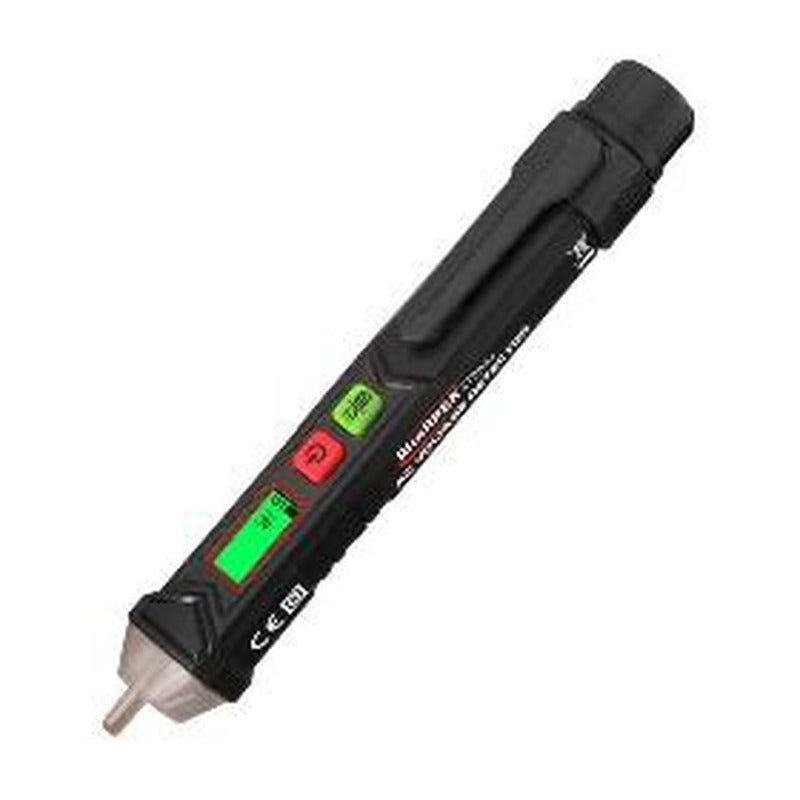

The WinAPEX ET8900 is a pen-type non-contact voltage tester. Hold the tip near a wire, socket or switch and it shows whether the line is live, red for live and green for neutral, without touching any bare conductor.
Sensitivity can be switched between 12-1000V and 48-1000V AC. As the signal gets stronger the beep speeds up and the bargraph rises, which helps trace a hidden live wire inside a wall. It has an LED torch and switches off after 3 minutes.
Key Features
- ⚡ 12V to 1000V AC (high sensitivity) or 48V to 1000V (low)
- 🔴🟢 Red for live, green for neutral
- 🔊 Sound and light alarm with signal-strength bargraph
- 🔦 LED torch for dark DB boxes
- 🔋 2 × AAA, auto off after 3 minutes, low-battery indication
Technical Specifications
| Model | ET8900 |
|---|---|
| Brand | WinAPEX |
| AC voltage range | 12V to 1000V (high sensitivity), 48V to 1000V (low sensitivity) |
| Frequency | 50/60Hz |
| Indication | Sound and light; bargraph; red = live, green = neutral |
| Safety rating | CAT III 1000V |
| Auto power-off | 3 minutes |
| Power | 2 × 1.5V AAA (not included) |
| Size | approx. 156 × 20 × 20 mm |
What's in the Box
- 1 × WinAPEX ET8900 voltage tester pen
