WinAPEX ET8138 Touch Screen Smart Multimeter – True RMS, 6000 Counts, Colour Display

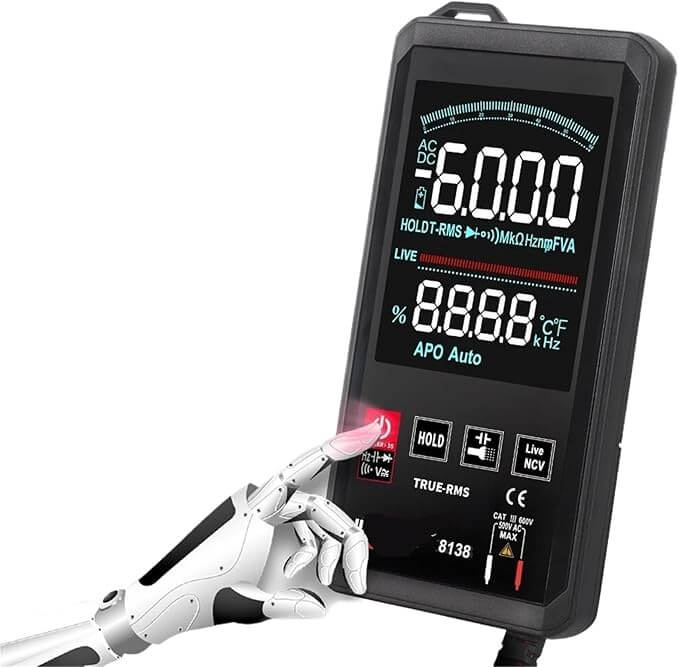

The WinAPEX ET8138 is an ultra-thin smart multimeter with a touch panel instead of a rotary dial. It identifies the measurement and range automatically, and shows the reading on a colour display with an analog bar.
It covers DC voltage to 1000V, AC voltage to 750V, resistance and capacitance, with true RMS, NCV live-wire detection, backlight, flashlight and room-temperature display. At 12 mm thick it fits in a pocket.
Key Features
- 📱 Touch panel, automatic range and identification
- ⚡ True RMS, 6000-count colour display with analog bar
- 🔧 DC voltage to 1000V, AC voltage to 750V
- 📏 Resistance to 6MΩ, capacitance 1nF to 60mF, frequency
- 💡 NCV, live wire, backlight, flashlight; auto off after about 5 minutes
Technical Specifications
| Model | ET8138 |
|---|---|
| Brand | WinAPEX |
| True RMS | Yes |
| Display | 6000 counts, colour |
| DC Voltage | 0 to 1000V |
| AC Voltage | 0 to 750V |
| Resistance | up to 6MΩ |
| Capacitance | 1nF to 60mF |
| Other functions | NCV, live wire, frequency, room temperature, backlight, flashlight |
| Auto power-off | about 5 minutes |
| Power | 2 × AAA |
| Size | 133 × 67 × 12 mm |
What's in the Box
- 1 × WinAPEX ET8138 multimeter
- Carry bag
