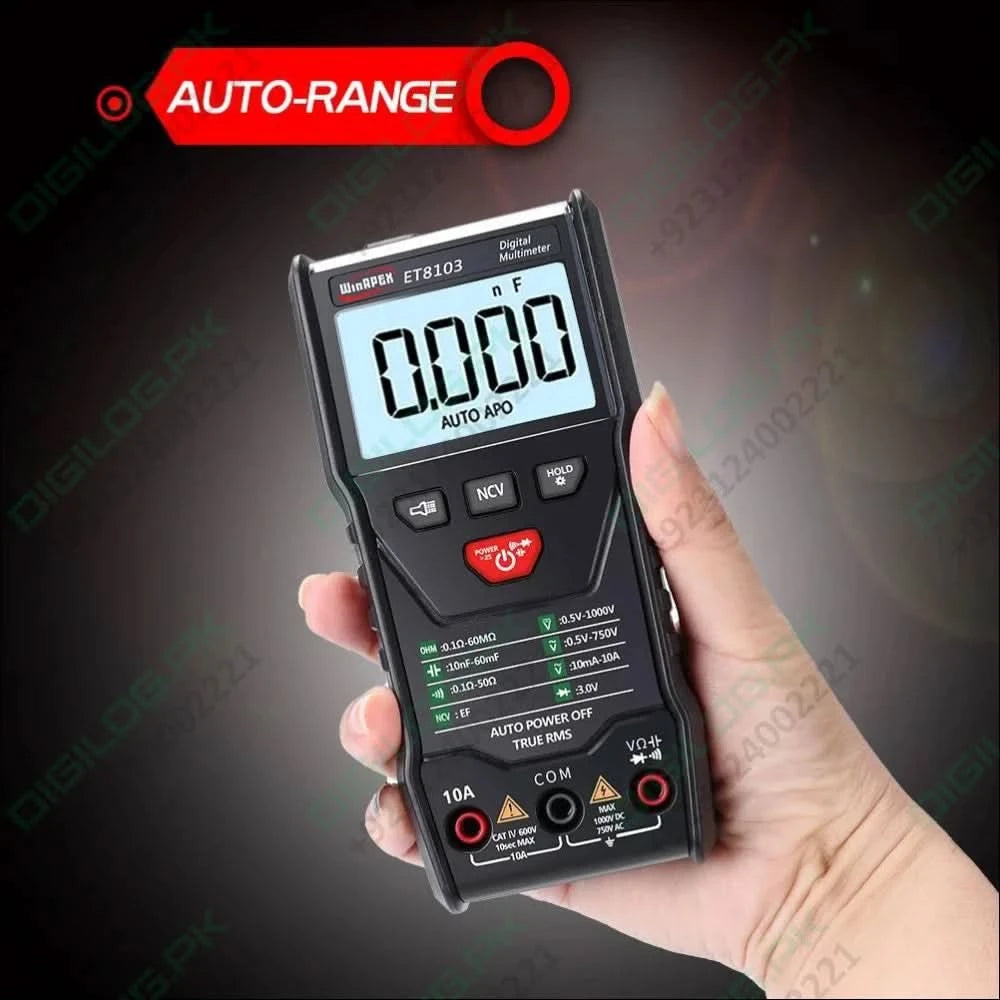

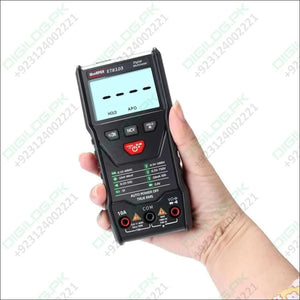

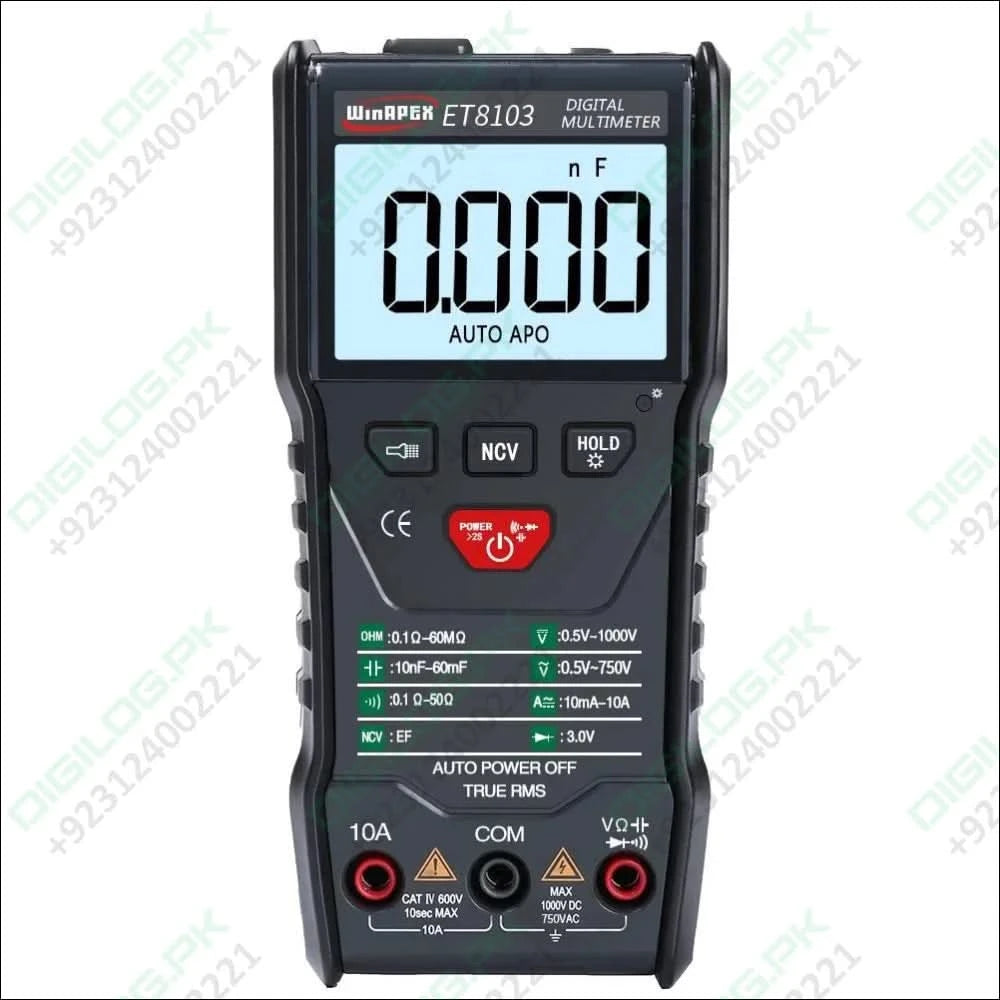

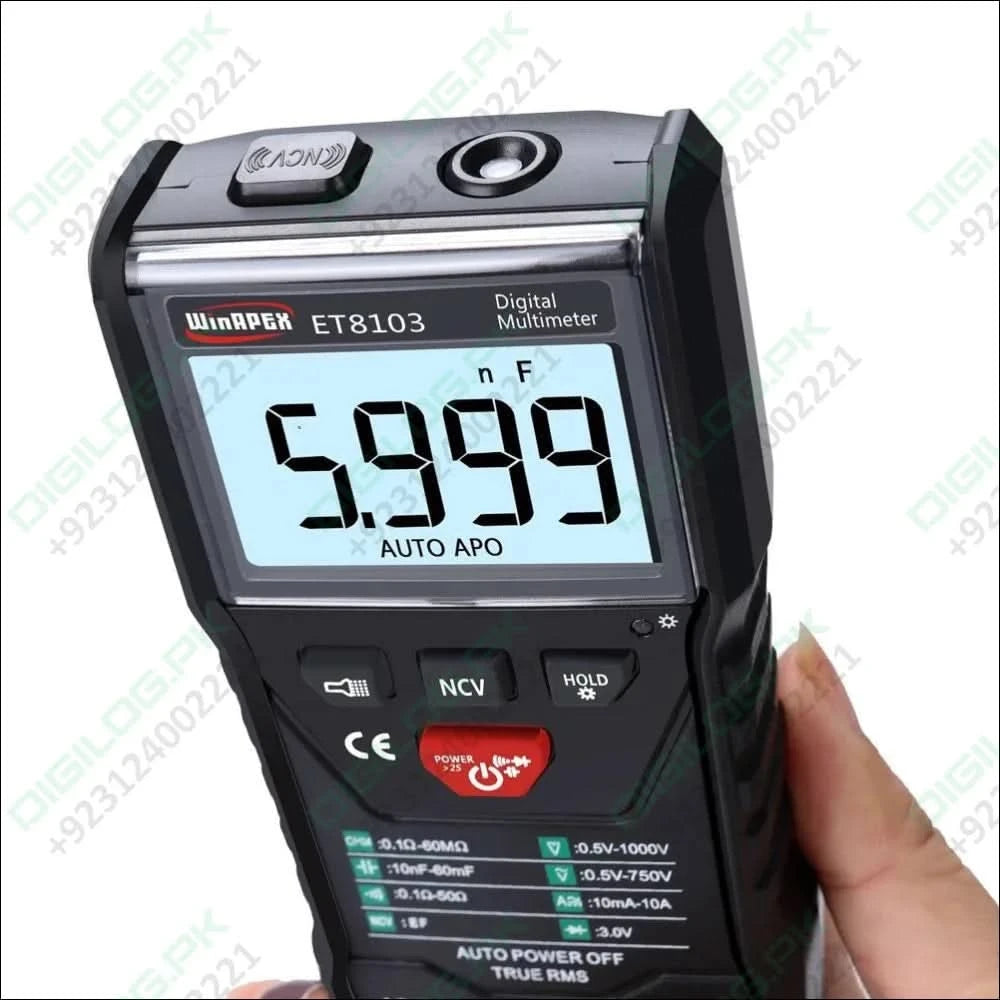

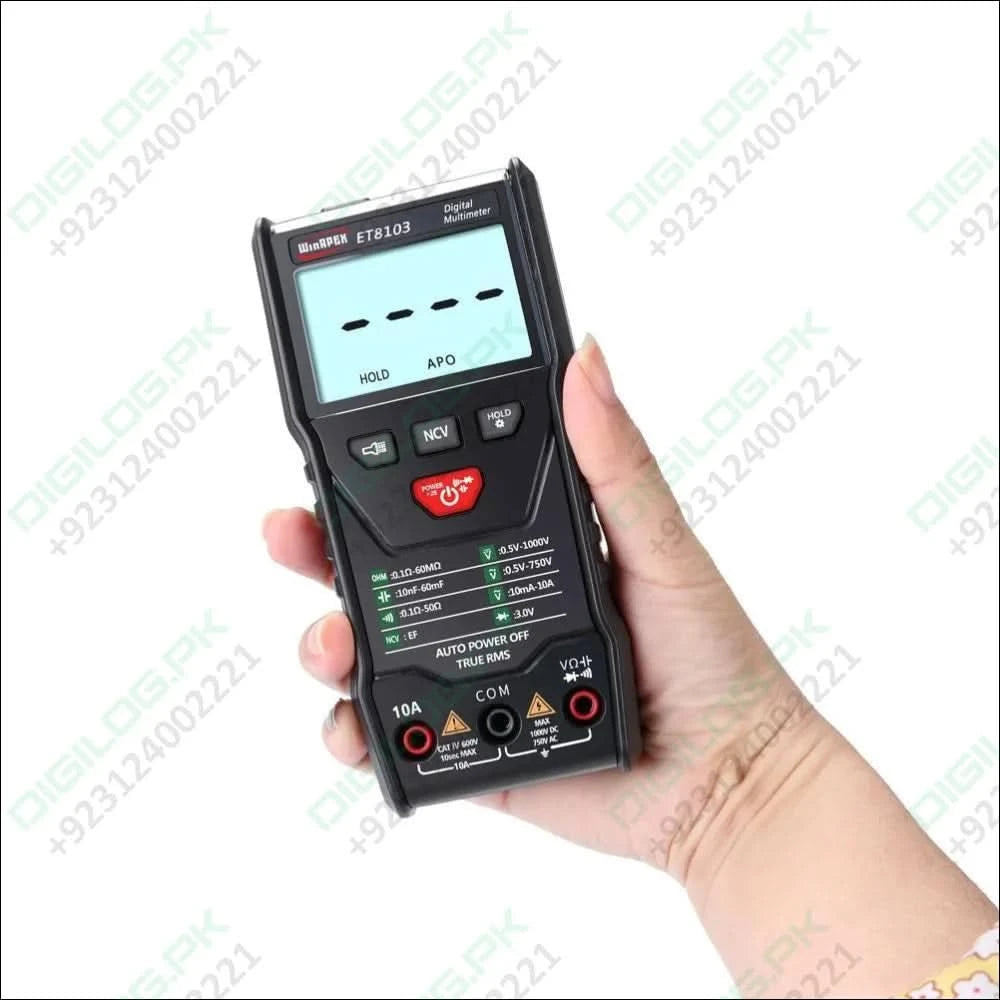

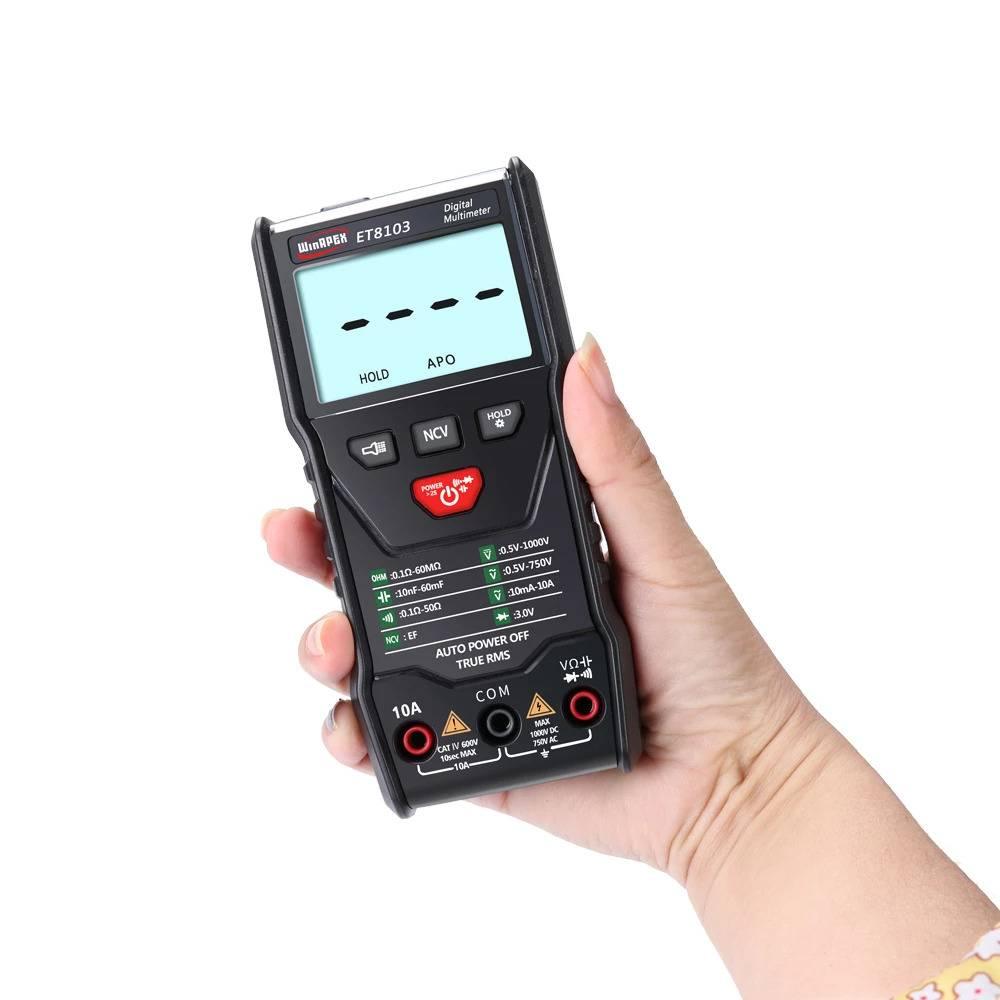

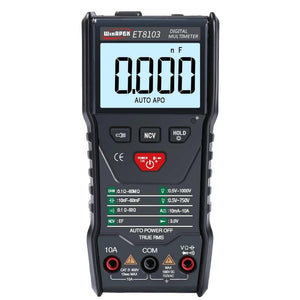

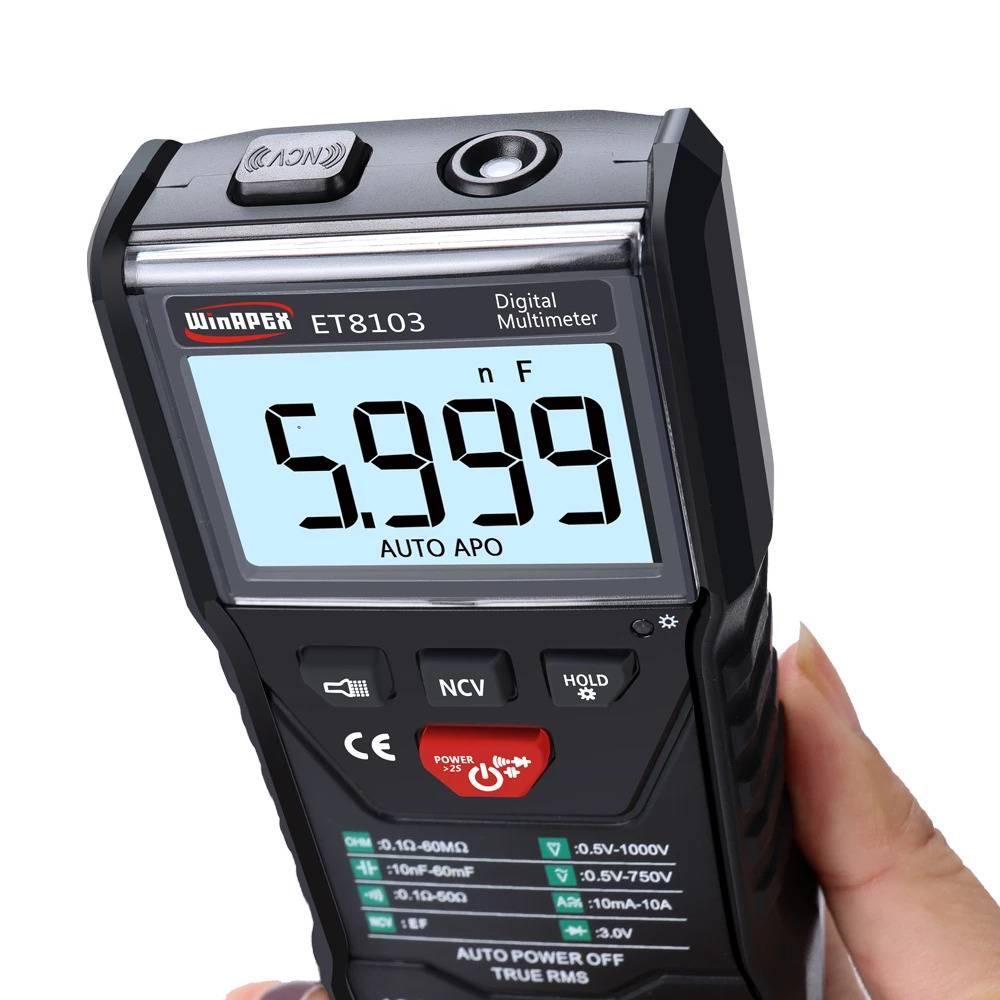

Winapex Et8103 Lcd Auto Measure Digital Multimeter 6000 Counts

Winapex Et8103 Lcd Auto Measure Digital Multimeter 6000 Counts

Regular price Rs 3,000
Regular price Sale price Rs 3,000
Sale Sold out
Shipping calculated at checkout.

SKU:B365,L,NBP

NOTIFY ME WHEN IN STOCK

Winapex Et8103 Lcd Auto Measure Digital Multimeter 6000

WinAPEX ET8103 LCD Auto Measure Multimeter Features:

  • Fully intelligent automatic measurement digital multimeter, the digital multimeter in the measurement will automatically recognize and automatically display no need for human operation.
  • 6000 counts and multifunction: display of 6000 counts and test of AC / DC voltage and current, resistance, capacitance.
  • Full protection: the body is equipped with a shockproof sleeve to prevent the instrument case from being damaged due to falling down, giving the body a full range of protection, and this protective cover can also be dustproof.
  • Easy to use and take: designed of compact and light, a bracket on the back for easy handling and placement.
  • Functions: LCD digital display, data hold, high voltage DC 1000V protection, low battery tips, auto power-off, live wire test, flashlight function.

WinAPEX ET8103 LCD Auto Measure Multimeter Specifications:

  • Material: PVC plastic
  • Color: black
  • Display: LCD display, 6000 counts
  • Power: 2 * AAA battery (not included)
  • DC voltage range: 6V/60V/600V/1000V
  • DC voltage resolution: 0.5%+4
  • AC voltage range: 6V/60V/600V/750V
  • AC voltage resolution: 0.8%+3
  • DC current range: 6A/10A
  • DC current resolution: 0.8%+8
  • AC current range: 6A/10A
  • AC current resolution: 1.0%+8
  • Resistance range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
  • Resistance resolution: 0.8%+5
  • Capacitance range: 60nF/600nF/6μF/60μF/600μF/6mF/60mF, 30mF, 30mF (<10mF value just for reference)
  • Capacitance resolution: 2.5%+60, 5.0%+10, 10%+5
  • True RMS: yes

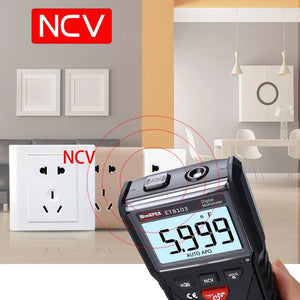

  • NCV: AC non-contact electric field measurement
  • Flashlight function: yes
  • Buzzer: 0.1Ω-50Ω
  • Automatic: auto recognition according to measurment requirements
  • Continuity buzzer: 40Hz-1kHz (N only sine wave&triangular wave,
  • other>200Hz waveforms are for reference only)
  • Continuity test: about 0.6V
  • Data hold: yes
  • LCD backlight: yes
  • Low battery tips: yes
  • Auto shutdown: about 15 minutes
  • Environment: 18℃~28℃ (64℉~82℉) Relative humidity: ≤75>#br###LCD size: 50 * 33mm / 2.0 * 1.3in
  • Item size: 139 * 63 * 28.5mm / 5.5 * 2.5 * 1.1in
  • Item weight: 199g / 7.0ounce
  • Package size: 165 * 103 * 34mm / 6.5 * 4.1 * 1.3in
  • Package weight: 300g / 10.6ounce

Package list:

  • 1 * ET8103 Multimeter
  • 1 * Use Manual
