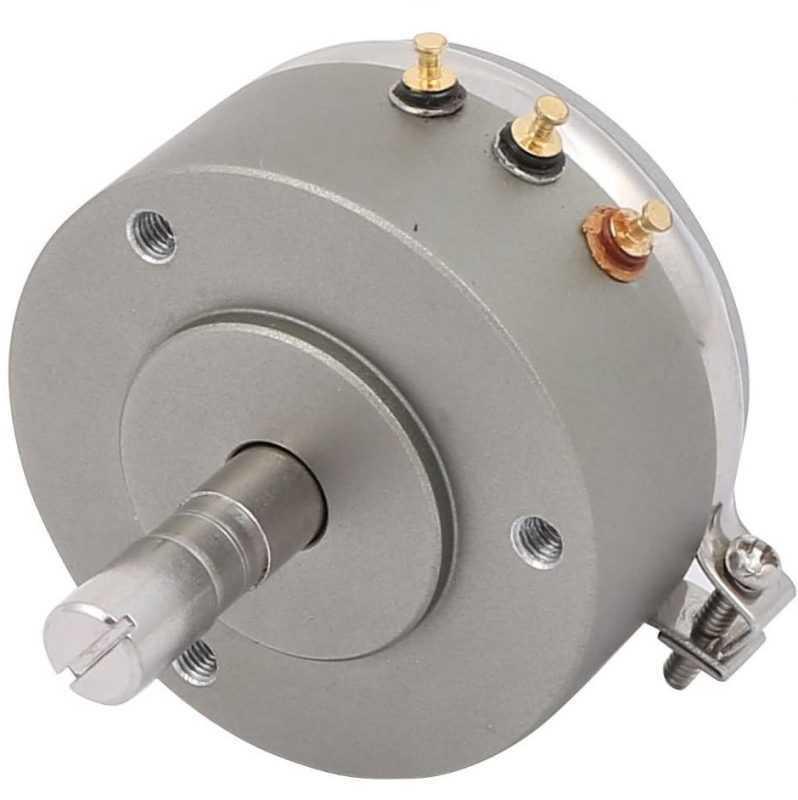

WDD35D4 5k Ohm 2W Continues Potentiometer Angle Sensor Displacement Sensor Variable Resistor - a silver, cylindrical angle sensor featuring a central rotating shaft, three gold-colored terminals, and a metal mounting bracket.

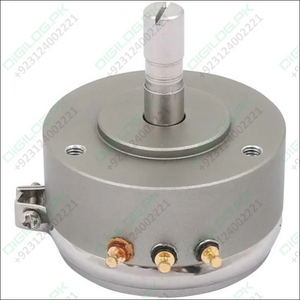

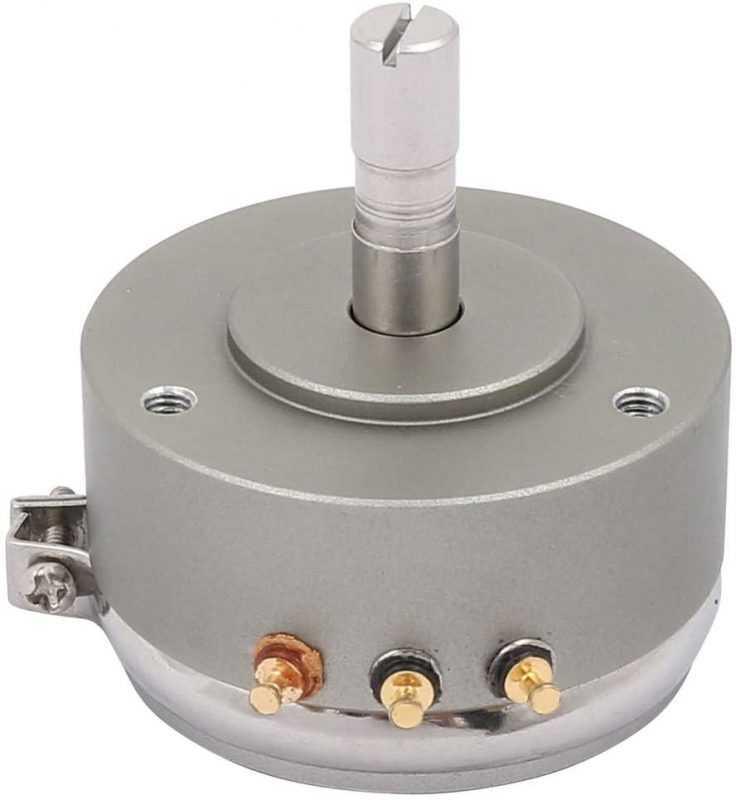

WDD35D4 5k Ohm 2W Continues Potentiometer Angle Sensor Displacement Sensor Variable Resistor - a silver cylindrical sensor with a top shaft, three gold-colored contact pins on the side, and a metal mounting bracket.

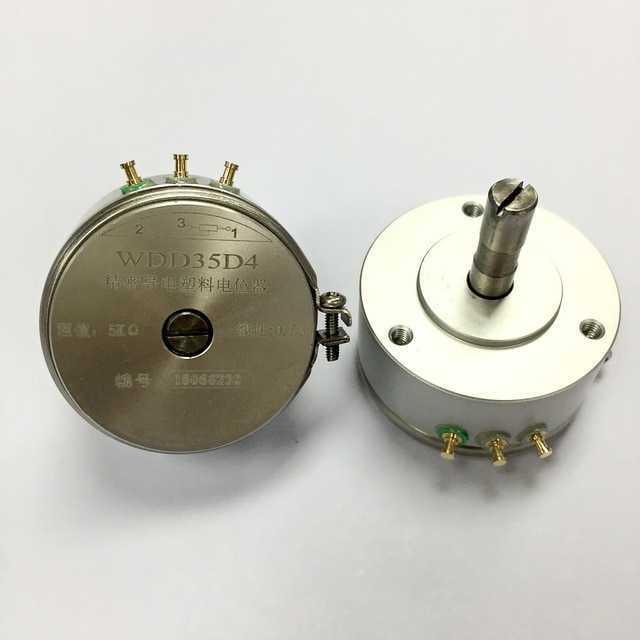

WDD35D4 5k Ohm 2W Continues Potentiometer Angle Sensor Displacement Sensor Variable Resistor - two silver-colored circular units with three top-mounted gold pins and a central rotating shaft on one side.
WDD35D4 5k Ohm 2W Continues Potentiometer Angle Sensor Displacement Sensor Variable Resistor - a silver, cylindrical angle sensor featuring a central rotating shaft, three gold-colored terminals, and a metal mounting bracket.
WDD35D4 5k Ohm 2W Continues Potentiometer Angle Sensor Displacement Sensor Variable Resistor - a silver cylindrical sensor with a top shaft, three gold-colored contact pins on the side, and a metal mounting bracket.
WDD35D4 5k Ohm 2W Continues Potentiometer Angle Sensor Displacement Sensor Variable Resistor - two silver-colored circular units with three top-mounted gold pins and a central rotating shaft on one side.

WDD35D4 5k Ohm 2W Continues Potentiometer Angle Sensor Displacement Sensor Variable Resistor

Sale price Rs 4,240
SKU: b385
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

WDD35D4 5k Ohm 2W Continues Potentiometer Angle Sensor Displacement Sensor Variable Resistor - a silver, cylindrical angle sensor featuring a central rotating shaft, three gold-colored terminals, and a metal mounting bracket.

WDD35D4 5k Ohm 2W Continues Potentiometer Angle Sensor Displacement Sensor Variable Resistor

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
WDD35D4 5k Ohm 2W Continues Potentiometer Angle Sensor Displacement Sensor Variable Resistor - a silver, cylindrical angle sensor featuring a central rotating shaft, three gold-colored terminals, and a metal mounting bracket.
WDD35D4 5k Ohm 2W Continues Potentiometer Angle Sensor Displacement Sensor Variable Resistor
Sale priceRs 4,240

Accurately measure and monitor angles with the WDD35D4 5K Ohm potentiometer. This reliable sensor is designed for industrial applications and offers precise performance even in challenging environments.

Key Features:

    • Outer diameter: 36.5mm
    • Shaft: 6mm
    • Standard resistance: 5K Ohm
    • Resistance tolerance: ± 15%



    • Independent linearity: ± 0.5%, ± 0.1%



    • Theoretical electrical angle: 345° ± 2°



    • Resolution: Unlimited



  • Power: 2W (70 degrees)
    1. digilog.pk
    digilog.pk
  • Temperature coefficient of resistance: <± 400 ppm/degree
  • Operating temperature range: -55°C to 125°C
  • Mechanical angle: 360° (continuous)

Applications:

  • Industrial automation
  • Robotics
  • Machine control
  • Position sensing
  • Angle measurement
