Wdd35d4 1k Ohm 2w Continues Potentiometer Angle Sensor Displacement Sensor Variable Resistor

Wdd35d4 1k Ohm 2w Continues Potentiometer Angle Sensor Displacement Sensor Variable Resistor

Sale price Rs 4,240
SKU: b667
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

Wdd35d4 1k Ohm 2w Continues Potentiometer Angle Sensor Displacement Sensor Variable Resistor

Wdd35d4 1k Ohm 2w Continues Potentiometer Angle Sensor Displacement Sensor Variable Resistor

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
Wdd35d4 1k Ohm 2w Continues Potentiometer Angle Sensor Displacement Sensor Variable Resistor
Wdd35d4 1k Ohm 2w Continues Potentiometer Angle Sensor Displacement Sensor Variable Resistor
Sale priceRs 4,240

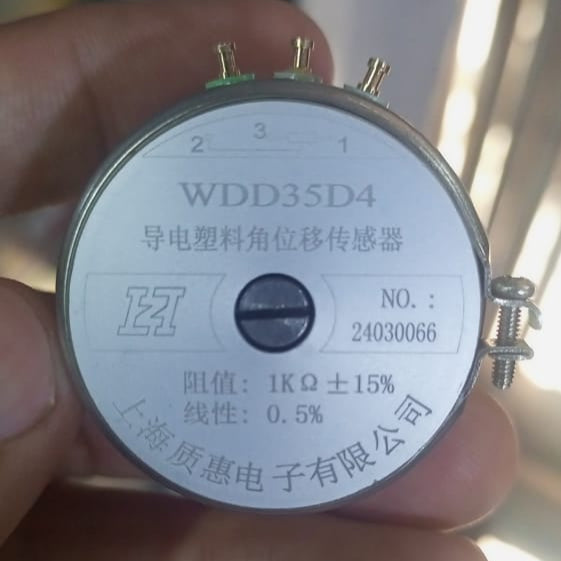

Its WDD35D4 1K OHM 2W Continues potentiometer Angle Sensor Displacement Senso used to get position of any object in industrial evnoirment and electrical noisy envoirement.

Specifications:

  1. Outer diameter: 36.5mm, Shaft: 6mm.
  2. Standard resistance: 1/2/5/10K
  3. Resistance Tolerance: ± 15%
  4. Independent Linearity: ± 0.5%, ± 0.1%
  5. Theoretical electrical angle: 345 ° ± 2 °
  6. Resolution: Unlimited
  7. Power: 2W (70 degree)
  8. Temperature Coefficient of Resistance (ppm / degree): <± 400
  9. Operating temperature range: -55 degree -125 degree
  10. Mechanical angle: 360 ° (continuous)

Package Includes:

  •    1x WDD35D4 1K Resistor
