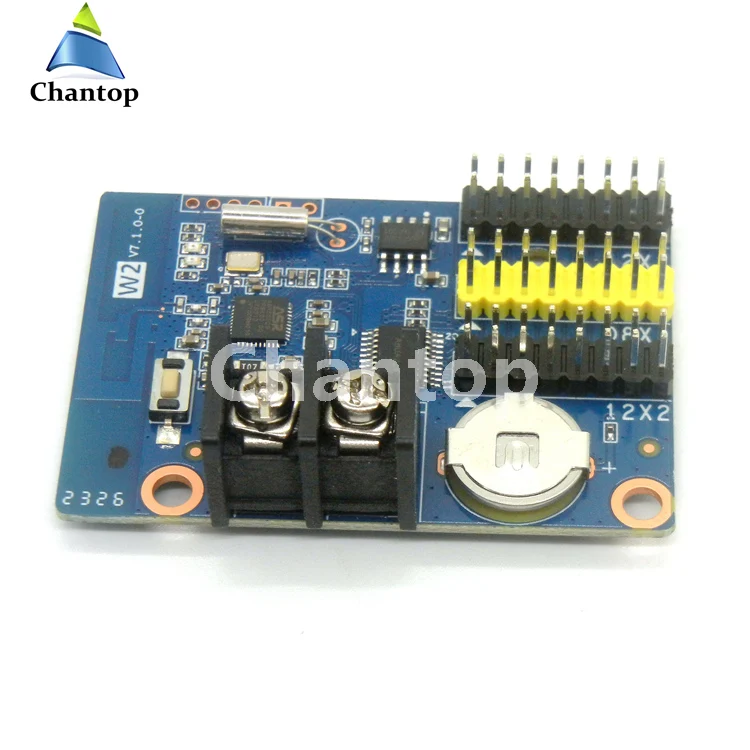

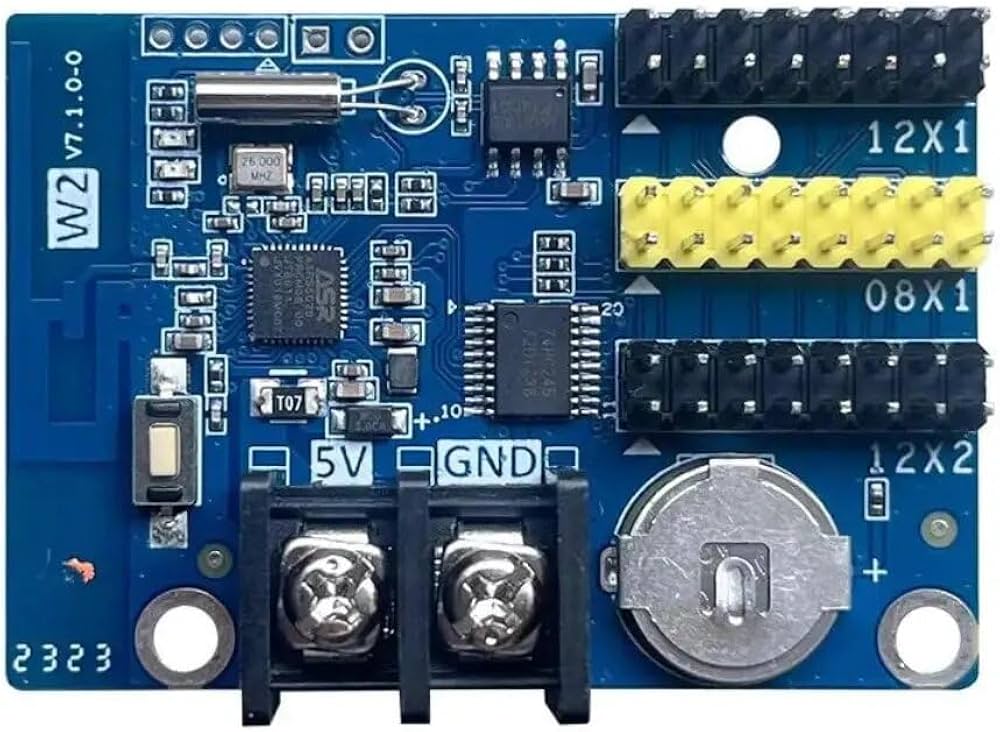

W2 LED display WiFi controller, Single double color P10 LED signs module Control card, WIFI Wireless control

Model No.:HD-W2

Wifi connection password : 88888888

Users can search and download the APP ”LedArt” from Android APP market or APP Store, or user can scan the QR code below to download the app.

Pixels control range:

Single color :  Max 320x32 ,640x16 pixels;

Dual color :Max 160x32 pixels;
Communication:WIFI

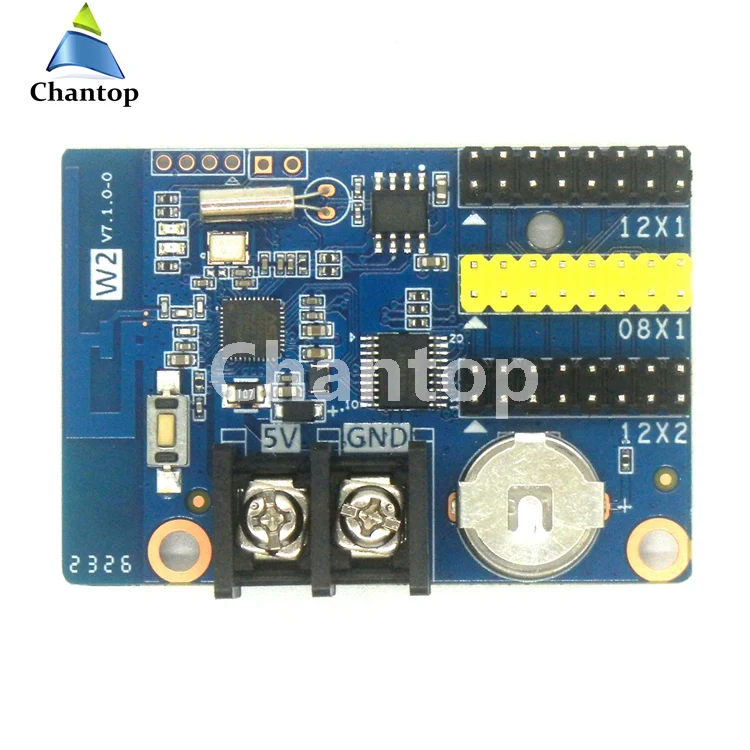

Interface: 2xhub12, 1xhub08 Ports

Scanning way:1/4 scan monochrome color P10 LED display

Program Quantity: Max 1000pcs，Can play by time section or control by buttons
Area Quantity : 20 areas with separate zone, and separated special effects and border
Display Showing : Text, timing, Count, Lunar calendar
Clock Function:
1、Support Digital Clock, Dial Clock, Lunar Time
2、The Font, size, color and position can be set freely
3、support multiple time zones
Extended Equipment: brightness sensor ,it can't support temperatuer and humidity sensor
Automatic Switch screen :Support timer switch machine
Dimming : Support three brightness adjustment mode
