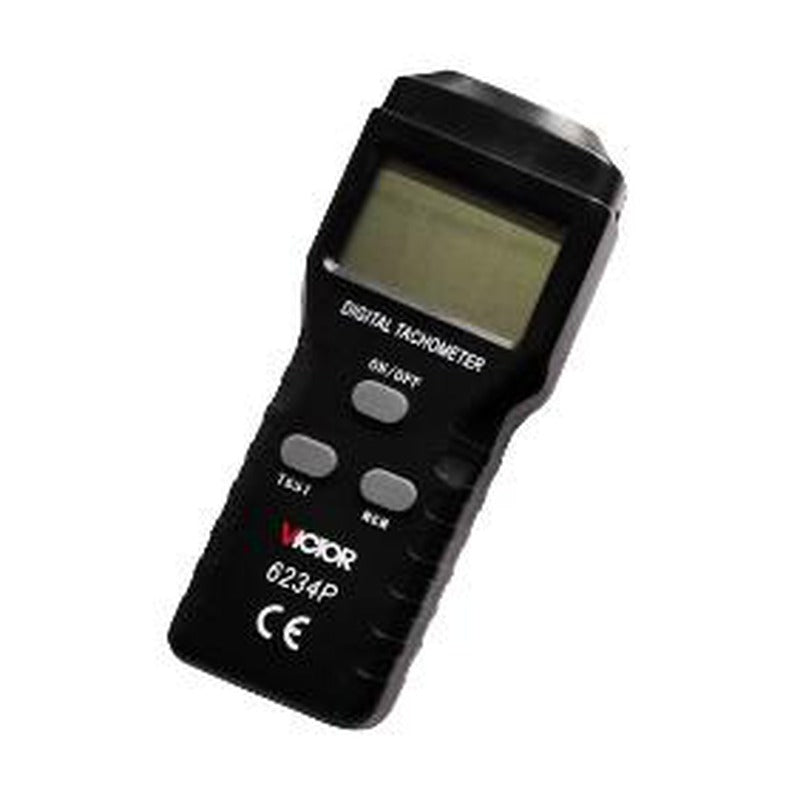

VICTOR 6234P Digital Tachometer – Non-Contact RPM Meter, 2.5 to 99,999 RPM
The VICTOR 6234P is a non-contact digital tachometer for measuring the speed of motors, fans, pulleys, conveyor rollers and engines. Stick a piece of the supplied reflective tape on the shaft, aim the meter and read the RPM, with no need to touch the moving part.
It reads from 2.5 to 99,999 RPM with 0.1 RPM resolution on a 5-digit LCD, and holds the reading so you can note it after stepping away from the machine.
Key Features
- ⚙️ 2.5 to 99,999 RPM measuring range
- 🎯 0.1 RPM resolution, accuracy ±(0.05% + 1 digit)
- 🛡️ Non-contact: measure safely from a distance
- 📌 Data hold, auto power-off, low-battery indicator
- 🏷️ Reflective tape included
Technical Specifications
| Model | 6234P |
|---|---|
| Brand | VICTOR |
| Measuring range | 2.5 to 99,999 RPM |
| Resolution | 0.1 RPM |
| Accuracy | ±(0.05% + 1 digit) |
| Sampling rate | 4 times per second |
| Display | 5-digit LCD |
| Power | 4 × 1.5V AA batteries |
| Size | 157 × 64 × 31 mm |
| Weight | 156 g |
What's in the Box
- 1 × VICTOR 6234P tachometer
- Reflective tape
