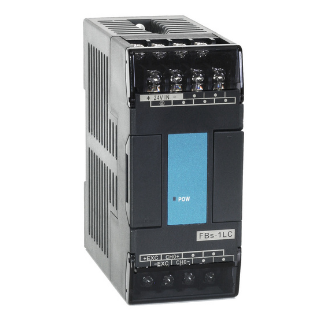

Used Fbs-1lc Special PLC Module 1 Channel Load Cell Module With 20-bit Resolution - a black rectangular PLC unit with screw terminals, a blue power indicator light, and labels for power and channel inputs.

Used Fbs-1lc Special PLC Module 1 Channel Load Cell Module With 20-bit Resolution

Rs 15,120

SKU: B770

Pickup available at Digilog Electronics

Usually ready in 2 hours

Used Fbs-1lc Special PLC Module 1 Channel Load Cell Module With 20-bit Resolution - a black rectangular PLC unit with screw terminals, a blue power indicator light, and labels for power and channel inputs.

Used Fbs-1lc Special PLC Module 1 Channel Load Cell Module With 20-bit Resolution

Rs 15,120

Precisely measure weight with the FBS-1LC load cell module. This reliable module offers high-resolution performance and is ideal for various industrial applications.

Key Features:

1 channel load cell input
20-bit resolution for accurate measurements
Adjustable sampling rate
Built-in noise filtering
Easy-to-use software
Compact and reliable design

Specifications:

Input voltage: 5VDC
Sensitivity: 2mV/V, 5mV/V, 10mV/V, 20mV/V
Sampling rate: 5/10/25/30/60/80 Hz
Non-linearity: 0.01% F.S.
Zero drift: 0.2 µV/℃
Gain drift: 10 ppm/℃

Applications:

Weighing systems
Force measurement
Process control
Industrial automation
