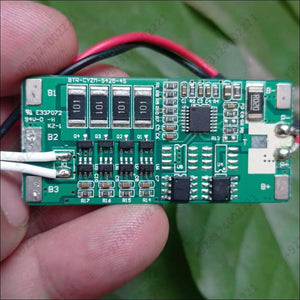

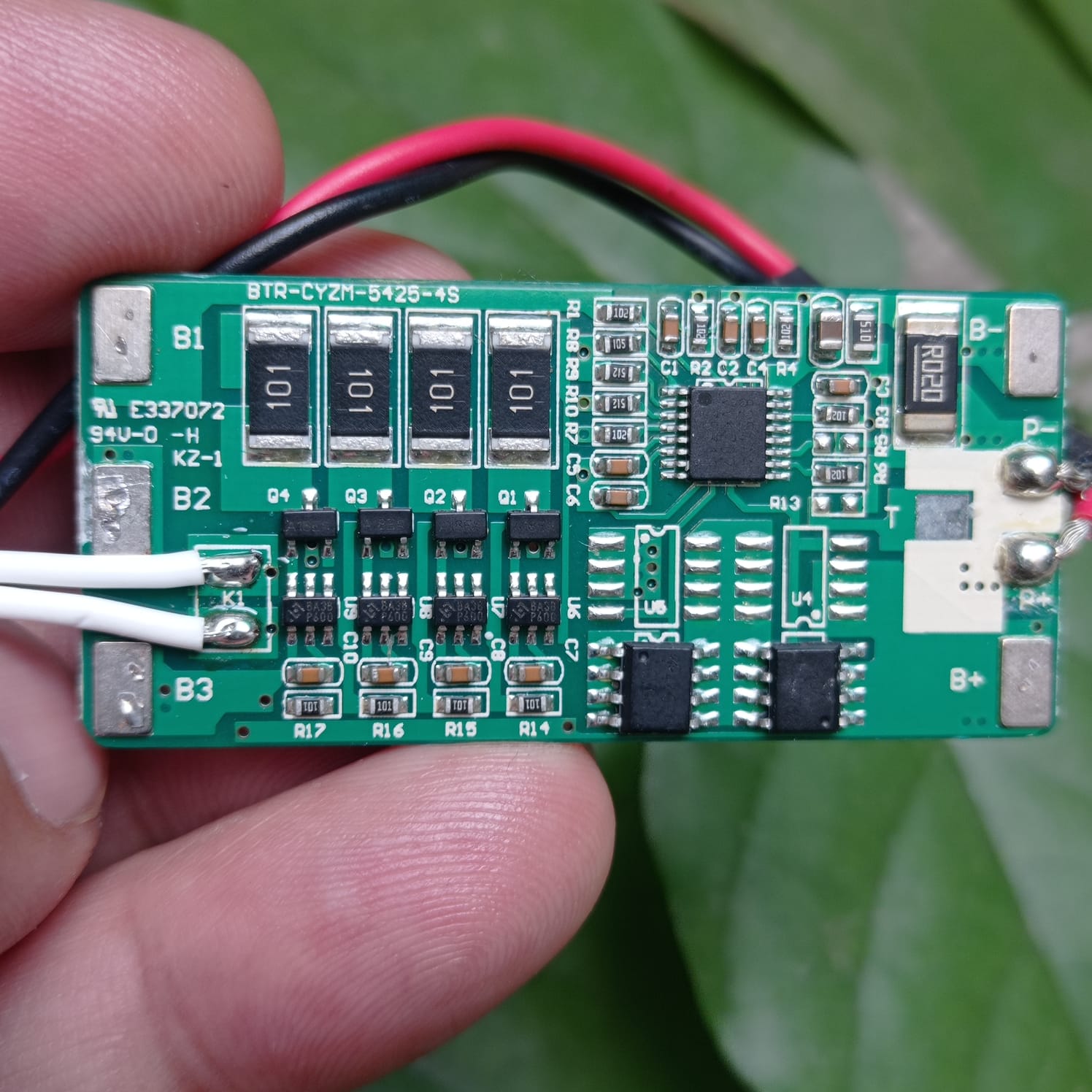

Used 4s 10A BMS With Temperature Sensor And Connector Btr-cyzm-5425-4s - green rectangular circuit board held by fingers with attached wires and ports.

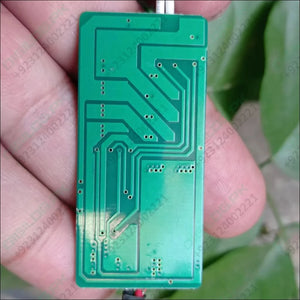

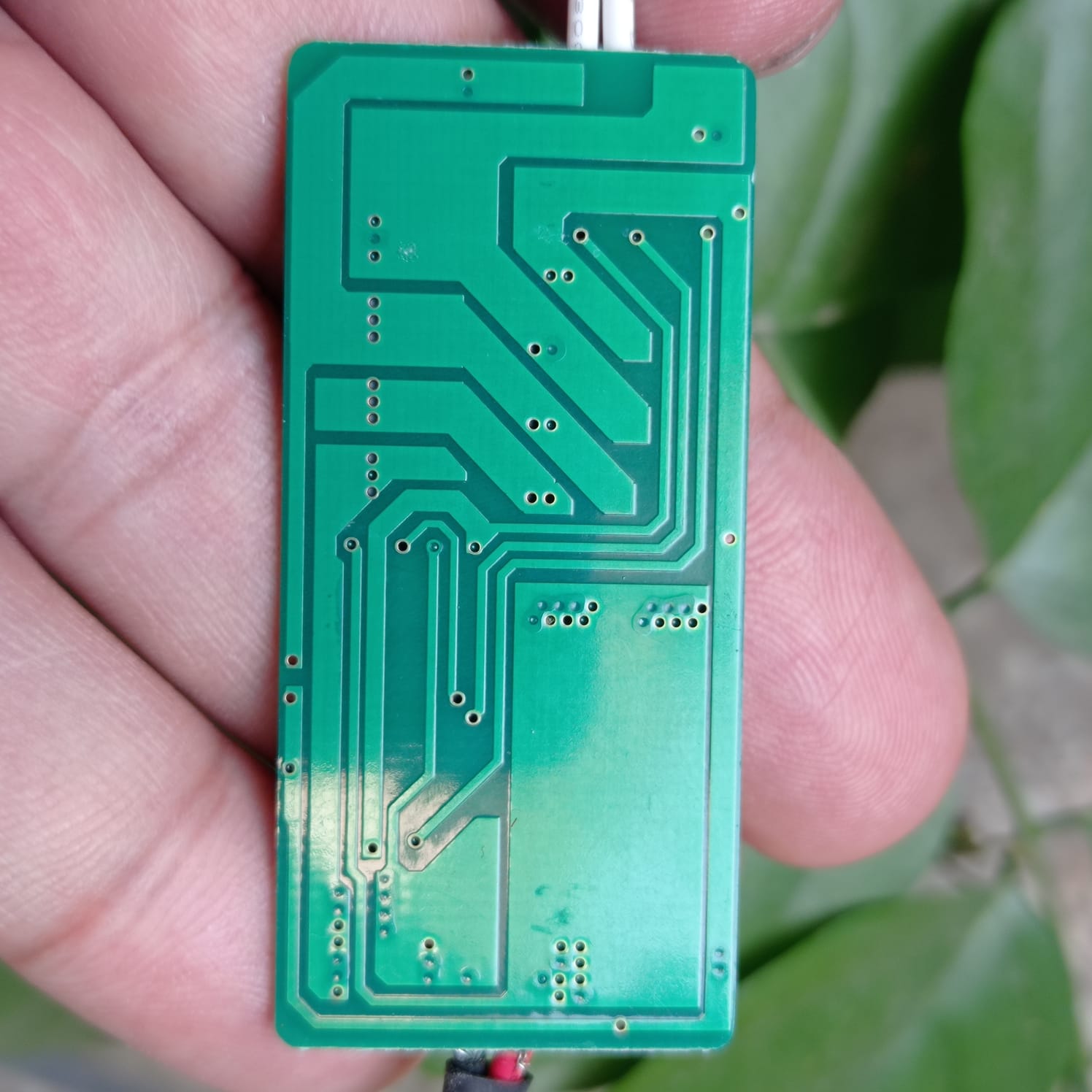

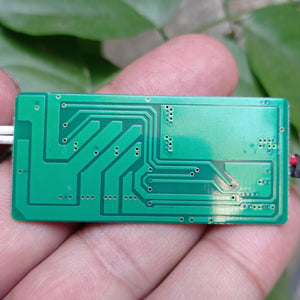

Used 4s 10A BMS With Temperature Sensor And Connector Btr-cyzm-5425-4s - the green rectangular circuit board side with exposed copper traces.

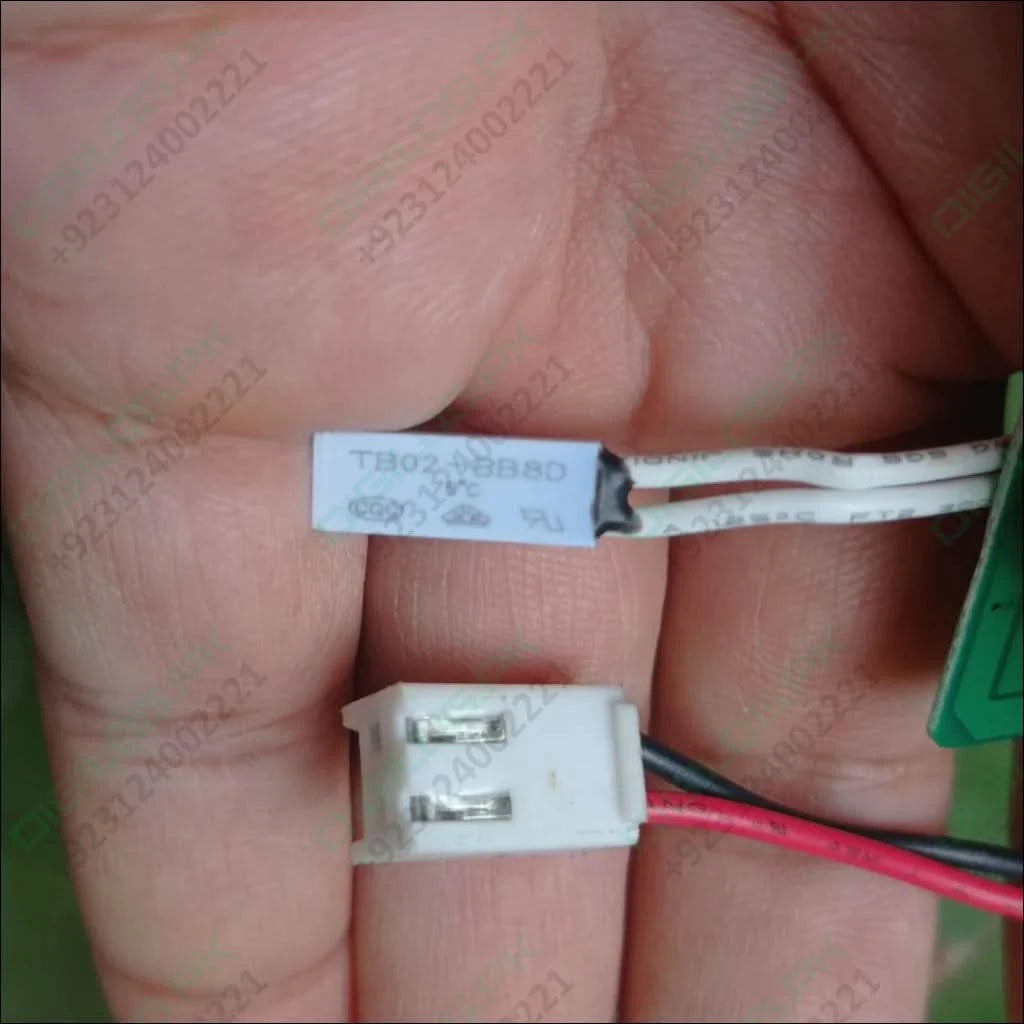

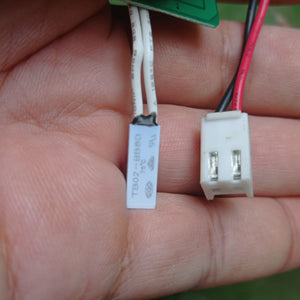

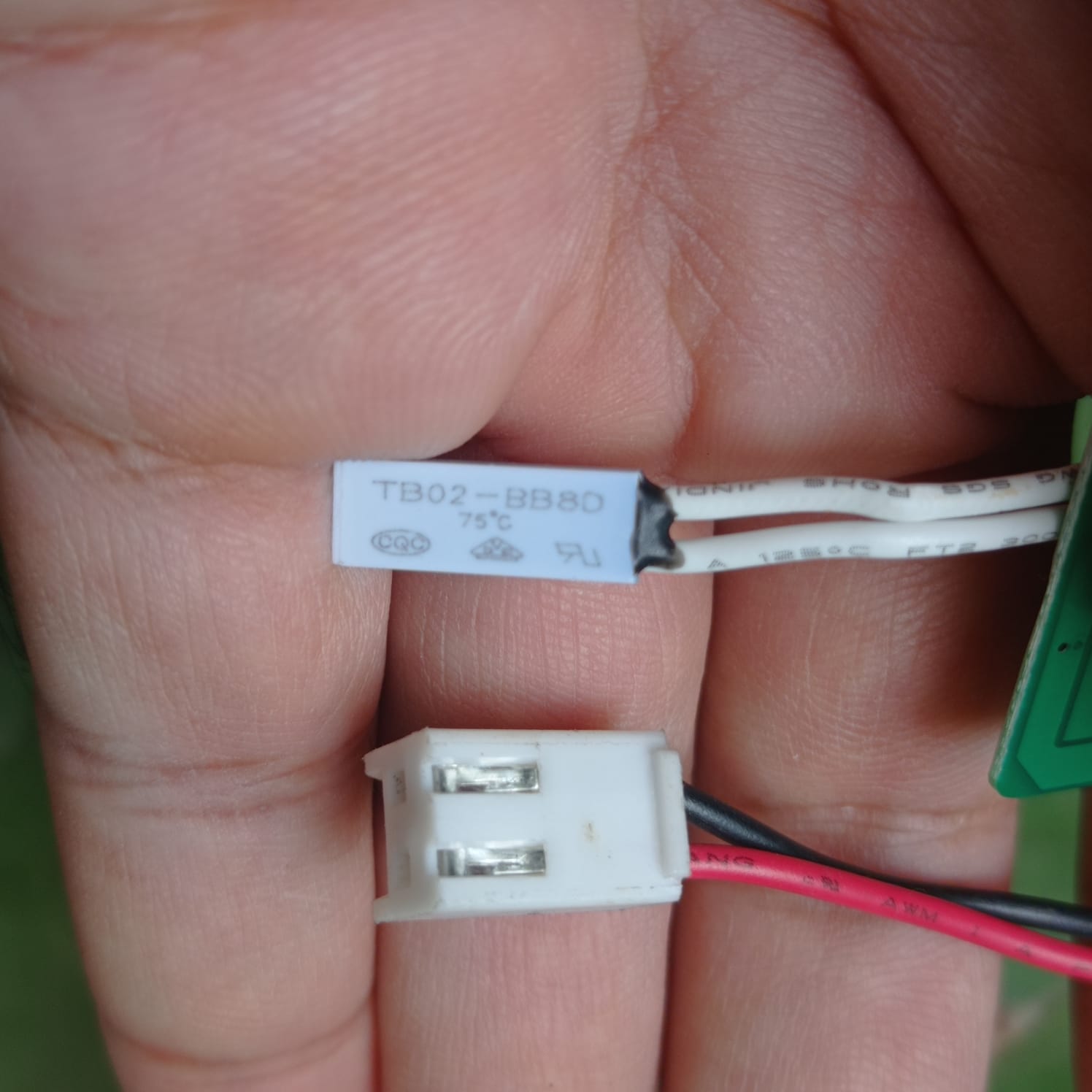

Used 4s 10A BMS With Temperature Sensor And Connector Btr-cyzm-5425-4s - a close-up of a white thermal sensor labeled TB02-BB8D and a connector.

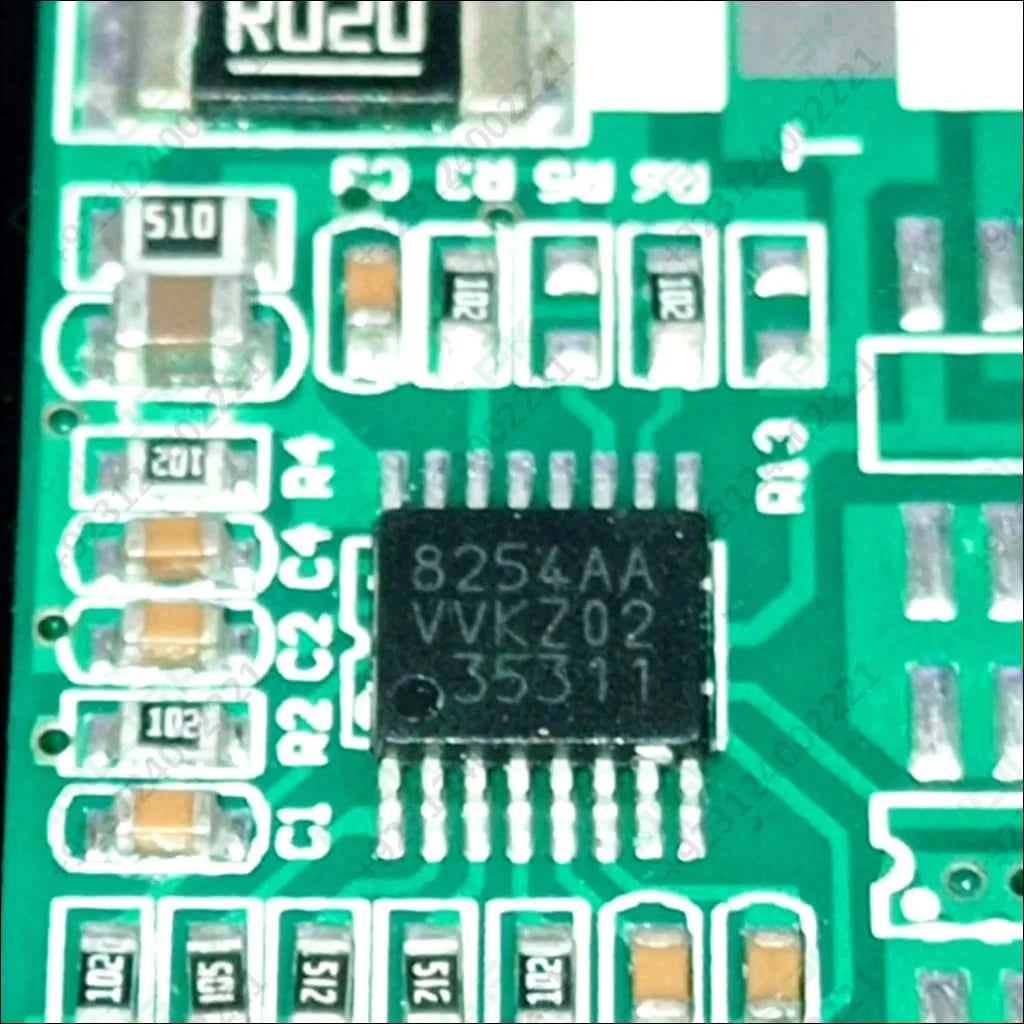

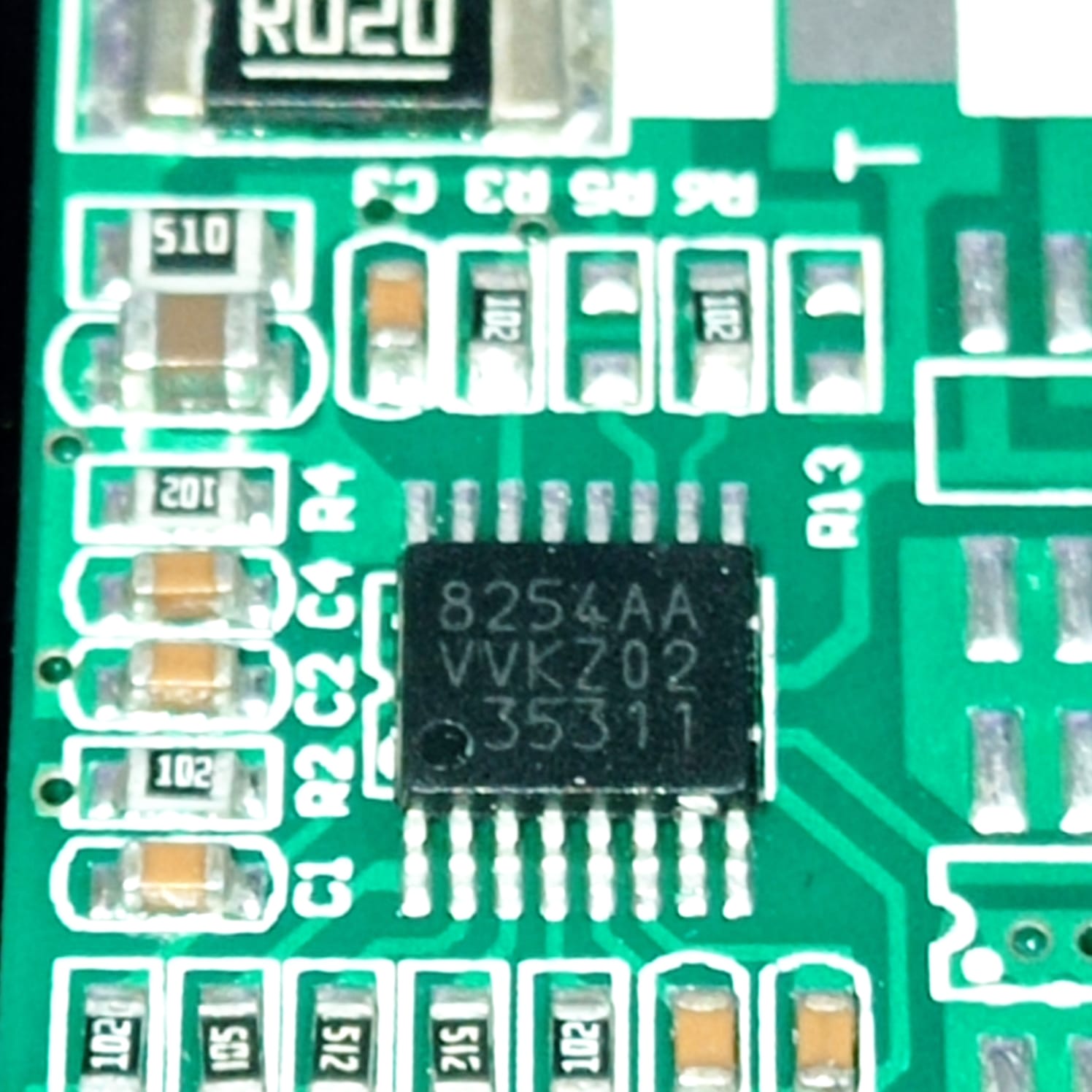

Used 4s 10A BMS With Temperature Sensor And Connector Btr-cyzm-5425-4s - close-up of the green circuit board showing the 8254AA chip and resistors.

Sold out

Used 4s 10A BMS With Temperature Sensor And Connector Btr-cyzm-5425-4s - green rectangular circuit board held by fingers with attached wires and ports.

Used 4s 10A BMS With Temperature Sensor And Connector Btr-cyzm-5425-4s - the green rectangular circuit board side with exposed copper traces.

Used 4s 10A BMS With Temperature Sensor And Connector Btr-cyzm-5425-4s - a close-up of a white thermal sensor labeled TB02-BB8D and a connector.

Used 4s 10A BMS With Temperature Sensor And Connector Btr-cyzm-5425-4s - close-up of the green circuit board showing the 8254AA chip and resistors.

Used 4s 10A BMS With Temperature Sensor And Connector Btr-cyzm-5425-4s

Rs 160

SKU: B366,KRT30

Protect your battery pack with the used 4S 10A BMS. This reliable module provides precise voltage monitoring, over-discharge, over-charge, and short-circuit protection for your lithium-ion battery pack.

Key Features:

4S configuration for 14.8V battery packs
10A continuous discharge current
Built-in temperature sensor for accurate monitoring
Over-charge, over-discharge, and short-circuit protection
Compact and lightweight design
Easy to install

Specifications:

Input voltage: 14.8V
Output voltage: 14.8V
Continuous discharge current: 10A
Charging current: 5A
Temperature sensor: TB02-BB8D

Applications:

Lithium-ion battery packs
Electric vehicles
Power tools
Energy storage systems
