USB Type-C Oval LED Female Socket with Wires for Arduino Pakistan
USB Type-C Oval Shape LED Female Socket — Pakistani students, makers, aur engineers ke liye perfect plug-and-play power connector jo connect hote hi glow karta hai!
Yeh ek female-to-male flat-head USB Type-C female socket hai jisme built-in LED indicator laga hota hai. Jaise hi aap isko power dete hain, yeh instantly light up ho jata hai — koi extra wiring nahi chahiye. Oval transparent housing mein clearly visible LED glow aur pre-wired leads ke saath yeh connector DIY projects ke liye ideal hai.
Specifications
| Field | Detail |
|---|---|
| Connector Type | USB Type-C Female, 2P |

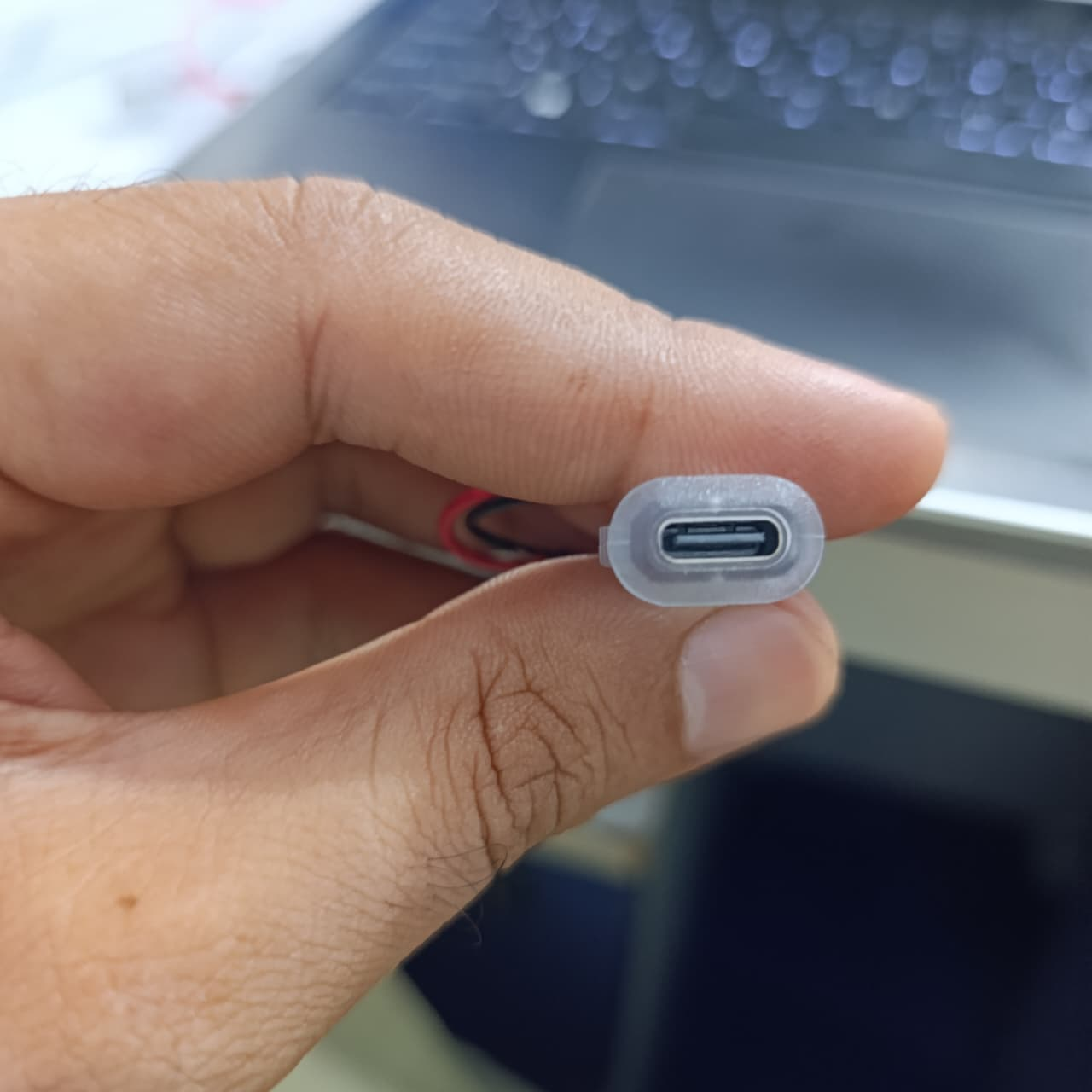

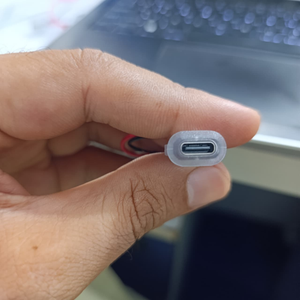

| Housing Shape | Oval / Rectangular, Transparent |
| LED Colors Available | Purple (blue-white wire), Green (black-red wire) |
| Operating Voltage | 5V USB [VERIFY] |

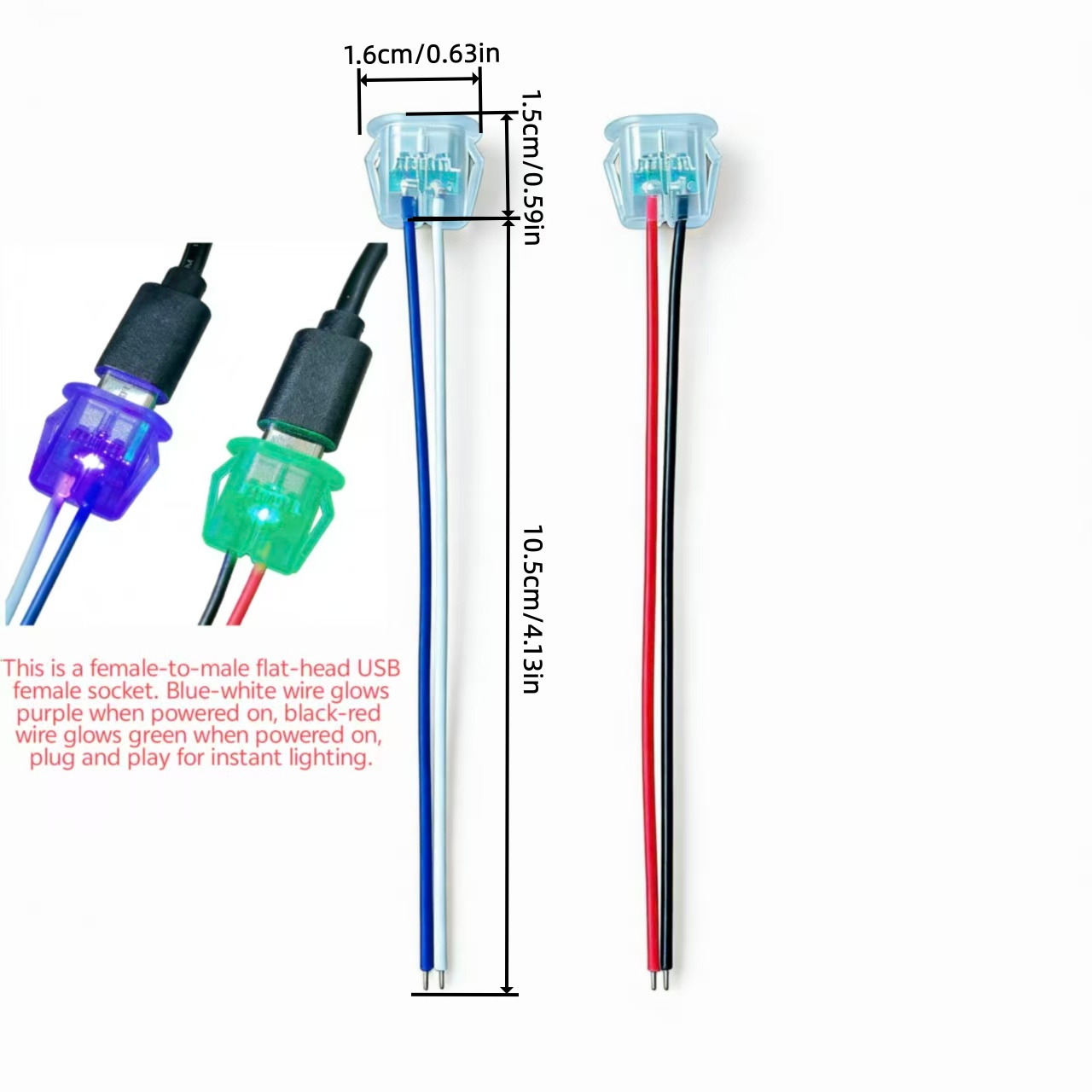

| Head Dimensions | 1.6 cm × 1.5 cm / 0.63 in × 0.59 in |
| Wire Length | 10.5 cm / 4.13 in |
| Wire Colors (Purple LED) | Blue + White |
| Wire Colors (Green LED) | Black + Red |
| Mount Type | Panel / Plug-in |
| Compatible Boards | Arduino Uno, Nano, Mega, ESP32, ESP8266, STM32 [VERIFY] |
Kahan Use Hota Hai (Use Cases)
- Smart Home Projects: Custom USB charging panels aur power indicator boxes mein
- IoT Devices: ESP32 / NodeMCU powered enclosures mein power-on indicator ke tor par
- Robotics: Robot chassis mein USB power input port ke saath LED status indicator
- College Lab / FYP Projects: Clean aur professional-looking power connectors for final year projects
- DIY Enclosures: Project boxes mein panel-mount USB port banana — bilkul professional finish ke saath
Kaise Connect Karein (Wiring Guide)

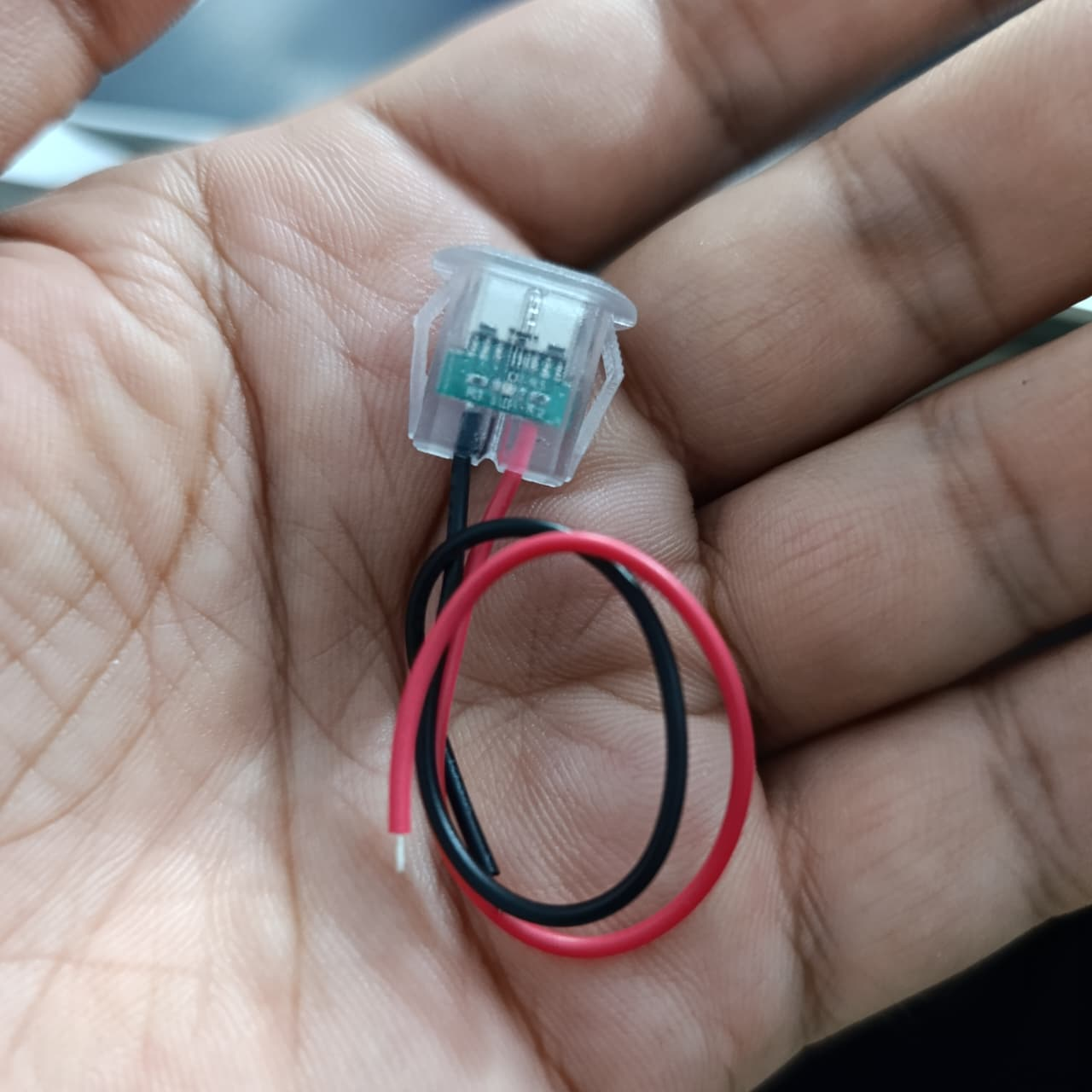

Green LED Variant (Black-Red Wire):
Red Wire → 5V (VCC / Positive)
Black Wire → GND (Negative)
Purple LED Variant (Blue-White Wire):
Blue Wire → 5V (VCC / Positive)
White Wire → GND (Negative)
Arduino Uno:
Red/Blue → 5V pin
Black/White → GND pin
ESP32:
Red/Blue → 3.3V or 5V (VIN) [VERIFY voltage for LED brightness]
Black/White → GND
Note: Yeh sirf power (2-pin) connector hai — data transfer support nahi karta.FAQ
- Q: Kya yeh Arduino Uno ke saath kaam karta hai?
- Yes, simply connect the red wire to the 5V pin and black wire to GND. The LED will glow instantly when powered.
- Q: Kya data transfer ho sakta hai is connector se?
- No — this is a 2-pin power-only connector. It does not support USB data lines. For data, you need a full 4-pin or 16-pin Type-C connector.
- Q: Konsa LED color milega — green ya purple?
- Both variants are available. Green LED comes with black-red wires; Purple LED comes with blue-white wires. Please specify your preferred color when ordering, or check the listing variant.
- Q: Kya yeh 3.3V pe bhi kaam karta hai?
- It is rated for 5V USB operation. At 3.3V the LED may glow dimmer. [VERIFY minimum operating voltage with supplier]
