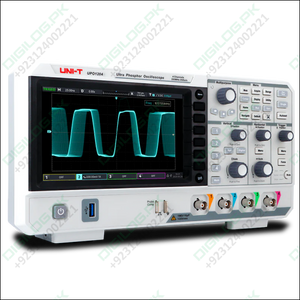

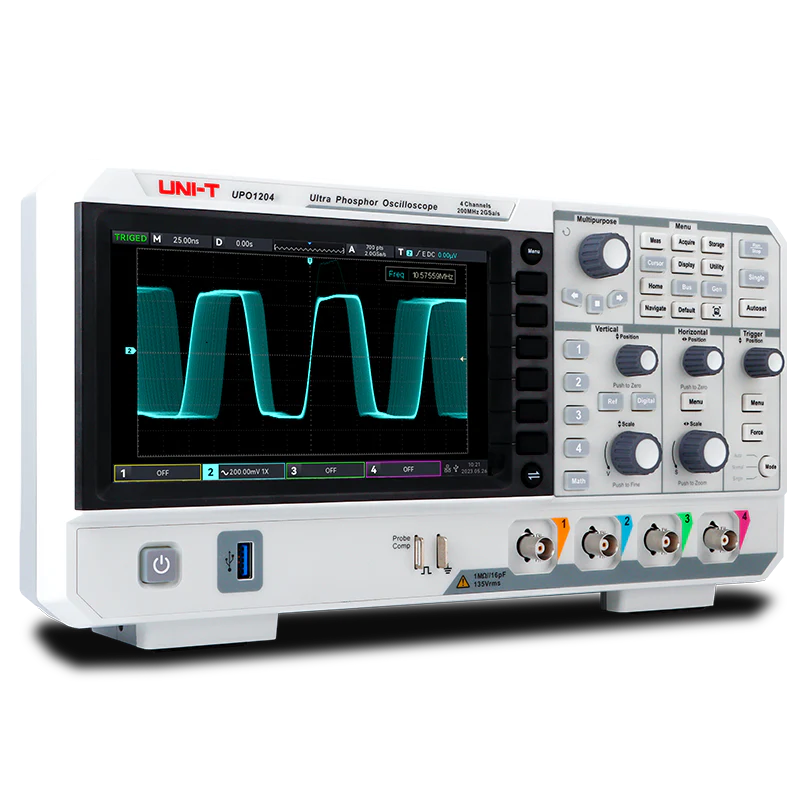

Uni-Trend UPO1204 Digital Storage Oscilloscope - 200MHz 4-Channel DSO
Professional 4-Channel Digital Storage Oscilloscope
The Uni-Trend UPO1204 is a high-performance digital storage oscilloscope designed for engineers, technicians, and electronics professionals who demand precision and reliability. With 200MHz bandwidth and 4 independent channels, this DSO delivers exceptional signal analysis capabilities for complex electronic systems.
Key Features
- 200MHz Bandwidth - Capture high-frequency signals with accuracy
- 4 Independent Channels - Analyze multiple signals simultaneously
- 2GSa/s Real-Time Sample Rate - Precise waveform capture
- 56Mpts Memory Depth - Extended record length for long-duration captures
- 500,000 wfms/s Waveform Capture Rate - Ultra-fast screen refresh
- 7-inch TFT LCD Display - Clear, high-resolution screen for detailed waveform viewing
- Advanced Triggering - Multiple trigger modes for complex signal analysis
- USB Connectivity - Easy data transfer and remote control capability
- Built-in FFT - Frequency domain analysis
- Automatic Measurements - Quick parameter readouts
- Waveform Math Functions - Add, subtract, multiply, and divide operations
Technical Specifications
| Feature | Specification |
| Model Number | UPO1204 |
| Bandwidth | 200MHz |
| Channels | 4 Analog |
| Real-Time Sample Rate | 2GSa/s |
| Rise Time | ≤1.8ns |
| Memory Depth | 56Mpts |
| Waveform Capture Rate | 500,000 wfms/s |
| Input Impedance | (1MΩ ± 2%) || (16pF ± 2pF) |
| Waveform Generator | No |
| Display | 7-inch TFT LCD |
| Touchscreen | No |
| Warranty | 3 Years |
| Dimensions (L × W × H) | 306mm × 138mm × 107mm |
| Weight | 2.5 kg |
Perfect For
- Electronics design and development
- Circuit debugging and troubleshooting
- Educational laboratories
- Quality control and testing
- Embedded systems development
- Power electronics analysis
- Communication systems testing

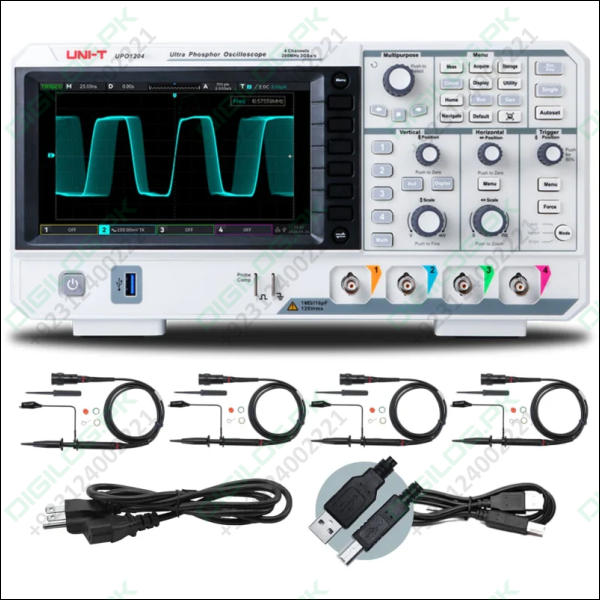

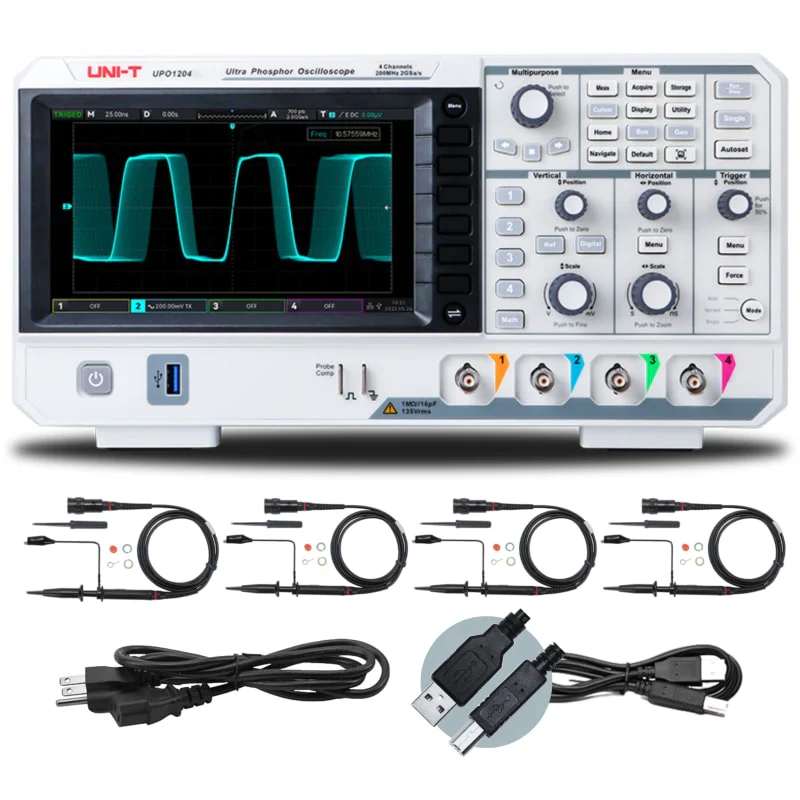

What's Included
- UPO1204 Digital Storage Oscilloscope
- 4× Passive Probes 200MHz (UT-P05)
- Power Cord
- USB 2.0 Printing Cable
- English Download Guide
- Multi-language Safety Manual
- Calibration Report (COC)
Documentation
📄 Download Complete Product Specifications (PDF)
Video Demo
🎥 Watch Product Demo on YouTube
This professional-grade oscilloscope combines advanced features with user-friendly operation, making it an essential tool for any electronics workbench. Backed by a comprehensive 3-year warranty for peace of mind.
