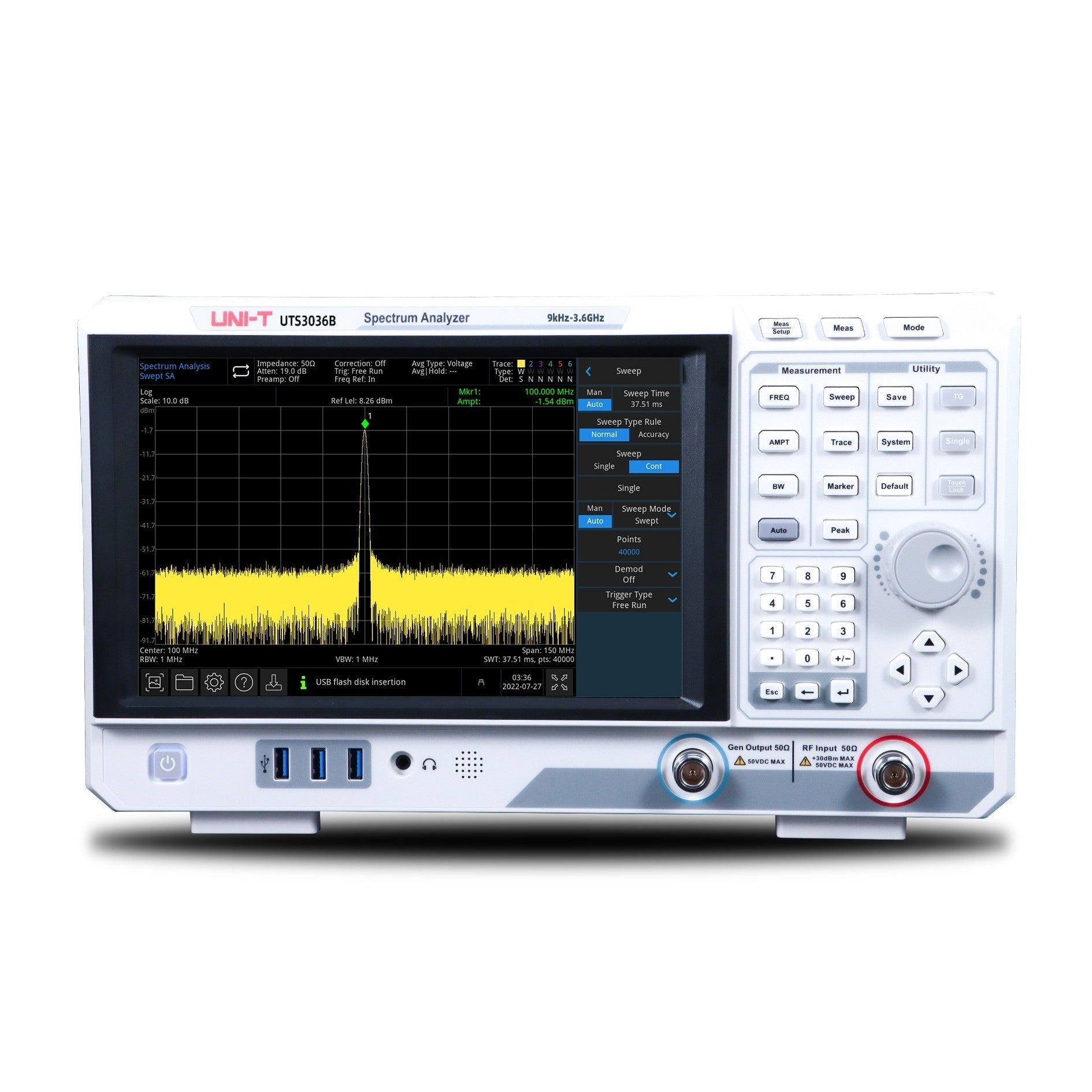

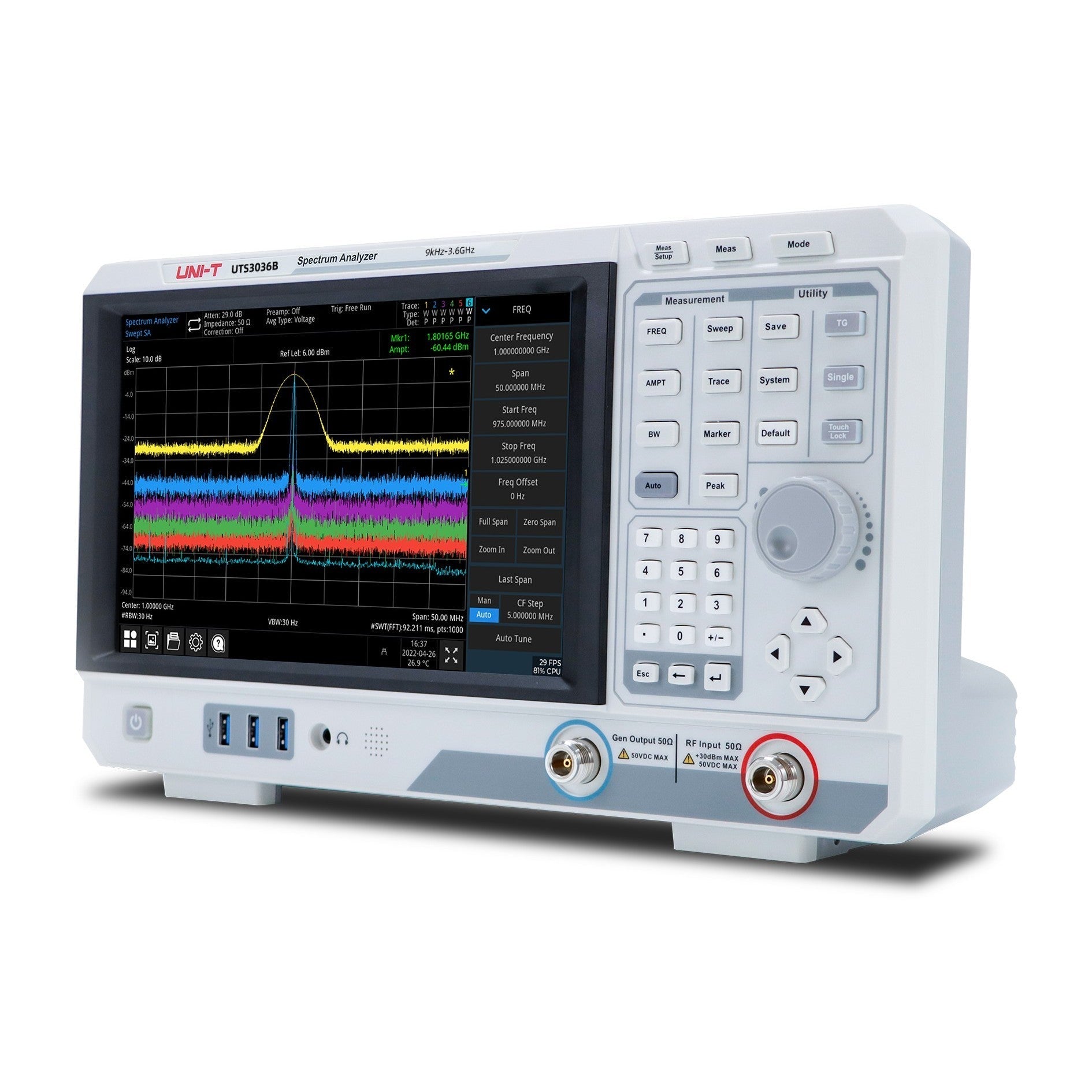

UNI-T UTS3036B 3.6 GHz Performance-Series Spectrum Analyzer
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UTS3036B 3.6 GHz Performance-Series Spectrum Analyzer
UNI-T UTS3036B — The UNI-T UTS3036B Performance-Series Spectrum Analyzer covers 9 kHz – 3.6 GHz with a 10.1-inch capacitive multi-touch display, a 1 Hz resolution-bandwidth floor, and up to 40,001 sweep points. It targets the sub-3.6 GHz bench measurement workload — communications module verification, IoT and wireless development, harmonic and spurious testing — with the option to add a tracking generator in the field when your work demands scalar transmission measurements. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- 9 kHz – 3.6 GHz frequency coverage — sub-3.6 GHz for general RF dev, communications, harmonic surveys, and EMI pre-compliance work
- -161 dBm/Hz typical DANL — (preamp on) — sensitive enough to resolve low-level signals, spurs, and harmonic energy near the noise floor
- <-98 dBc/Hz phase noise @ 10 kHz offset — (typical, 1 GHz carrier) — clean enough for close-in spectral measurements and modulated-signal analysis
- 1 Hz – 3 MHz RBW — in 1-3-10 steps — fine resolution control all the way down to a 1 Hz floor, with FFT mode for faster narrowband sweeps
- 40,001 sweep points — deep trace detail (4× the count of UNI-T's entry tier) for catching signals that coarser analyzers miss
- 10.1-inch capacitive multi-touch display — (1280 × 800) — pinch, drag, and tap to set markers, with full mouse/keyboard support via USB
- Six traces with five detector modes — Sample, Peak, Negative, Normal, Average; Clear/Write, Average, Max Hold, Min Hold trace types
Technical Specifications
| Frequency Range | 9 kHz – 3.6 GHz |
|---|---|
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (typical, preamp on) |
| Phase Noise | <-98 dBc/Hz @ 10 kHz offset (typical, 1 GHz carrier) |
| Amplitude Accuracy | <0.7 dB |
| Sweep Points (max) | 40,001 |
| Number of Traces | 6 |
| Detector Types | Sample, Peak, Negative, Normal, Average |
| Trace Types | Clear/Write, Average, Max Hold, Min Hold |
| Sweep Modes | Swept, FFT |
| Preamplifier | 20 dB (nominal), switchable |
| Input Attenuator Range | 0 – 51 dB, 1 dB steps |
| Reference Level Range | -100 dBm to +30 dBm |
| Maximum Safe Input | +33 dBm CW (3 min, attenuation >20 dB); 50 V DC max |

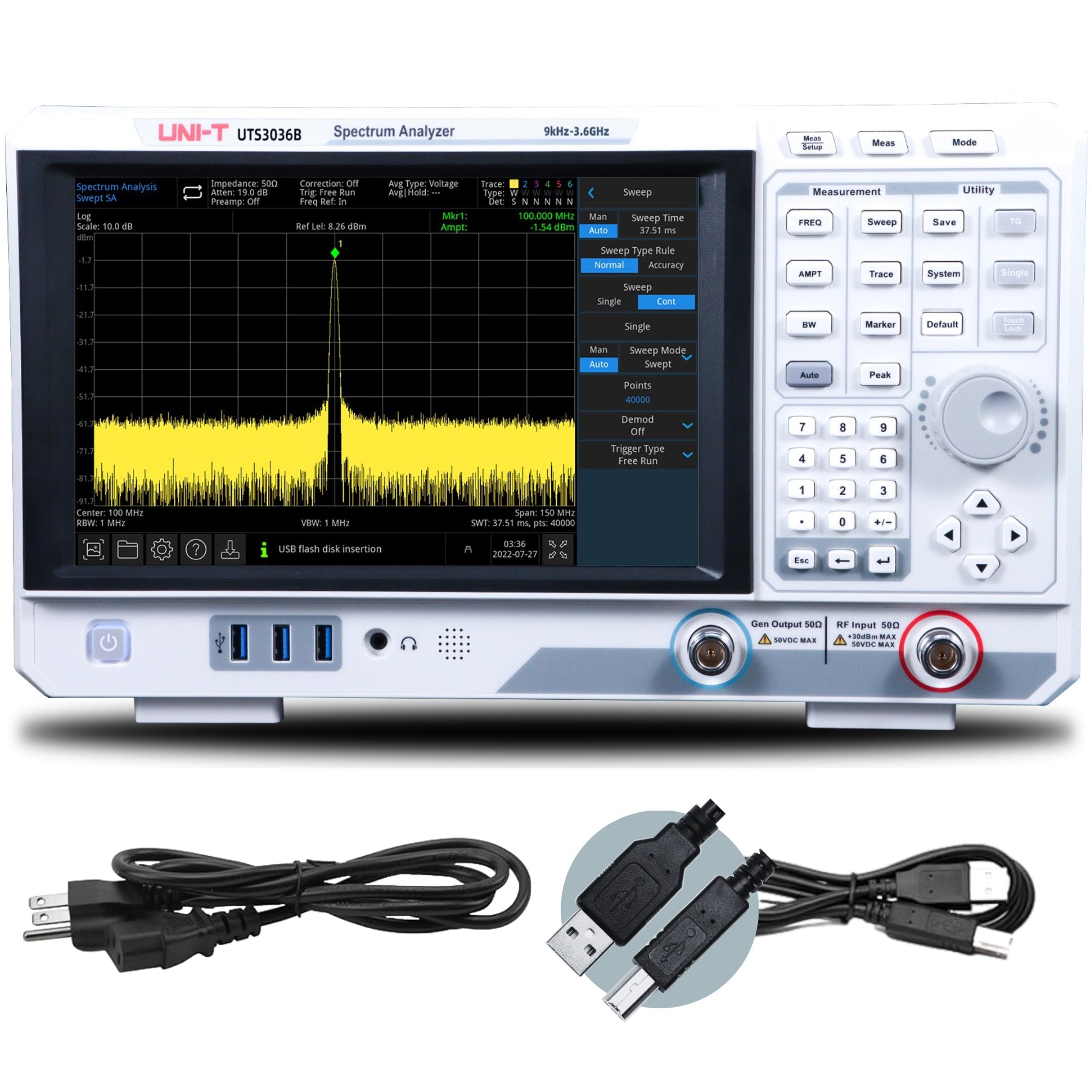

What's in the Box
- Power cord
- USB2.0 printing cable
- English download guide
- multi-language safety manual
- calibration report (COC)
Downloads
Certifications: CE, RoHS | HS Code: 9030.89
