UNI-T UTS1015T 1.5 GHz Spectrum Analyzer with Tracking Generator

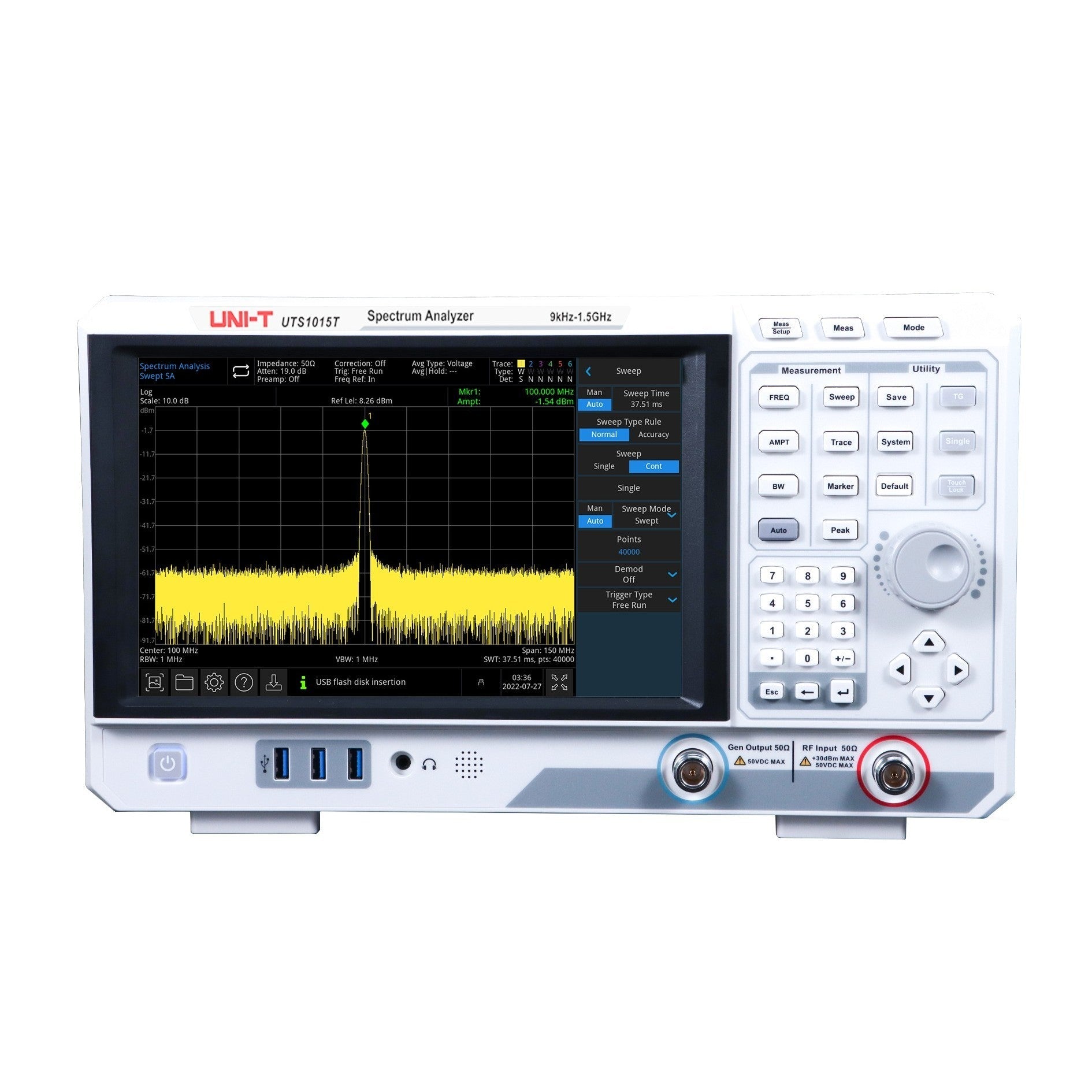

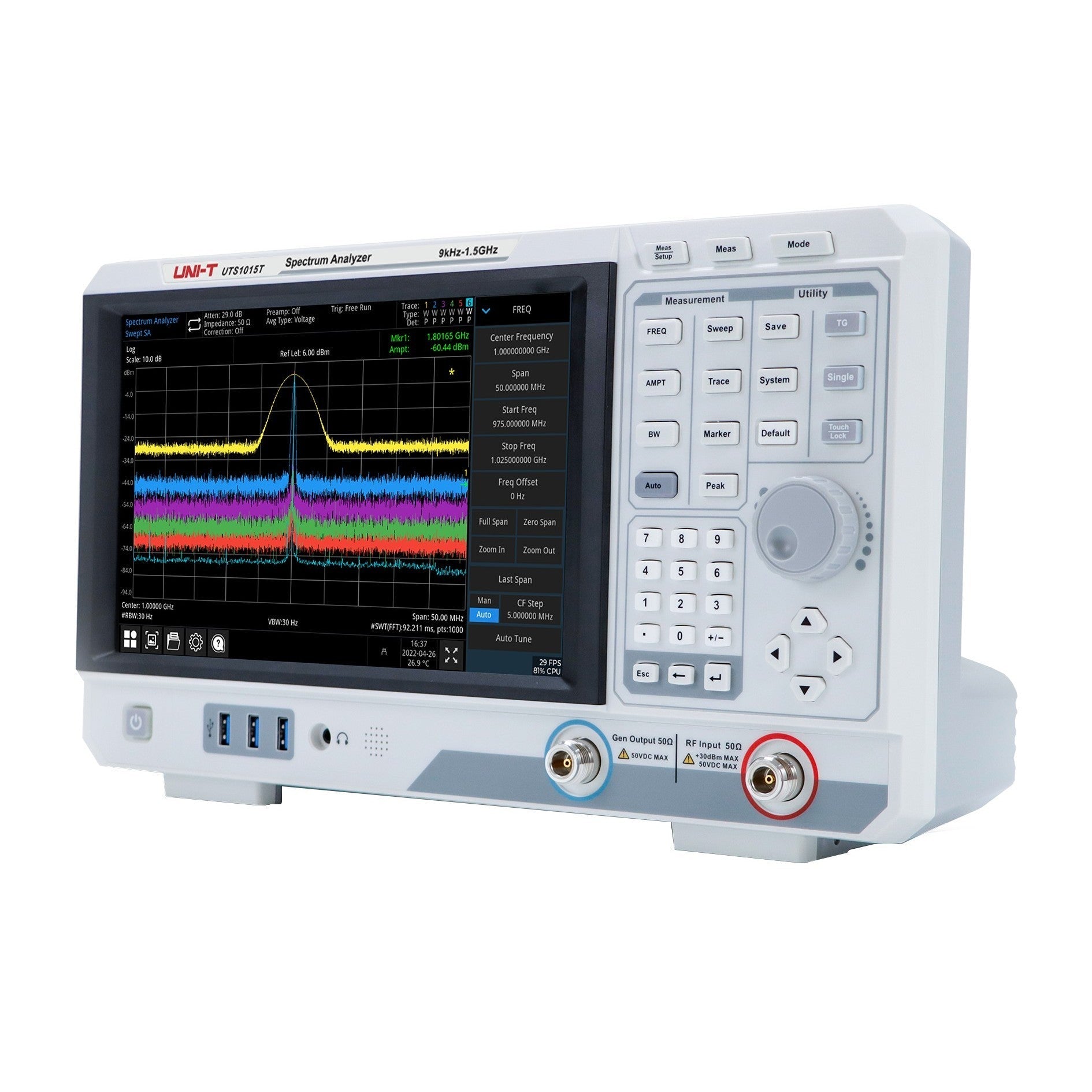

UNI-T UTS1015T — The UNI-T UTS1015T Advanced-Series Spectrum Analyzer brings full-featured RF analysis into reach for educators, hobbyists, and engineers who need a capable instrument without the price tag of a high-end performance analyzer. Covering 9 kHz – 1.5 GHz with an integrated tracking generator, the UTS1015T pairs a 10.1-inch capacitive multi-touch display with a 1 Hz resolution bandwidth floor and up to 10,001 sweep points — the kind of detail that lets you see what you actually need to see, whether you're chasing a stray spur or building familiarity with RF. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- 9 kHz – 1.5 GHz frequency coverage — spans the bands used in Wi-Fi, BLE, ZigBee, LoRa, sub-GHz ISM, and general wireless development
- -161 dBm/Hz typical DANL — with preamp on, sensitive enough to resolve low-level signals and harmonics
- <-98 dBc/Hz phase noise @ 10 kHz offset — clean enough to evaluate nearby carriers and modulated signals
- 1 Hz – 1 MHz RBW — in 1-3-10 steps — gives you fine selectivity control all the way down to a 1 Hz resolution floor
- 10,001 sweep points — deep trace detail for finding the signals that lower-resolution analyzers miss
- 10.1-inch capacitive multi-touch display — (1280 × 800) — same modern UI style as the higher-end performance series, with gesture-based zoom and pan
- Integrated tracking generator — (100 kHz – 1.5 GHz) — built-in scalar network analysis for filters, amplifiers, and antennas
Technical Specifications
| Frequency Range | 9 kHz – 1.5 GHz |
|---|---|
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (typical, preamp on) |
| Phase Noise | <-98 dBc/Hz @ 10 kHz offset (typical, 1 GHz carrier) |
| Amplitude Accuracy | <0.7 dB |
| Resolution Bandwidth (RBW) | 1 Hz – 1 MHz, 1-3-10 steps |
| Video Bandwidth (VBW) | 1 Hz – 1 MHz, 1-3-10 steps |
| Sweep Points | 10,001 |
| Number of Traces | 4 |
| Detector Types | Sample, Peak, Negative, Normal, Average |
| Sweep Modes | Swept (1 kHz – 1 MHz RBW), FFT (1 Hz – 30 kHz RBW) |
| Preamplifier | 20 dB (nominal), switchable |
| Input Attenuator Range | 0 – 51 dB, 1 dB steps |
| Reference Level | -100 dBm to +30 dBm |

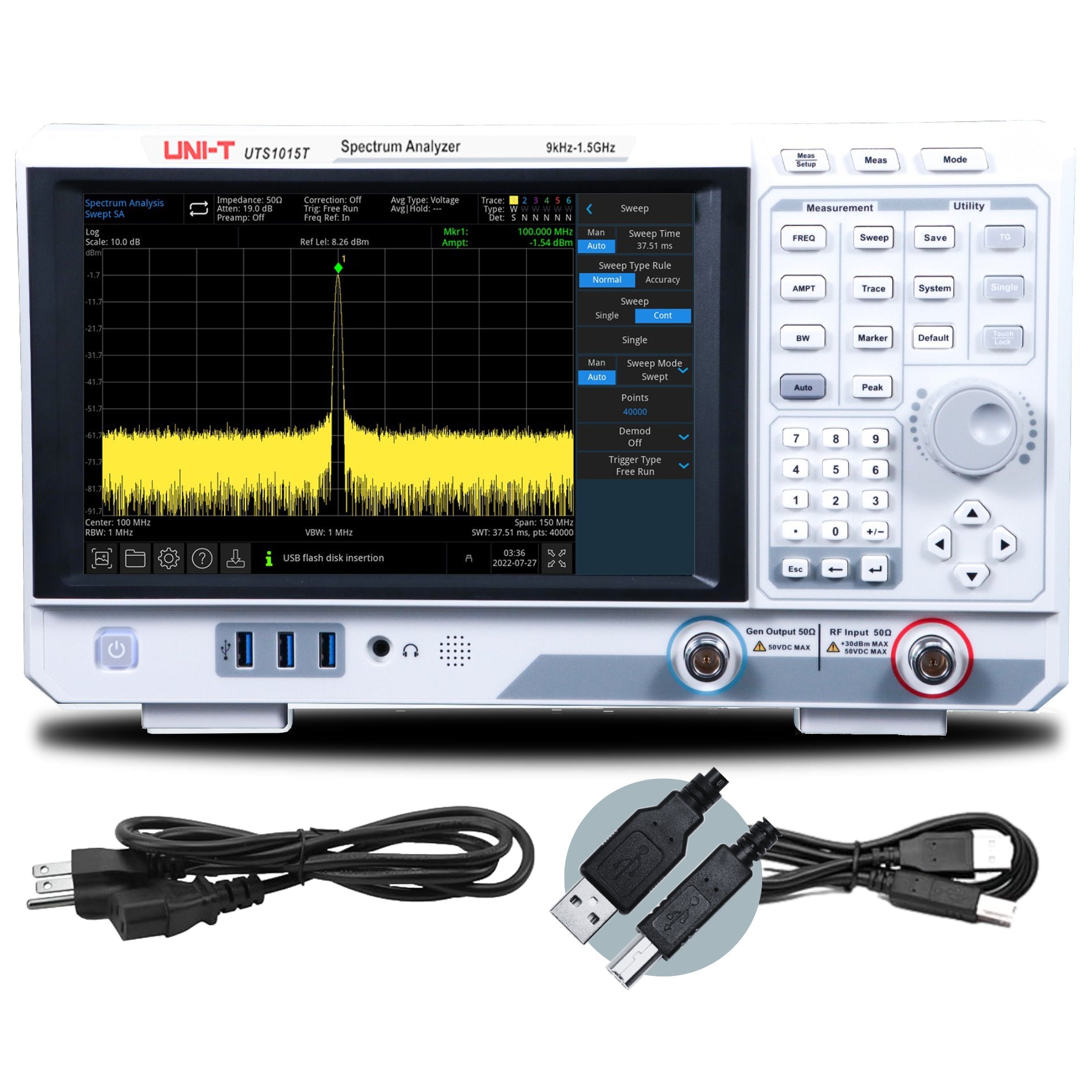

What's in the Box
- Power cord
- USB2.0 printing cable
- English download guide
- multi-language safety manual
- calibration report (COC)
Downloads
Certifications: CE, RoHS | HS Code: 9030.89
