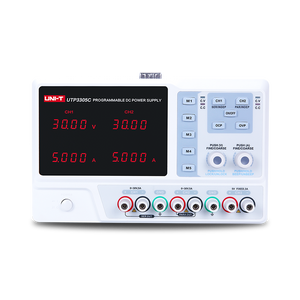

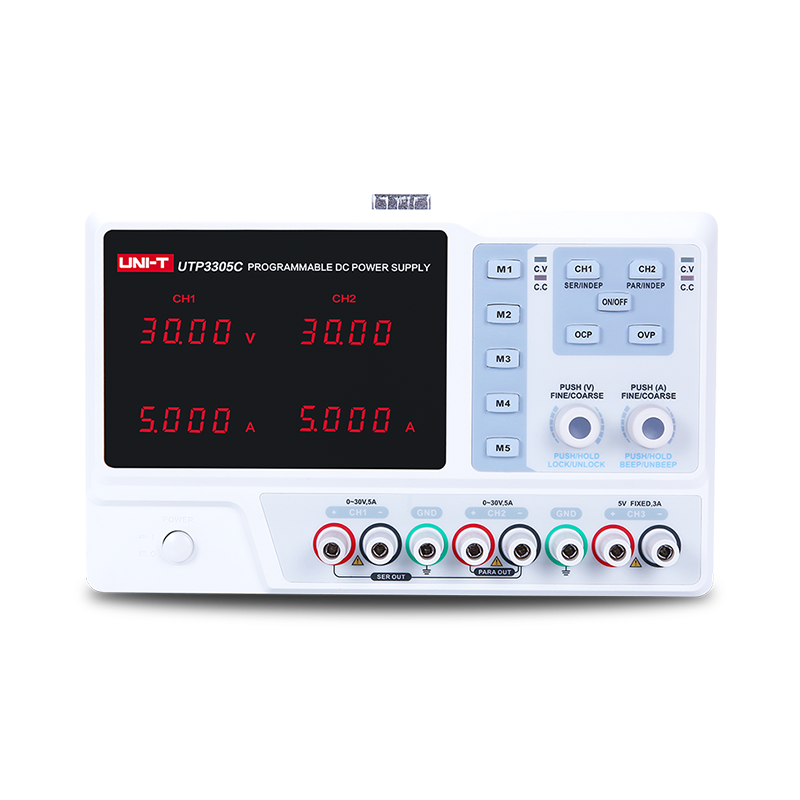

UNI-T UTP3305C — a 315 W programmable linear DC power supply from the UTP3300C series, with two independent 0–30 V / 0–5 A channels plus a fixed 5 V / 3 A logic supply. Linear regulation holds ripple to ≤2 mVrms, so it suits sensitive analogue and RF work where switching noise is unacceptable. Series and parallel modes, five memory groups, power-off memory and USB / RS-232 remote control make it a strong fit for R&D, production test and teaching labs. Genuine UNI-T product supplied by Digilog.pk with manual and warranty.
Key Features

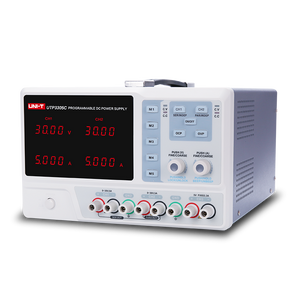

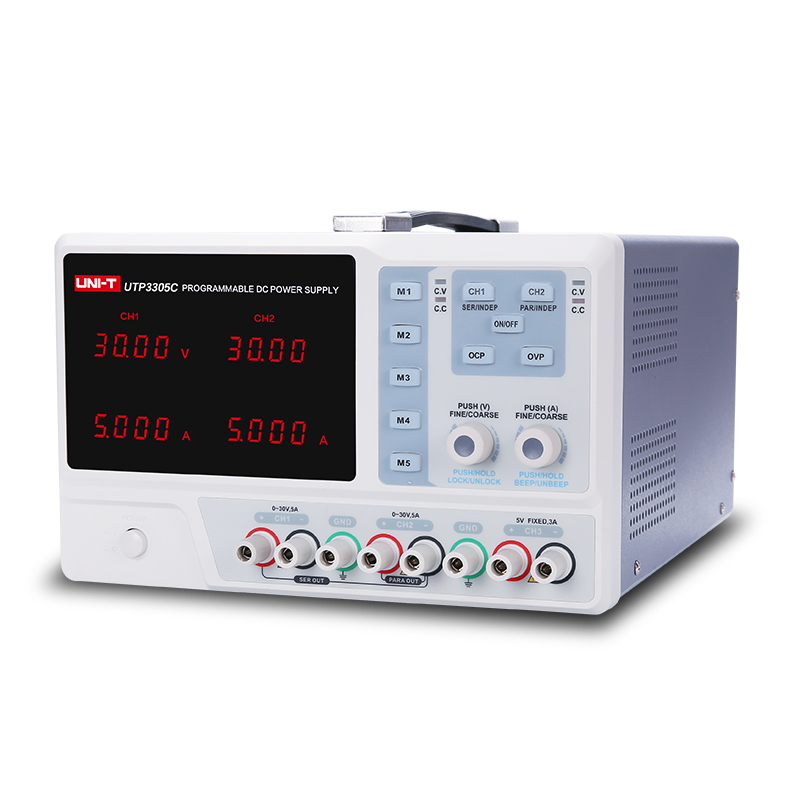

- Three outputs: CH1 and CH2 each 0–30 V / 0–5 A, plus a fixed 5 V / 3 A CH3 — 315 W total
- Linear topology for low ripple: ≤2 mVrms voltage, ≤3 mArms current (20 Hz – 20 MHz)
- Series and parallel operation for higher voltage or current
- High-precision 4-digit voltage and current display, 10 mV / 1 mA resolution
- One-click data recall of up to 5 groups; power-off memory; keyboard lock
- Over-voltage, over-current and over-temperature protection; software calibration
- USB Device and RS-232 interfaces (optional LAN)
Technical Specifications
| Channels | 3 (CH1 and CH2 adjustable, CH3 fixed) |
|---|---|
| Output Voltage | 0 – 30 V (CH1 / CH2) |
| Output Current | 0 – 5 A (CH1 / CH2) |
| Output Power | 315 W |
| Topology | Programmable linear |
| CH3 Output | 5 V / 3 A fixed; voltage accuracy ±50 mV; load regulation ±50 mV |
| Load Regulation | Voltage <0.01%+5 mV; current <0.1%+10 mA |
| Line Regulation | Voltage <0.01%+3 mV; current <0.1%+3 mA |
| Accuracy (25°C ±5°C) | Voltage <0.5%+20 mV; current <0.5%+10 mA |
| Resolution | Voltage 10 mV; current 1 mA |
| Ripple & Noise (20 Hz – 20 MHz) | Voltage ≤2 mVrms; current ≤3 mArms |
| Output Temperature Coefficient | ≤150 ppm (voltage and current) |
| Voltage Rise Delay | ≤100 ms (10% rated load) |
| Parallel / Series Load Regulation | ≤0.1%+0.1 V |

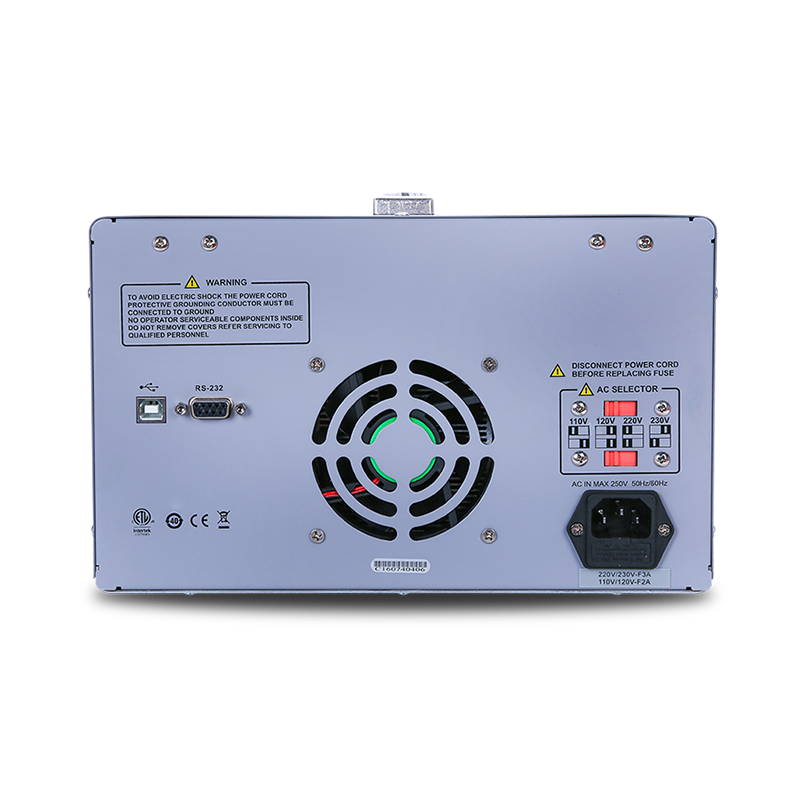

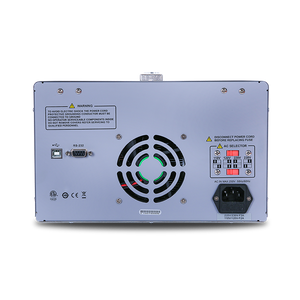

| Interfaces | USB Device, RS-232 (optional LAN) |
| Display | 4 windows, LED |
| Input | AC 100 V / 120 V / 220 V / 230 V ±10%, 50 Hz / 60 Hz |
| Dimensions | 260 × 176 × 317 mm |
| Weight | 9.1 kg (net) |
What's in the Box
- UTP3305C programmable DC power supply
- USB and RS-232 interface cables
- Output cables
- PC software CD
- Power cable
- English user manual
Downloads
Certifications: CE, RoHS | HS Code: 8504.4090
