UNI-T UTP1306 Switching DC Power Supply – 192W Single Channel, 0–32V / 0–6A, 4-Digit LED, 10mV / 1mA Resolution, OVP & OCP, 3 Memory Presets
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UTP1306 Switching DC Power Supply – 192W Single Channel, 0–32V / 0–6A, 4-Digit LED, 10mV / 1mA Resolution, OVP & OCP, 3 Memory Presets

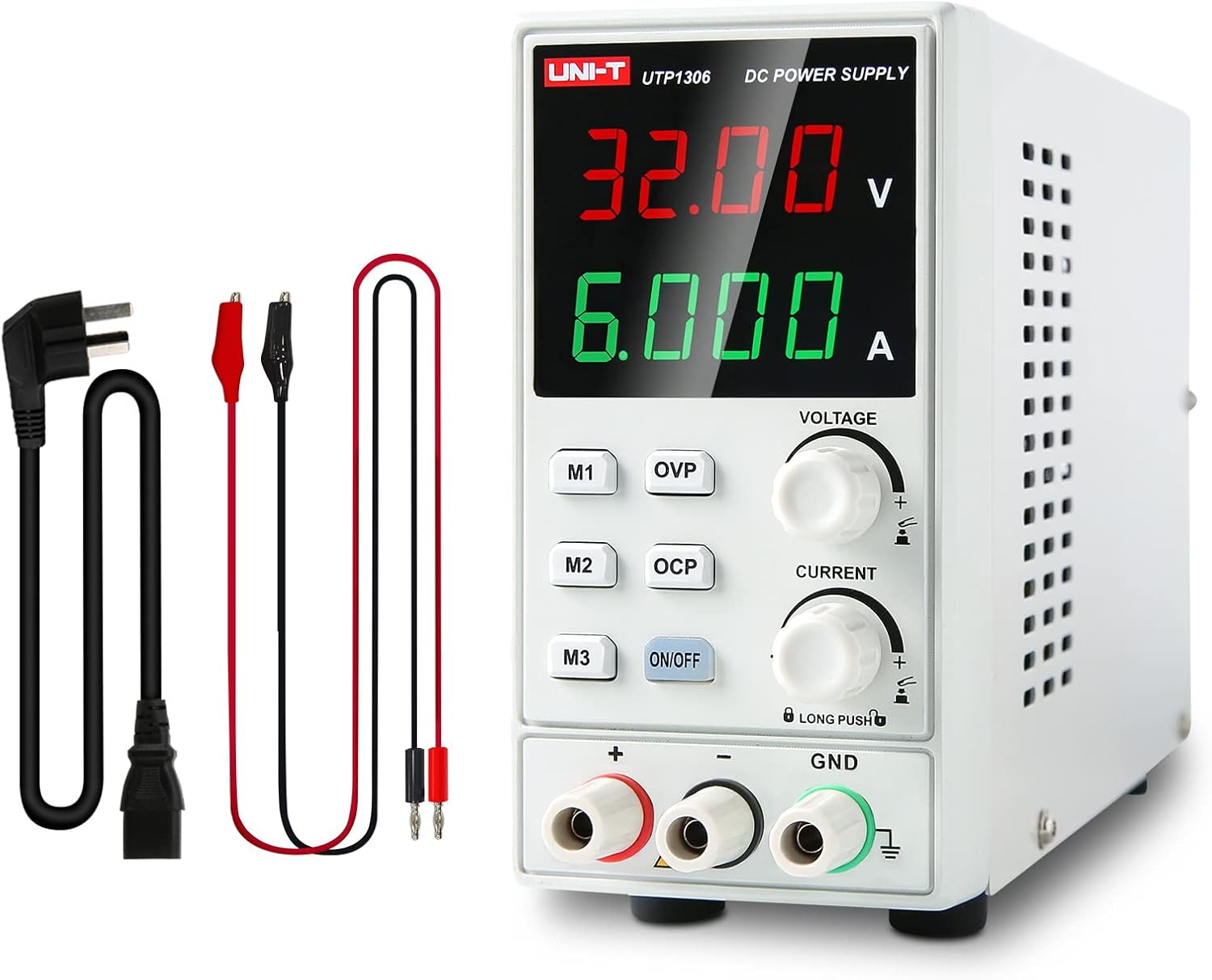

UNI-T UTP1306 — a compact 192 W switching bench DC power supply delivering a fully adjustable 0–32 V / 0–6 A single output with 10 mV / 1 mA setting and readback resolution. Twin 4-digit LED displays show voltage and current at the same time, while settable over-voltage and over-current protection plus three M1–M3 memory presets make repeat testing quick. The 80 mm-wide chassis suits crowded benches in repair shops, labs and schools. Genuine UNI-T product supplied by Digilog.pk with manual and warranty.
Key Features
- Rated output 0–32 V / 0–6 A, 192 W single channel (switching topology)

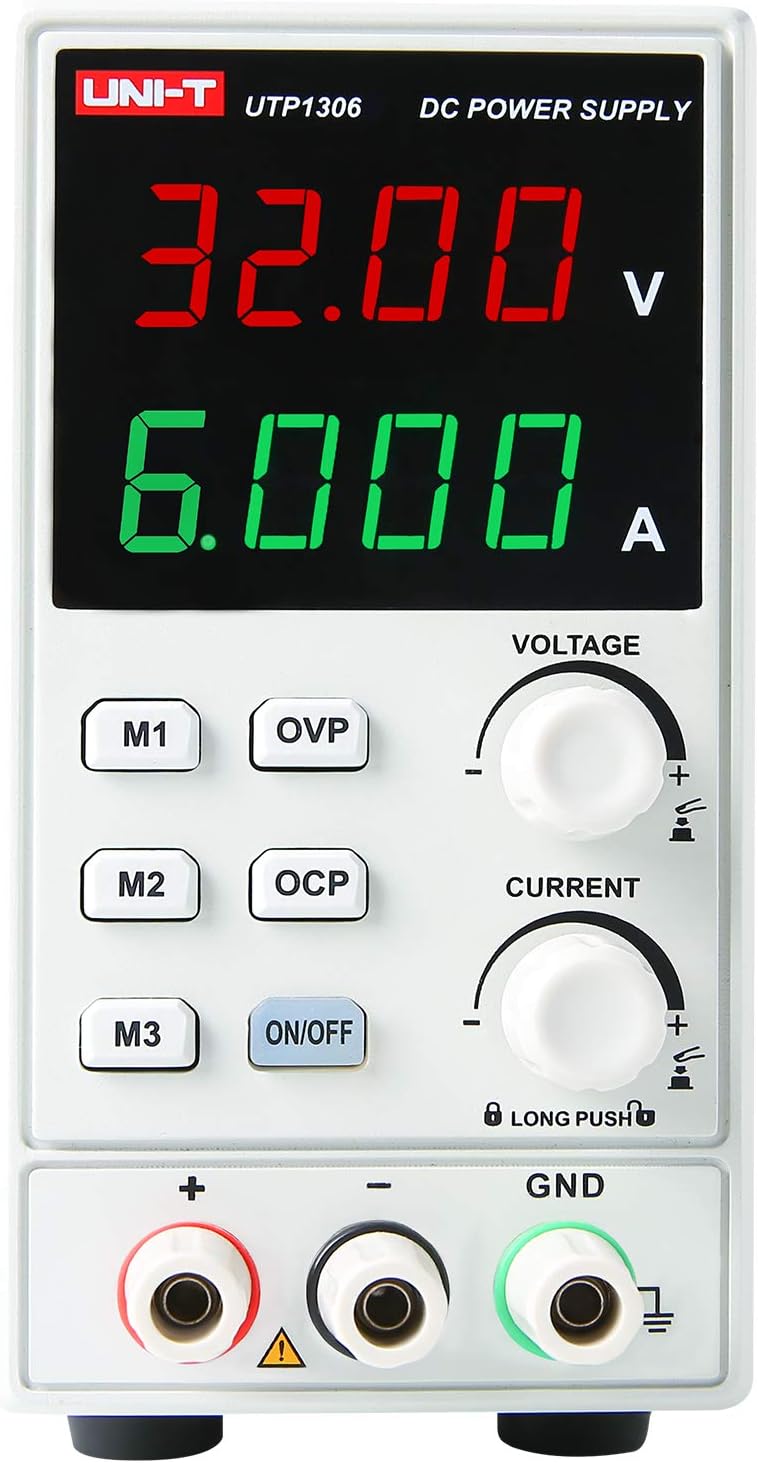

- 4-digit LED voltage and current displays, 10 mV / 1 mA setting resolution
- Settable OVP (0–32 V) and OCP (0–6 A), both ±0.2% FS

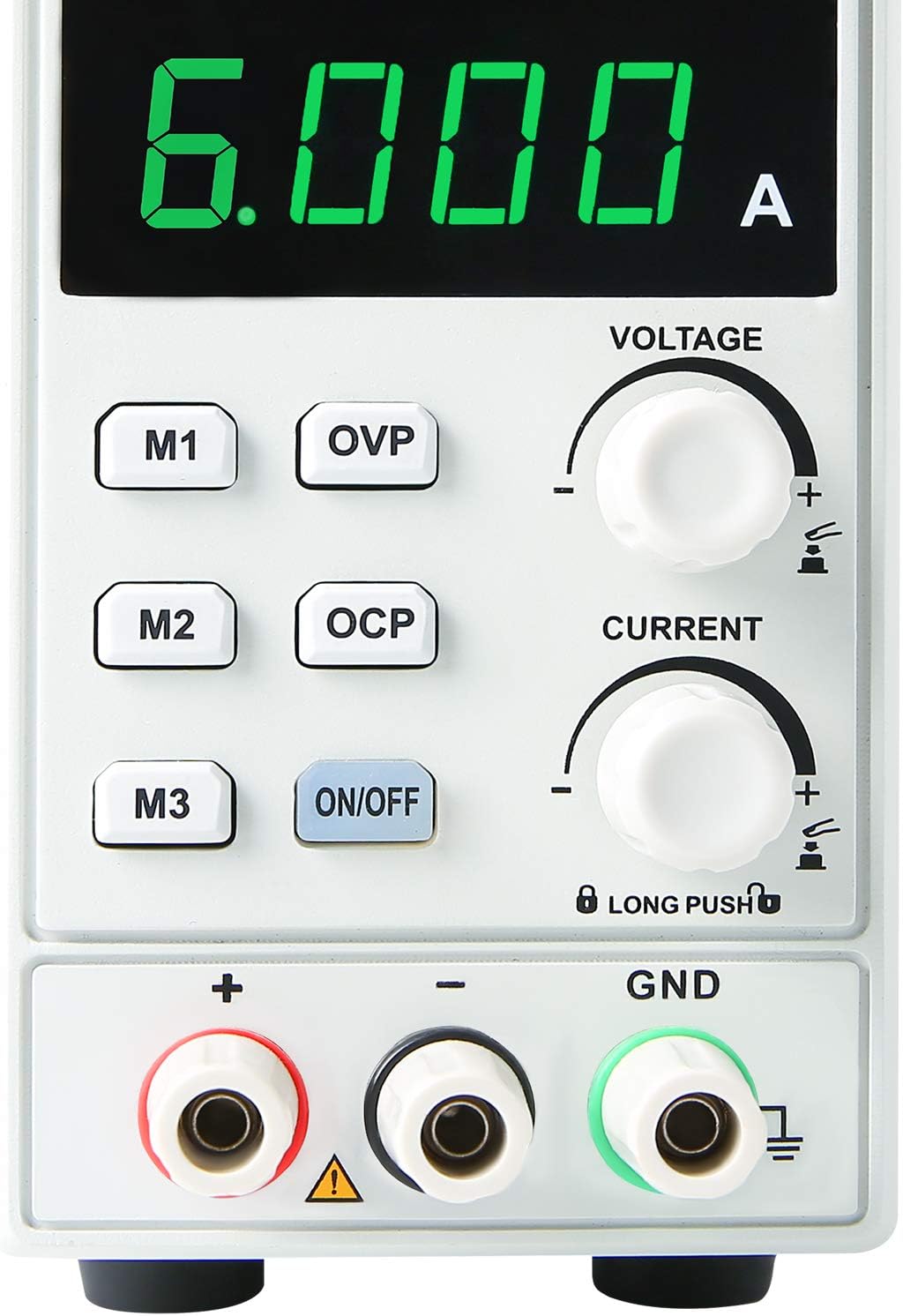

- Three memory presets (M1–M3) for instant voltage/current recall
- Independent output on/off switch, encoder knob and keyboard lock
- Low ripple: 10 mVrms / 5 mArms; line regulation <0.01%+5 mV

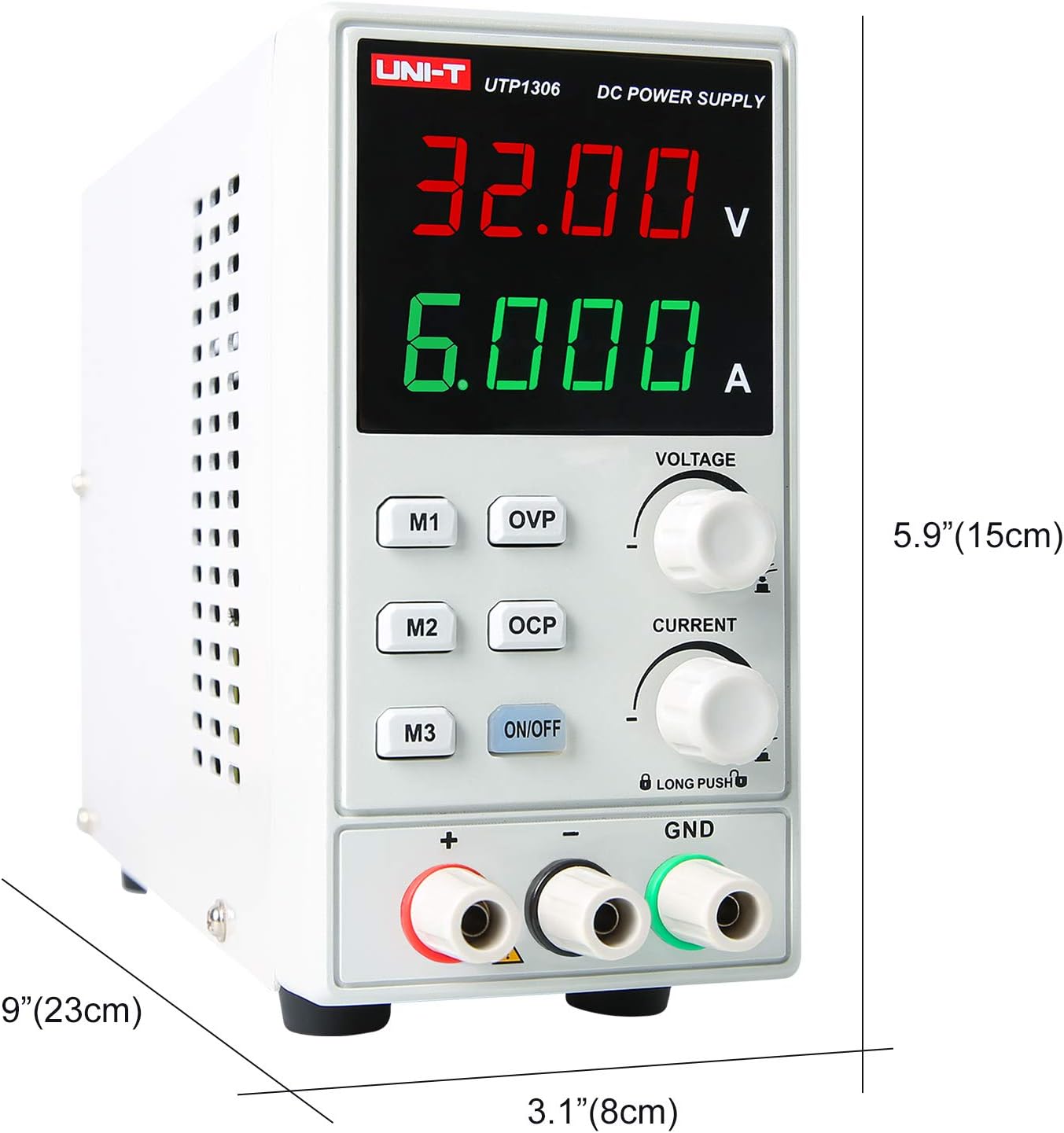

- Compact 80 × 150 × 230 mm chassis at just 1.9 kg; AC 110 V / 220 V selectable
Technical Specifications
| Channels | 1 |
|---|---|
| Output Voltage | 0 – 32 V |
| Output Current | 0 – 6 A |
| Output Power | 192 W |
| Topology | Switching |
| Load Regulation | Voltage <0.1%+5 mV; current <0.2%+3 mA |
| Line Regulation | Voltage <0.01%+5 mV; current <0.2%+3 mA |
| Programming Accuracy | Voltage <0.1%+1 digit; current <0.2%+3 mA |
| Ripple & Noise | Voltage 10 mVrms; current 5 mArms |
| OVP | 0 – 32 V ±0.2% FS (max. 32 V ±0.2%) |
| OCP | 0 – 6.0 A ±0.2% FS (max. 6.0 A ±0.2%) |
| Set Resolution | Voltage 10 mV; current 1 mA |
| Readback Resolution | Voltage 10 mV; current 1 mA |
| Display | LED, 4-digit |
| Memory Presets | 3 groups (M1 – M3) |

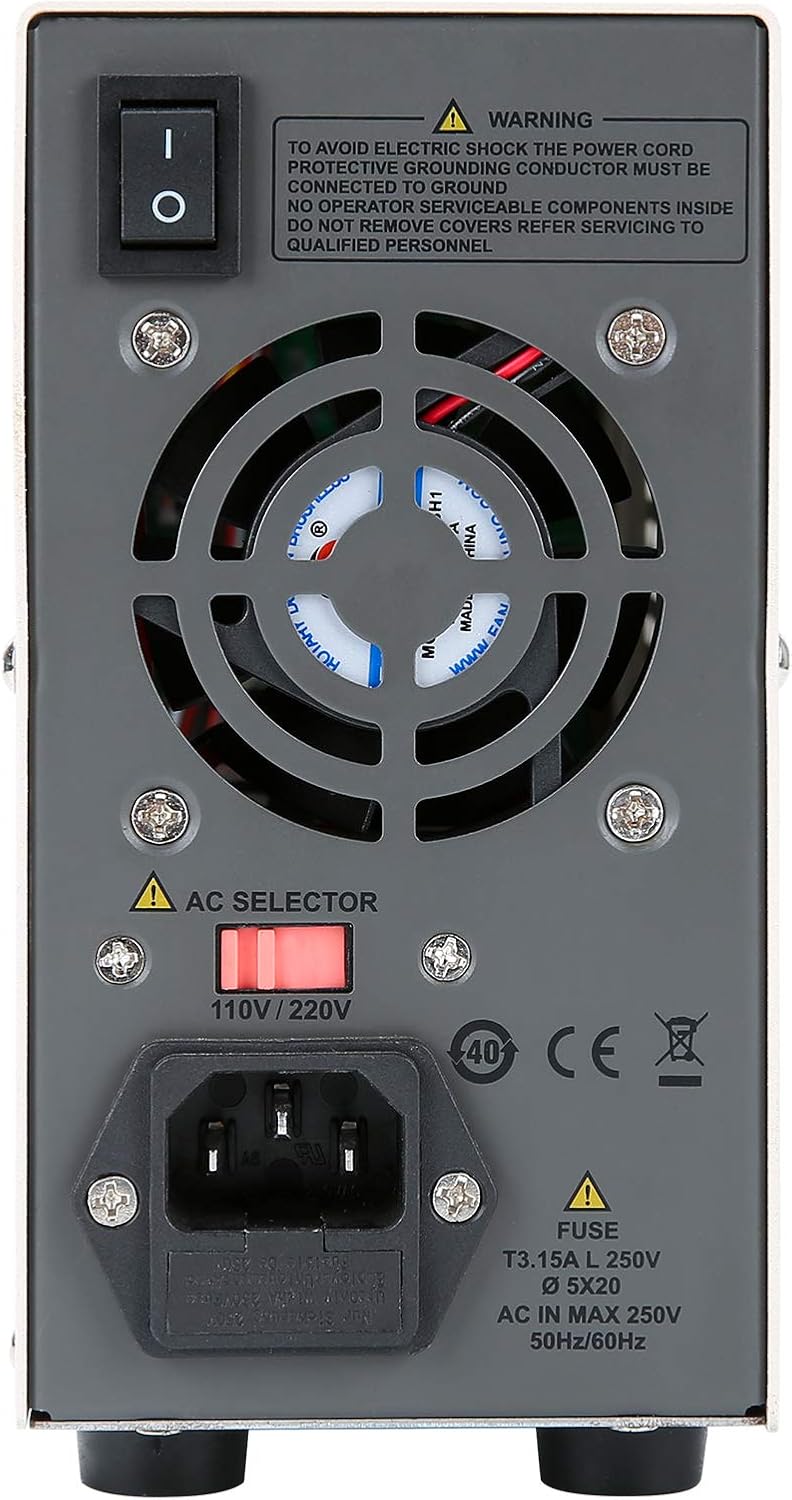

| Input | AC 110 V (±10%) / 220 V (±10%), 50 Hz |
| Operating Conditions | 0°C – 40°C, ≤80% RH |
| Dimensions (W×H×D) | 80 × 150 × 230 mm |
| Weight | 1.9 kg (net) |

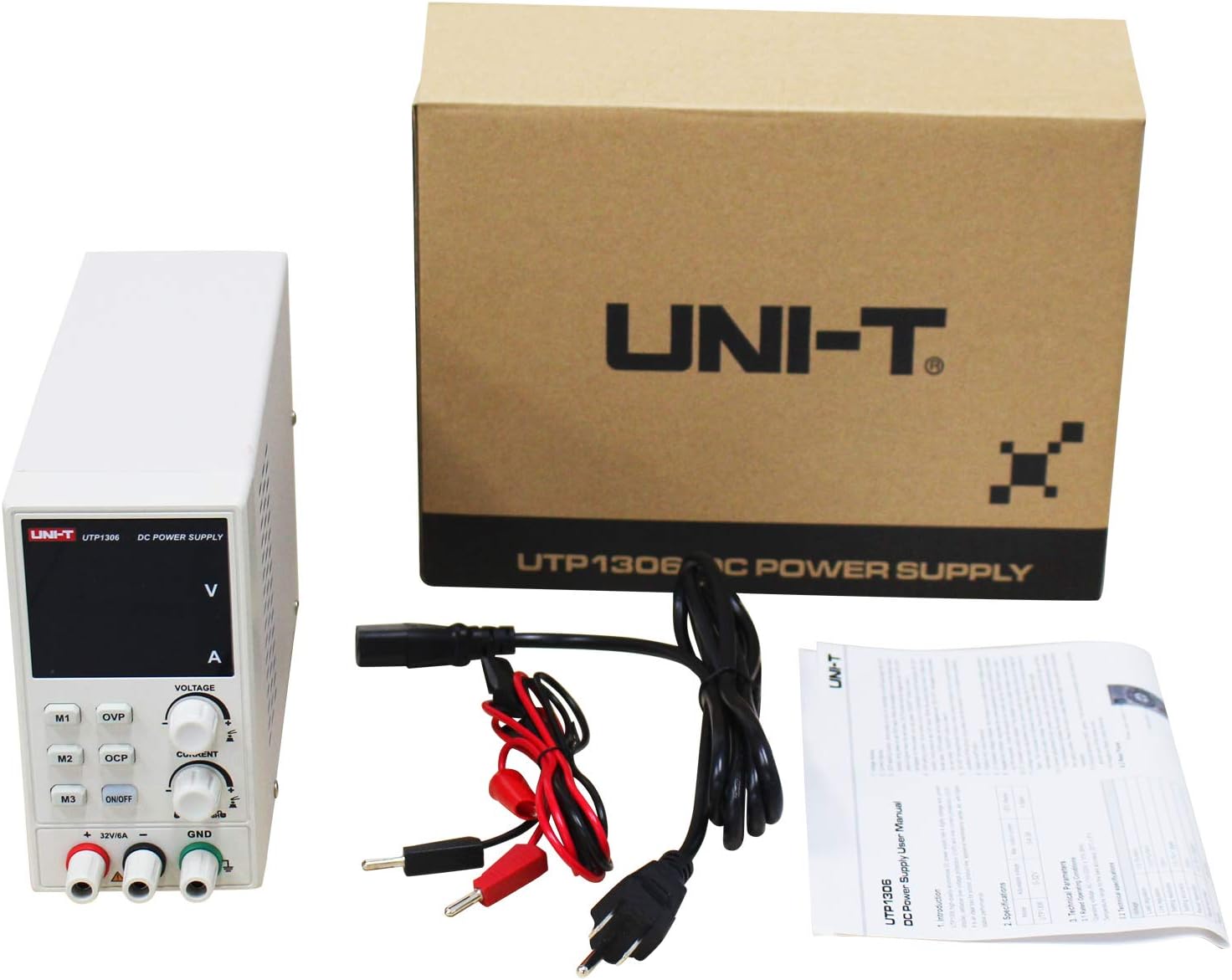

What's in the Box
- UTP1306 DC power supply
- Alligator clip test lead (double parallel)
- Power cable
- English user manual
Downloads
Certifications: CE, RoHS | HS Code: 8504.4090
