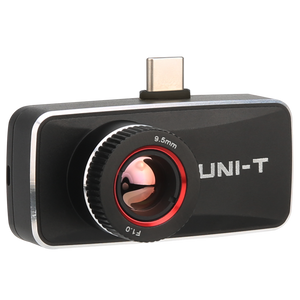

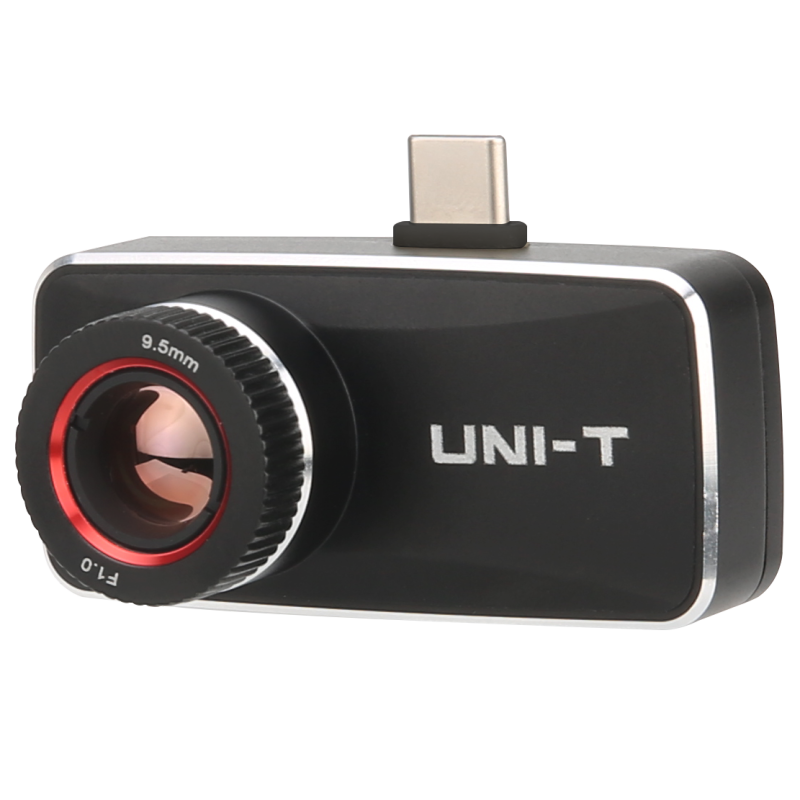

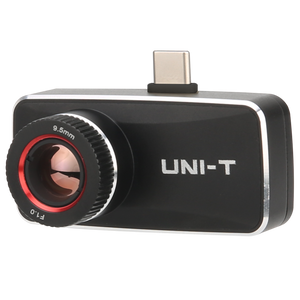

UNI-T UTI740M Android-only High-Resolution Smartphone Thermal Camera - a black rectangular device with a red-ringed lens marked "9.5mm" and "F1.0" and a top-mounted USB-C connector.

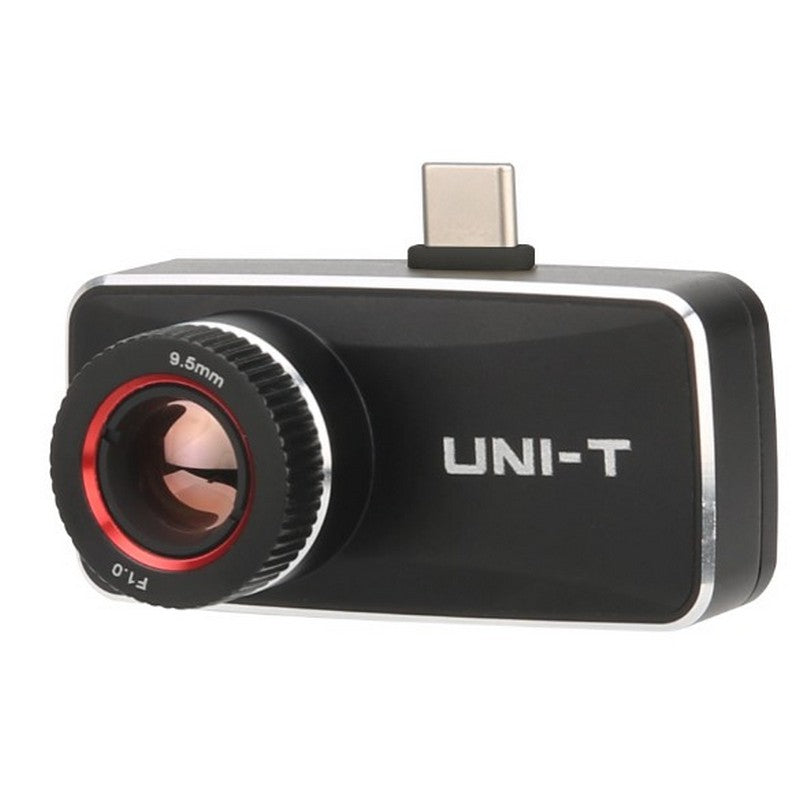

UNI-T UTI740M Android-only High-Resolution Smartphone Thermal Camera - a black rectangular device with a red-accented lens marked 9.5mm F1.0 and a top-mounted USB-C connector.

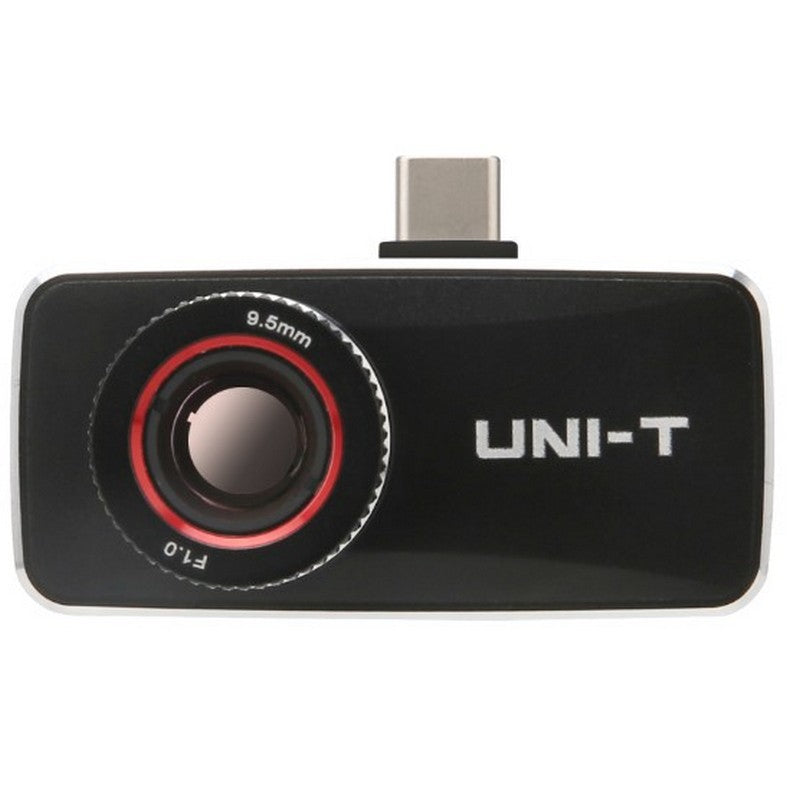

UNI-T UTI740M Android-only High-Resolution Smartphone Thermal Camera - a black rectangular device with a red-rimmed lens labeled 9.5mm and F1.0, featuring a top-mounted USB-C connector.

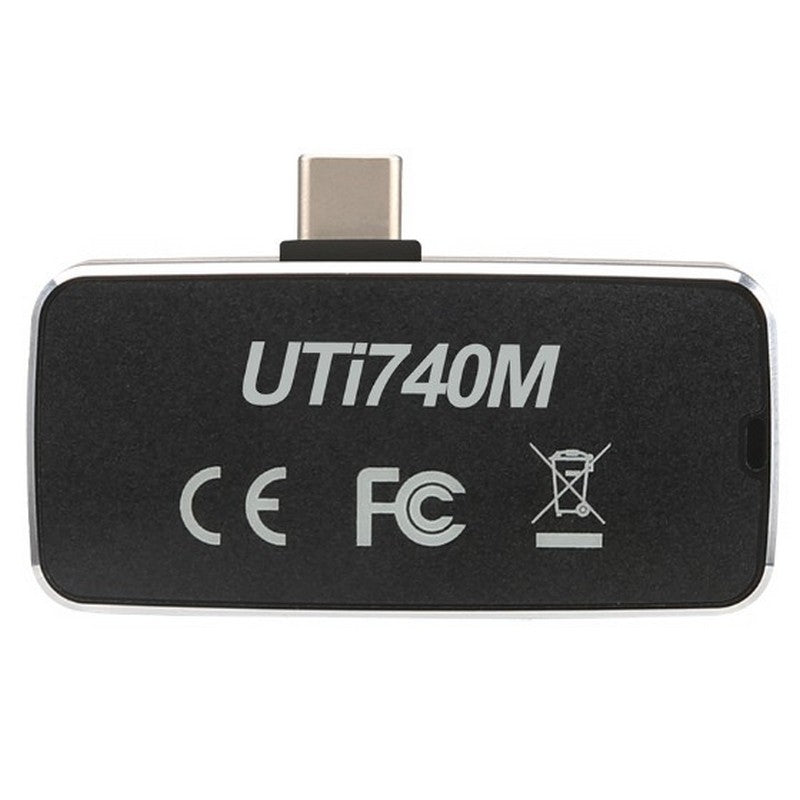

UNI-T UTI740M Android-only High-Resolution Smartphone Thermal Camera - a black rectangular device with a USB-C connector on top and the model name, CE, and FC markings printed on its face.

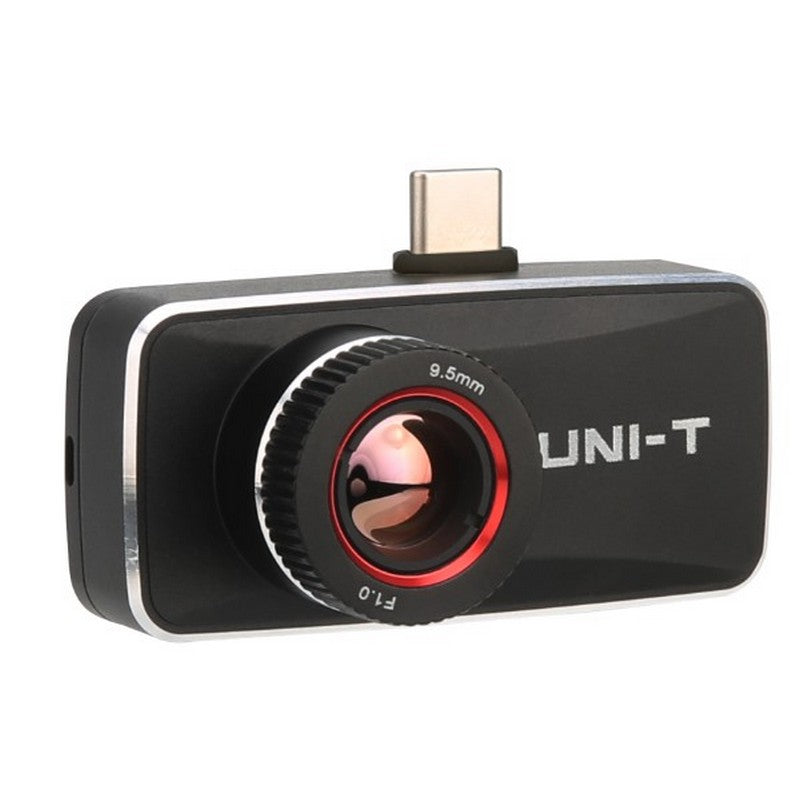

UNI-T UTI740M Android-only High-Resolution Smartphone Thermal Camera - a black rectangular device with a prominent lens, red ring, and a top-mounted USB-C connector.

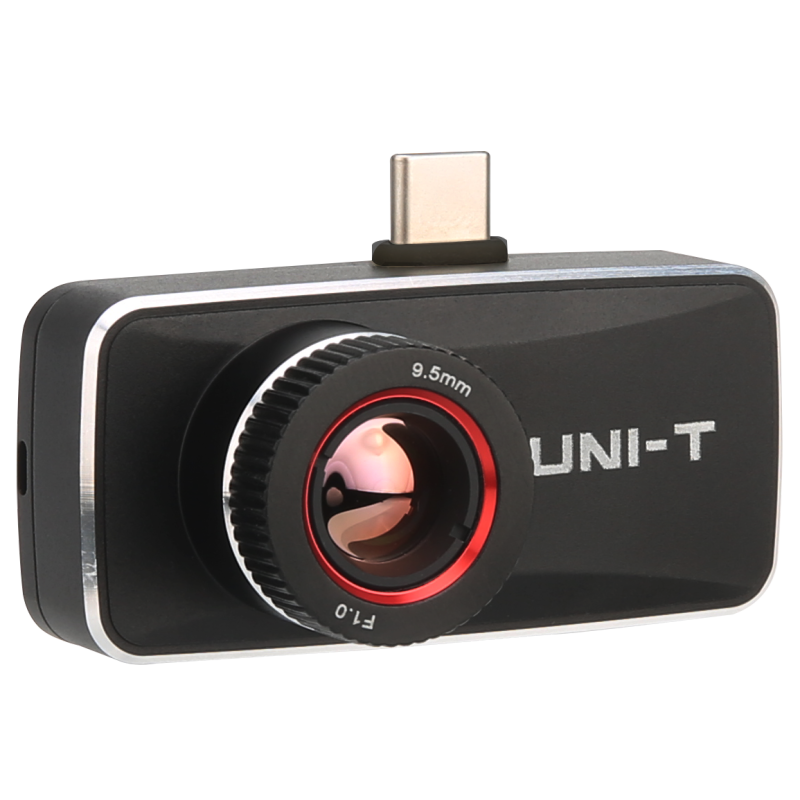

UNI-T UTI740M Android-only High-Resolution Smartphone Thermal Camera - a black rectangular body, a circular lens with red trim, and a top-mounted USB-C connector.

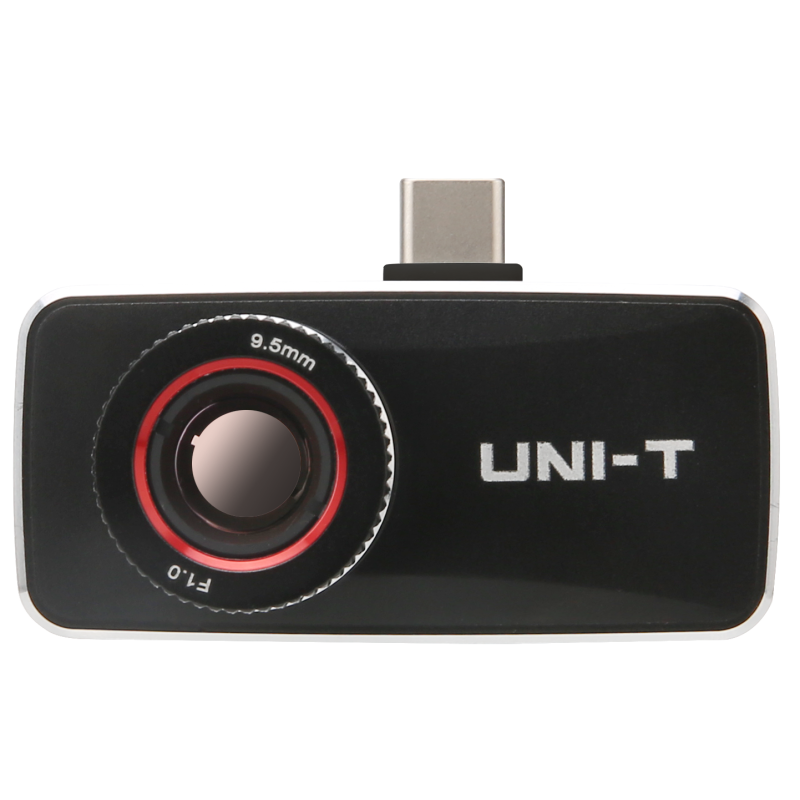

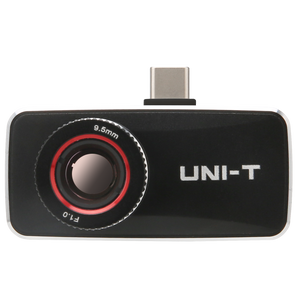

UNI-T UTI740M Android-only High-Resolution Smartphone Thermal Camera - a black rectangular device with a central lens marked 9.5mm F1.0 and a top-mounted USB-C connector.
UNI-T UTI740M Android-only High-Resolution Smartphone Thermal Camera - a black rectangular device with a red-ringed lens marked "9.5mm" and "F1.0" and a top-mounted USB-C connector.
UNI-T UTI740M Android-only High-Resolution Smartphone Thermal Camera - a black rectangular device with a red-accented lens marked 9.5mm F1.0 and a top-mounted USB-C connector.
UNI-T UTI740M Android-only High-Resolution Smartphone Thermal Camera - a black rectangular device with a red-rimmed lens labeled 9.5mm and F1.0, featuring a top-mounted USB-C connector.
UNI-T UTI740M Android-only High-Resolution Smartphone Thermal Camera - a black rectangular device with a USB-C connector on top and the model name, CE, and FC markings printed on its face.
UNI-T UTI740M Android-only High-Resolution Smartphone Thermal Camera - a black rectangular device with a prominent lens, red ring, and a top-mounted USB-C connector.
UNI-T UTI740M Android-only High-Resolution Smartphone Thermal Camera - a black rectangular body, a circular lens with red trim, and a top-mounted USB-C connector.
UNI-T UTI740M Android-only High-Resolution Smartphone Thermal Camera - a black rectangular device with a central lens marked 9.5mm F1.0 and a top-mounted USB-C connector.

UNI-T UTI740M Android-only High-Resolution Smartphone Thermal Camera

Sale price Rs 168,750
SKU: UTi740M
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UTI740M Android-only High-Resolution Smartphone Thermal Camera - a black rectangular device with a red-ringed lens marked "9.5mm" and "F1.0" and a top-mounted USB-C connector.

UNI-T UTI740M Android-only High-Resolution Smartphone Thermal Camera

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UTI740M Android-only High-Resolution Smartphone Thermal Camera - a black rectangular device with a red-ringed lens marked "9.5mm" and "F1.0" and a top-mounted USB-C connector.
UNI-T UTI740M Android-only High-Resolution Smartphone Thermal Camera
Sale priceRs 168,750

UNI-T UTi740M is a professional smartphone thermal camera module for electrical, mechanical, HVAC and building inspection. IR Resolution 400×300; NETD ≤ 45mK; Temperature Range -20 °C (-4 °F) to 550 °C (1022 °F); Accuracy ±2 °C or ±2% (whichever greater). Genuine UNI-T supplied by Digilog.pk with manual and warranty.

Key Features

  • IR Resolution: 400×300
  • NETD: ≤ 45mK
  • Temperature Range: -20 °C (-4 °F) to 550 °C (1022 °F)
  • Accuracy: ±2 °C or ±2% (whichever greater)
  • Field of View: 29° × 21.5°
  • Spectral Response: 8 - 14µm
  • Plug-in thermal module — turns your smartphone into a thermal camera
  • Applications: electrical panels, motors, HVAC, building & water-leak inspection

Technical Specifications

IR Resolution 400×300
NETD ≤ 45mK
Temperature Range -20 °C (-4 °F) to 550 °C (1022 °F)
Accuracy ±2 °C or ±2% (whichever greater)
Field of View 29° × 21.5°
Spectral Response 8 - 14µm
Pixel Pitch 12µm
Refresh Rate 25 Hz
Spatial Resolution 1.26mrad
Focus Manual Focus
Super Resolution Yes
Image Blending Yes
Isotherm Yes
Image Modes Thermal, T-Mix fusion, PIP
Image Format Radiometric JPEG
Video Recording Yes

What's in the Box

  • UTi740M smartphone thermal camera module
  • USB cable
  • English user manual

Downloads

Certifications: CE, RoHS | HS Code: 9027.50
