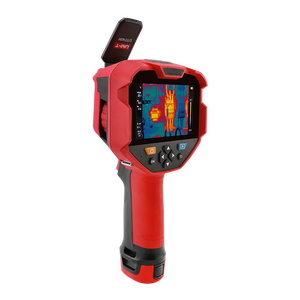

UNI-T UTI740H 384 H-Series Professional Thermal Imager - a screen with a thermal image, control buttons, and an open top port cover.

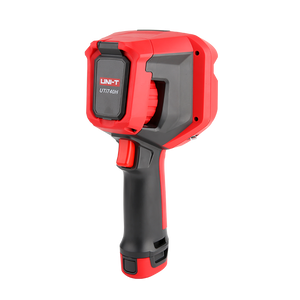

UNI-T UTI740H 384 H-Series Professional Thermal Imager - a pistol-grip handle, a trigger button, and a covered front lens housing.
UNI-T UTI740H 384 H-Series Professional Thermal Imager - a red and black handheld thermal camera with a trigger button and lens cover, isolated on white.

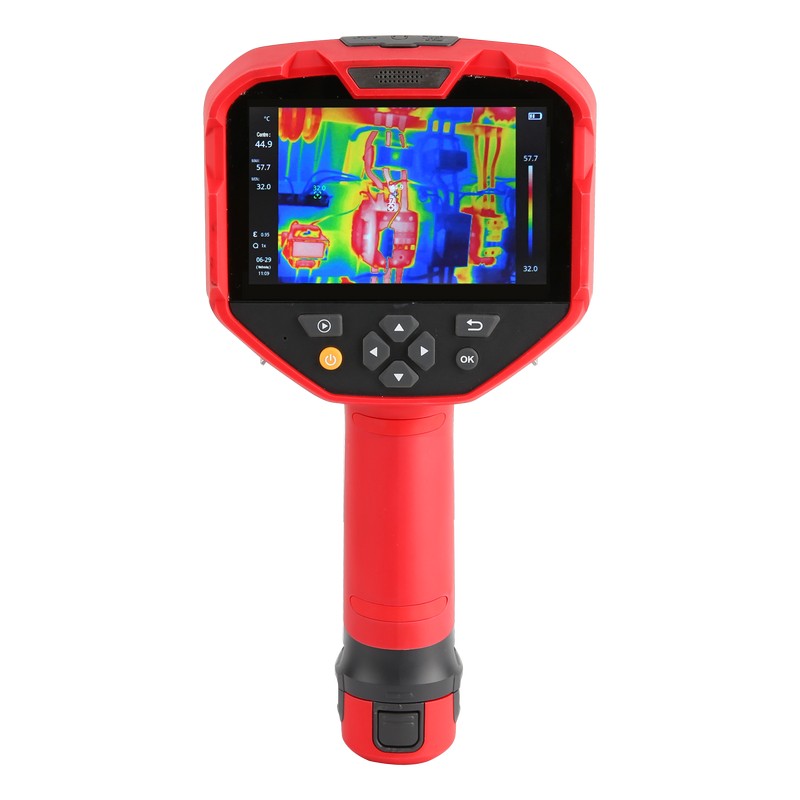

UNI-T UTI740H 384 H-Series Professional Thermal Imager - a red handheld device with a display showing a thermal heat map, navigation buttons, and a power button.

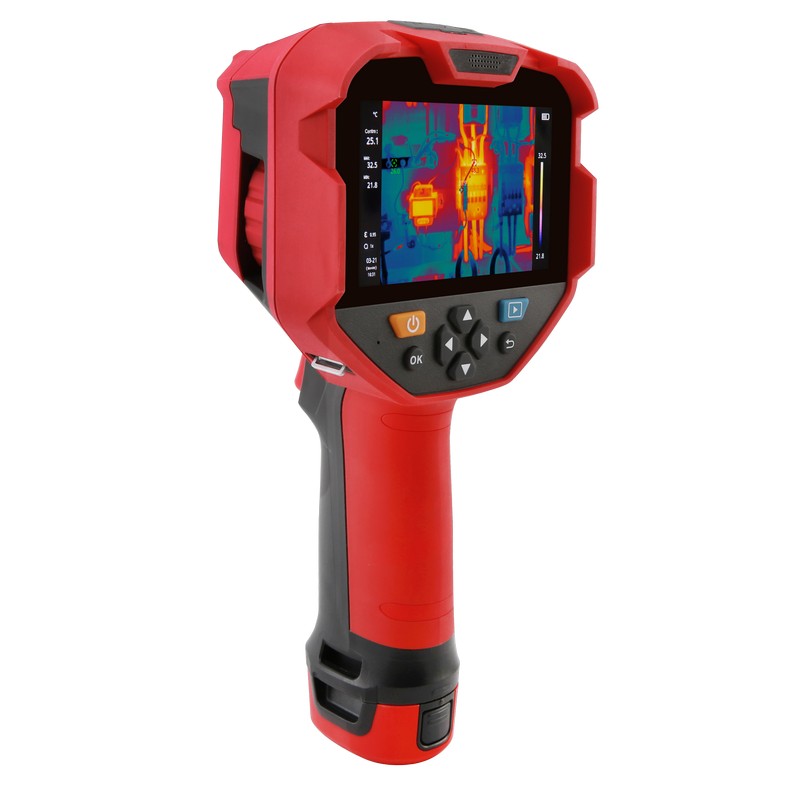

UNI-T UTI740H 384 H-Series Professional Thermal Imager - a screen displaying a thermal heat map, navigation buttons, and a grip.

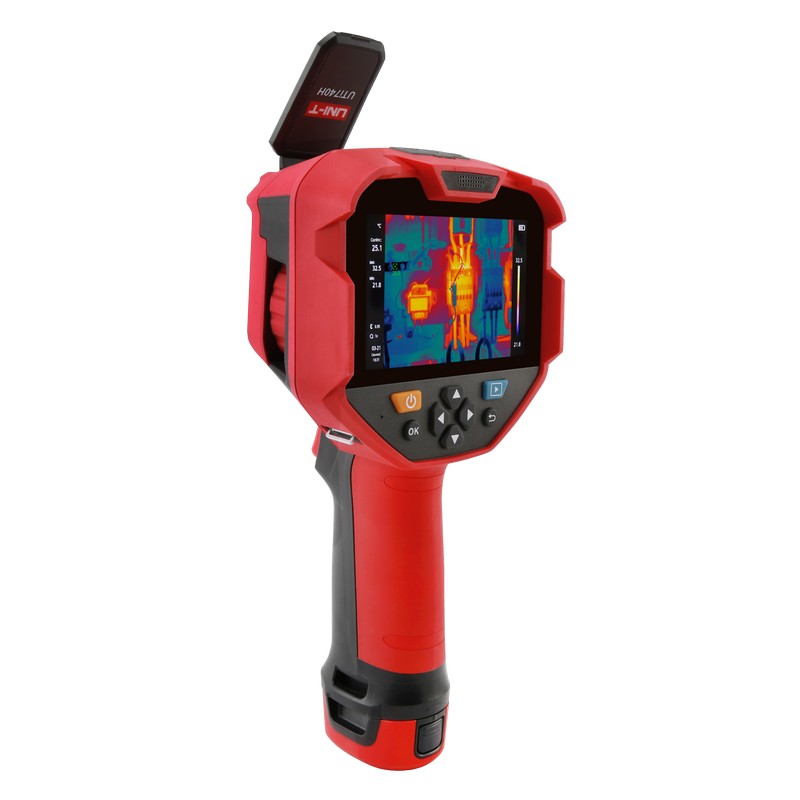

UNI-T UTI740H 384 H-Series Professional Thermal Imager - a screen displaying a thermal heat map, navigation buttons, and an open top port cover.
UNI-T UTI740H 384 H-Series Professional Thermal Imager - displaying a thermal heat map on its screen.

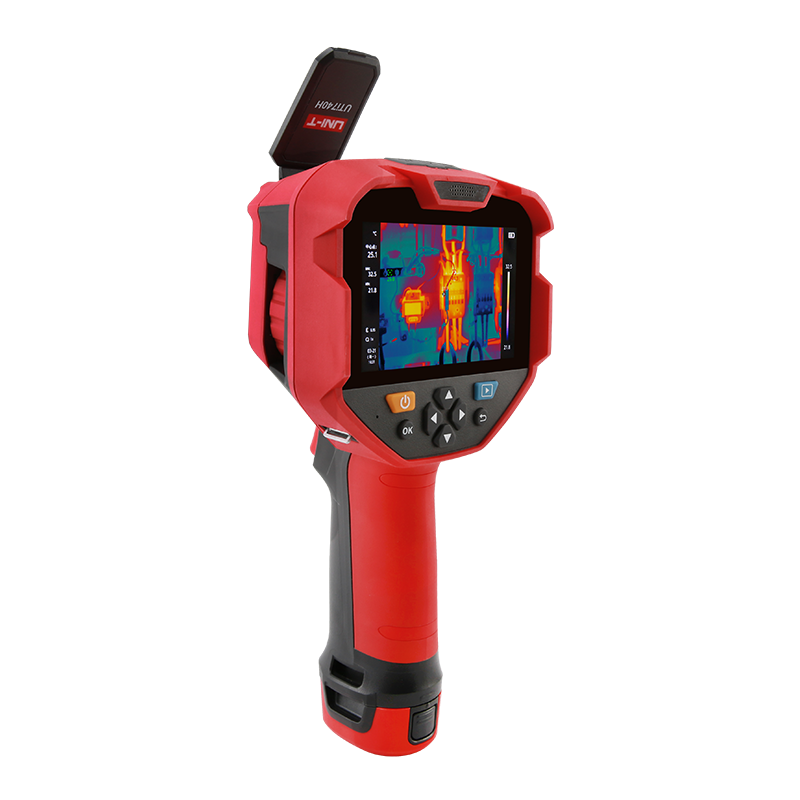

UNI-T UTI740H 384 H-Series Professional Thermal Imager - a screen with a thermal image, control buttons, and an open top port cover.

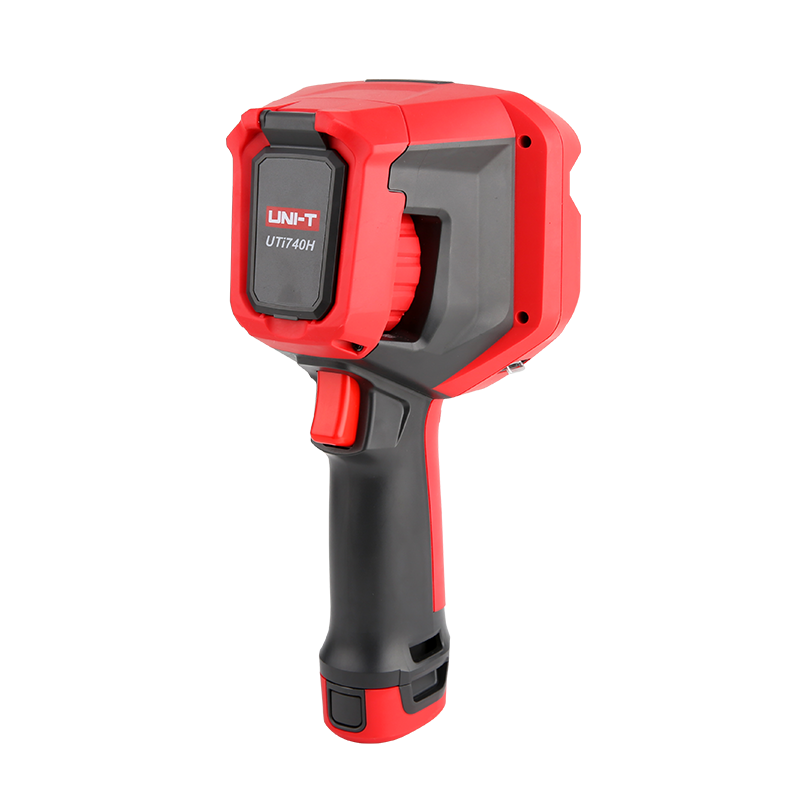

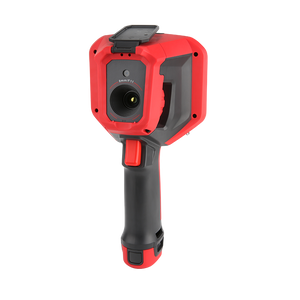

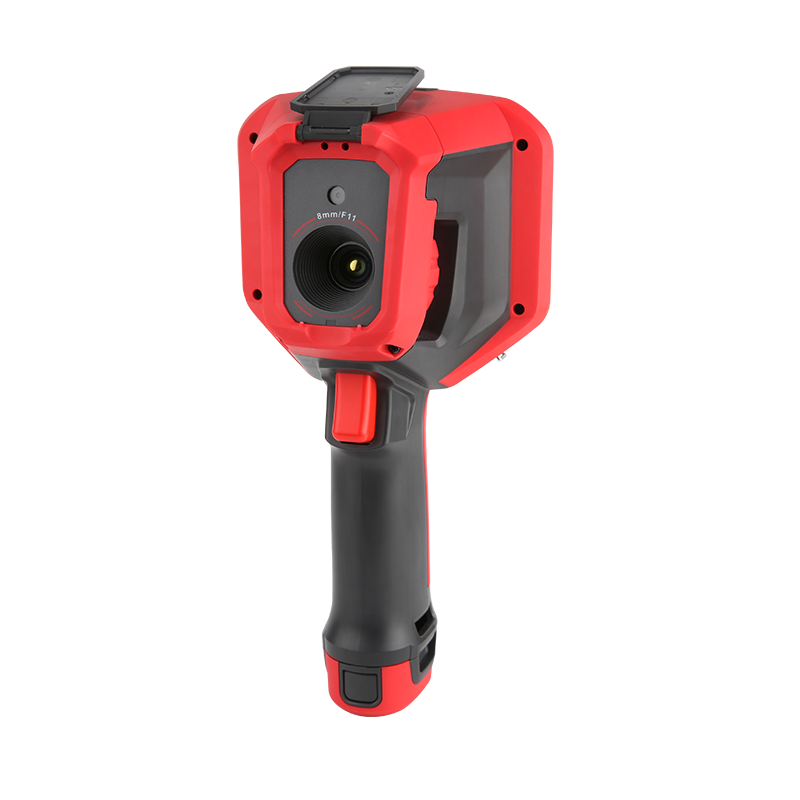

UNI-T UTI740H 384 H-Series Professional Thermal Imager - a pistol-grip handle, a trigger button, and a covered front lens housing.
UNI-T UTI740H 384 H-Series Professional Thermal Imager - a red and black handheld thermal camera with a trigger button and lens cover, isolated on white.

UNI-T UTI740H 384 H-Series Professional Thermal Imager

Sale price Rs 518,750
SKU: UTi740H
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UTI740H 384 H-Series Professional Thermal Imager - a red handheld device with a display showing a thermal heat map, navigation buttons, and a power button.

UNI-T UTI740H 384 H-Series Professional Thermal Imager

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UTI740H 384 H-Series Professional Thermal Imager - a red handheld device with a display showing a thermal heat map, navigation buttons, and a power button.
UNI-T UTI740H 384 H-Series Professional Thermal Imager
Sale priceRs 518,750

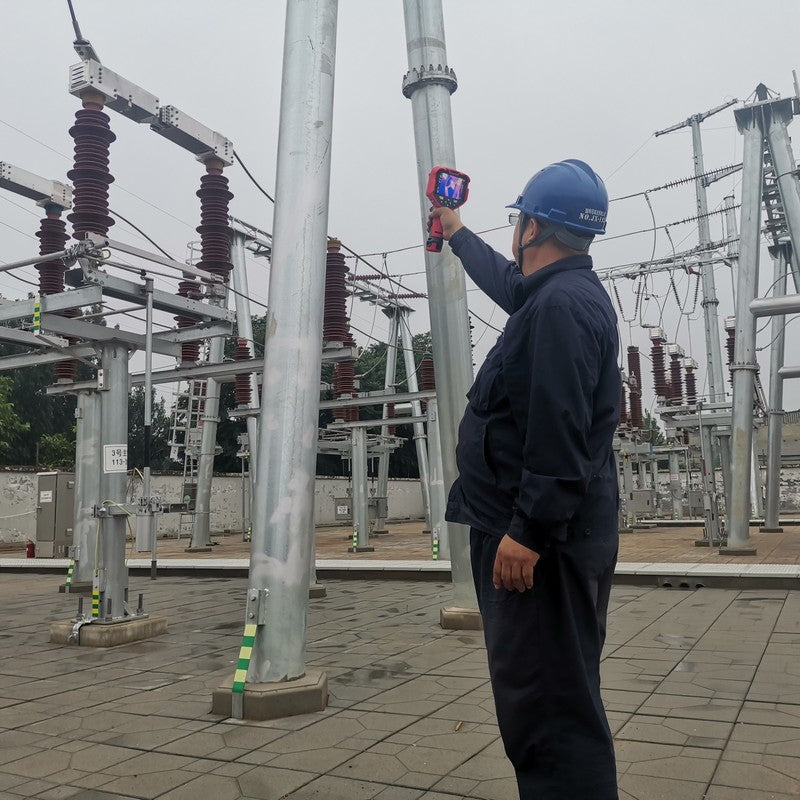

UNI-T UTi740H is a professional thermal imaging camera for electrical, mechanical, HVAC and building inspection. IR Resolution 384×288; NETD ≤ 60mK; Temperature Range -30 °C (-22 °F) to 650 °C (1202 °F); Accuracy ±2 °C or ±2% (whichever greater). Genuine UNI-T supplied by Digilog.pk with manual and warranty.

Key Features

  • IR Resolution: 384×288
  • NETD: ≤ 60mK
  • Temperature Range: -30 °C (-22 °F) to 650 °C (1202 °F)
  • Accuracy: ±2 °C or ±2% (whichever greater)
  • Field of View: 28° × 21°
  • Spectral Response: 8 - 14µm
  • Applications: electrical panels, motors, HVAC, building & water-leak inspection

Technical Specifications

IR Resolution 384×288
NETD ≤ 60mK
Temperature Range -30 °C (-22 °F) to 650 °C (1202 °F)
Accuracy ±2 °C or ±2% (whichever greater)
Field of View 28° × 21°
Spectral Response 8 - 14µm
Pixel Pitch 17µm
Refresh Rate 25 Hz
Spatial Resolution 1.3mrad
Focus Manual Focus
Digital Zoom 2x, 4x
Image Blending Yes
Isotherm Yes
Image Modes Thermal, Visual image, T-Mix fusion, PIP
Image Format Radiometric JPEG
On Screen Analyzer 5 Points/1 Line/5 Rectangles/5 Circles

What's in the Box

  • UTi740H thermal imaging camera
  • USB cable
  • English user manual
  • Carrying case

Downloads

Certifications: CE, RoHS | HS Code: 9027.50
