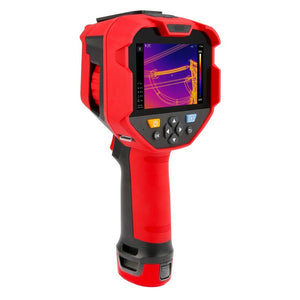

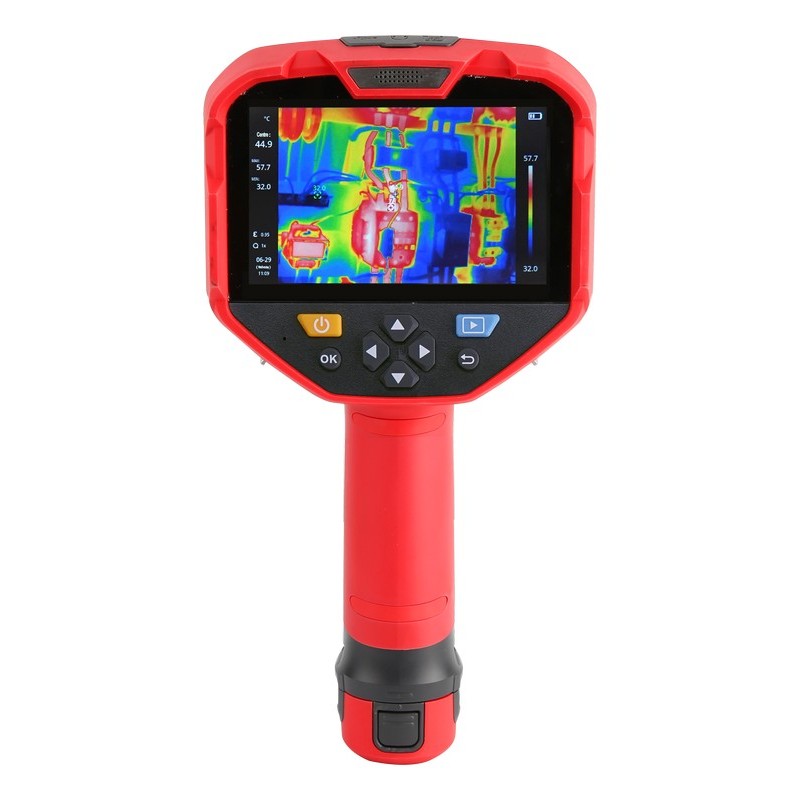

UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - a red handheld device with a screen showing a thermal heat map, navigation buttons, and a grip.

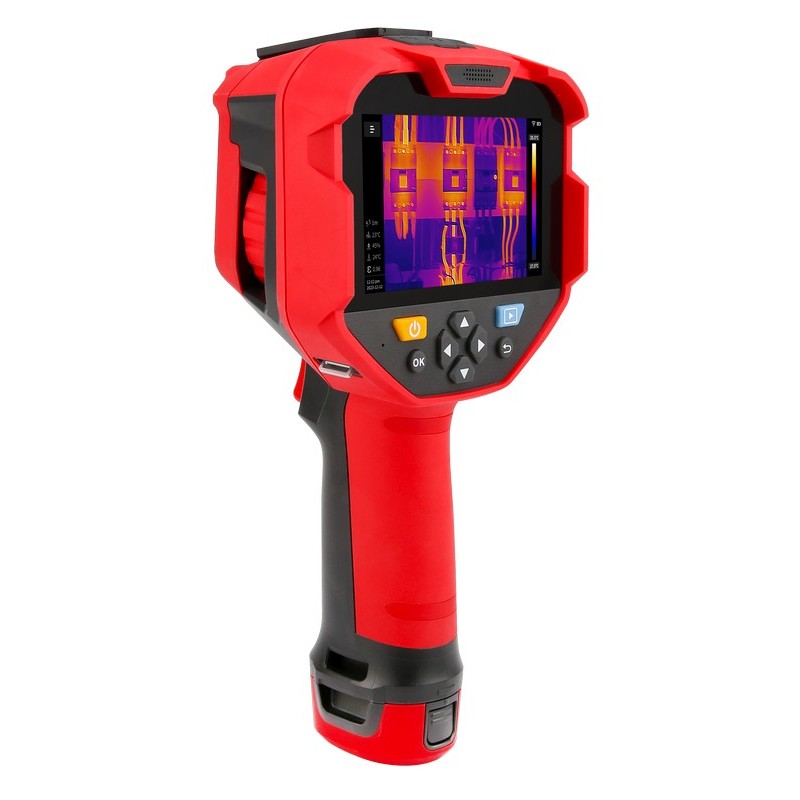

UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - a screen with a thermal scan and control buttons on the front.

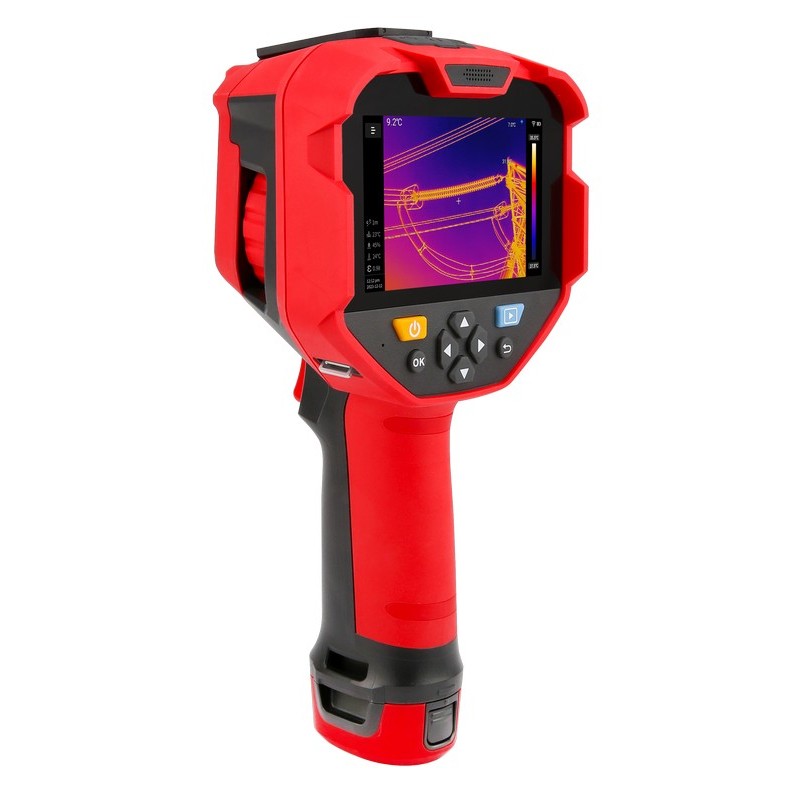

UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - a screen displaying a thermal image, control buttons, and a grip.

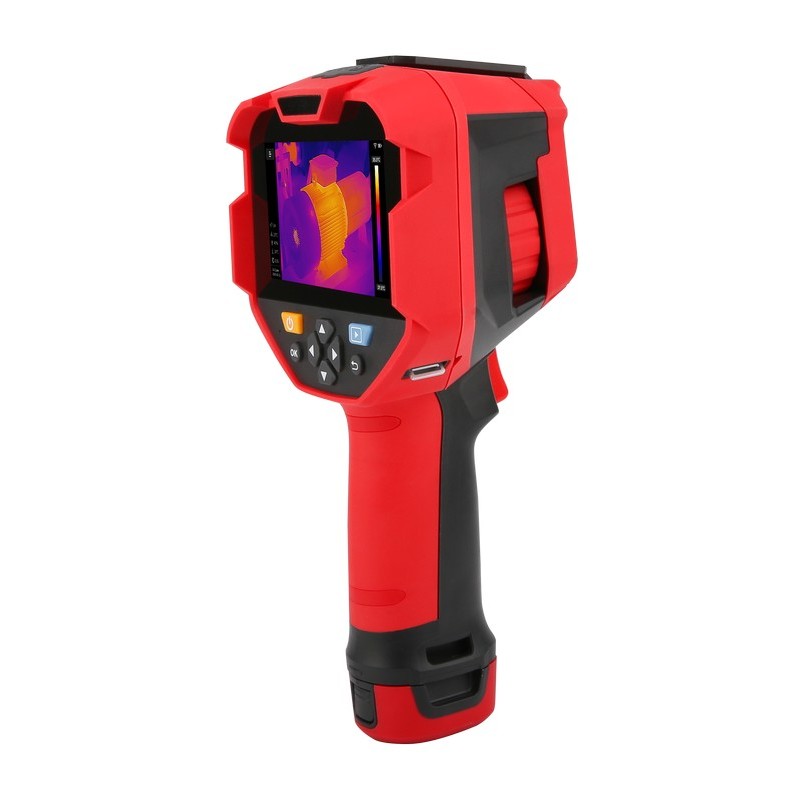

UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - a screen showing a thermal scan and a side adjustment knob.

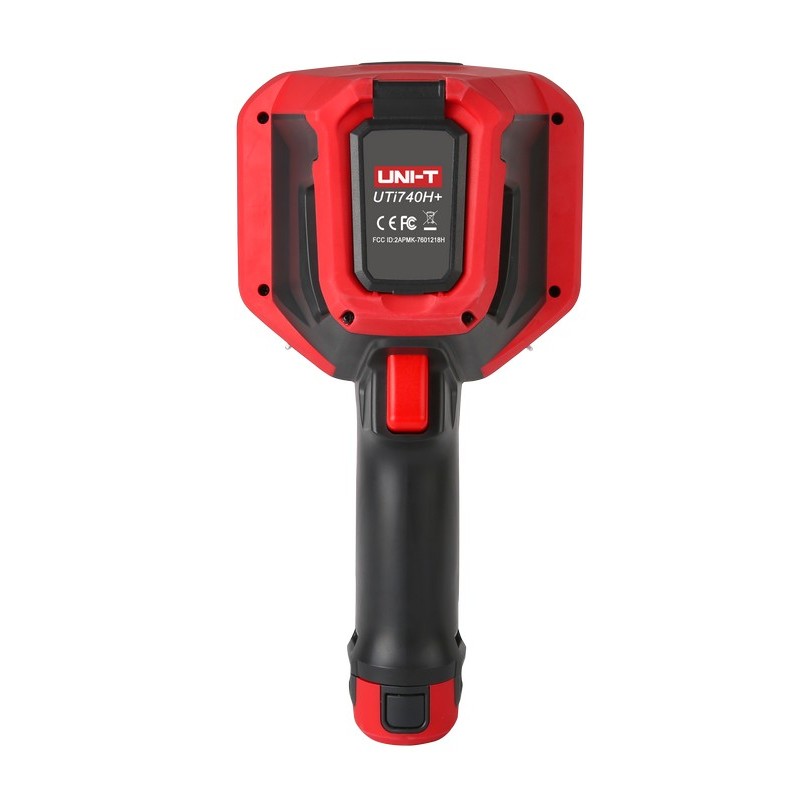

UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - shown from the rear with a central trigger button and a battery compartment.

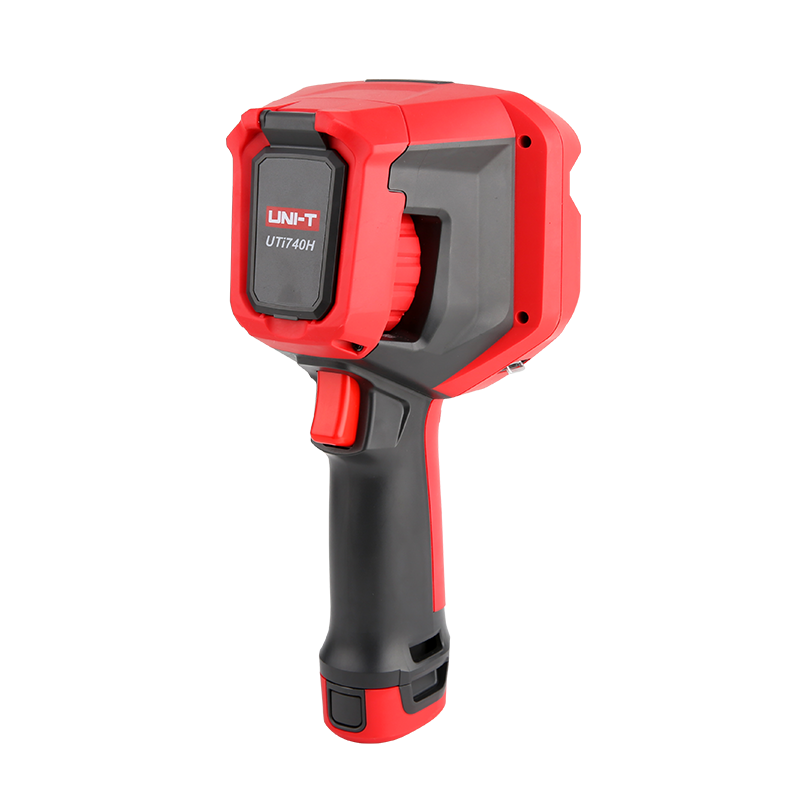

UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - a pistol-grip handle, trigger button, and a lens cover with model text.

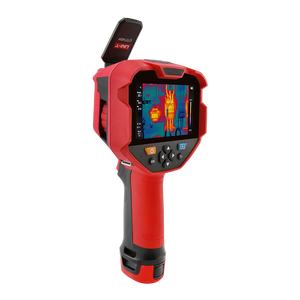

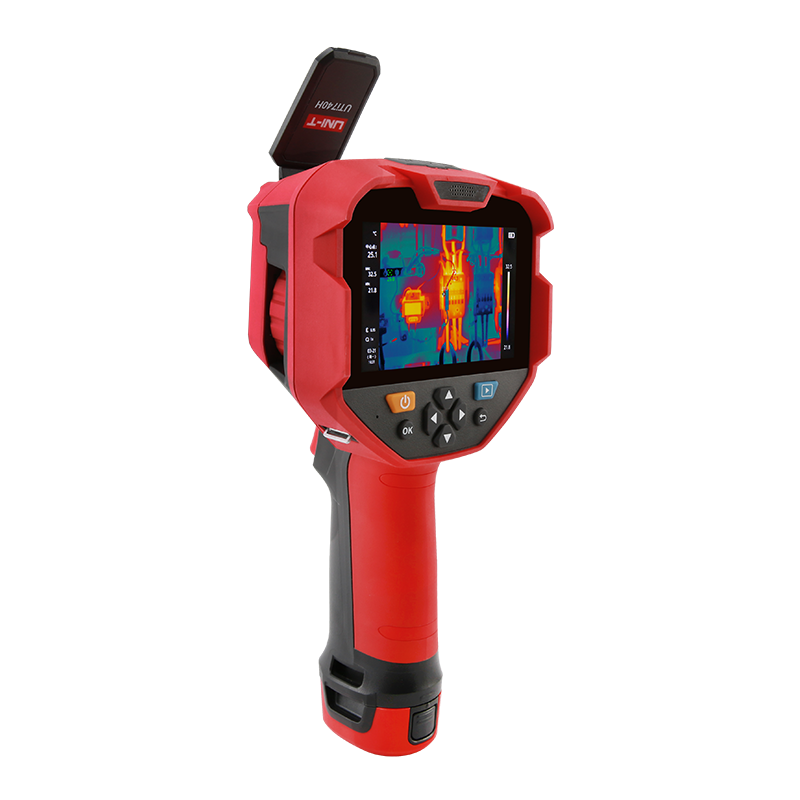

UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - in red and black, showing a screen displaying a thermal heat map, physical navigation buttons, and a top-mounted port cover.

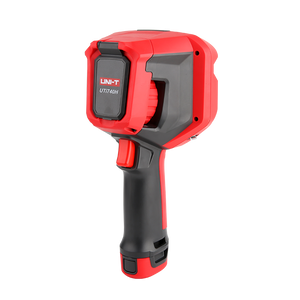

UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - in red and black, featuring a pistol-grip handle, a trigger button, and a covered port on the front housing.

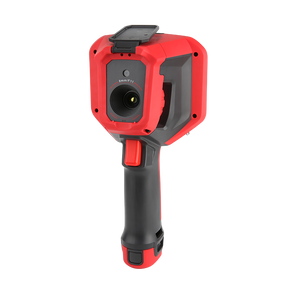

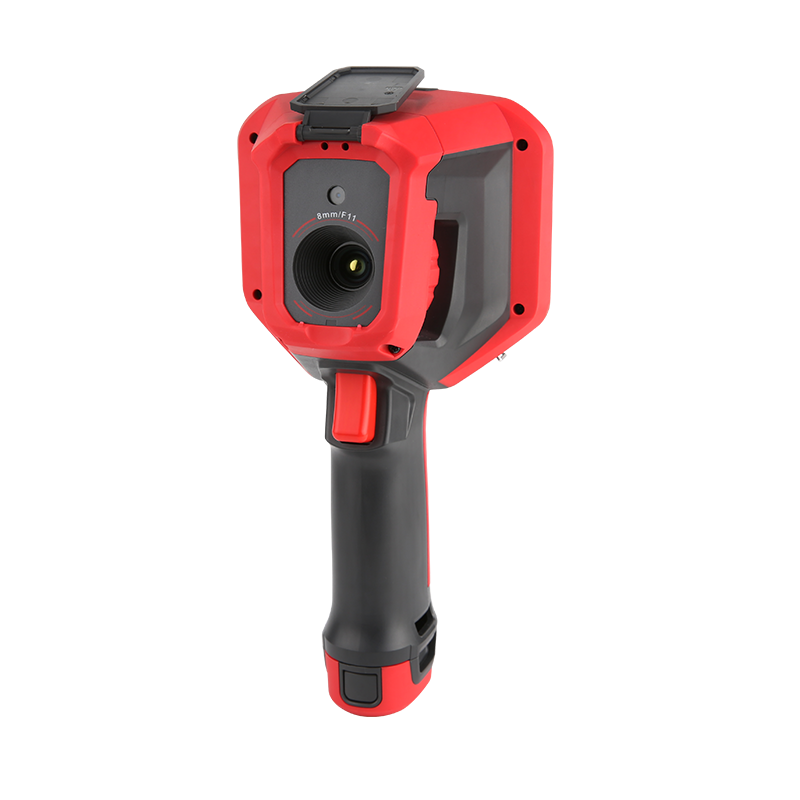

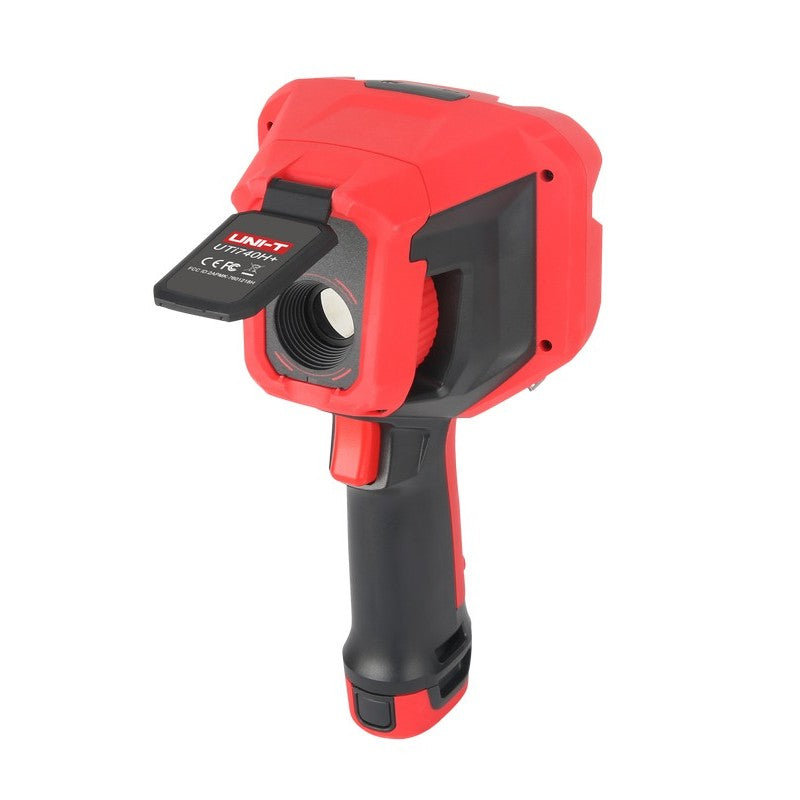

UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - a red and black handheld device with a central lens, top cover, and trigger button.
UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - a red handheld device with a screen showing a thermal heat map, navigation buttons, and a grip.
UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - a screen with a thermal scan and control buttons on the front.
UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - a screen displaying a thermal image, control buttons, and a grip.
UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - a screen showing a thermal scan and a side adjustment knob.
UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - shown from the rear with a central trigger button and a battery compartment.
UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - a pistol-grip handle, trigger button, and a lens cover with model text.
UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - in red and black, showing a screen displaying a thermal heat map, physical navigation buttons, and a top-mounted port cover.
UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - in red and black, featuring a pistol-grip handle, a trigger button, and a covered port on the front housing.
UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - a red and black handheld device with a central lens, top cover, and trigger button.

UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager

Sale price Rs 418,750
SKU: UTi740H+
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - a red handheld device with a screen showing a thermal heat map, navigation buttons, and a grip.

UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager - a red handheld device with a screen showing a thermal heat map, navigation buttons, and a grip.
UNI-T UTI740H+ 400 Professional Enhanced Thermal Imager
Sale priceRs 418,750

UNI-T UTi740H+ is a professional thermal imaging camera for electrical, mechanical, HVAC and building inspection. UTi740H+; Infrared resolution 400×300; Super resolution 800×600; IR Resolution 400×300. Genuine UNI-T supplied by Digilog.pk with manual and warranty.

Key Features

  • : UTi740H+
  • Infrared resolution: 400×300
  • Super resolution: 800×600
  • IR Resolution: 400×300
  • NETD: ≤ 35mK
  • Temperature Range: -20 °C (-4 °F) to 650 °C (1202 °F)
  • Applications: electrical panels, motors, HVAC, building & water-leak inspection

Technical Specifications

UTi740H+
Infrared resolution 400×300
Super resolution 800×600
IR Resolution 400×300
NETD ≤ 35mK
Temperature Range -20 °C (-4 °F) to 650 °C (1202 °F)
Accuracy ±1.5 °C or ±1.5% (whichever greater)
Field of View 29° × 21.5°
Spectral Response 8 - 14µm
Pixel Pitch 12µm
Refresh Rate 30 Hz
Spatial Resolution 1.26mrad
Focus Manual Focus
Digital Zoom 1x - 6x
Super Resolution Yes
Image Blending Yes

What's in the Box

  • UTi740H+ thermal imaging camera
  • USB cable
  • English user manual
  • Carrying case

Downloads

Certifications: CE, RoHS | HS Code: 9027.50
