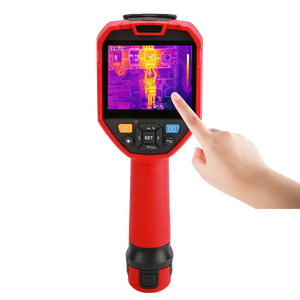

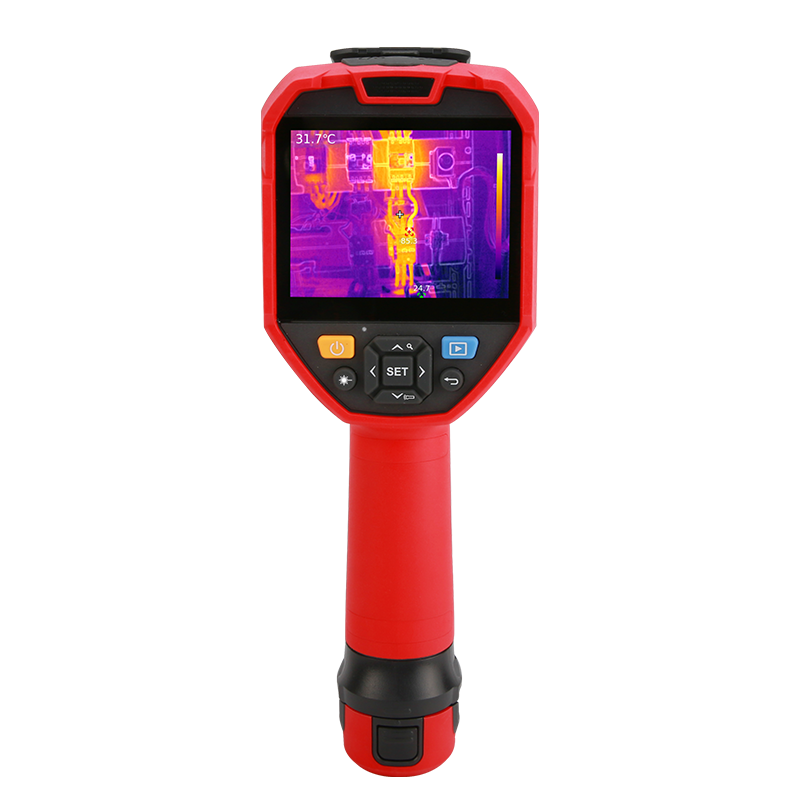

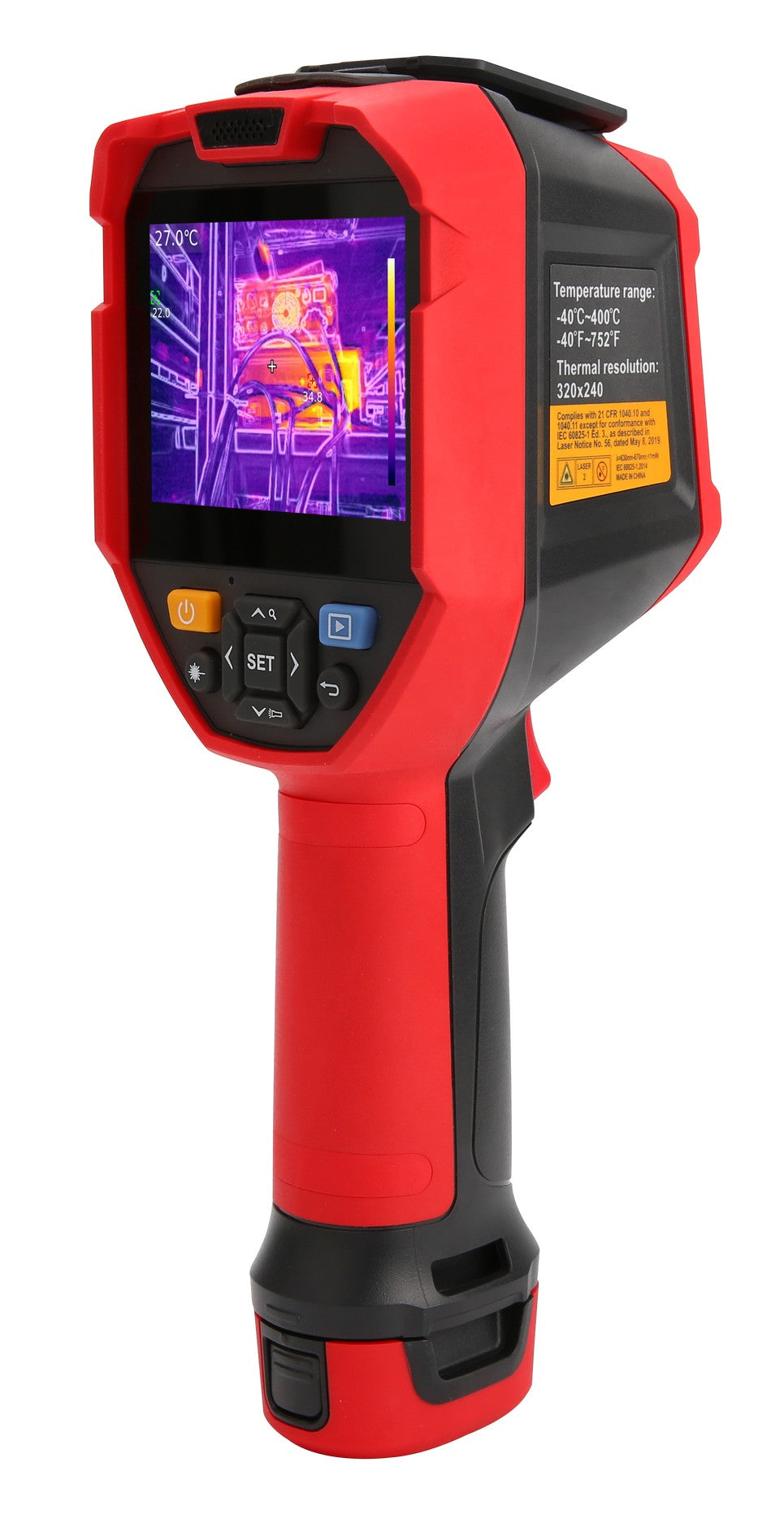

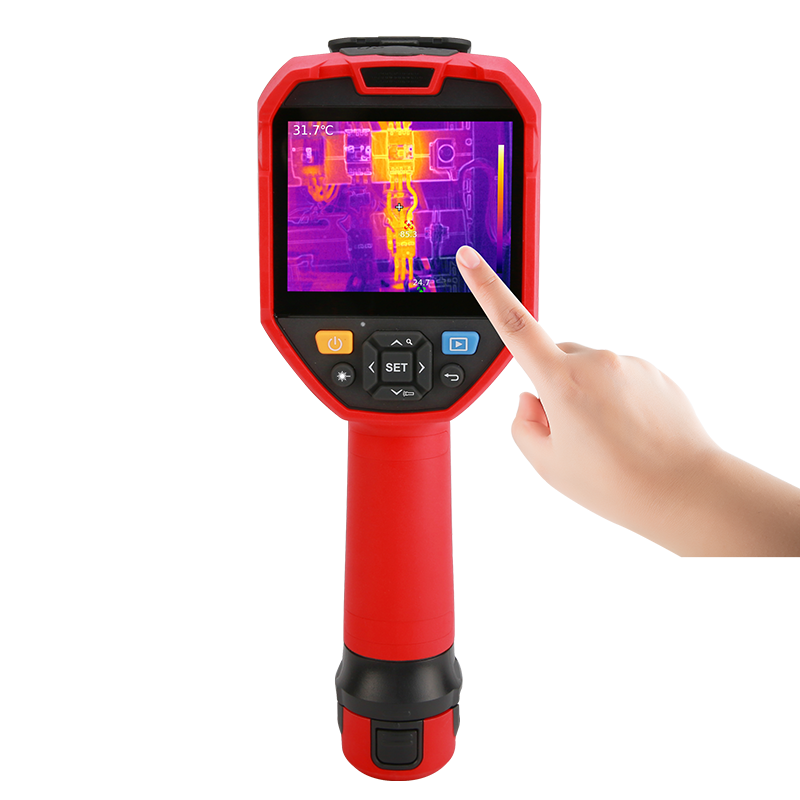

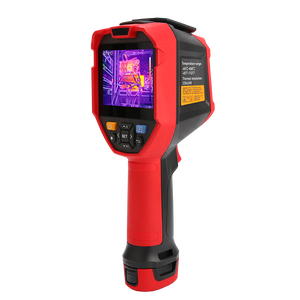

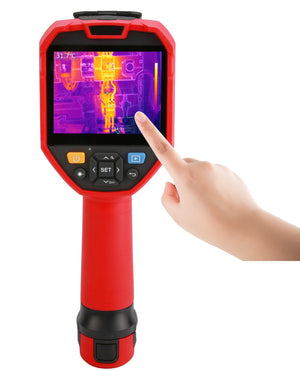

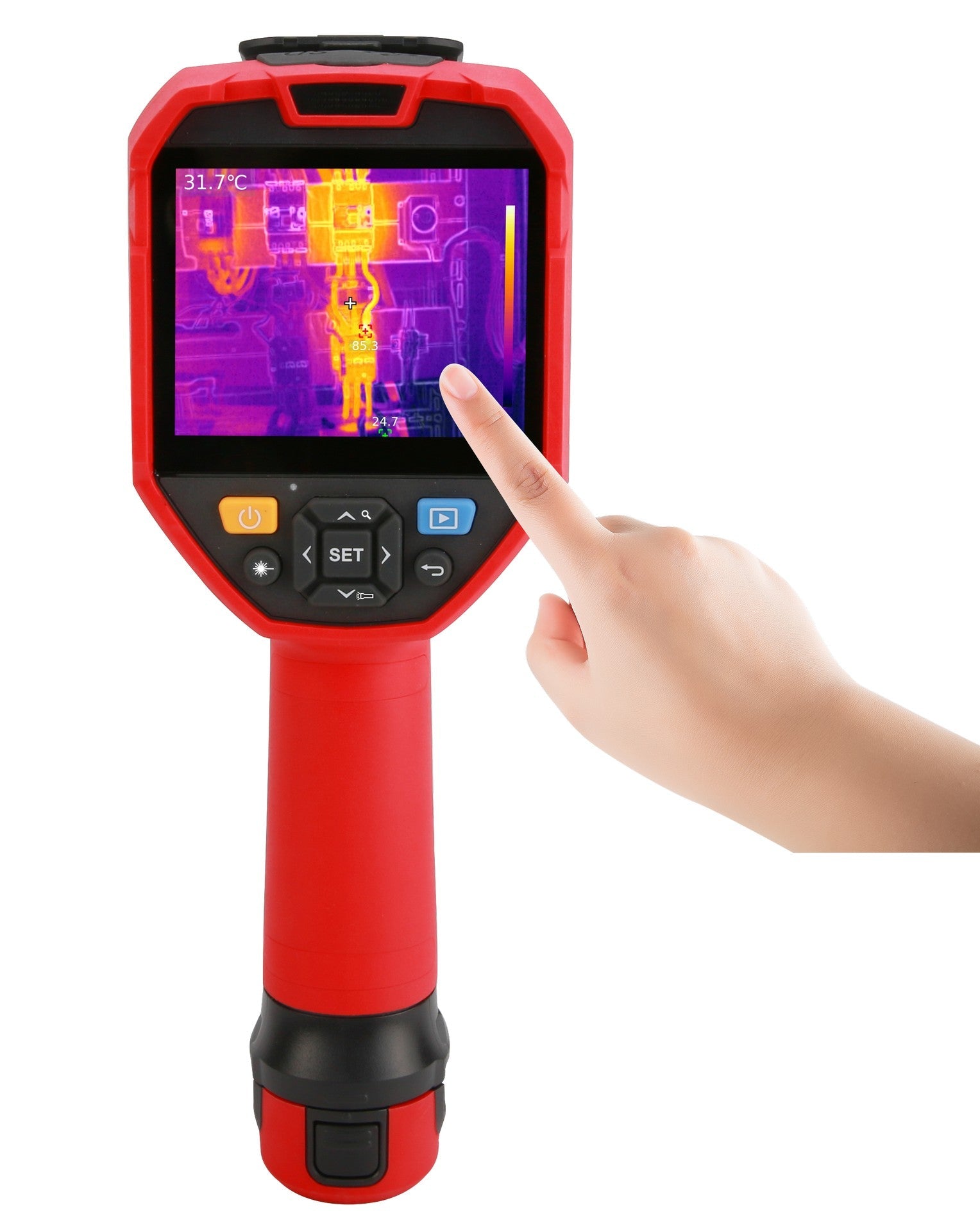

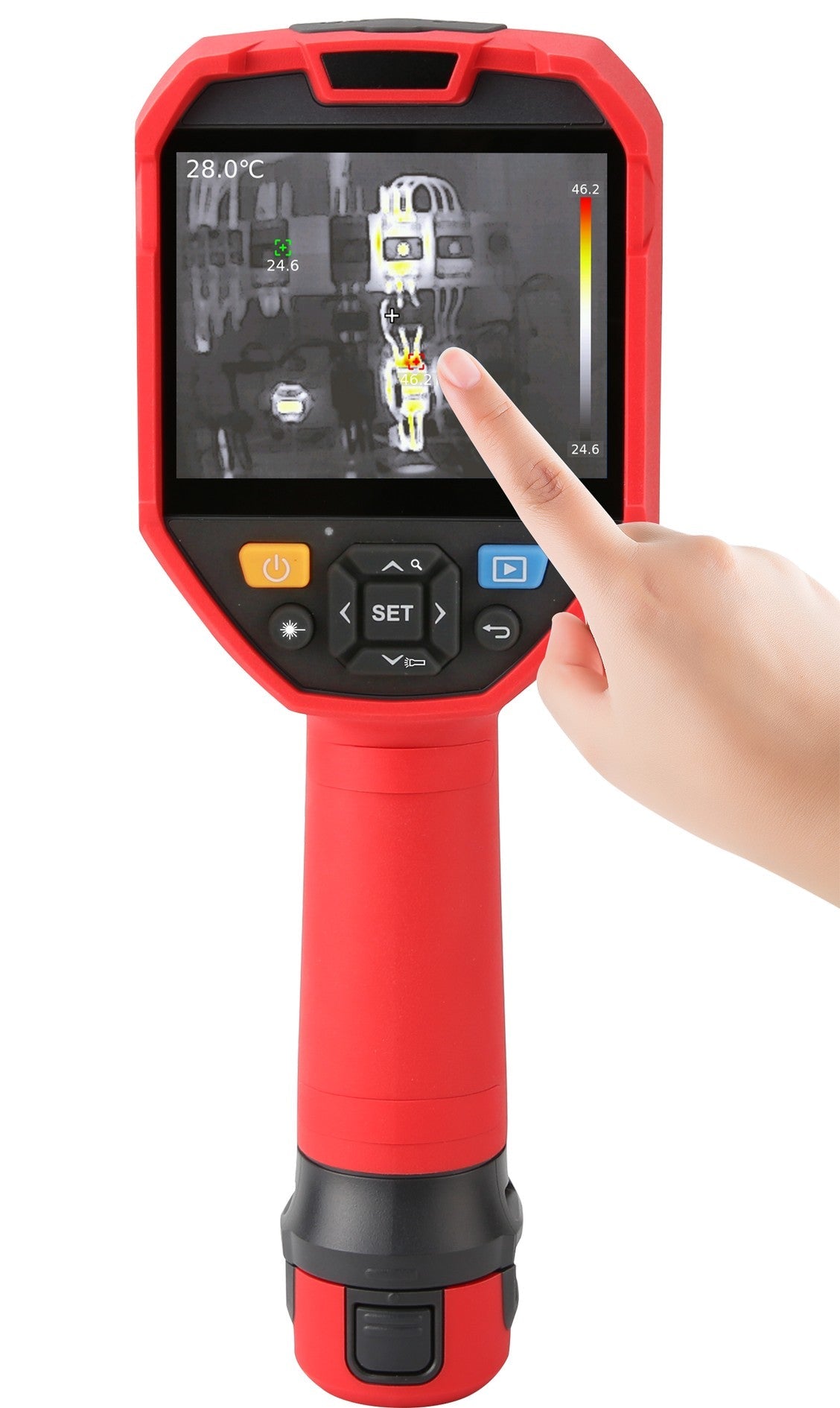

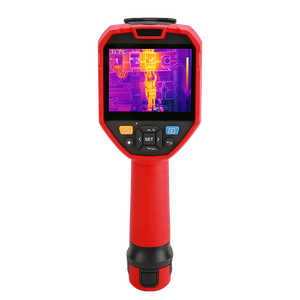

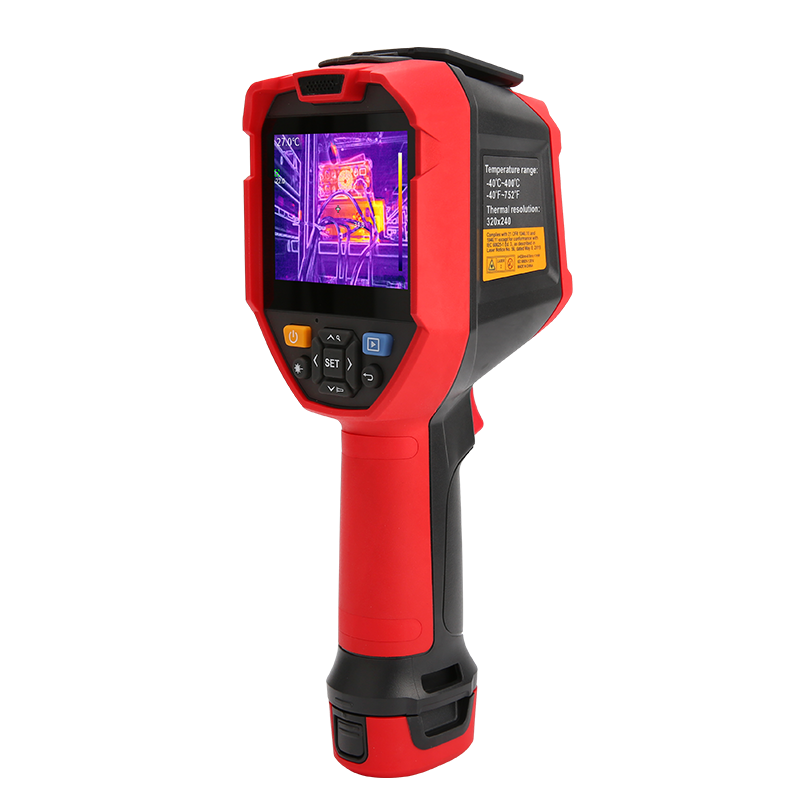

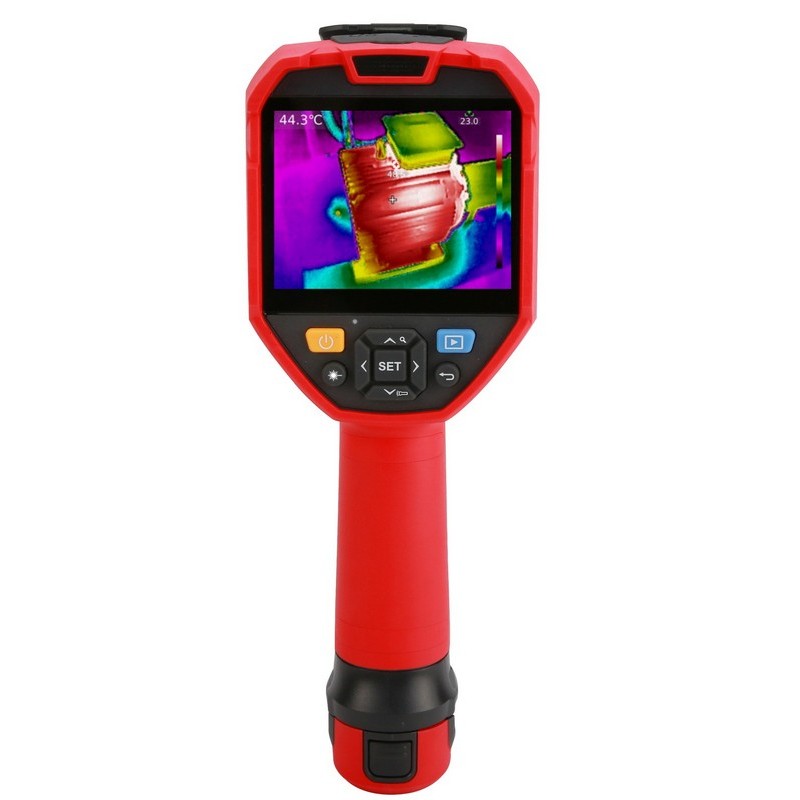

UNI-T UTI730V 320 Enhanced Series Video Thermal Imager
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UTI730V 320 Enhanced Series Video Thermal Imager
UNI-T UTi730V is a professional thermal imaging camera for electrical, mechanical, HVAC and building inspection. IR Resolution 320×240; NETD ≤ 65mK; Temperature Range -40 °C (-40 °F) to 400 °C (752 °F); Accuracy ±2 °C or ±2% (whichever greater). Genuine UNI-T supplied by Digilog.pk with manual and warranty.
Key Features
- IR Resolution: 320×240
- NETD: ≤ 65mK
- Temperature Range: -40 °C (-40 °F) to 400 °C (752 °F)
- Accuracy: ±2 °C or ±2% (whichever greater)
- Field of View: 56° × 42°
- Spectral Response: 8 - 14µm
- Applications: electrical panels, motors, HVAC, building & water-leak inspection
Technical Specifications
| IR Resolution | 320×240 |
|---|---|
| NETD | ≤ 65mK |
| Temperature Range | -40 °C (-40 °F) to 400 °C (752 °F) |
| Accuracy | ±2 °C or ±2% (whichever greater) |
| Field of View | 56° × 42° |
| Spectral Response | 8 - 14µm |
| Pixel Pitch | 12µm |
| Refresh Rate | 9 Hz |
| Spatial Resolution | 3mrad |
| Focus | Focus Free |
| Digital Zoom | 2x, 4x |
| Image Blending | Yes |
| Isotherm | Yes |
| Image Modes | Thermal, Visual image, T-Mix fusion, PIP |
| Image Format | Radiometric JPEG |
| Video Recording | Yes |
What's in the Box
- UTi730V thermal imaging camera
- USB cable
- English user manual
- Carrying case
Downloads
Certifications: CE, RoHS | HS Code: 9027.50
