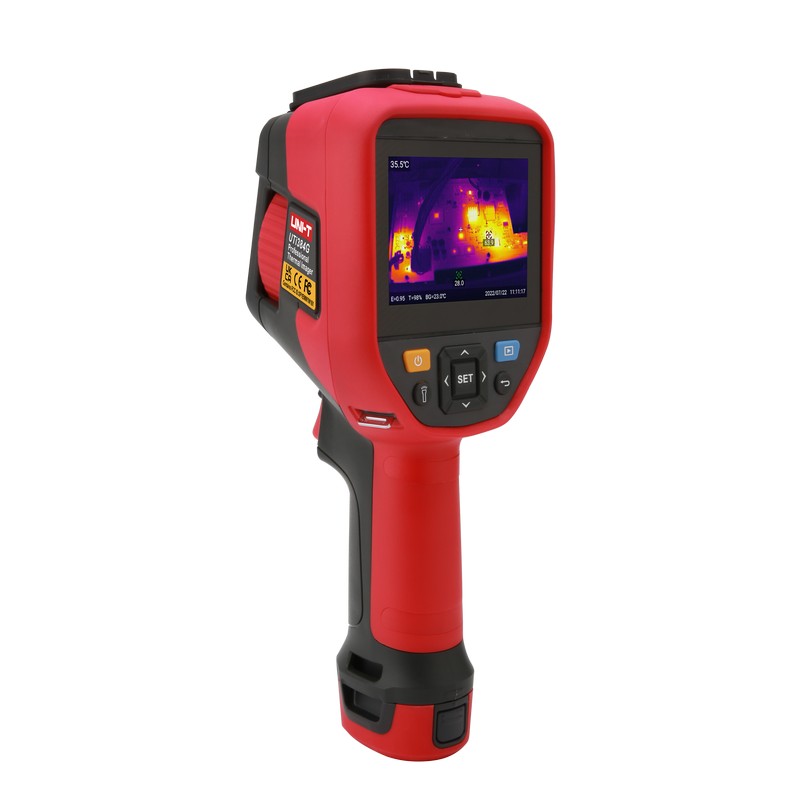

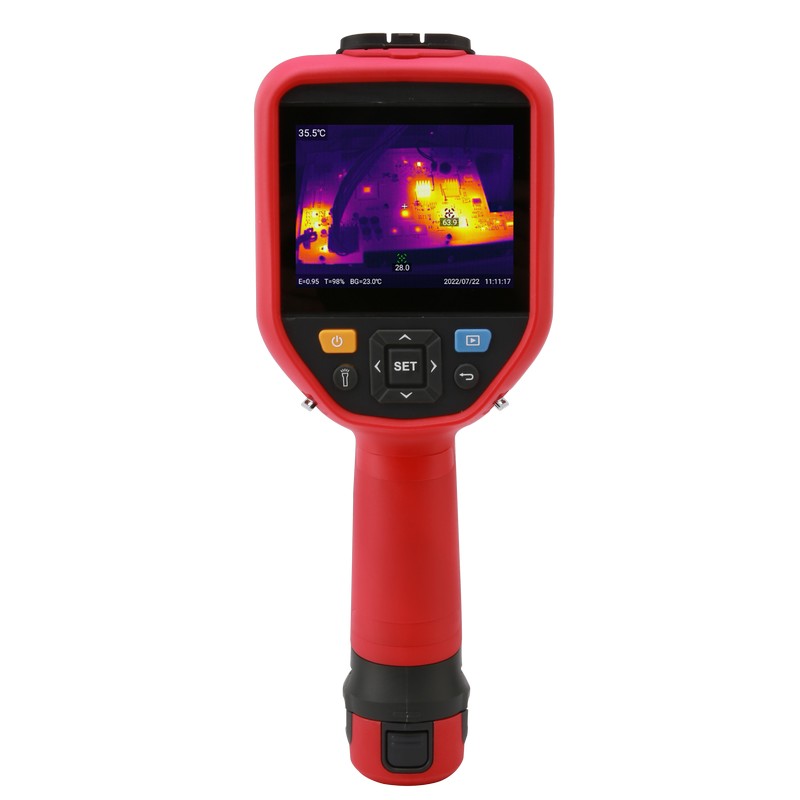

UNI-T UTI384G 384 G-Series Professional Thermal Imager - a handheld grip, control buttons, and a screen displaying a thermal image of a circuit board.
UNI-T UTI384G 384 G-Series Professional Thermal Imager - a red handheld device with a screen displaying a thermal image, navigation buttons, and a grip.

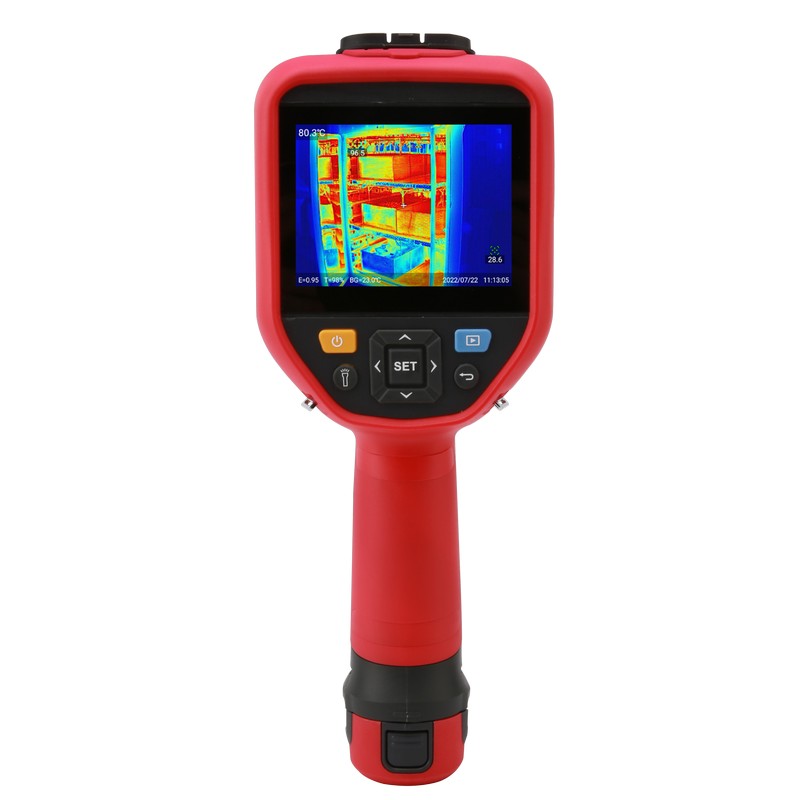

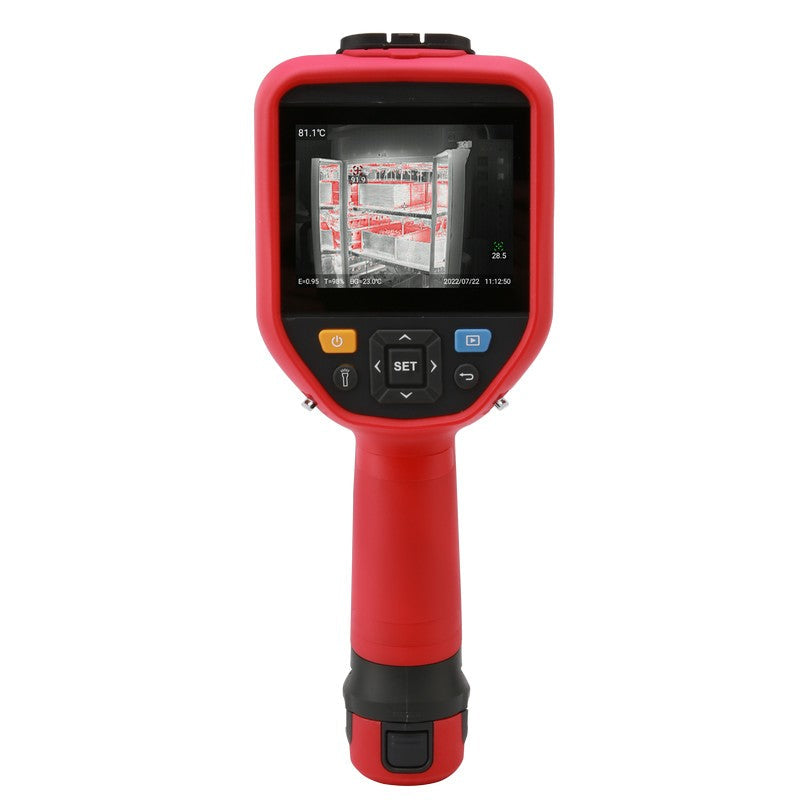

UNI-T UTI384G 384 G-Series Professional Thermal Imager - a handheld grip, control buttons, and a screen displaying a thermal image of shelving.
UNI-T UTI384G 384 G-Series Professional Thermal Imager - a pistol-grip handle, control buttons, and a screen displaying a thermal image.
UNI-T UTI384G 384 G-Series Professional Thermal Imager - a screen displaying a thermal image, control buttons, and a trigger handle.

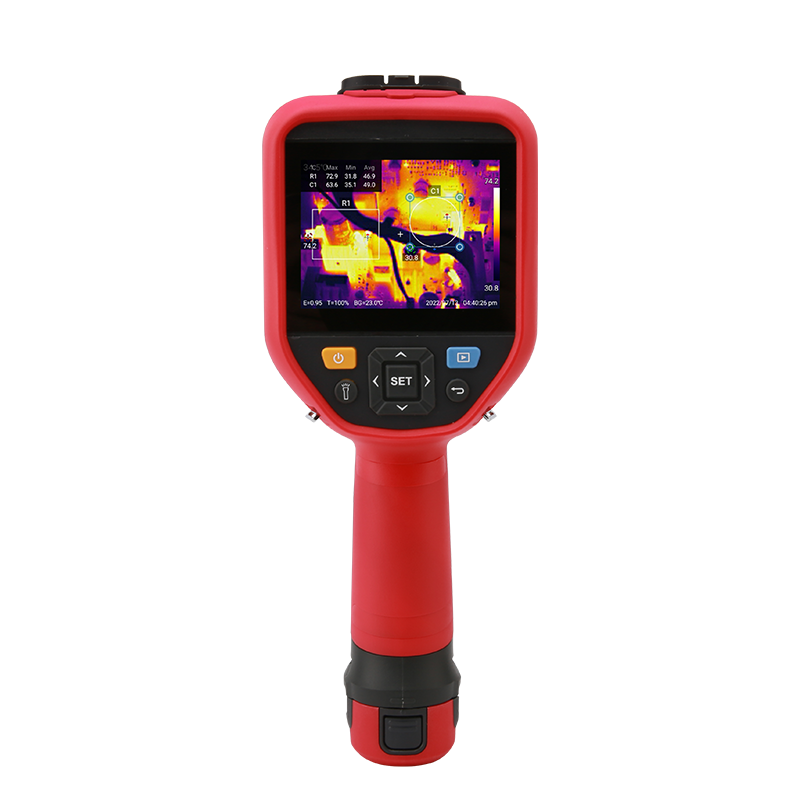

UNI-T UTI384G 384 G-Series Professional Thermal Imager - a screen showing a thermal heat map, navigation buttons, and a grip handle.

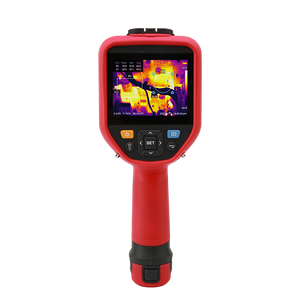

UNI-T UTI384G 384 G-Series Professional Thermal Imager - a red handheld device with a screen showing a thermal heat map, navigation buttons, and a bottom battery compartment.

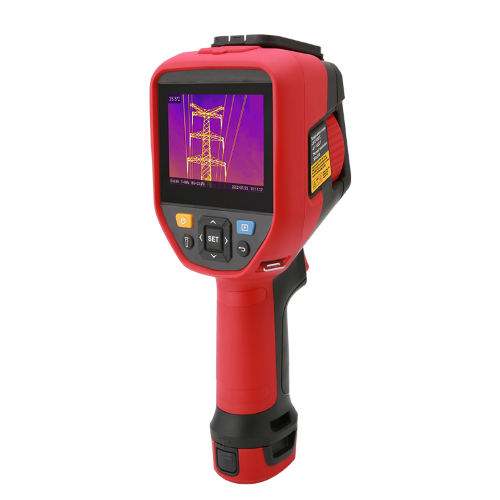

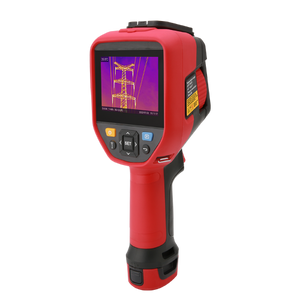

UNI-T UTI384G 384 G-Series Professional Thermal Imager - a screen displaying a power pylon, directional buttons, and a grip handle.

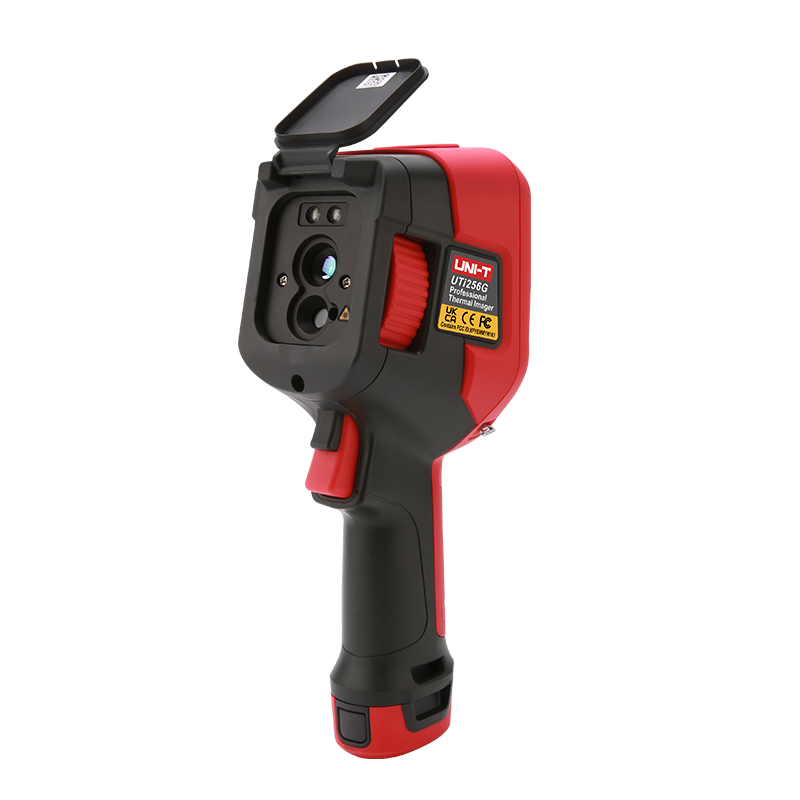

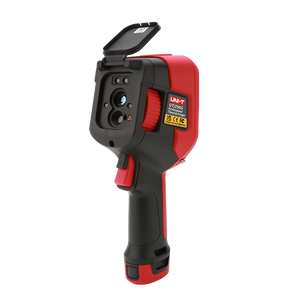

UNI-T UTI384G 384 G-Series Professional Thermal Imager - UNI-T UTI256G professional thermal imager in red and black, shown from a side angle with its lens cover open and a red trigger button visible.
UNI-T UTI384G 384 G-Series Professional Thermal Imager - a handheld grip, control buttons, and a screen displaying a thermal image of a circuit board.
UNI-T UTI384G 384 G-Series Professional Thermal Imager - a red handheld device with a screen displaying a thermal image, navigation buttons, and a grip.
UNI-T UTI384G 384 G-Series Professional Thermal Imager - a handheld grip, control buttons, and a screen displaying a thermal image of shelving.
UNI-T UTI384G 384 G-Series Professional Thermal Imager - a pistol-grip handle, control buttons, and a screen displaying a thermal image.
UNI-T UTI384G 384 G-Series Professional Thermal Imager - a screen displaying a thermal image, control buttons, and a trigger handle.
UNI-T UTI384G 384 G-Series Professional Thermal Imager - a screen showing a thermal heat map, navigation buttons, and a grip handle.
UNI-T UTI384G 384 G-Series Professional Thermal Imager - a red handheld device with a screen showing a thermal heat map, navigation buttons, and a bottom battery compartment.
UNI-T UTI384G 384 G-Series Professional Thermal Imager - a screen displaying a power pylon, directional buttons, and a grip handle.
UNI-T UTI384G 384 G-Series Professional Thermal Imager - UNI-T UTI256G professional thermal imager in red and black, shown from a side angle with its lens cover open and a red trigger button visible.

UNI-T UTI384G 384 G-Series Professional Thermal Imager

Sale price Rs 656,250
SKU: UTi384G
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UTI384G 384 G-Series Professional Thermal Imager - a handheld grip, control buttons, and a screen displaying a thermal image of a circuit board.

UNI-T UTI384G 384 G-Series Professional Thermal Imager

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UTI384G 384 G-Series Professional Thermal Imager - a handheld grip, control buttons, and a screen displaying a thermal image of a circuit board.
UNI-T UTI384G 384 G-Series Professional Thermal Imager
Sale priceRs 656,250

UNI-T UTi384G is a professional thermal imaging camera for electrical, mechanical, HVAC and building inspection. Specification UTi384G; IR resolution 384×288; Field of view 42° × 30°; On-screen analyzer 5 points / 5 lines / 5 rect / 5 circ. Genuine UNI-T supplied by Digilog.pk with manual and warranty.

Key Features

  • Specification: UTi384G
  • IR resolution: 384×288
  • Field of view: 42° × 30°
  • On-screen analyzer: 5 points / 5 lines / 5 rect / 5 circ
  • Video recording: Photo + MP4 / IRGD video
  • IR Resolution: 384×288
  • Applications: electrical panels, motors, HVAC, building & water-leak inspection

Technical Specifications

Specification UTi384G
IR resolution 384×288
Field of view 42° × 30°
On-screen analyzer 5 points / 5 lines / 5 rect / 5 circ
Video recording Photo + MP4 / IRGD video
IR Resolution 384×288
NETD ≤ 40mK
Temperature Range -20 °C (-4 °F) to 550 °C (1022 °F)
Accuracy ±2 °C or ±2% (whichever greater)
Field of View 42° × 30°
Spectral Response 7.5 - 14µm
Pixel Pitch 17µm
Refresh Rate 30 Hz
Spatial Resolution 1.91mrad
Focus Manual Focus
Digital Zoom 2x, 4x

What's in the Box

  • UTi384G thermal imaging camera
  • USB cable
  • English user manual
  • Carrying case

Downloads

Certifications: CE, RoHS | HS Code: 9027.50
