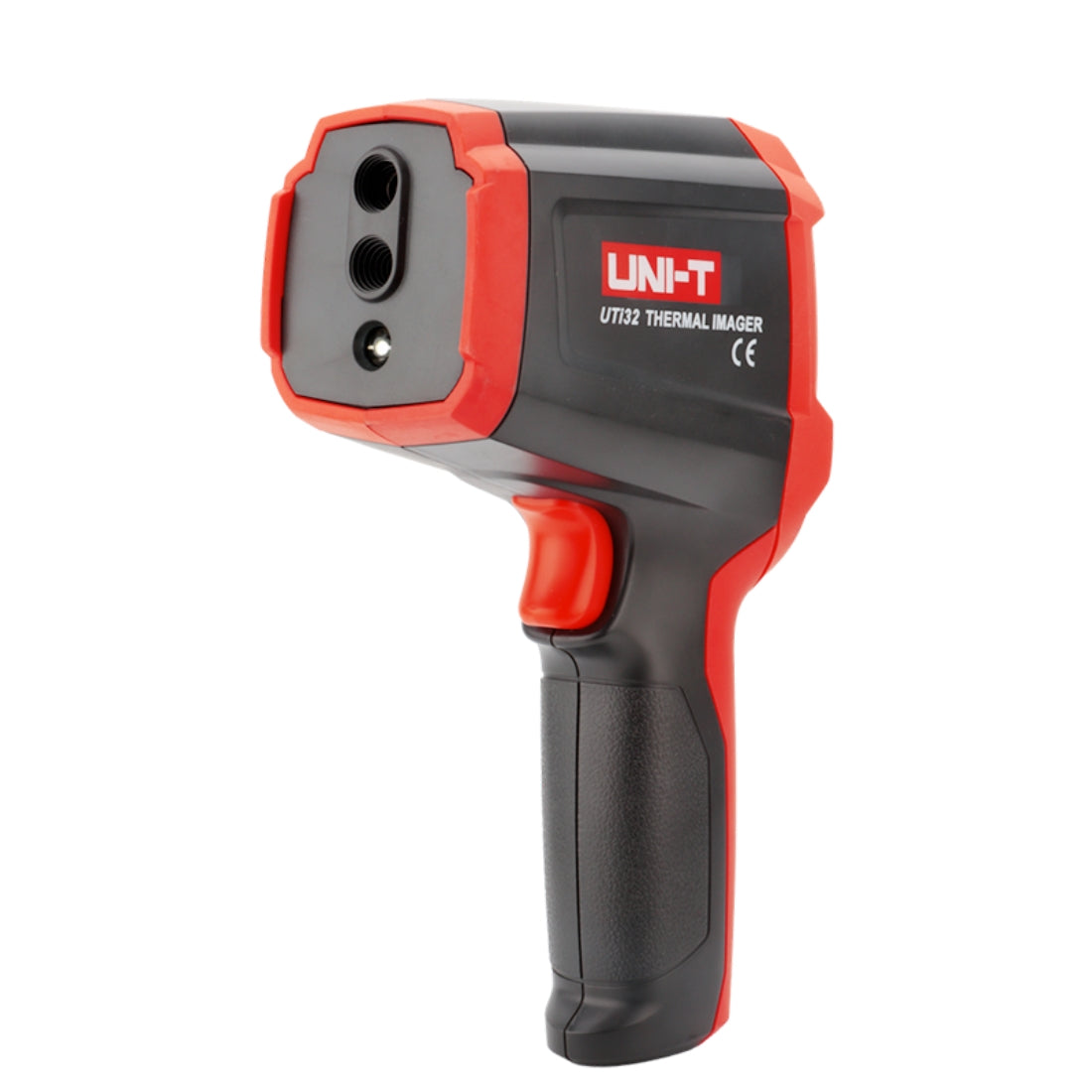

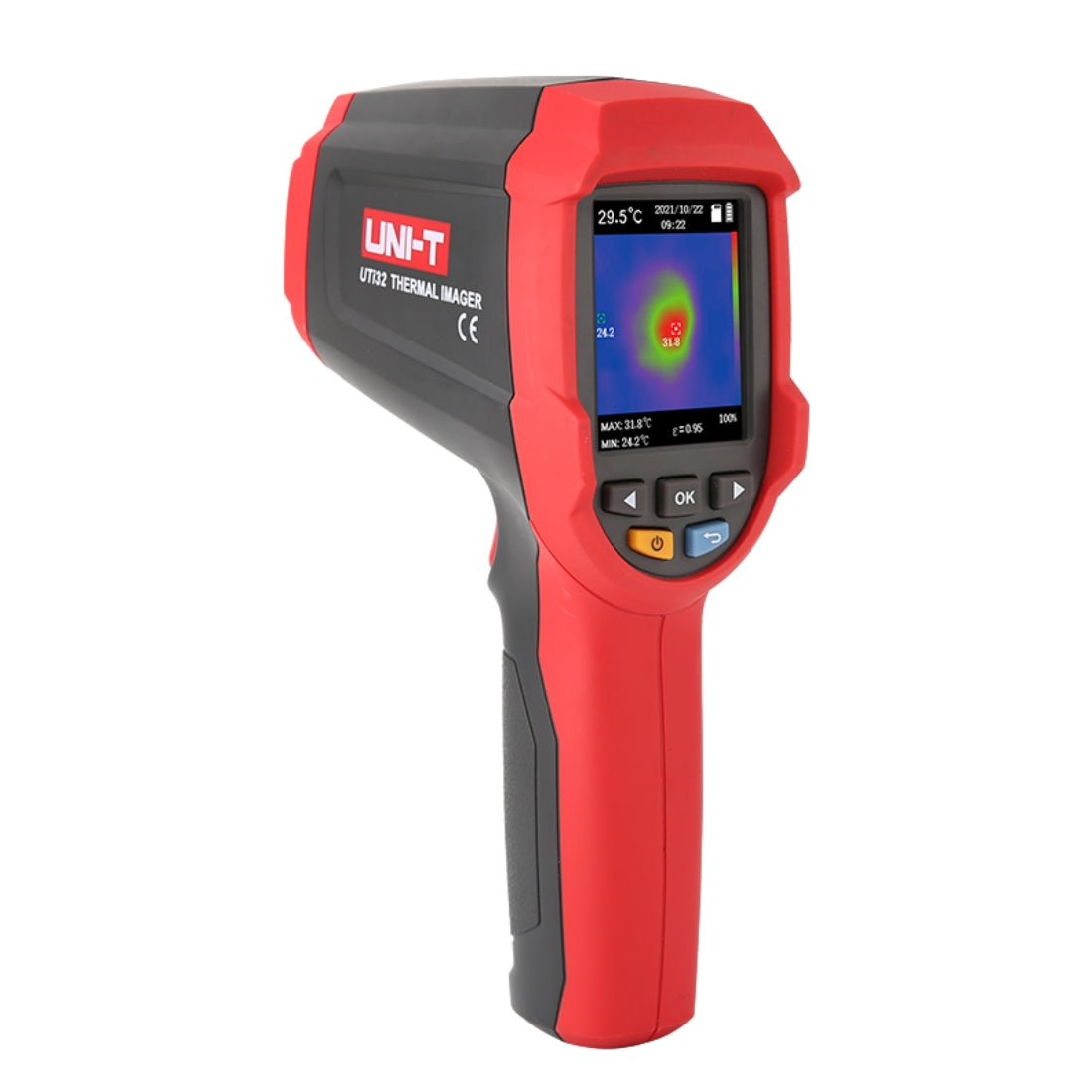

UNI-T UTi32 High Temperature Thermal Camera – 32×32, -20°C to 1000°C, 0.15°C
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UTi32 High Temperature Thermal Camera – 32×32, -20°C to 1000°C, 0.15°C

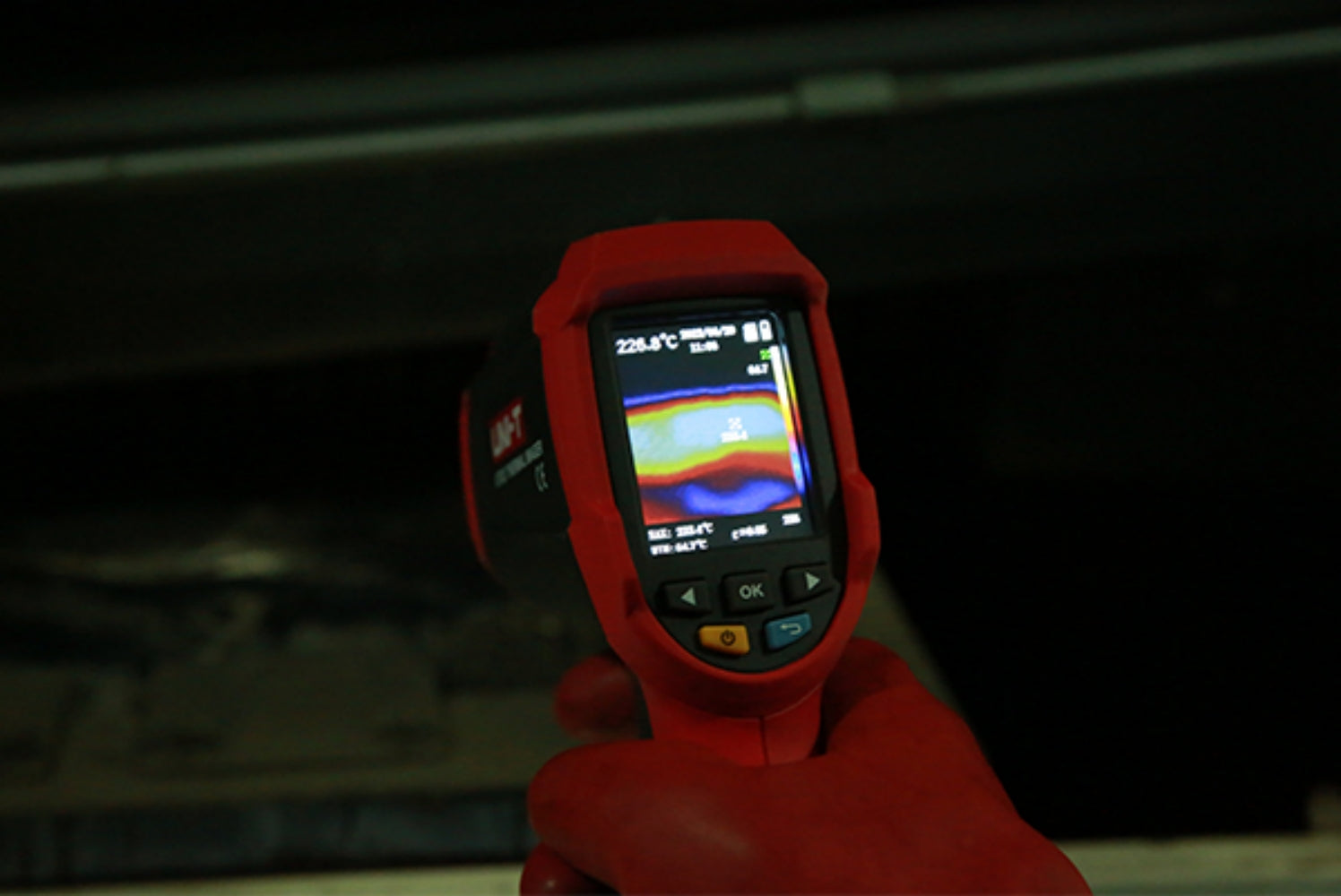

UNI-T UTi32 — IR resolution: 32×32 Temperature range: -20℃ to 1000℃ Thermal sensitivity: 0.15℃ Frame rate: ≤9Hz Applications include electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building & HVAC inspection, iron forging, glassware & porcelain production, petrochemical, metallurgy, and more.
Key Features
- IR Resolution: 32×32
- Temperature Range: -20°C to 1000°C
- Thermal Sensitivity (NETD): 0.15°C
- Frame Rate: ≤9Hz

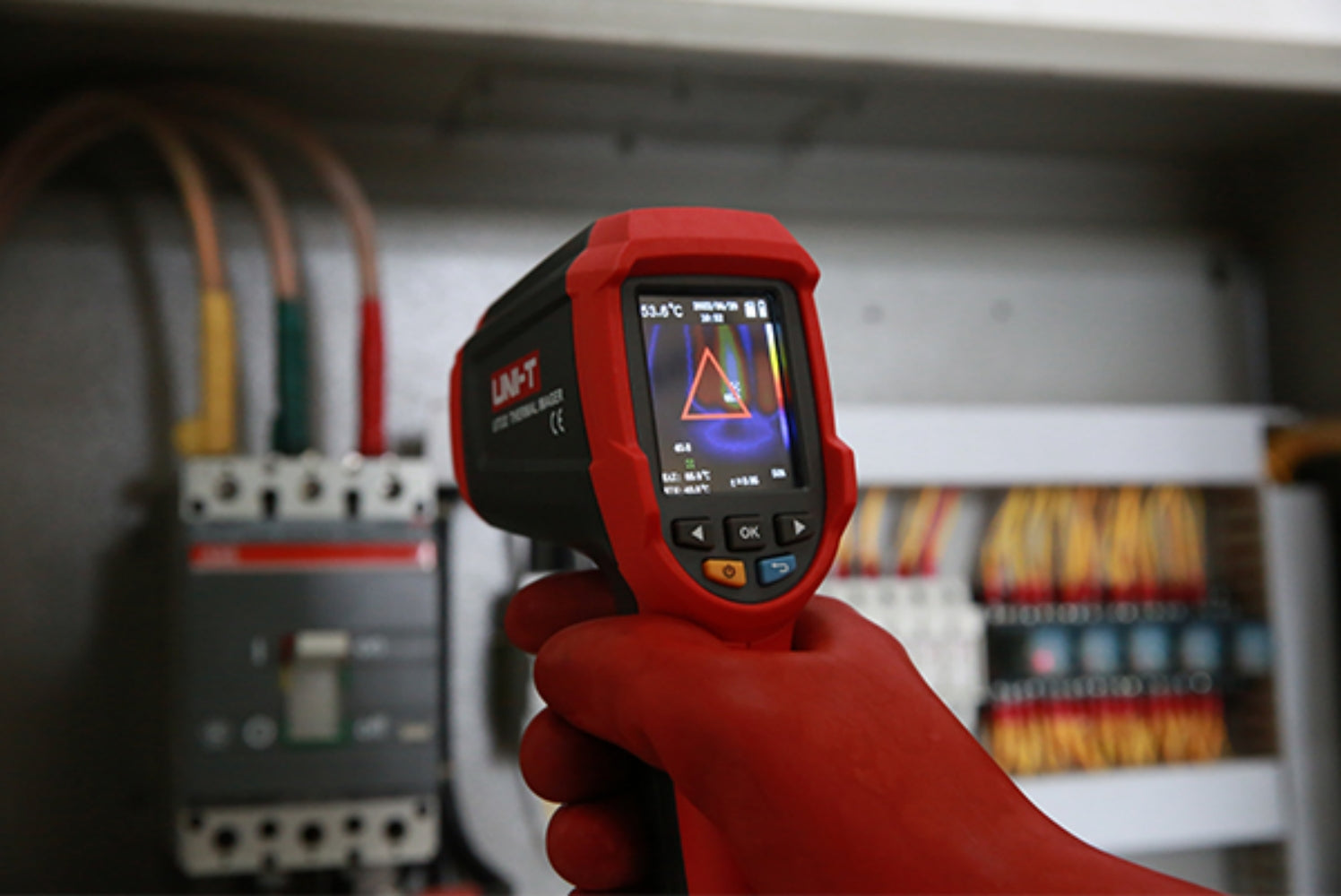

- Applications: electrical panels, motors, HVAC, building & water-leak inspection
Technical Specifications
| IR Resolution | 32×32 |
|---|---|
| Temperature Range | -20°C to 1000°C |
| Thermal Sensitivity (NETD) | 0.15°C |
| Frame Rate | ≤9Hz |
What's in the Box
- UTi32 thermal imaging camera
- USB cable
- English user manual
- Carrying case
Downloads
Certifications: CE, RoHS | HS Code: 9027.50
