UNI-T UTG962E 60 MHz 2-Channel Arbitrary Waveform Generator / Function Generator – 200 MSa/s

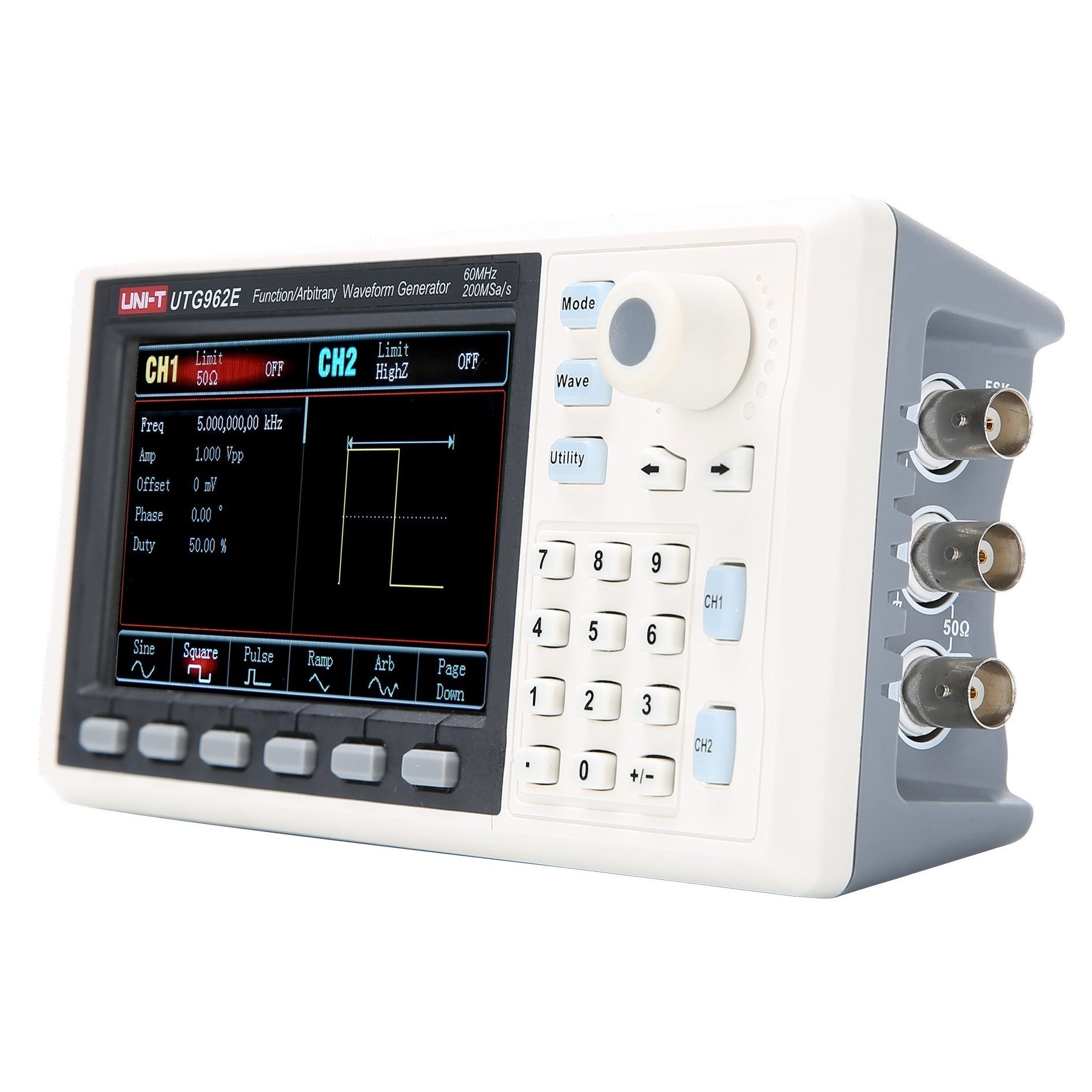

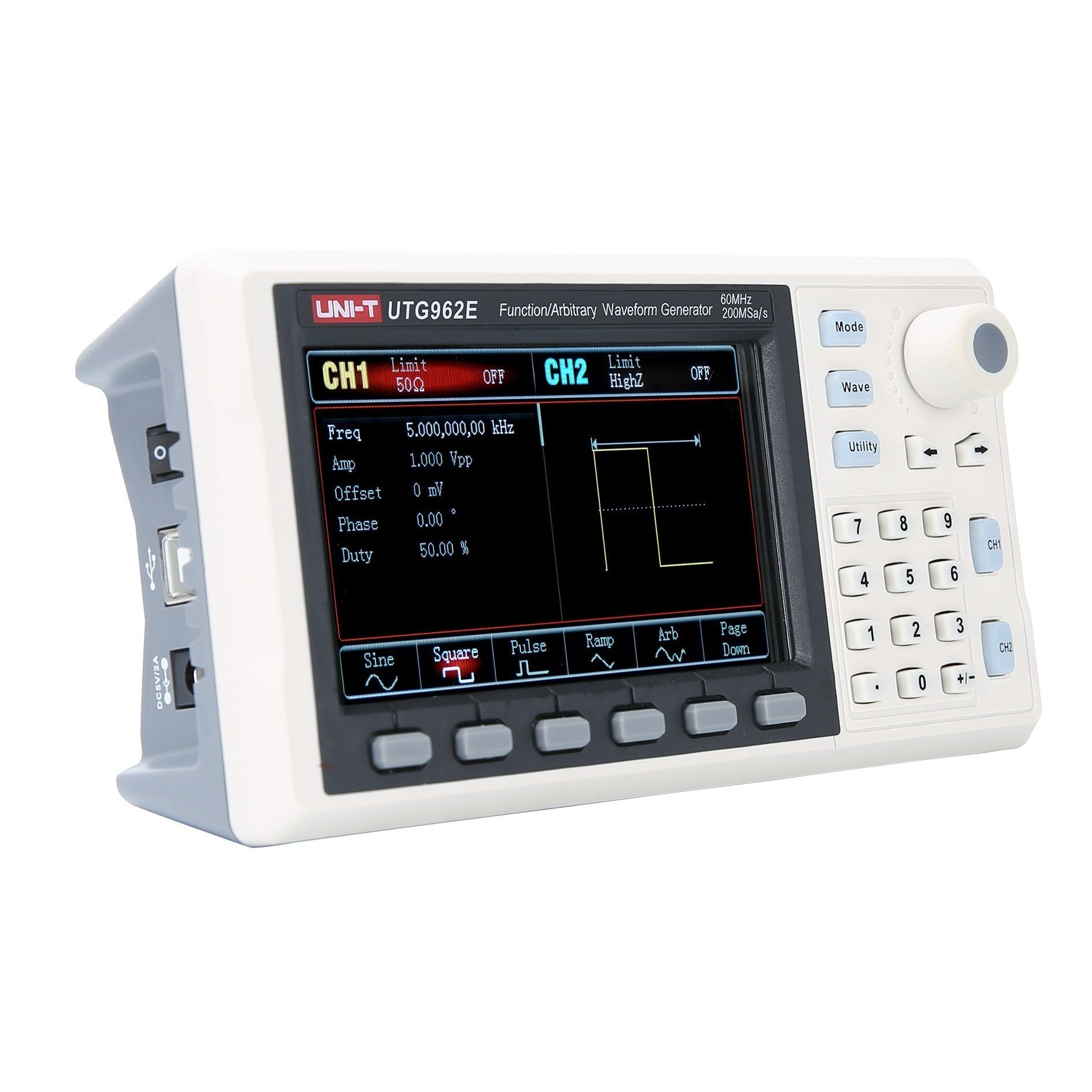

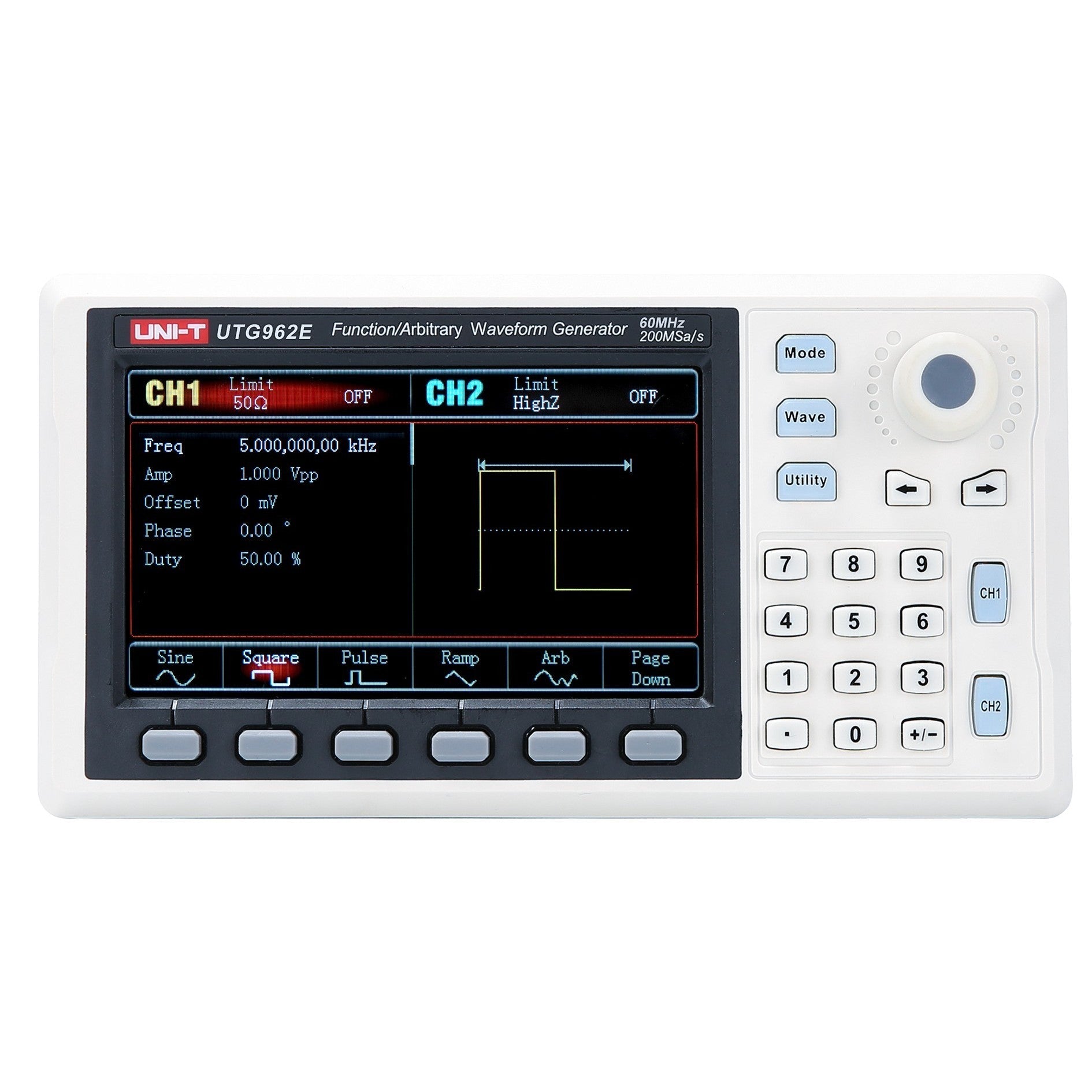

UNI-T UTG962E — The UNI-T UTG962E is a palm-sized two-channel arbitrary waveform generator producing 60 MHz sine output, 20 MHz square and pulse, with 200 MSa/s sampling and 14-bit vertical resolution. It is the bandwidth-extended member of the UTG900E Classic-Series — identical chassis, sample rate, modulation set, and DAC resolution as the UTG932E, with double the top-end sine output frequency. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- 60 MHz sine / 20 MHz square & pulse — dual-channel output with 1 µHz frequency resolution. Double the bandwidth of the UTG932E in the same chassis.
- 200 MSa/s sampling, 14-bit vertical resolution — 16,384 amplitude levels.
- Palm-sized 172 × 90 × 68 mm, 0.33 kg — same compact chassis as the UTG932E; the bandwidth upgrade carries no size penalty.
- 4 modulation types — AM, FM, PM, FSK — with internal source.
- Linear and logarithmic frequency sweep — 1 ms to 500 s sweep time.
- 24 built-in arbitrary waveforms — non-volatile storage; custom waveforms uploadable via USB.
- Built-in 7-digit frequency counter — 100 mHz to 100 MHz input range (TTL compatible).
Technical Specifications
| Max sine frequency | 60 MHz |
|---|---|
| Max square / pulse frequency | 20 MHz |
| Max ramp frequency | 400 kHz |
| Max arbitrary wave frequency | 10 MHz |
| Frequency resolution | 1 µHz |
| Channels | 2, independent |
| Sample rate | 200 MSa/s |
| Vertical resolution | 14 bits (16,384 amplitude levels) |
| Arbitrary waveform length | 4 kpts |
| Built-in arbitrary waveforms | 24, non-volatile |
| Standard waveforms | Sine, Square, Ramp, Pulse, Noise, DC, Arbitrary |
| Modulation | AM, FM, PM, FSK (internal source) |
| Sweep modes | Linear, Logarithmic |

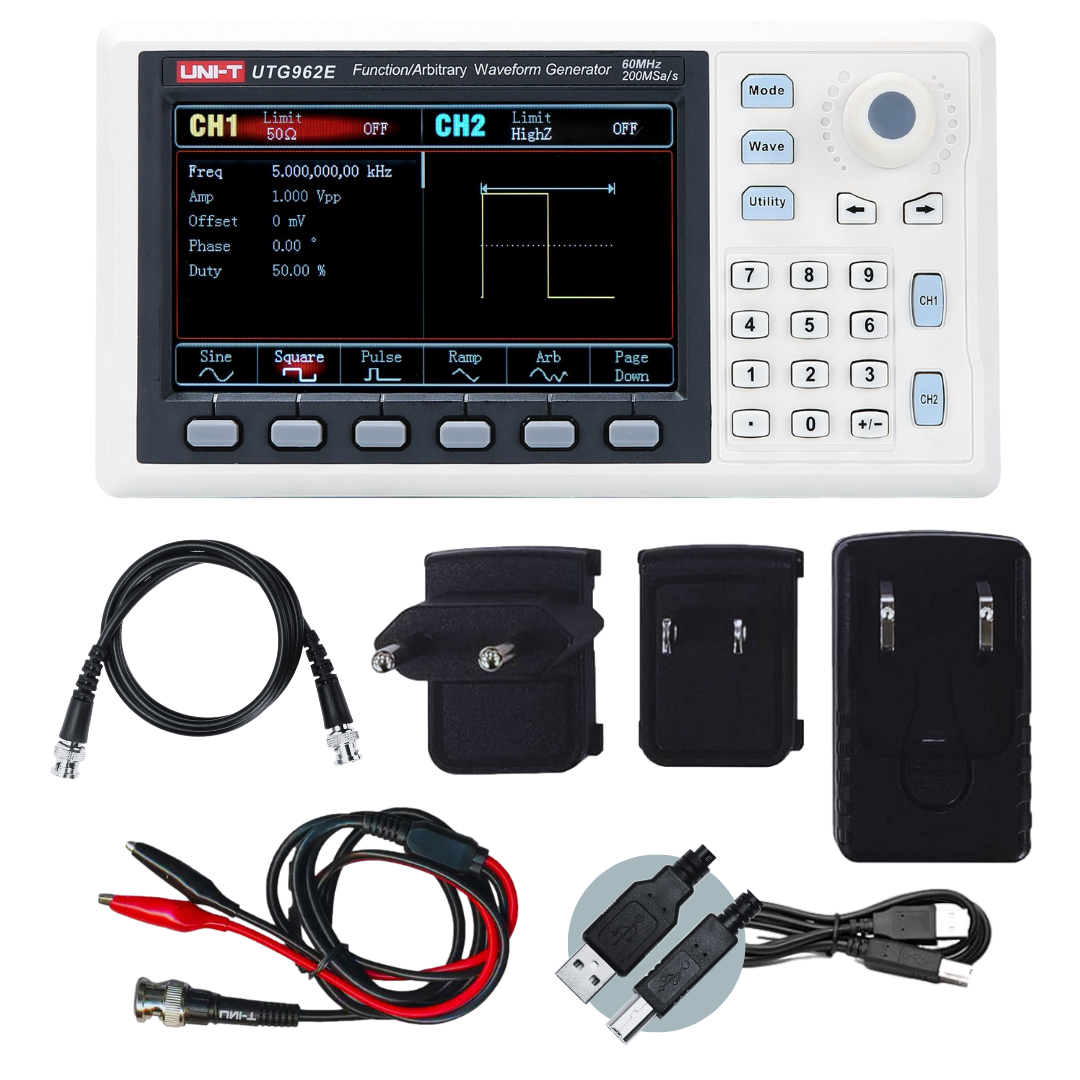

What's in the Box
- BNC straight-through cable
- BNC to alligator clip cable
- English download guide
Downloads
Certifications: CE, RoHS | HS Code: 8543.2000
